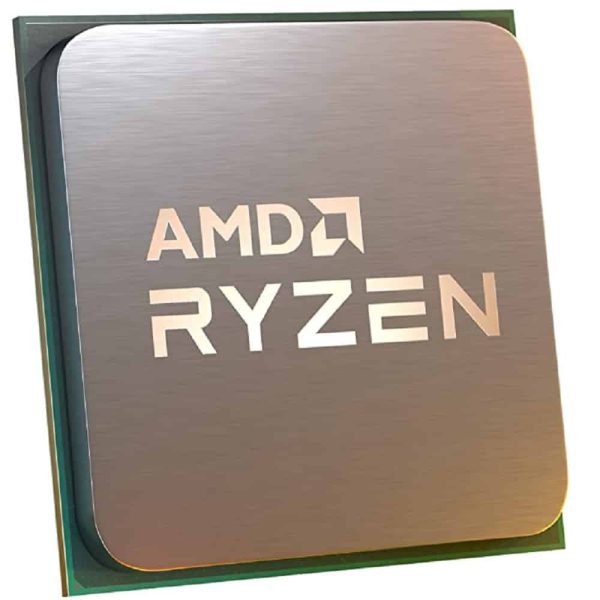

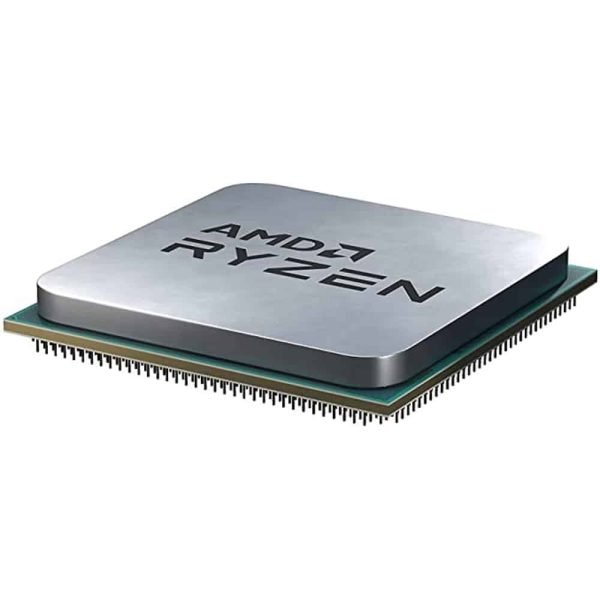

AMD Ryzen 5 5500 Desktop Processor
4th Gen Desktop Processor
PCIe 3.0 Version
16 MB Total Cache
6 Cores 12 Threads
Up to 4.2GHz Max Boost Clock
Processor Generation – 4th Gen
Cores & Threads – 6 Cores & 12 Threads
Product Family – AMD Ryzen Processors
CPU Socket – AM4 Socket
Cache Memory – L1 384KB, L2 3MB, L3 16MB
OVERVIEW
The AMD Ryzen 5 5500 processor is the new CPU in the Ryzen family based on the Zen 3 architecture. Designed for high-speed gaming performance with dual-channel DDR4 architecture supporting up to 3200MHz. The 6-core and 12-thread combo brings a complete suite of AMD CPU technology that can enhance your PC’s processing capabilities with AMD StoreMI technology and PCIe 3.0. The unlocked AMD Ryzen 5 processor has a base clock speed of 3.6GHz and a maximum boost clock of 4.2GHz. It comes with a wave stealth cooler that ensures the processor is cool enough. All of these are integrated with a 16MB combined cache for quick access to large data sets. It supports AMD Ryzen VR-Ready Premium.
TECHNICAL SPECIFICATIONS
General Specifications_
Platform_ Desktop
Market Segment_ Mainstream Desktop
Product Family_ AMD Ryzen Processors
Architecture_ “Zen 3”
Former Codename_ “Cezanne”
CPU Socket_ AM4
No. of CPU Cores_ 6
No. of Threads_ 12
Base Clock_ 3.6GHz
Max. Boost Clock_ Up to 4.2GHz
L1 Cache_ 384KB
L2 Cache_ 3MB
L3 Cache_ 16MB
Default TDP_ 65W
Processor Technology for CPU Cores_ TSMC 7nm FinFET
CPU Compute Die (CCD) Size_ 180mm²
Unlocked for Overclocking_ Yes
Thermal Solution (PIB)_ AMD Wraith Stealth
Max. Operating Temperature (Tjmax)_ 90°C
OS Support_ Windows 11 – 64-Bit Edition
Windows 8.1 – 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
Product Line_ AMD Ryzen 5 Desktop Processors
Regional Availability_ Global, China, NA, EMEA, APJ, LATAM
Multithreading (SMT)_ Yes
Package Die Count_ 1
Socket Count_ 1P
Supporting Chipsets_ X570, X470, X370, B550, B450, B350, A520
CPU Boost Technology_ Precision Boost 2
Instruction Set_ x86-64
Supported Extensions_ AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Connectivity_
PCI Express Version_ PCIe 3.0
System Memory Type_ DDR4
System Memory Specification_ Up to 3200MHz
USB Type-C Support_ Yes
Native USB 3.2 Gen 2 (10Gbps) Ports_ 4
Native USB 3.2 Gen 1 (5Gbps) Ports_ 0
Native USB 2.0 (480Mbps) Ports_ 0
Native SATA Ports_ 2
Native PCIe Lanes (Total/Usable)_ 24/20
Additional Usable PCIe Lanes from Motherboard_ AMD X570
16x Gen 3AMD X470
2x Gen 3AMD X470
8x Gen 2
NVMe Support_ Boot, RAID0, RAID1, RAID10
Memory Channels_ 2
Max. Memory_ 128GB
System Memory Subtype_ UDIMM
Max Memory Speed_ 2x1R DDR4-3200, 2x2R DDR4-3200, 4x1R DDR4-2933, 4x2R DDR4-2667
ECC Support_ No
Graphics Capabilities_
Integrated Graphics_ No
Graphics Model_ Discrete Graphics Card Required
Product IDs_
Product ID Boxed_ 100-100000457BOX
Product ID Tray_ 100-000000457
Key Features_
Supported Technologies_ AMD StoreMI Technology
AMD “Zen 3” Core Architecture
AMD Ryzen VR-Ready Premium
Specification: AMD Ryzen 5 5500 Desktop Processor
Product Type_
Processor
CPU SOCKET_
AM4
CPU PLATFORM_
AMD
Brand_
AMD
PROCESSOR SERIES_
Ryzen 5
PROCESSOR GENERATION_
3RD
PROCESSOR CORES_
6-Core
THREADS_
12
SPEED_
3.6 GHz
TURBO SPEED_
4.2 GHz
CACHE_
16 MB
INTEGRATED GRAPHICS_
NO
PERFORMANCE_
GAMING
IDEAL FOR GAMING_
YES
WARRANTY_
3 Years Warranty
