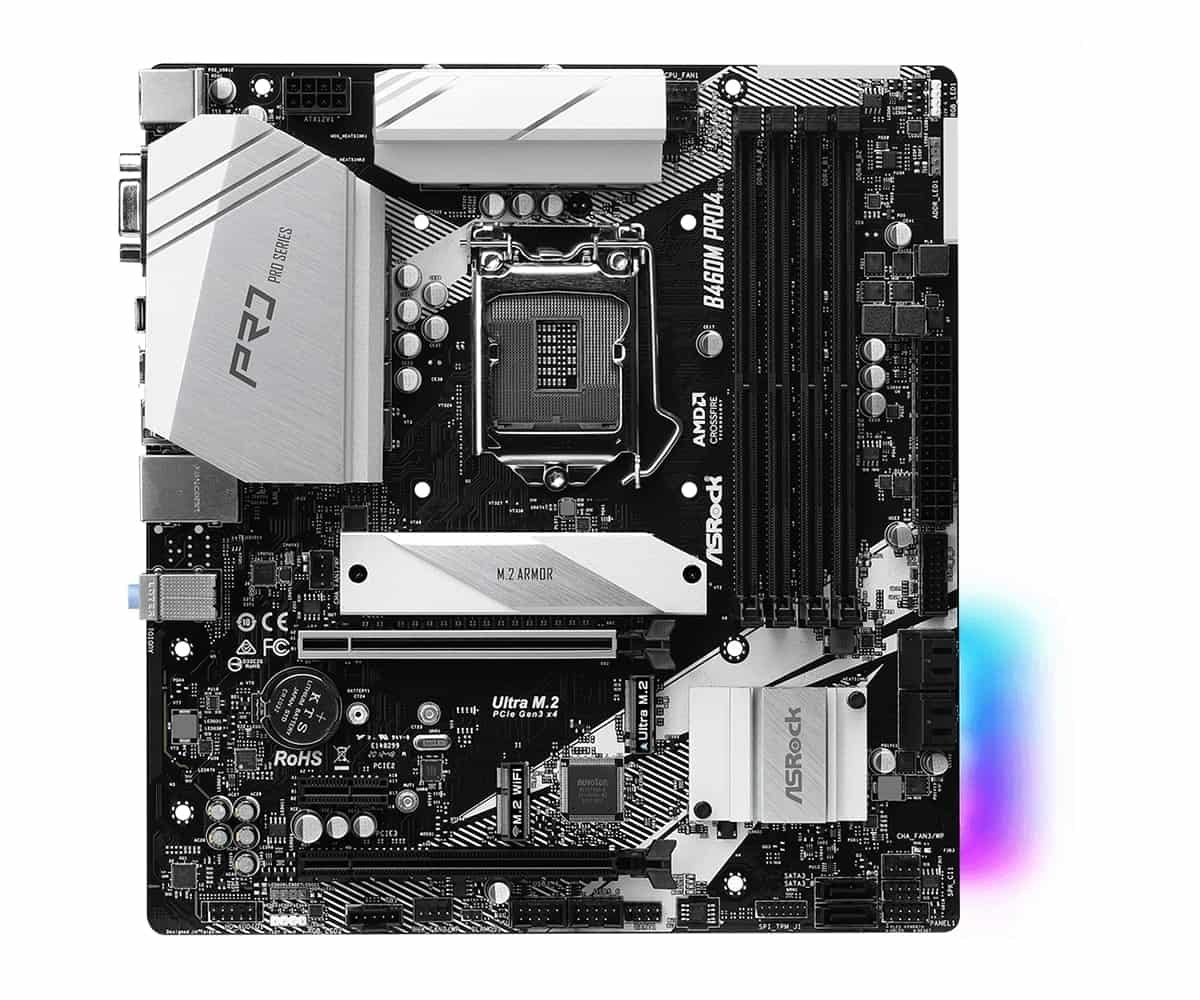

ASRock B460M PRO4 m-ATX Gaming Motherboard
Brand
Asrock
FORM FACTOR
MICRO-ATX
WARRANTY
3 Years Warranty
Product Type
Motherboards
CPU PLATFORM
INTEL
CPU SOCKET
LGA1200
MEMORY TYPE
DDR4
CHIPSET
Intel B460
MAXIMUM MEMORY
128 GB
IDEAL FOR GAMING
YES
ASRock B460M PRO4 LGA 1200 Intel B460 SATA 6Gb/s Micro ATX Intel Gaming Motherboard
FEATURES :
Supports 10th Gen Intel Core Processors (Socket 1200)
9 Power Phase Design
Supports DDR4 2933MHz
2 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 (Key E) for WiFi
AMD Quad CrossFire and CrossFire
Graphics Output Options : HDMI, D-Sub, DisplayPort
7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 Ultra M.2 (PCIe Gen3 x4)
7 USB 3.2 Gen1 (2 Front, 4 Rear, 1 Rear Type-C)
Intel Gigabit LAN
Polychrome SYNC
TECHNICAL SPECIFICATIONS :
Unique Feature :
ASRock Super Alloy
Premium 50A Power Choke
Sapphire Black PCB
High Density Glass Fabric PCB
ASRock Steel Slots
ASRock Full Coverage M.2 Heatsink
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock POST Status Checker (PSC)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU :
Supports 10th Gen Intel Core Processors (Socket 1200)
Digi Power design
9 Power Phase design
Supports Intel Turbo Boost Max 3.0 Technology
Chipset :
Intel B460
Memory :
Dual Channel DDR4 Memory Technology
4 x DDR4 DIMM Slots
Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
Supports ECC UDIMM memory modules (operate in non-ECC mode)
Max. capacity of system memory: 128GB**
Supports Intel Extreme Memory Profile (XMP) 2.0
15μ Gold Contact in DIMM Slots
*Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS :
128Mb AMI UEFI Legal BIOS with multilingual GUI support
ACPI 6.0 Compliant wake up events
SMBIOS 2.7 Support
CPU Core/Cache, GT, DRAM, VPPM, PCH 1.05V, VCCST, VCCSA Voltage Multi-adjustment
Graphics :
Hardware Accelerated Codecs : AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
Display & Content Security : Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD/HDR Blu-ray Disc
Three graphics output options : D-Sub, HDMI and DisplayPort 1.4
Supports Triple Monitor
Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz
Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096×2304) @ 60Hz
Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
Supports HDCP 2.3 with HDMI 1.4 and DisplayPort 1.4 Ports
Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.4 Ports
*Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
**VP9 10bit and VC-1 are for decode only.VP8 and VP9 encode are not supported by Windows OS.
Audio :
7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
Premium Blu-ray Audio support
Supports Surge Protection
ELNA Audio Caps
PCB Isolate Shielding- Individual PCB Layers for R/L Audio Channel
Nahimic Audio
LAN :
Gigabit LAN 10/100/1000 Mb/s
Giga PHY Intel I219V
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports PXE
Slots :
2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3 : single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))
1 x PCI Express 3.0 x1 Slot
Supports AMD Quad CrossFireX and CrossFireX
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT Module
*Supports NVMe SSD as boot disks
Storage :
6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17), NCQ, AHCI and Hot Plug*
1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
***If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
**Supports Intel Optane Technology (M2_1)Supports NVMe SSD as boot disksSupports ASRock U.2 Kit
Connector :
1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
2 x RGB LED Headers*
2 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 3 AIC R2.0 Card only)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
*Support in total up to 12V/3A, 36W LED Strip
**Support in total up to 5V/3A, 15W LED Strip
***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.

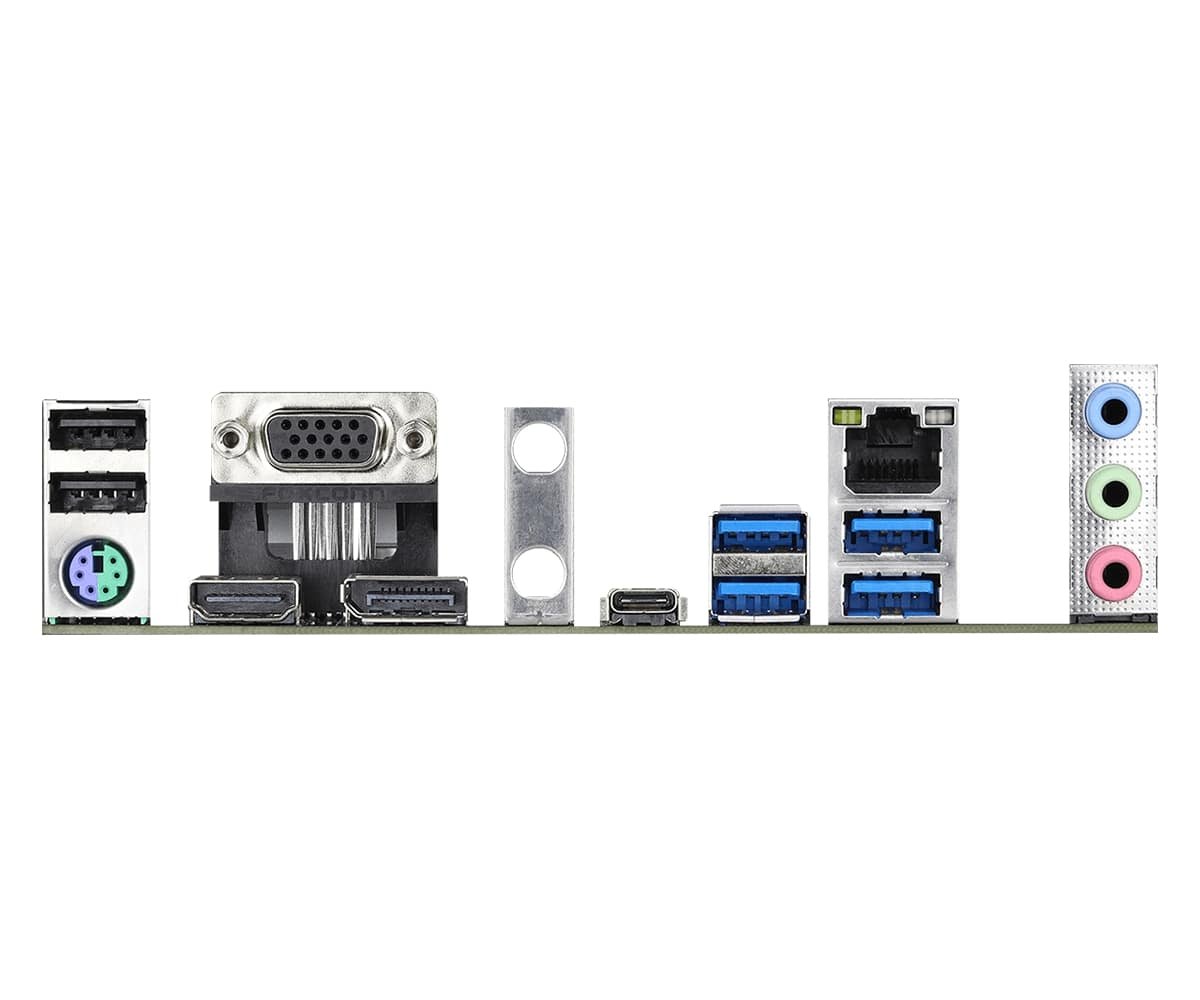

Rear Panel I/O :
1 x Antenna Bracket
1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x HDMI Port
1 x DisplayPort 1.4
4 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)
2 x USB 2.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks : Line in / Front Speaker / Microphone
Software and UEFI :
Software –
ASRock Motherboard Utility (A-Tuning)
ASRock Polychrome SYNC
ASRock XFast LAN
UEFI –
ASRock EZ Mode
ASRock Full HD UEFI
ASRock My Favorites in UEFI
ASRock Instant Flash
ASRock Internet Flash
ASRock Easy RAID Installer
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD :
Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories :
Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables
3 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket
Hardware Monitor :
Temperature Sensing : CPU, CPU/Water Pump, Chassis/Water Pump Fans
Fan Tachometer : CPU, CPU/Water Pump, Chassis/Water Pump Fans
Quiet Fan (Auto adjust chassis fan speed by CPU temperature) : CPU, CPU/Water Pump, Chassis/Water Pump Fans
Fan Multi-Speed Control : CPU, CPU/Water Pump, Chassis/Water Pump Fans
CASE OPEN detection
Voltage monitoring : +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH, VCCSA, VCCST
Form Factor :
Micro ATX Form Factor : 9.6-in x 9.0-in, 24.4 cm x 22.9 cm
Solid Capacitor Design
OS :
Microsoft Windows 10 64-bit
Certifications :
FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required)
