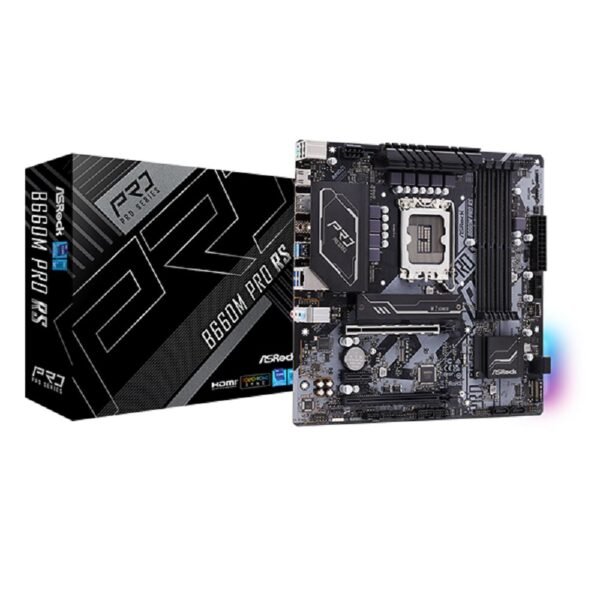

ASRock B660M Pro RS | Micro ATX Motherboard | Support LGA1700 Socket
Micro ATX Form Factor
Intel B660 Chipset
Intel Gigabit LAN
12th Gen Intel Core Processors
4 x DDR4 DIMM (128GB) Memory
Model – B660 Pro RS
Memory – DDR4 Up to 128GB
Chipset – Intel B660
CPU Socket – LGA1700
Graphics Output Options – HDMI, DisplayPort
OVERVIEW
The ASRock B660M Pro RS Micro ATX motherboard has powerful components and the CPU has a completely smooth power delivery, providing improved performance for gamers. In addition to the built-in RGB illumination, it has an onboard RGB header and an addressable RGB header that allows the motherboard to be connected to compatible LED devices such as a strip, CPU fan, cooler, and chassis. Users can synchronize RGB. Across Polychrome RGB sync-certified accessories, LED devices create their own unique lighting effects. Whether you’re using headphones, headsets, external or internal speakers via USB, Wi-Fi, analog output, or even HDMI, Nehemic Audio enriches you with the most exciting listening experience, vivid and detailed. The ASRock B660M Pro RS Micro ATX motherboard can accommodate multiple M.2 storage devices with a PCI Express 4.0 M.2 SSD, capable of performing at twice the speed of the previous 3rd generation, providing a lightning-fast data transfer experience.
In this Motherboard, Intel LAN offers excellent throughput performance, low CPU usage, and enhanced stability and is able to provide users with the ultimate network experience.
TECHNICAL SPECIFICATIONS
Model B660M Pro RS
CPU – Supports 12th Gen Intel Core Processors (LGA1700)
– Digi Power design
– 8 Power Phase design
– Supports Intel Hybrid Technology
– Supports Intel Turbo Boost Max 3.0 Technology
Chipset – Intel B660
Form Factor – Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
– Solid Capacitor design
Memory – Dual-Channel DDR4 Memory Technology
– 4 x DDR4 DIMM Slots
– Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. the capacity of system memory: 128GB
– Supports Intel Extreme Memory Profile (XMP) 2.0
BIOS – 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.0 Compliant wake-up events
– SMBIOS 2.7 Support
– CPU Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
Graphics – Intel Xe Graphics Architecture (Gen 12)
– Dual graphics output: Support HDMI and DisplayPort 1.4 ports by independent display controllers
– Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096×2160) at 60Hz
– Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680×4320) at 60Hz / 5K (5120×3200) at 120Hz
– Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
Audio – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Supports Surge Protection
– Nahimic Audio
LAN – Gigabit LAN 10/100/1000 Mb/s
– Giga PHY Intel I219V
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports UEFI PXE
Slots CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode*
– 1 x PCIe 3.0 x1 Slot (PCIE2)*
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT)
– Supports AMD CrossFire
Storage CPU:
– 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
– 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3 x4 (32 Gb/s) mode*
– 4 x SATA3 6.0 Gb/s Connectors**
*Supports Intel Optane Memory H Series (M2_2 only)
Supports Intel Volume Management Device (VMD)
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
** If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
Connector – 1 x SPI TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x RGB LED Header
* Supports in total up to 12V/3A, 36W LED Strip
– 3 x Addressable LED Headers
* Support in total up to 5V/3A, 15W LED Strip
– 1 x CPU Fan Connector (4-pin)
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
* The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
– 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
* The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
* CPU_FAN2/WP, CHA_FAN1~3/WP can auto-detect if a 3-pin or 4-pin fan is in use.
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
– 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)
Rear Panel I/O – 3 x Antenna Mounting Points
– 1 x PS/2 Mouse/Keyboard Port
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)
– 2 x USB 2.0 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock Polychrome SYNC
– ASRock XFast LAN
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Easy RAID Installer
Support CD – Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories – Quick Installation Guide, Support CD, I/O Shield
– 2 x SATA Data Cables
– 3 x Screws for M.2 Sockets
– 1 x Standoff for M.2 Socket
Hardware Monitor – Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Quiet Fan (Auto adjust the chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
– CASE OPEN detection
– Voltage monitoring: CPU Vcore, +1.05V_PCH, DRAM, VCCIN AUX, VCCSA, +1.05V PROC, +0.82V PCH, +12V, +5V, +3.3V
OS – Microsoft Windows 10 64-bit / 11 64-bit
Certifications – FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
Unique Feature ASRock Super Alloy
– Premium Power Choke
– Sapphire Black PCB
– High-Density Glass Fabric PCB
ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology ASRock Steel Slot ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
Product Dimension 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Specification: ASRock B660M Pro RS | Micro ATX Motherboard | Support LGA1700 Socket
Brand
Asrock
Product Type
Motherboards
CPU PLATFORM
INTEL
CPU SOCKET
LGA1700
CHIPSET
Intel B660
MAXIMUM MEMORY
128 GB
FORM FACTOR
MICRO ATX
IDEAL FOR GAMING
YES
WARRANTY
3 Years Warranty
