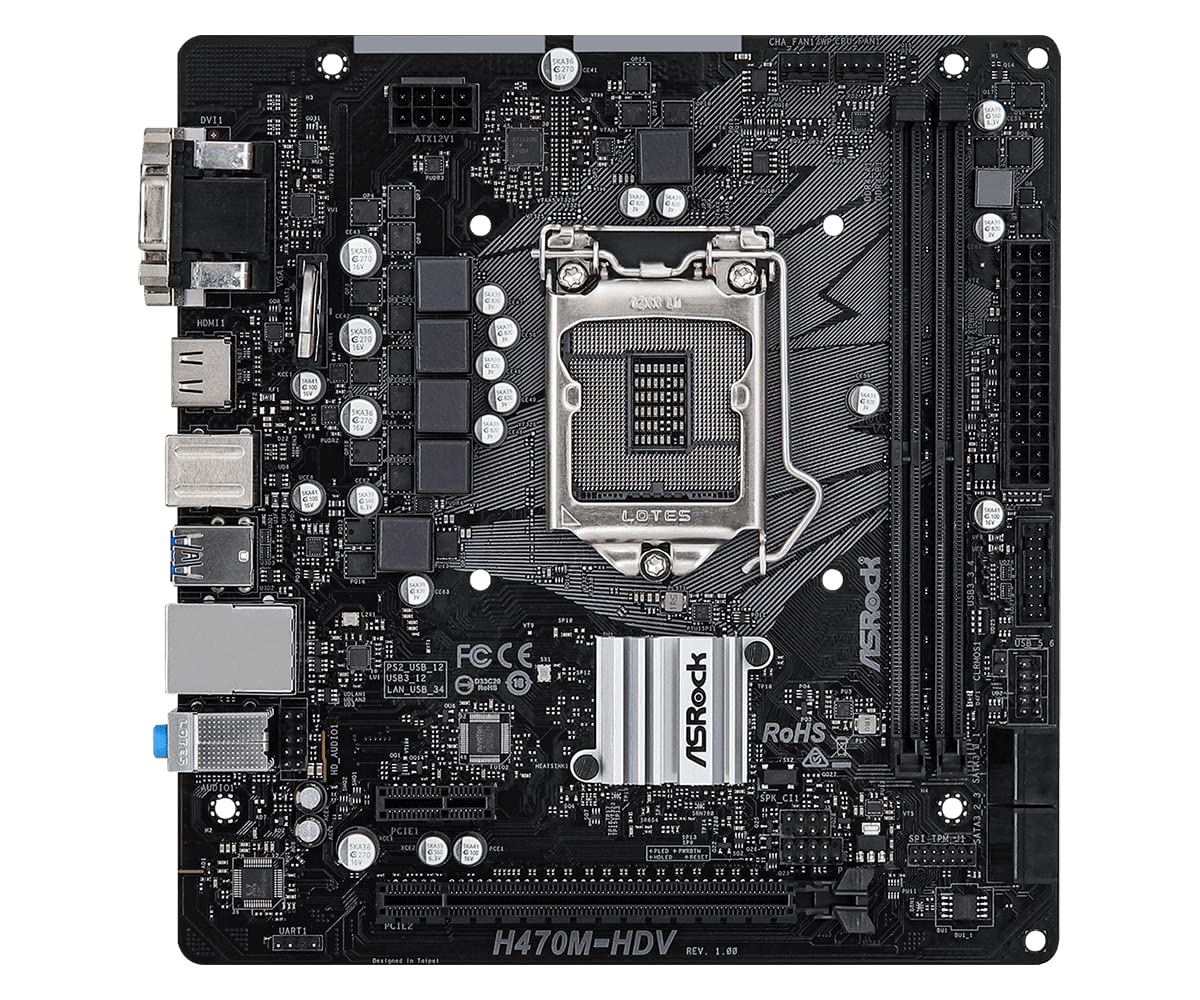

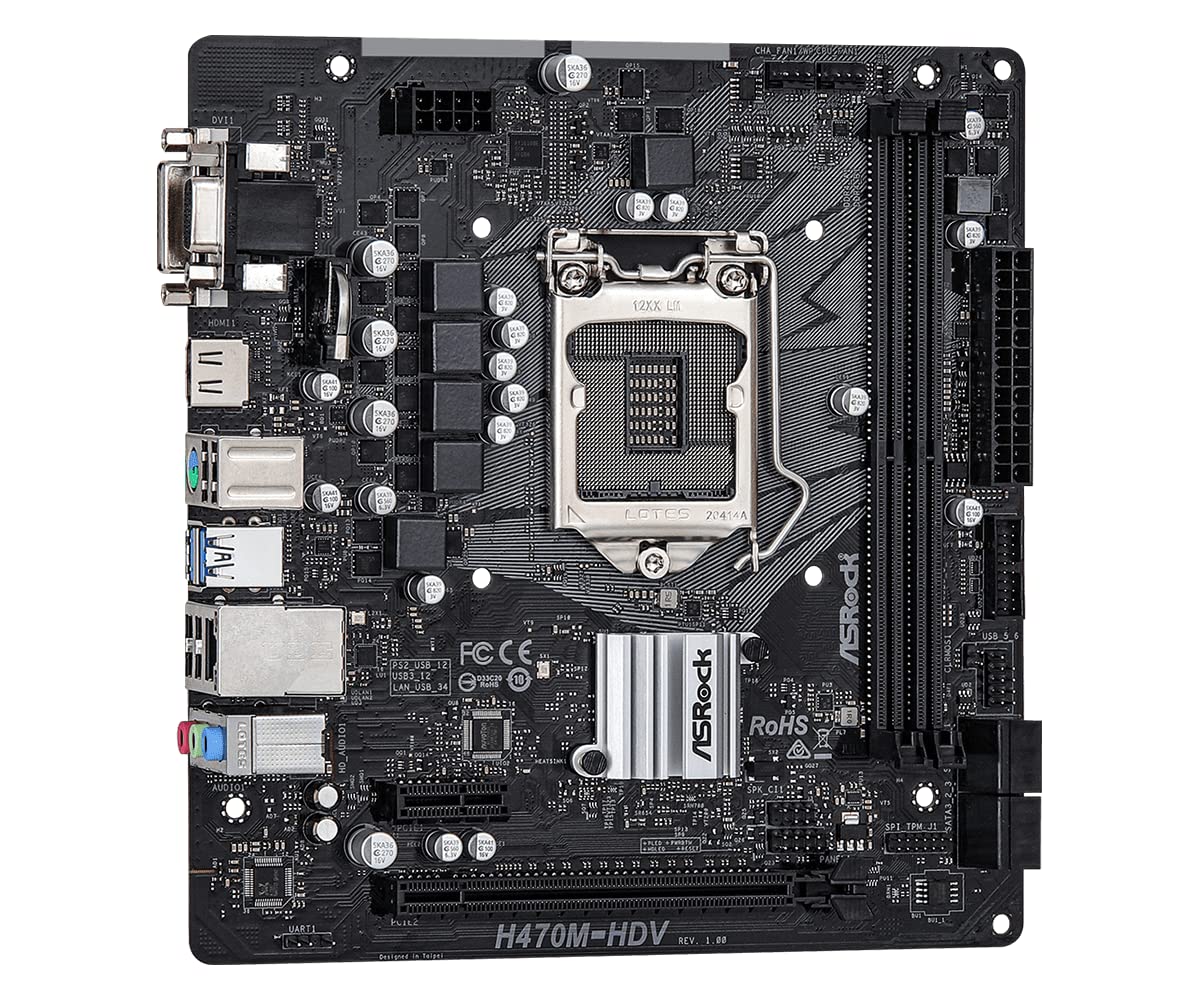

ASROCK H470M-HDV MOTHERBOARD (INTEL SOCKET 1200/10TH GENERATION CORE SERIES CPU/MAX 64GB DDR4 2933MHZ MEMORY)

Supports 10th Gen Intel Core Processors (Socket 1200)
Supports DDR4 2933MHz
1 PCIe 3.0 x16, 1 PCIe 3.0 x1
Graphics Output Options : HDMI, D-Sub, DVI
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
4 SATA3
4 USB 3.2 Gen1 (2 Front, 2 Rear)

Specification :

Unique Feature ASRock Super Alloy
Premium 50A Power Choke
Sapphire Black PCB
High Density Glass Fabric PCB
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU Supports 10th Gen Intel Core Processors (Socket 1200)
Digi Power design
5 Power Phase design
Supports Intel Turbo Boost Max 3.0 Technology
Chipset Intel H470
Memory Dual Channel DDR4 Memory Technology
2 x DDR4 DIMM Slots
Supports DDR4 2933/2800/2666 / 2400 / 2133 non-ECC, un-buffered memory*
Supports ECC UDIMM memory modules (operate in non-ECC mode)
Max. capacity of system memory: 64GB**
Supports Intel Extreme Memory Profile (XMP) 2.0
15μ Gold Contact in DIMM Slots
*Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation
BIOS 128Mb AMI UEFI Legal BIOS with multilingual GUI support
ACPI 6.0 Compliant wake up events
SMBIOS 2.7 Support
CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustment
Graphics Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD Blu-ray Disc
Three graphics output options: D-Sub, DVI-D and HDMI
Supports Triple Monitor
Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz
Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
Supports HDCP 2.3 with DVI-D and HDMI 1.4 Ports
Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port
*Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
**VP9 10bit and VC-1 are for decode only.
VP8 and VP9 encode are not supported by Windows OS.
Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Supports Surge Protection
LAN PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Realtek RTL8111H
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports PXE
Slots 1 x PCI Express 3.0 x16 Slot*
1 x PCI Express 3.0 x1 Slot
*Supports NVMe SSD as boot disks
Storage 1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)*
1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

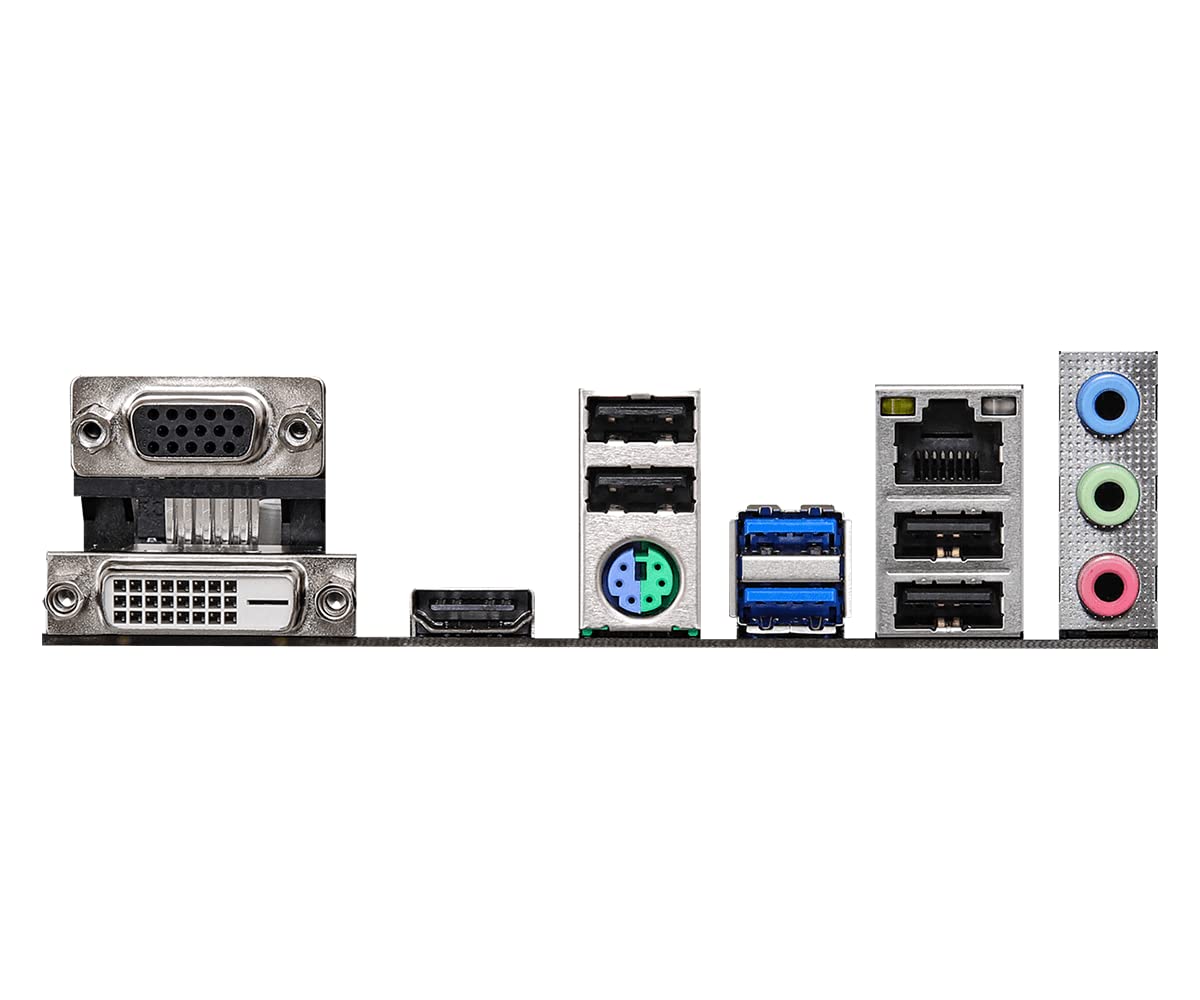

Rear Panel I/O 1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x DVI-D Port
1 x HDMI Port
4 x USB 2.0 Ports (Supports ESD Protection)
2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI Software
ASRock Motherboard Utility (A-Tuning)
ASRock XFast LAN
UEFI
ASRock EZ Mode
ASRock Full HD UEFI
ASRock My Favorites in UEFI
ASRock Instant Flash
ASRock Internet Flash
ASRock Easy RAID Installer
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables
Hardware Monitor Temperature Sensing: CPU, Chassis/Water Pump Fans
Fan Tachometer: CPU, Chassis/Water Pump Fans
Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
CASE OPEN detection
CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustment
Form Factor Micro ATX Form Factor: 7.76-in x 7.4-in, 19.7 cm x 18.8 cm
Solid Capacitor design
OS Microsoft Windows 10 64-bit
Certifications FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required)
Warranty 3 Years
