ASRock H81M VG4 R4.0 | Micro ATX Motherboard

Model – H81M-VG4 R4.0

Memory – DDR3

Chipset – Intel H81

CPU – 4th Generation Intel Core Processors

Graphics Output Options – D-Sub, VGA

Recommended reading:MSI MAG Z490 Tomahawk ATX Gaming Motherboard

OVERVIEW

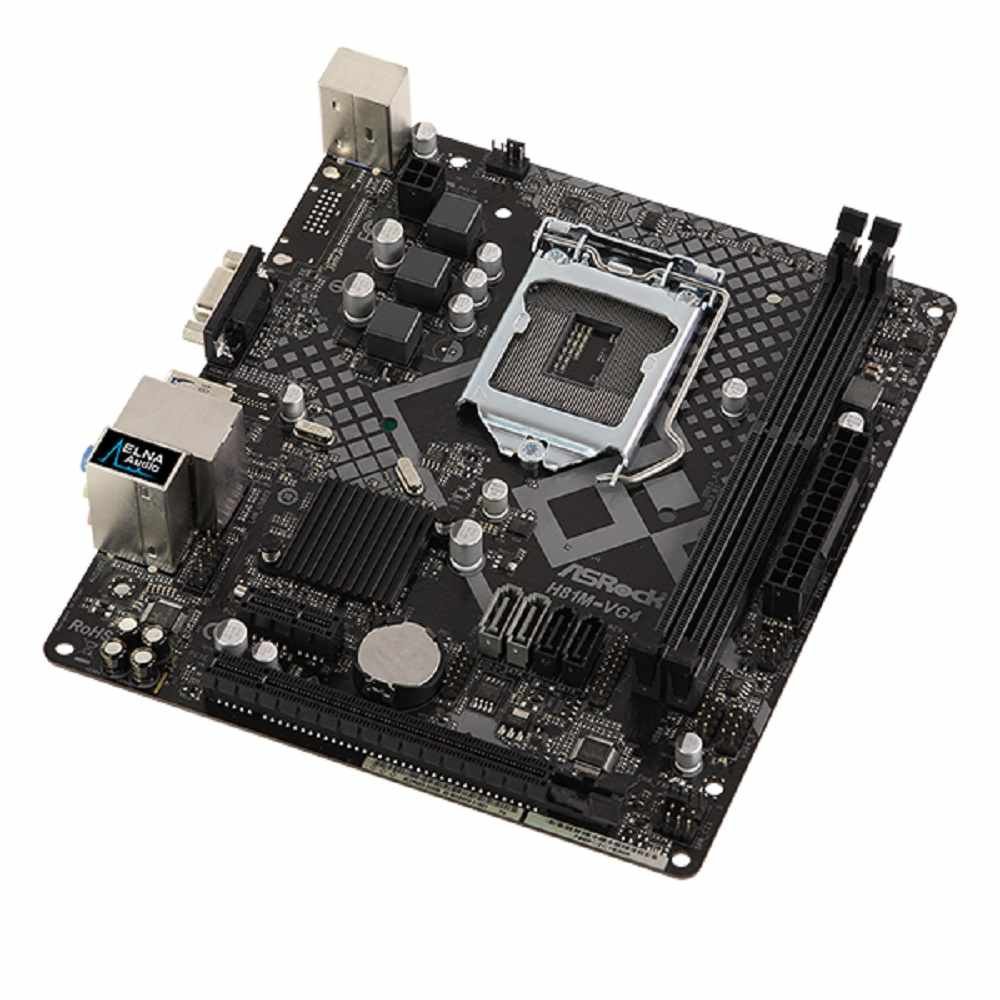

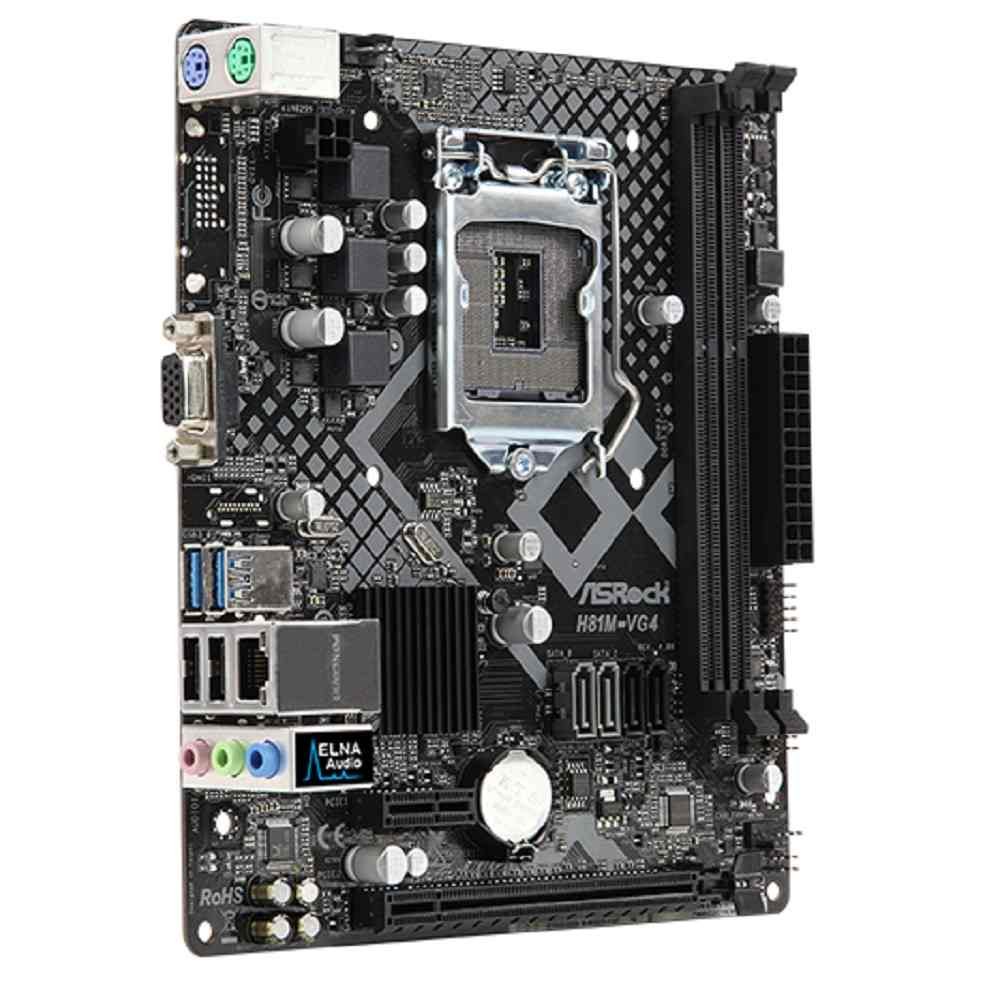

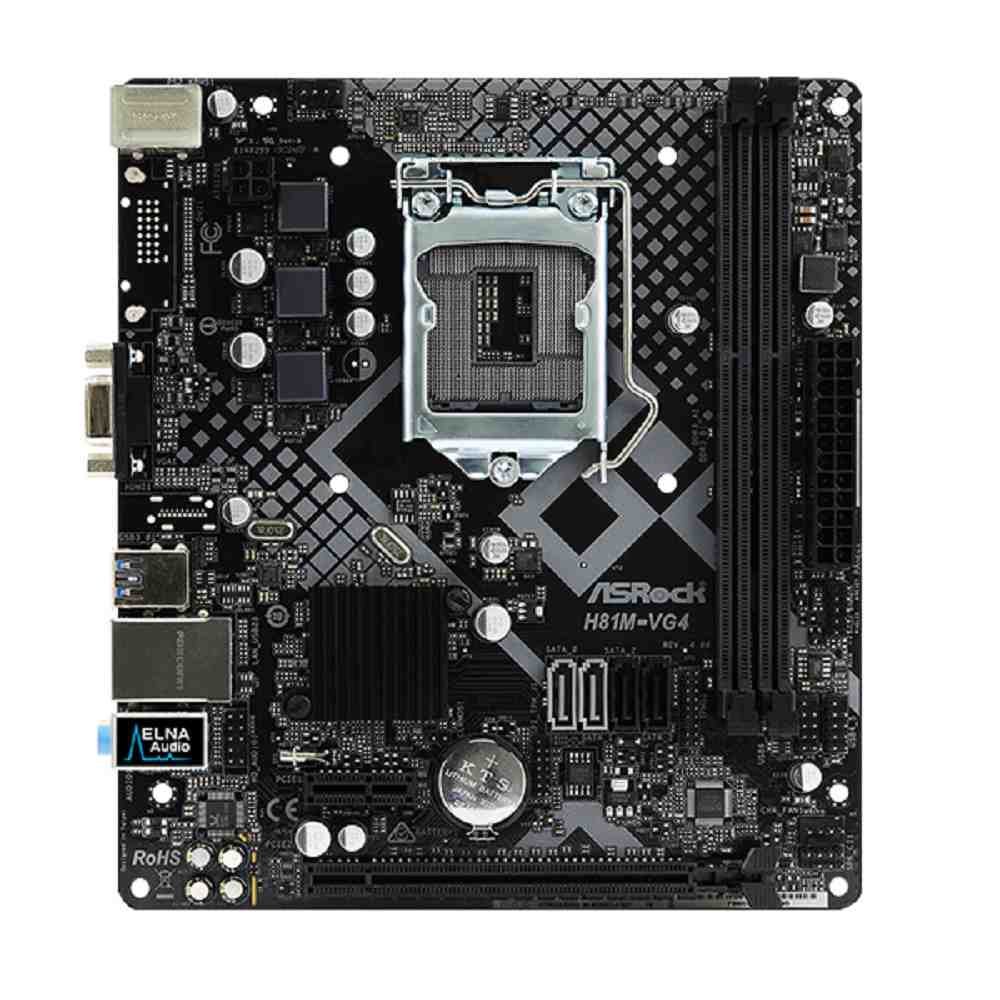

The ASRock H81M VG4 R4.0 is a motherboard with an Intel H81 chipset and an LGA 1150 socket. It is designed for use with the Intel Core i3, i5, and i7 processors, as well as the Intel Pentium and Celeron processors. It has two DDR3 DIMM slots and two DDR3 DIMM slots for dual-channel memory. The motherboard supports up to 16 GB of memory. The ASRock H81M VG4 R4.0 has six SATA III ports for storage. It also has four USB 3.0 ports, four USB 2.0 ports, and two eSATA ports. It has integrated graphics with a maximum resolution of 1920×1200. The motherboard also has a 7.1 CH HD audio controller. This motherboard is allowed to perform more stably and ensure a longer life with the help the solid caps on it. The ELNA Audio Caps are the key to reducing noise levels significantly and satisfying even the pickiest audiophiles.

FEATURES:

High-Density Glass Fabric PCB
Gigabit LAN
Solid Capacitor Design
ELNA Audio Caps
Full Spike Protection
Supports New 4th and 4th Generation Intel® Core™ Processors, Dual Channel DDR3 1600, and Full Spike Protection.
TECHNICAL SPECIFICATIONS
Model H81M-VG4 R4.0
CPU – Supports New 4th and 4th Generation Intel Core i7/i5/i3/Xeon/Pentium/Celeron Processors (Socket 1150)
– Supports Intel Turbo Boost 2.0 Technology
Chipset – Intel H81
Form Factor – Micro ATX Form Factor: 7.5-in x 6.7-in, 19.1 cm x 17.0 cm
– Solid Capacitor design
Memory – Dual Channel DDR3/DDR3L Memory Technology
– 2 x DDR3/DDR3L DIMM Slots
– Supports DDR3/DDR3L 1600 / 1333/1066 non-ECC, un-buffered memory
– Max. the capacity of system memory: 16GB*
– Supports Intel Extreme Memory Profile (XMP) 1.3 / 1.2*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS – 32Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 1.1 Compliant wake up events
– SMBIOS 2.3.1 support
– CPU, DRAM Voltage multi-adjustment
Graphics – Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D), and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 4400/4600*
– Pixel Shader 5.0, DirectX 11.1
– Max. shared memory 1024MB*
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz*Intel HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.**The size of maximum shared memory may vary from different operating systems.
Audio – 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
– Supports Surge Protection
LAN – PCI-E x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111H
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE
Slots – 1 x PCI Express 2.0 x16 Slot (PCIE2: x16 mode)
– 1 x PCI Express 2.0 x1 Slot
Storage – 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI, and Hot Plug
– 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI, and Hot Plug
Connector – 1 x Chassis Intrusion and Speaker Header
– 1 x TPM Header
– 1 x SPI TPM Header
– 1 x CPU Fan Connector (4-pin)
– 1 x Chassis Fan Connector (4-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 4 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)

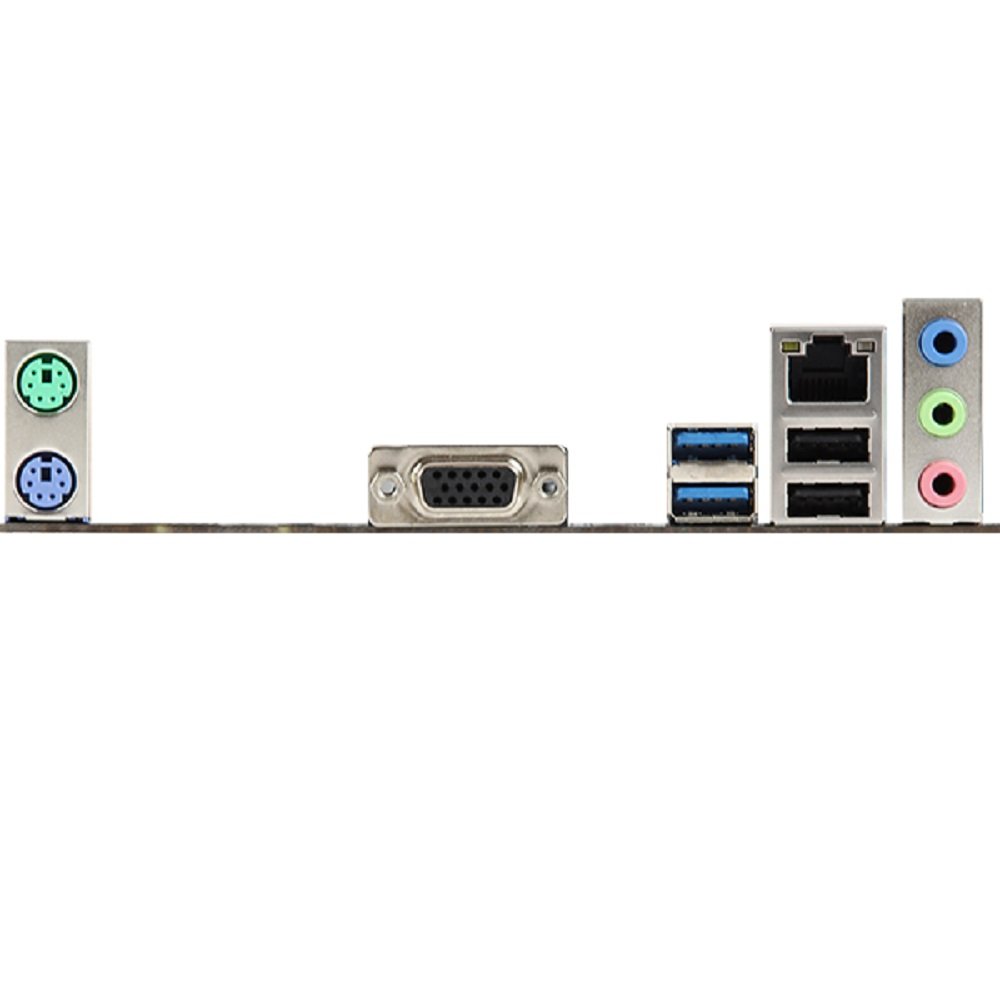

Rear Panel I/O – 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x D-Sub port
– 2 x USB 2.0 Ports (Supports ESD Protection)
– 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jack: Line in / Front Speaker / Microphone
Support CD – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser, and Toolbar
Accessories – Quick Installation Guide, Support CD, I/O Shield
– 2 x SATA Data Cables
Hardware Monitor – CPU/Chassis temperature sensing
– CPU/Chassis Tachometer
– CPU Quiet Fan (Auto adjust the chassis fan speed by CPU temperature)
– CPU/Chassis Fan multi-speed control
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
OS – Microsoft Windows 10 32-bit / 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
Certifications – FCC, CE
– ERP/EuP ready (ErP/EuP ready power supply is required)
Unique Feature Software
– ASRock Disk Health Report
– ASRock USB Key
– ASRock APP Charger
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Fast Boot (Fast Boot, Restart to UEFI)
* These utilities can be downloaded from
ASRock Live Update & APP Shop. UEFI
– ASRock Interactive UEFI
– ASRock UEFI Guide
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock UEFI Tech Service
– ASRock Easy Driver Installer
Product Dimension (Approximate) ‎ 27.51 x 21.21 x 5.79 cm
Weight (Approximate) 330 gm
Specification: ASRock H81M VG4 R4.0 | Micro ATX Motherboard
Product Type
Motherboards

CPU PLATFORM
INTEL

CPU SOCKET
LGA1150

Recommended reading:Asus Prime B365M-C/CSM Motherboard

Brand
Asrock

CHIPSET
Intel H81

MAXIMUM MEMORY
16 GB

FORM FACTOR
MICRO ATX

IDEAL FOR GAMING
NO

Recommended reading:ASRock B550 Phantom Gaming 4 Motherboard (AMD Socket AM4/3rd Gen Ryzen Series CPU/Max 128GB DDR4 4733MHz Memory)

WARRANTY
3 Years Warranty
