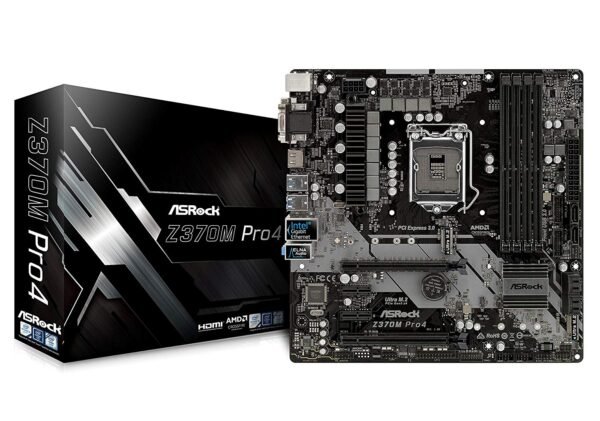

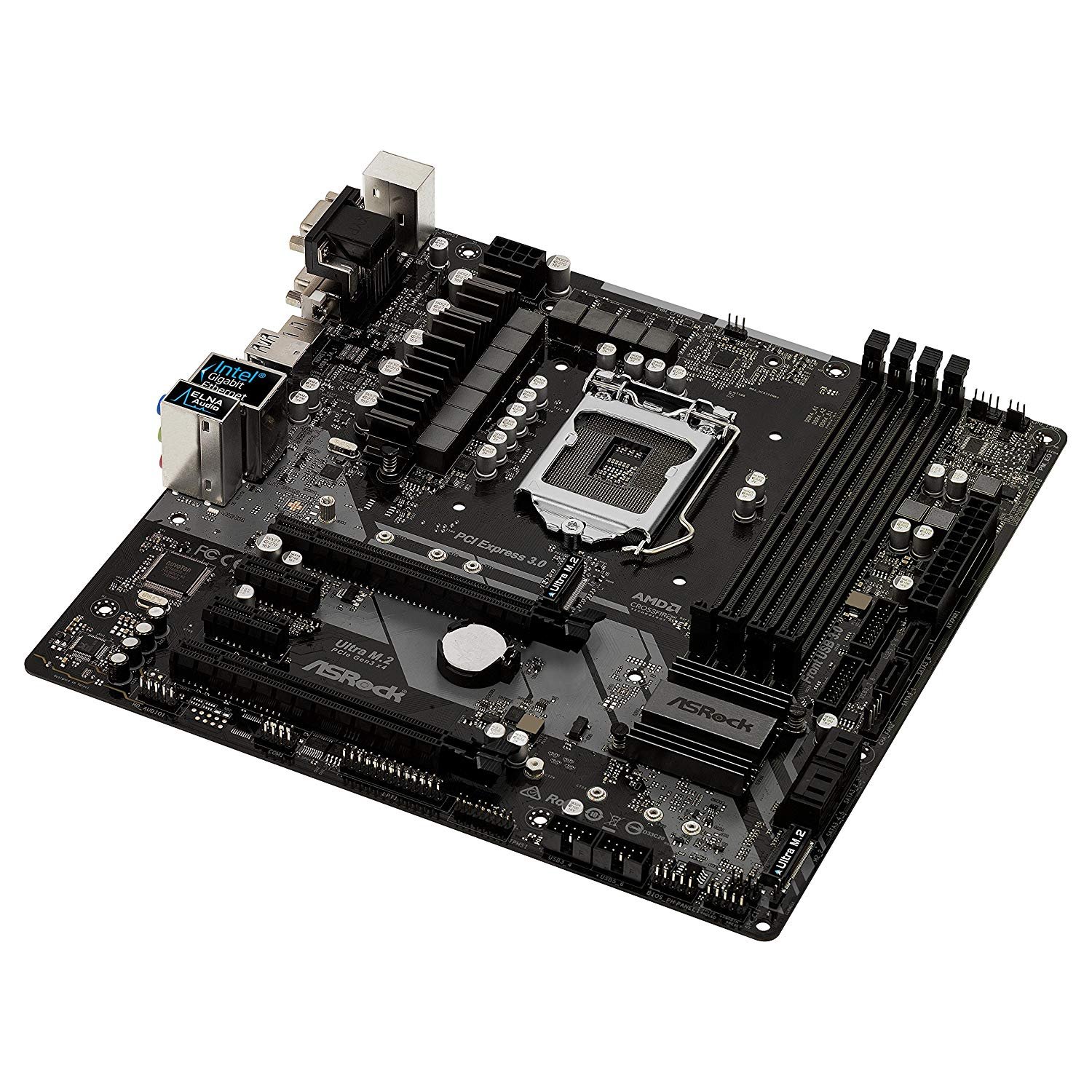

ASRock Motherboard Motherboards Z370M PRO4
Brand
Asrock
CHIPSET
Intel Z370
FORM FACTOR
ATX
MAXIMUM MEMORY
64 GB
WARRANTY
1 Year Warranty
EAN, GTIN, UPC
4717677334357
Product Type
Motherboards
CPU SOCKET
LGA1151
CPU PLATFORM
INTEL
MEMORY TYPE
DDR4
ASRock Motherboard Motherboards Z370M PRO4 8th Generation Intel Core Processors DDR4 SDRAM
FEATURES :
Supports 8th Generation Intel Core Processors (Socket 1151)
Supports DDR4 4300+(OC)
2 PCIe 3.0 x16, 2 PCIe 3.0 x1
AMD Quad CrossFireX
Graphics Output Options: HDMI, DVI-D, D-Sub
Supports Triple Monitor
7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
6 SATA3, 2 Ultra M.2 (One supports PCIe Gen3 x4 & SATA3, the other one supports PCIe Gen3 x4 only)
9 USB 3.1 Gen1 (1 Type-C, 4 Front, 4 Rear)
Intel Gigabit LAN
Intel Optane Memory Ready
Armor Your VR Machine
Prepare yourself well to enjoy the impressive world of Virtual Reality. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connect every critical components and ASRock’s VR Ready products are definitely the one you’re looking for. The premium quality is assured by rigorous testing during development. The sturdy components and rock-solid performance makes you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems.
ROCK-SOLID VRM
Built for 8th Generation Intel Core Processors
The improved power phase design offers smooth power delivery to the more powerful 8th Generation Intel Core Processors, providing unmatched overclocking capabilities, lower
temperature for advanced gamers, and reinforced system stability for taking on all sorts of arduous computing tasks.
Hyper DDR4
UNBEATABLE MEMORY PERFORMANCE
ASRock Hyper DDR4 technology unlocks the hidden performance of DDR4 memory modules, giving the overall performance a huge boost. Unlike traditional memory signal designs that are easily distorted, Hyper DDR4 uses an optimized trace design and the memory circuitry are ideally isolated, thus providing pure memory signals for compatibility, stability and performance.
Dual M.2 For SSD
Equipped with M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD.
USB Type-C
Intel Optane Memory Ready
Supports Intel Optane memory technology and Intel Optane storage technology that redefines a new standard of high performance and responsiveness.
ASRock Intel 4-Layer Memory POOL Technology
POOL (Planes On Outer Layers) technology allows 4-layer boards to utilize stripline routing instead of micro-strip routing, making motherboard having better electrical properties and performance.
Intel LAN
Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solidcaps, the leakage current of ELNA audio caps is merely 3uA. This is thekey to reduce noise level significantly and satisfy even the pickiest audiophiles.
Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
Triple Monitor
Graphics, graphics and even more graphics! You’ve demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/oto connect monitors and use them simultaneously without installing another graphics card.

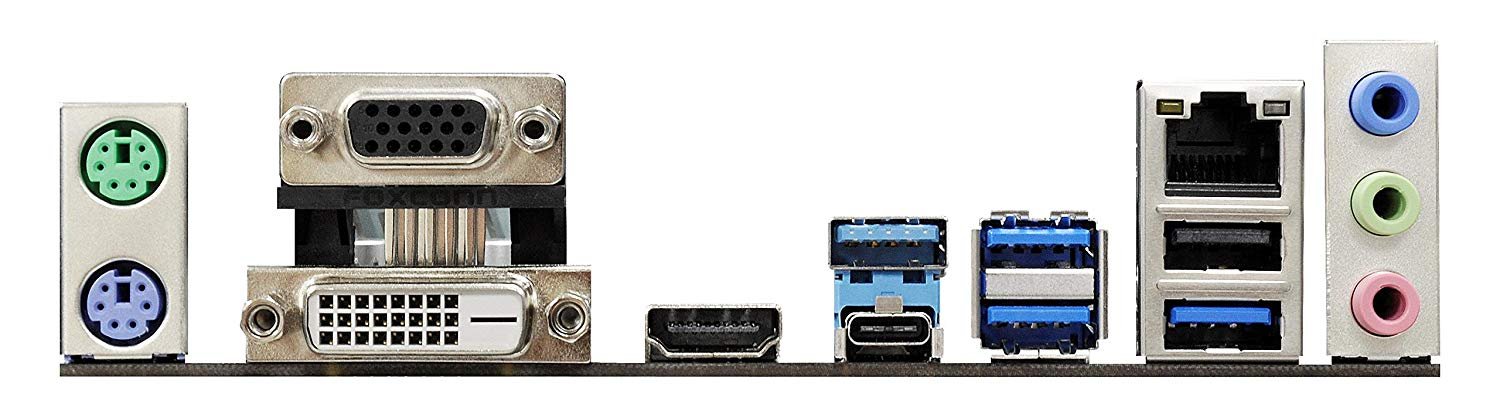

3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.
A-Tuning
A-Tuning is ASRock’s multi purpose software suite with a new interface, more new features and improved utilities.
TECHNICAL SPERCIFICATIONS :
Item Height
6.1 Centimeters
Item Width
26.2 Centimeters
Item Weight
499 g
Product Dimensions
27.7 x 26.2 x 6.1 cm
Batteries:
1 Lithium Metal batteries required.
Item model number
Z370M PRO4
Processor Socket
LGA 1151
Memory Technology
DDR4
Computer Memory Type
DDR4 SDRAM
Number of USB 2.0 Ports
1
Number of HDMI Ports
1
Number of VGA Ports
1
Wattage
125
Lithium Battery Energy Content
0.10 Watt Hours
Lithium battery Weight
0.11 Grams
Number of Lithium Metal Cells
1
Included Components
Motherboard
Warranty
1 Year
