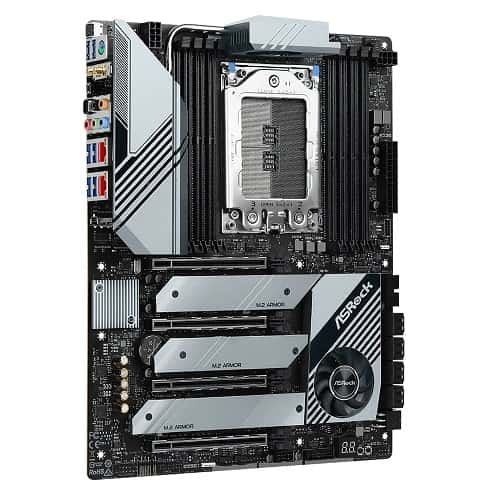

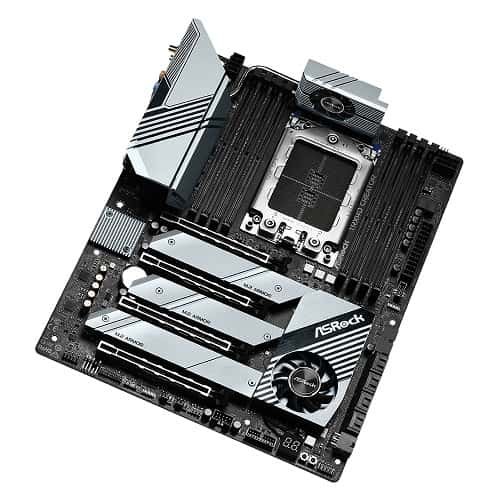

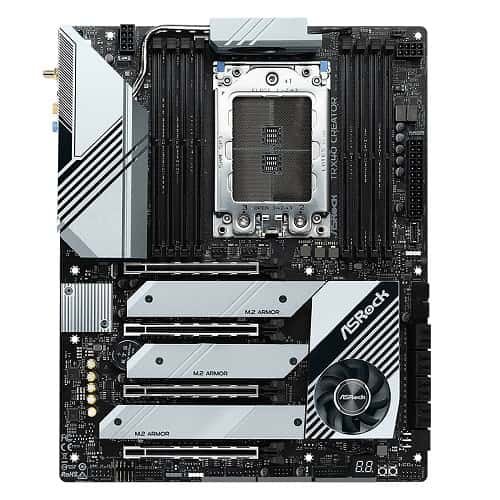

ASRock TRX40 Creator WiFi ATX Motherboard | AMD Ryzen Threadripper Series CPU Support | AMD sTRX4 Socket | Max 256GB Memory Support
AMD sTRX4 CPU Socket
AMD TRX40 Chipset
Max 256GB DDR4 Memory Support
ATX Form Factor
8 x DDR4 DIMM Slot Support
Motherboard Chipset – AMD TRX40 Chipset
CPU Socket – AMD sTRX4 Socket
Max Memory Support – 256GB DDR4
Max Memory Slots – 8
Motherboard Form Factor – ATX
OVERVIEW
The ASRock TRX40 Creator WiFi ATX motherboard is designed to create a high-end desktop system. It supports AMD Ryzen Threadripper series CPUs and Dr. The MOS features a powerful 8-phase power design that delivers solid power to the CPU core. Triple Ultra M.2 slots allow you to quickly connect NVMe based SSDs to reach transfer speeds of up to 64Gb/s.
The ASRock TRX40 Creator WiFi ATX motherboard has an onboard 802.11ax Wi-Fi solution with a total bandwidth of 2.4Gbps, comparable to those that use Ethernet cable for their Internet connection. Users can now enjoy wireless transfer rates three times faster than those using an Ethernet cable connection to their computer, allowing users to experience a smooth and high-speed online gaming and video streaming experience.
TECHNICAL SPECIFICATIONS
CPU (MAX SUPPORT)_ 3rd Gen AMD Ryzen Threadripper
SOCKET_ sTRX4
CHIPSET_ AMD TRX40 Chipset
DDR4 MEMORY_ 4666(OC)+ / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory (U-DIMM)
MEMORY CHANNEL_ Quad
DIMM SLOTS_ 8
MAX MEMORY_ 256 GB
PCI-E X16_ 4
SATAIII_ 8
M.2 SLOT_ 3
RAID_ 0/1/10
LAN_ AQUANTIA / Marvell 10G LAN, Realtek 2.5G LAN
WIFI & BLUETOOTH_ Intel Wi-Fi 6 802.11ax (2.4Gbps) + Bluetooth v5.0
USB 3.2 PORTS (FRONT)_ 4 (Gen 1, Type-A), 1 (Gen 2, Type-C)

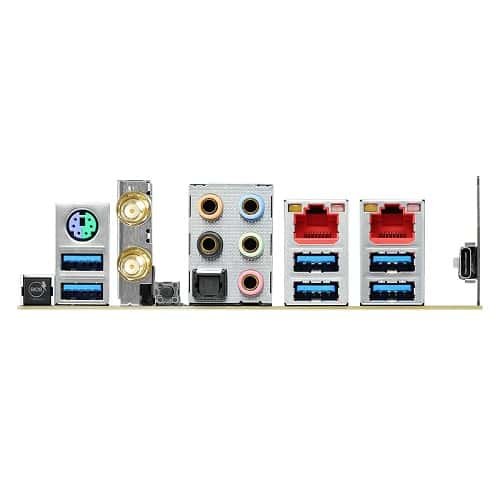

USB 3.2 PORTS (REAR)_ 1 (Gen 2 x 2, Type-C), 2 (Gen 2, Type-A), 4 (Gen 1, Type-A)
USB 2.0 PORTS_ 2
REAR AUDIO PORTS_ 5 + Optical S/PDIF (Realtek ALC4050H + ALC1220)
DIRECTX_ 12
FORM FACTOR_ ATX
SLI_ Yes
CROSSFIRE_ Yes
OPERATING SYSTEM_ Support for Windows 10 64-bit
Specification: ASRock TRX40 Creator WiFi ATX Motherboard | AMD Ryzen Threadripper Series CPU Support | AMD sTRX4 Socket | Max 256GB Memory Support
WARRANTY_
3 Years Warranty
Product Type_
Motherboards
CPU PLATFORM_
AMD
CPU SOCKET_
sTRX4
FORM FACTOR_
ATX
EAN, GTIN, UPC_
4717677339901
Brand_
Asrock
CHIPSET_
AMD TRX40
MAXIMUM MEMORY_
256 GB
IDEAL FOR GAMING_
YES
