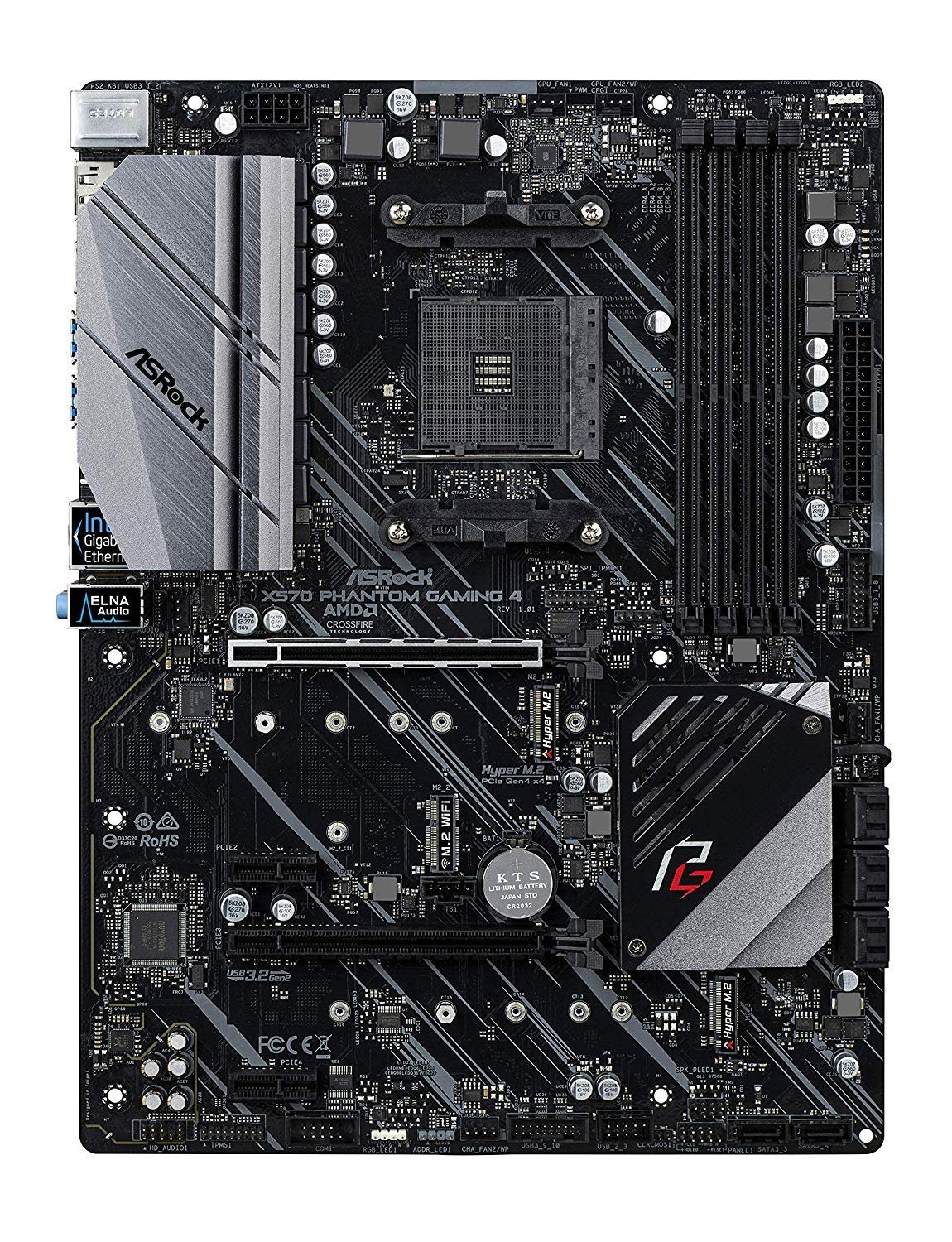

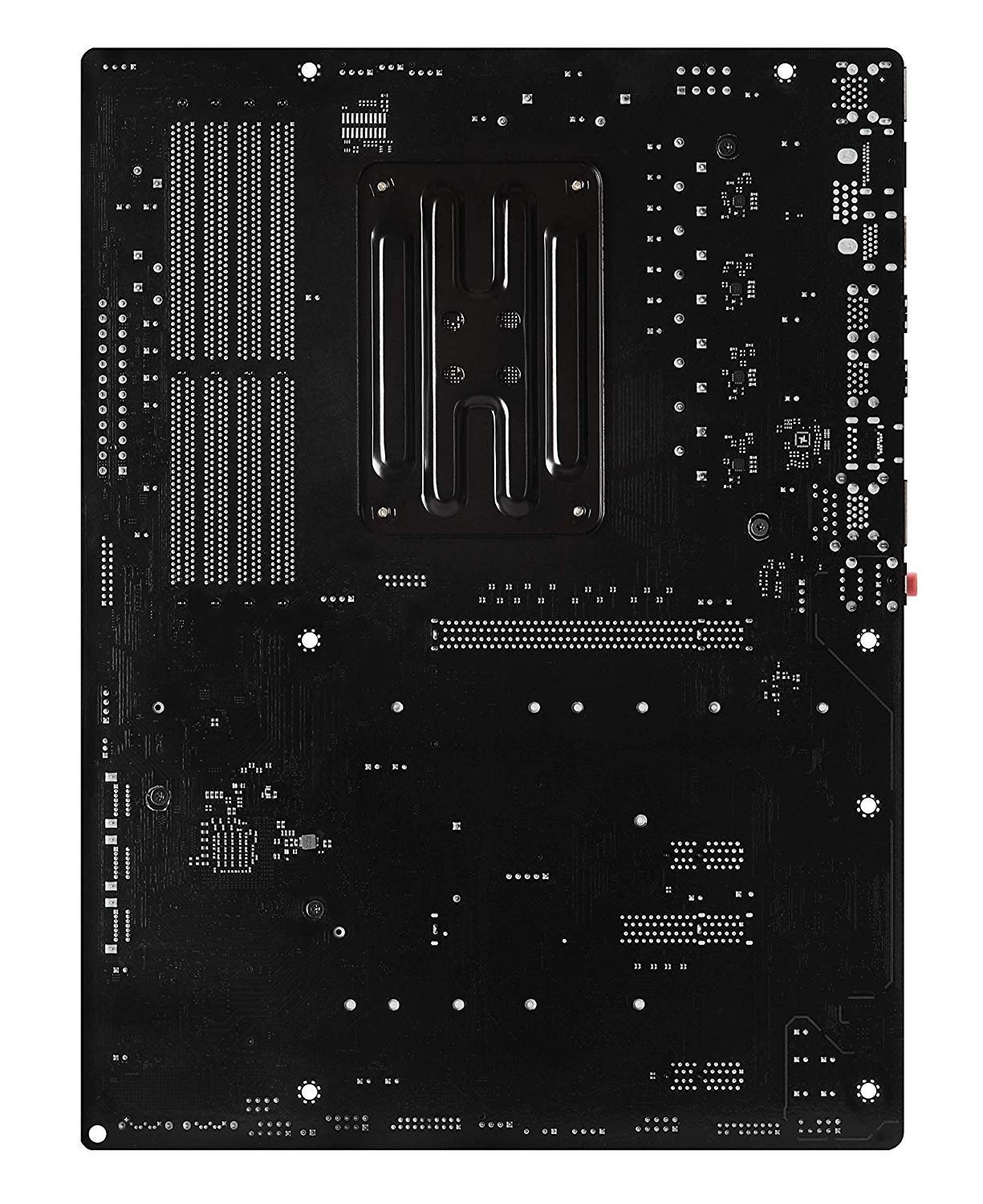

ASRock X570 Phantom Gaming 4 Motherboard

ASRock X570 Phantom Gaming 4 ATX Motherboard (AMD Socket AM4/Ryzen Series CPU/Max 128GB DDR4 4066MHz Memory)
FEATURES :
Supports AMD AM4 Socket Ryzen 2000 and 3000 Series processors
10 Power Phase Design
Supports DDR4 4066+ (OC)
2 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 (Key E) For WiFi
AMD Quad CrossFireX and CrossFireX
Graphics Output Options: HDMI, DisplayPort
7.1 CH HD Audio (Realtek ALC1200 Audio Codec), ELNA Audio Caps
8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 Hyper M.2 (PCIe Gen4 x4)
2 USB 3.2 Gen2 (Rear Type-A), 10 USB 3.2 Gen1 (4 Front, 6 Rear)
Intel Gigabit LAN
ASRock Polychrome SYNC
TECHNICAL SPECIFICATIONS :
Gaming Armor :
Memory :

15μ Gold Contact in DIMM Slots
VGA Card :

15μ Gold Contact in VGA PCIe Slot (PCIE1)
Internet :

Intel LAN
Cooling :

XXL Aluminum Alloy Heatsink
Unique Feature :

Recommended reading:MSI H410M PRO-VH m-ATX Gaming Motherboard

ASRock USB 3.2 Gen2
ASRock USB 3.2 Gen2 Type-A Ports (10 Gb/s)
ASRock Super Alloy
XXL Aluminum Alloy Heatsink
Premium 50A Power Choke
Sapphire Black PCB
High-Density Glass Fabric PCB
2oz Copper PCB
ASRock Steel Slot Gen4
ASRock Hyper M.2 (PCIe Gen4x4 & SATA3)
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU :

Supports AMD AM4 socket Ryzen 2000 and 3000 Series Processors
Digi Power Design
10 Power Phase Design
Chipset :

AMD X570
Memory :

Dual-Channel DDR4 Memory Technology
4 x DDR4 DIMM Slots
AMD Ryzen series CPUs (Matisse) support DDR4 4066+(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
Max. the capacity of system memory: 128GB**
Supports Extreme Memory Profile (XMP) memory modules
15μ Gold Contact in DIMM Slots
*For Ryzen Series CPUs (Picasso), ECC is only supported with PRO CPUs.
**Due to the operating system limitation, the actual memory size may be less than 4GB for reservation system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS :

Recommended reading:MERCURY MOTHERBOARD (ME31GXA)

256Mb AMI UEFI Legal BIOS with GUI support
Supports “Plug and Play”
ACPI 5.1 compliance wake up events
Supports jumperfree
SMBIOS 2.3 support
CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP, VDDG, CPU Load
Line Calibration, CPU VDDCR_SOC Load
Line Calibration Voltage Multi-Adjustment
Graphics :

Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
DirectX 12, Pixel Shader 5.0
Shared memory default 2GB. Max Shared memory supports up to 16GB.**
Dual graphics output: Support HDMI and DisplayPort 1.2 ports by independent display controllers
Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC, and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required)
Supports HDR (High Dynamic Range) with HDMI 2.0
Supports HDCP 2.2 with HDMI 2.0 and DisplayPort 1.2 Ports
Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.2 Ports
Supports Microsoft PlayReady
*Actual support may vary by CPU
**The Max shared memory 16GB requires 32GB system memory installed.

Audio :

7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
Premium Blu-ray Audio support
Supports Surge Protection
ELNA Audio Caps
PCB Isolate Shielding
Individual PCB Layers for R/L Audio Channel
LAN :

Gigabit LAN 10/100/1000 Mb/s
Giga PHY Intel I211AT
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports PXE
Slots :

Recommended reading:ASRock X570 Phantom Gaming-ITX/TB3 AM4 Mini-ITX Motherboard

AMD Ryzen series CPUs (Matisse)
2 x PCI Express 4.0 x16 Slots (PCIE1/PCIE3 : single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))*
AMD Ryzen series CPUs (Pinnacle Ridge)
2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3 : single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))*
AMD Ryzen series CPUs (Picasso)
2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3 : single at x8 (PCIE1); dual at x8 (PCIE1) / x4 (PCIE3))*
2 x PCI Express 4.0 x1 Slots
Supports AMD Quad CrossFireXâ„¢ and CrossFireX
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
15μ Gold Contact in VGA PCIe Slot (PCIE1)
*Supports NVMe SSD as boot disks

Storage :

8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI, and Hot Plug
1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)*
1 x Hyper M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)
*If Thunderbolt support is enabled, SATA type M.2 will be disabled. Supports NVMe SSD as boot disks support ASRock U.2 KitSupport RAID 0/1/10

Connector :

1 x COM Port Header
1 x Power LED and Speaker Header
2 x RGB LED Headers*
1 x Addressable LED Header**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
1 x AMD LED Fan USB Header
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 3 AIC Card R2.0 only)
1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
1 x SPI TPM Header
*Support in total up to 12V/3A, 36W LED Strip
**Supports in total up to 5V/3A, 15W LED Strip
***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, and CHA_FAN3/WP can auto-detect if a 3-pin or 4-pin fan is in use.

Recommended reading:ASRock A520M/ac Micro ATX AM4 Motherboard

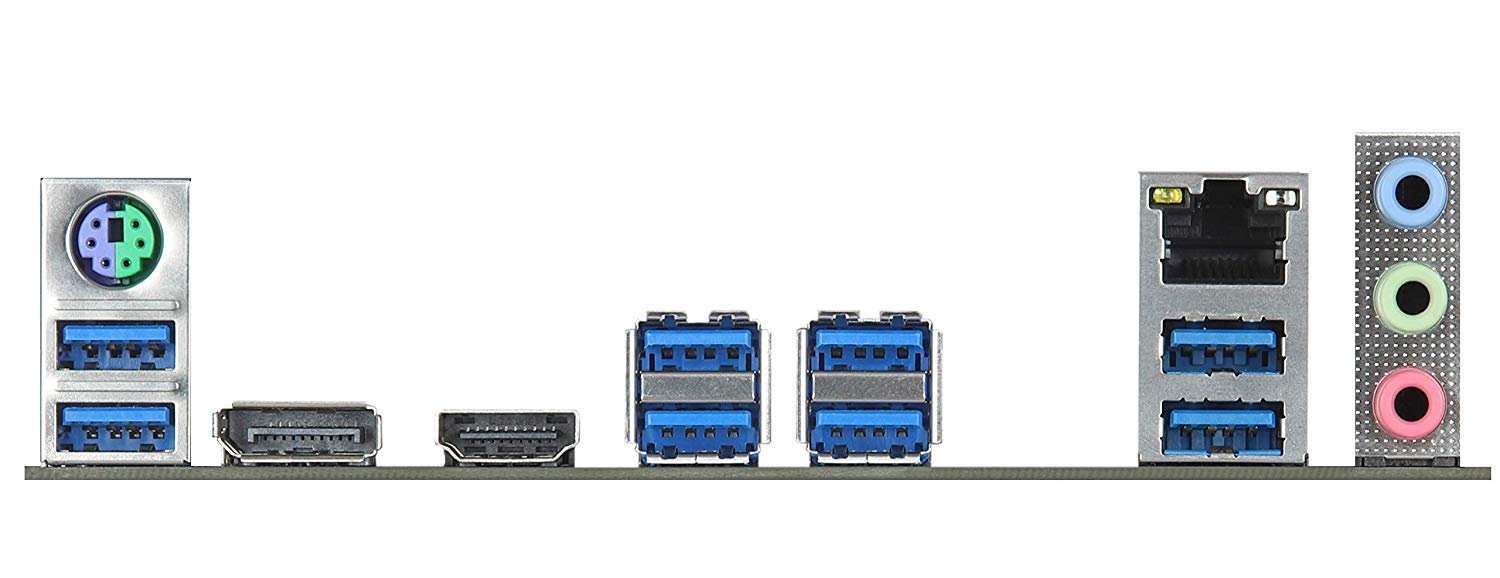

Rear Panel I/O :

3 x Antenna Ports (on I/O Panel Shield)
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.2
2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (Supports ESD Protection)
6 x USB 3.2 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI :
Software :

ASRock Phantom Gaming Tuning
ASRock Polychrome SYNC
ASRock Key Master
ASRock XFast LAN
UEFI :

ASRock Full HD UEFI
ASRock Instant Flash
*These utilities can be downloaded from ASRock Live Update & APP Shop.

Support CD :

Recommended reading:Gigabyte Z390 Aorus Master Motherboard

Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories :

Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables
3 x Screws for M.2 Sockets
Hardware Monitor :

Temperature Sensing: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
Fan Tachometer: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
Quiet Fan (Auto adjust the chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
Voltage monitoring : +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, PREM VDDCR_SOC, +1.8V, VDDP
Form Factor :

ATX Form Factor: 12.0-in x 9.0-in, 30.5 cm x 22.9 cm
Solid Capacitor Design
2oz Copper PCB
OS :

Microsoft Windows 10 64-bit
Certifications :

FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required)
