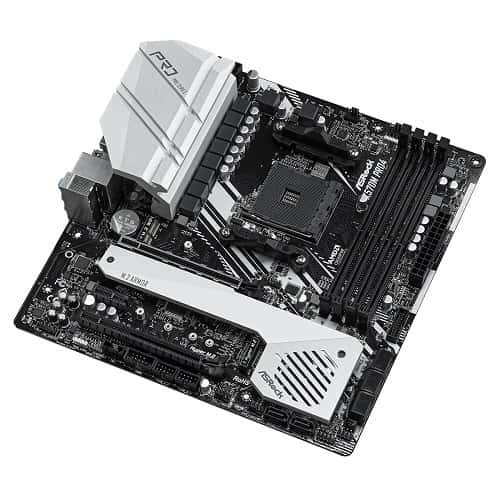

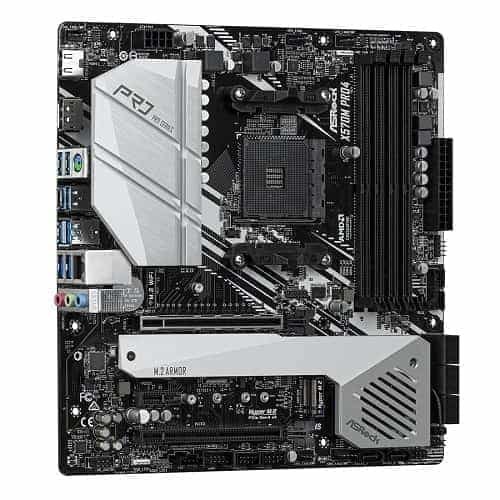

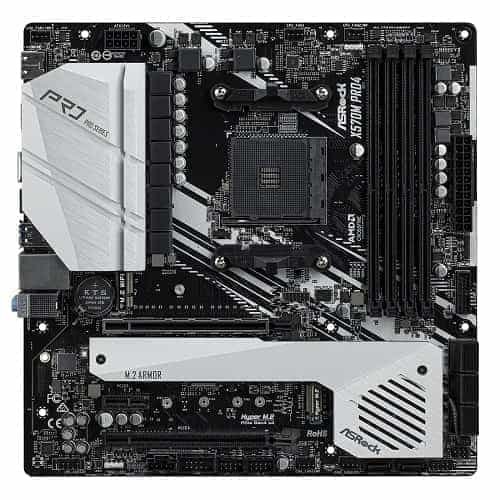

OVERVIEW
The ASRock X570M Pro4 is a micro ATX gaming motherboard with four DIMM slots, two M.2 slots, and eight SATA ports. The motherboard is ready for gamers with its X570 chipset and Ryzen 2000, 3000, 4000 G-Series, 5000, and 5000 G-Series CPUs. The motherboard has integrated graphics with two display outputs, allowing gamers to connect up to two monitors. The board has a built-in I/O shield, so it does not need to be installed separately.
The ASRock X570M Pro4 Micro ATX gaming motherboard is built-in with rear I/O onboard Type-A and Type-C USB 3.2 Gen2 ports to support next-generation USB 3.2 Gen2 devices and provide data up to 10 Gbps. This motherboard has the potential to break all records for high-speed connectivity.
TECHNICAL SPECIFICATIONS
Unique Feature_
ASRock USB 3.2 Gen2_ ASRock USB 3.2 Gen2 Type-A port (10 Gb / s)
-ASRock USB 3.2 Gen2 Type-C port (10 Gbps)
ASRock Super Alloy_ XXL Aluminum Alloy Heatsink
-Premium 50A Power Choke
-Sapphire Black PCB
-High-Density Glass Fabric PCB
-2oz Copper PCB
Other Features_ ASRock Steel Slot Gen4
-ASRock Full Coverage M.2 Heatsink
-ASRock Hyper M.2 (PCIe Gen4x4 & SATA3)
-ASRock POST Status Checker (PSC)
-ASRock full spike protection (for all audio, USB, LAN ports)
-ASRock Live Update & APP Shop
CPU_
Socket & CPU Support_ The AMD AM4 Socket supports Ryzen 5000 G-Series, 5000, 4000 G-Series, 3000, and 2000 desktop processors.
Other Features_ Digi Power design
-10 Power Phase design
Chipset_
Onboard Chipset_ AMD X570
Memory_
Memory Channel_ Dual-Channel DDR4 Memory Technology
Memory Slot Support_ 4 x DDR4 DIMM Slots
Memory Support (MHz)_ AMD Ryzen series CPUs (Vermeer) support DDR4 4466+ (OC)/4400 (OC)/4300 (OC)/4266 (OC)/4200 (OC)/4133 (OC)/4000 (OC)/3866 (OC)/3800 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*
-AMD Ryzen series CPUs (Matisse) support DDR4 4466+ (OC)/4400 (OC)/4300 (OC)/4266 (OC)/4200 (OC)/4133 (OC)/4000 (OC)/3866 (OC)/3800 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*
-AMD Ryzen series APUs (Cezanne) support DDR4 4666+ (OC)/4400 (OC)/4300 (OC)/4266 (OC)/4200 (OC)/4133 (OC)/4000 (OC)/3866 (OC)/3800 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*
-AMD Ryzen series APUs (Renoir) support DDR4 4466+ (OC)/4400 (OC)/4300 (OC)/4266 (OC)/4200 (OC)/4133 (OC)/4000 (OC)/3866 (OC)/3800 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*
-AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+ (OC)/3200 (OC)/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*
-AMD Ryzen series CPUs (Picasso) support DDR4 3466+ (OC)/3200 (OC)/2933/2667/2400/2133 non-ECC, un-buffered memory*
Max Memory Support_ 128GB**
Other Features_ Supports Extreme Memory Profile (XMP) memory modules
-15µ Gold Contact in DIMM Slots
Notes_ *For Ryzen Series APUs (Renoir, Cezanne, and Picasso), ECC is only supported with PRO CPUs.
**Due to OS limitations, the actual memory size for reservations for system use underneath Windows 32-bit OS may be less than 4GB. For Windows 64-bit OS with 64-bit CPU, there are no such restrictions.
BIOS_
Supported BIOS_ Legal BIOS with GUI support 256Mb AMI UEFI
-Supports ‘Plug and Play’
-ACPI 5.1 compliance wake up events
-Supports jumperfree
-SMBIOS 2.3 support
-CPU VCORE, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment
Graphics_
Onboard Graphics Features_ Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
-DirectX 12, Pixel Shader 5.0
-Shared memory default 2GB. Most shared memory supports up to 16GB.**
-Dual Graphics Output: Supports HDMI and DisplayPort 1.2 ports via an independent display controller
-Supports HDMI 2.0 with max. up to 4096×2160 resolution @ 60Hz
-Supports DisplayPort 1.2 with max. up to 4096×2160 resolution @ 60Hz
-Supports Deep Color (12bpc), xvYCC, Auto Lip-Sync, and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor required)
-Supports HDR with HDMI 2.0
-Supports DisplayPort 1.2 ports and HDCP 2.2 with HDMI 2.0
-Supports 4K UHD playback with HDMI 2.0 and DisplayPort 1.2 ports
-Supports Microsoft PlayReady
Notes_ *Actual support may vary by CPU
**Most shared memory 16GB requires 32GB of system memory installed.
Audio_
Onboard Audio Technology_ 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
-Premium Blu-ray Audio support
-Individual PCB Layers for R/L Audio Channel
-ELNA Audio Caps
Other Features_ Supports Surge Protection
-PCB Isolate Shielding
LAN_
Onboard Features_ Gigabit LAN 10/100/1000 Mb/s
-Giga PHY Intel I211AT
-Supports Wake-On-LAN
-Supports Lightning/ESD Protection
-Supports Energy Efficient Ethernet 802.3az
-Supports PXE
Slots_
AMD Ryzen series CPUs (Vermeer, Matisse)_ 2 x PCI Express 4.0 x16 Slot [PCIE3/PCIE1: Dual in x16 (PCIE1) / x4 (PCIE3), Single A x16 (PCIE1)]*
AMD Ryzen series CPUs (Cezanne, Renoir, Pinnacle Ridge)_ 2 x PCI Express 3.0 x16 slot [PCIE3/PCIE1: Dual in x16 (PCIE1) / x4 (PCIE3), Single A x16 (PCIE1)]*
AMD Ryzen series CPUs (Picasso)_ 2 x PCI Express 3.0 x16 slot [PCIE1 / PCIE3: single Ax8 (PCIE1); Dual in x8 (PCIE1) / x4 (PCIE3)]*
Other Features_ 1 x PCI Express 4.0 x1 Slot
-Supports AMD Quad CrossFireX and CrossFireX
-1 x M.2 socket (key E), supports Type 2230 WiFi/Bluetoth (PCIe WiFi module)
-15µ Gold Introduction to VGA PCIe Slot (PCIE1)
Notes_ *Supports NVMe SSD as boot disks
Storage_
Storage Memory Support_ 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI, and Hot Plug
-1 x Hyper M.2 Socket (M2_1), supports M Key type 2280/2260/2242 M.2 PCI Express module up to Gen4 x 4 (64 Gbps) (with Vermeer, Matisse) or Gen3 x 4 (32 Gbps) (with Cezanne, Renoir, Pinnacle Ridge, and Picasso)*
-1 x Hyper M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gbps module and M.2 PCI Express module up to Gen4 x 4 (64 Gbps) (with Renoir, Matisse) or Gen3 x 4 (32 Gbps) (with Cezanne, Renoir, Pinnacle Ridge, and Picasso)*
Notes_ *If Thunderbolt support is enabled, SATA type M.2 will be disabled.
-Supports NVMe SSD as boot disks
-Supports ASRock U.2 Kit
-Support RAID 0/1/10
Connector_
Connector Support_ 1 x COM Port Header
-1 x Power LED and Speaker Header
-1 x AMD Fan LED Header*
-1 x RGB LED Header**
-1 x Addressable LED Header***
-1 x CPU Fan Connector (4-pin)****
-1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
-3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)******
-1 x 24 pin ATX Power Connector
-1 x 8 pin 12V Power Connector
-1 x Front Panel Audio Connector
-1 x AMD LED Fan USB Header
-1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 3 AIC Card R2.0 only)
-2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
-1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
-1 x SPI TPM Header*******
Notes_ *The AMD Fan LED Header is compatible with a regular RGB LED stripe. The AMD Fan LED Header supports LED strips up to 3A (36W) and up to 2.5M in length.
**Supports in total up to 12V/3A, 36W LED Strip
***Total support up to 5V / 3A, 15W LED strip
****The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
*****CPU / water pump fan supports water cooler fan with maximum 2A (24W) fan power.
******The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
-CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, and CHA_FAN3/WP can auto-detect if a 3-pin or 4-pin fan is in use.

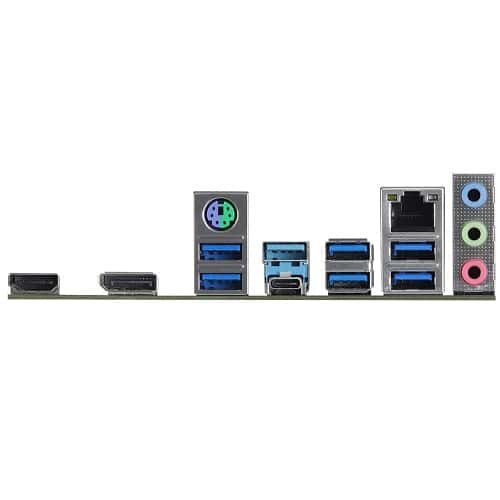

Rear Panel I/O_
Rear Panel Ports_ 3 x Antenna Ports (on I/O Panel Shield)
-1 x PS/2 Mouse/Keyboard Port
-1 x HDMI Port
-1 x DisplayPort 1.2
-1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
-1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
-6 x USB 3.2 Gen1 Ports (Supports ESD Protection)
-1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
-HD Audio Jacks: Line in/Microphone/Front Speaker
Software and UEFI_
Software_ ASRock A-Tuning
-ASRock Polychrome Sync
-ASRock XFast LAN
UEFI_ ASRock Full HD UEFI
-ASRock Instant Flash
Notes_ *These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD_
Driver & Software_ Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Hardware Monitor_
Motherboard Monitoring Features_ Temperature Sensing: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
-Fan Tachometer: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
-Silent Fan (Adjust the speed of chassis fan automatically by CPU temperature): CPU, CPU/water pump, chassis, chassis/water pump fan
-Fan Multi-speed Control: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
-Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, PREM VDDCR_SOC, +1.8V, VDDP
OS_
Supported OS_ Microsoft Windows 10 64-bit / 11 64-bit
Certifications_
Motherboard Certifications_ FCC, CE
-ErP/EuP ready (ErP/EuP ready power supply is required)
Accessories_
In The Box_ Quick Installation Guide
-Support CD
-I/O Shield
-2 x SATA Data Cables
-3 x Screws for M.2 Sockets
-1 x Standoff for M.2 Socket
Form Factor_
Motherboard Material_ Solid Capacitor design
-2oz Copper PCB
Dimension_ Micro ATX Form Factor: 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
