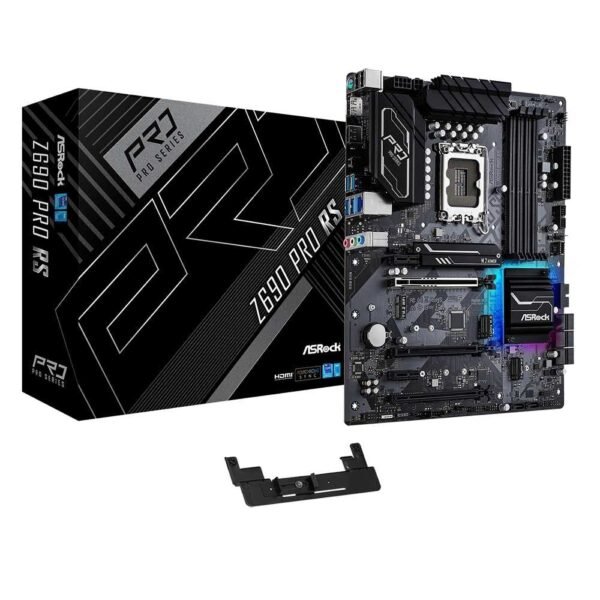

ASRock Z690 Pro RS | ATX Motherboard

Motherboard Chipset – Intel Z690

CPU Socket – LGA1700

Max Memory Slots – 4

Max Memory Support – 128GB

Motherboard Form Factor – ATX

Recommended reading:Gigabyte B550 Aorus Pro AC (Wi-Fi) Gaming Motherboard

OVERVIEW
The ASRock Z690 Pro RS motherboard is capable of accommodating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, enabling it to perform twice as fast as the previous third generation, which delivers a lightning-fast data transfer experience.

The intelligent Gigabit 2.5Gb/s LAN platform is built for maximum networking performance for the demanding needs of home networking, content creators, online gamers, and high-quality streaming media. Boost networking performance by up to 2.5X bandwidth compared to standard Gigabit Ethernet, and you’ll enjoy a fast and uncompromising connectivity experience for gaming, file transfers, and backups.

The ASRock Z690 Pro RS features the latest USB 3.2 Gen2x2 Type-C delivering data transfer rates of up to 20 Gbps which is 2 times faster than the previous generation and provides a blazing-fast data transfer interface with a reversible USB Type-C design that fits the connector either way.

In addition to built-in RGB illumination, it also includes an onboard RGB header and an addressable RGB header that allows the motherboard to connect compatible LED devices such as strips, CPU fans, coolers, chassis, and more.

Users can also synchronize the RGB LED devices to Polychrome RGB Sync-certified accessories and can create their own unique lighting effects. Simply install your heavy graphics card on the holder; Connect it to your motherboard and chassis with screws. Flexible slide up and down to fully adjust the height required for your graphics card.

Recommended reading:MSI MPG B550 Gaming Edge WiFi Gaming Motherboard

Compared to the traditional DIP style PCIe slots, the SMT type PCIe slots improve the signal throughput and maximize stability under high speeds, a significant breakthrough for fully supporting the light speed of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable of a breathtaking 128Gbps bandwidth, ready to unleash the full potential of the high-end graphics cards of the future.

TECHNICAL SPECIFICATIONS
Unique Feature ASRock USB 3.2 Gen2
-ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
-ASRock USB 3.2 Gen2 Type-A Port (10 Gbps)
ASRock Super Alloy
-Premium Power Choke
-50A Dr.MOS
-Sapphire Black PCB
-High-Density Glass Fabric PCB
-2oz Copper PCB
2.5G LAN
ASRock Steel Slot
ASRock Full Coverage M.2 Heatsink
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all LAN, Audio, USB Ports)
ASRock Live Update & APP Shop
CPU 12th Gen Intel Core Processors Supports (LGA1700 Socket)
-Digi Power design
-13 Power Phase design
-Supports Intel Hybrid Technology
-Supports Intel Turbo Boost Max 3.0 Technology
Chipset Intel Z690
Memory Dual-Channel DDR4 Memory Technology
-4 x DDR4 DIMM Slots
-Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
-ECC UDIMM memory modules support (operate in non-ECC mode)
-Max. the capacity of system memory: 128GB
-Supports Intel Extreme Memory Profile (XMP) 2.0
(*Supports DDR4 3200 natively.)
BIOS 128Mb AMI UEFI Legal BIOS with multilingual GUI
-ACPI 6.0 Compliant wake-up events
-SMBIOS 2.7 Support
-CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
Graphics Intel Xe Graphics Architecture (Gen 12)
-Dual graphics output: Supports HDMI and DisplayPort 1.4 ports by the independent display controller
-Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4096×2160 @ 60Hz
-Supports DisplayPort 1.4 with DSC (compressed) max. Resolutions up to 8K (7680×4320) @ 60Hz / 5K (5120×3200) @ 120Hz
-HDMI 2.1 TMDS compatible and supports HDCP 2.3 with DisplayPort 1.4 port
(*Intel UHD graphics built-in visual and VGA output can only be supported with GPU-integrated processors.)
Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
-Supports Surge Protection
-Nahimic Audio
LAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
-Dragon RTL8125BG
-Supports Dragon 2.5G LAN Software
–Smart Auto Adjust Bandwidth Control
–Visual User-Friendly UI
–Visual Network Usage Statistics
–Optimized Default Setting for Game, Browser, and Streaming Modes
–User Customized Priority Control
-Supports Wake-On-LAN
-Supports Lightning/ESD Protection
-Supports Energy Efficient Ethernet 802.3az
-Supports PXE
Slots CPU:
-1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode*
Chipset:
-1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*
-1 x PCIe 3.0 x16 Slot (PCIE5), supports x4 mode*
-2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4)*
-Supports 1 x M.2 socket (Key E), Type 2230 WiFi / BT PCIe WiFi module and Intel CNVi (Integrated WiFi / BT)
-Supports AMD CrossFire
(*Supports NVMe SSD as boot disks)
Storage CPU:
-1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
-Supports 1 x Ultra M.2 socket (M2_2, key M), Type 2260/2280 SATA3 6.0 Gb / s and PCIe Gen3x4 (32 Gb / s) modes*
-1 x Hyper M.2 socket (M2_3, key M), supports type 2260/2280/22110 PCIe Gen4x4 (64 Gb / s) mode*
-8 x SATA3 6.0 Gb/s Connectors**
[*Supports Intel Optane Memory H Series (M2_2 and M2_3 only), Supports Intel Volume Management Device (VMD), Supports NVMe SSD as boot disks, Supports ASRock U.2 Kit]
(**If a SATA-type M.2 device occupies M2_2, SATA3_7 will be disabled.)
RAID -Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
-Supports RAID 0, RAID 1, and RAID 5 for M.2 NVMe storage devices
Connector 1 x SPI TPM Header
-1 x Power LED and Speaker Header
-1 x RGB LED Header*
-3 x Addressable LED Headers**
-1 x CPU Fan Connector (4-pin)***
-1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
-4 x Chassis / Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
-1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
-1 x 8 pin 12V Hi-Density Power Connector
-1 x 4 pin 12V Hi-Density Power Connector
-1 x Front Panel Audio Connector
-1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
-2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
-2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
-1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
(*Supports in total up to 12V/3A, 36W LED Strip)
(**Support in total up to 5V/3A, 15W LED Strip)
(***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.)
(****CPU / water pump fan supports water cooler fan with maximum 2A (24W) fan power.)
(*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP and CHA_FAN1~4/WP can auto-detect if a 3-pin or 4-pin fan is in use.)
Rear Panel I/O 3 x Antenna Mounting Points
-1 x PS/2 Mouse/Keyboard Port
-1 x HDMI Port
-1 x DisplayPort 1.4
-2 x USB 3.2 Gen2 Ports (10 Gb/s) (ReDriver) (Supports ESD Protection)
-2 x USB 3.2 Gen1 Ports (ESD Protection Support)
-2 x USB 2.0 Ports (Supports ESD Protection)
-1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
-1 x BIOS Flashback Button
-HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI Software
-ASRock Motherboard Utility (A-Tuning)
-ASRock Dragon 2.5G LAN Software
-ASRock Polychrome SYNC*
UEFI
-ASRock EZ mode
-ASRock Full HD UEFI
-ASRock My Favorites in UEFI
-ASRock Instant Flash
-ASRock Internet Flash
-ASRock Easy RAID Installer
(*These utilities can be downloaded from ASRock Live Update & APP Shop.)
Support CD Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories Quick Installation Guide, I/O Shield, Support CD
-2 x SATA Data Cables
-4 x Screws for M.2 Sockets
-1 x Standoff for M.2 Socket
-1 x Graphics Card Holder
Hardware Monitor Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
–Quiet Fan (Auto-Adjust Chassis Fan speed by CPU temperature): CPU/Water Pump, CPU, Chassis/Water Pump Fans
–Fan Multi-speed Control: CPU/Water Pump, CPU, Chassis/Water Pump Fans
–Voltage monitoring: CPU Vcore, DRAM, VCCIN AUX, VCCSA, +1.05V PROC, +1.05V PCH, +0.82V PCH, +12V, +5V, +3.3V
Form Factor ATX Form Factor: 12.0 inch x 9.6 inch (30.5 cm x 24.4 cm)
-Solid Capacitor design
-2oz Copper PCB
OS Microsoft Windows 10 64-bit / 11 64-bit
Certifications FCC, CE
-ErP/EuP ready (ErP/EuP ready PSU is required)
-CEC Tier II ready
Specification: ASRock Z690 Pro RS | ATX Motherboard
Brand
Asrock

Product Type
Motherboards

CPU PLATFORM
INTEL

CPU SOCKET
LGA1700

Recommended reading:Biostar TB360-BTC Pro 2.0 ATX Mining Motherboard | 9th Gen Intel CPU Support | LGA 1151 Socket | Max 32GB DDR4 Memory Support

CHIPSET
Intel Z690

MAXIMUM MEMORY
128 GB

FORM FACTOR
ATX

IDEAL FOR GAMING
YES

WARRANTY
3 Years Warranty
