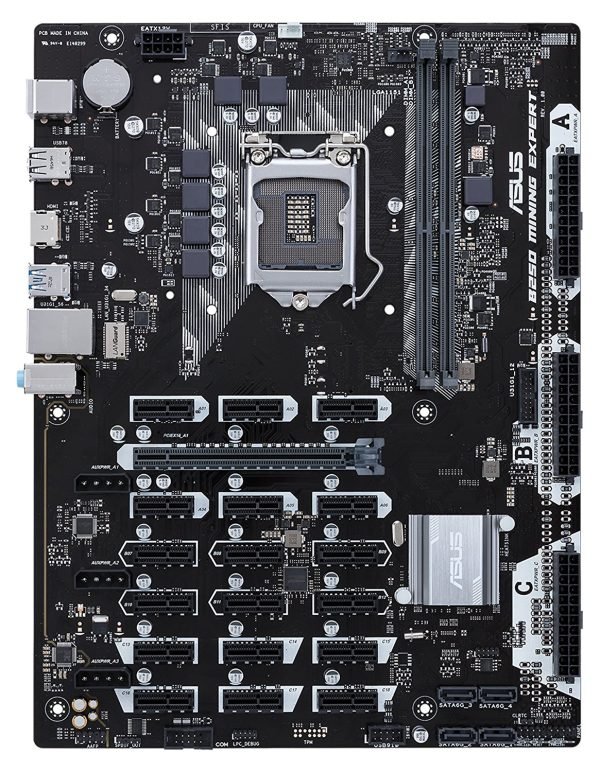

Asus B250 Mining Expert Motherboard

Model – B250 MINING EXPERT

CPU – Intel Socket 1151

Chipset – Intel B250

Graphics Output Options – HDMI, VGA

Memory Support – DDR4

Recommended reading:ASRock X570 Steel Legend Gaming Motherboard

TECHNICAL SPECIFICATIONS

Model_B250 MINING EXPERT
CPU_Intel Socket 1151 for 7th/6th Generation Core i7/Core i5/Core i3/Pentium / Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 * The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset
Intel B250
Form Factor_ATX Form Factor
12 inch x 9.1 inch ( 30.5 cm x 23.1 cm )
Memory_2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
Supports Intel Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to Intel chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
** Due to Intel chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel processors will run at the maximum transfer rate of DDR4 2133MHz.
BIOS_64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS3.0, ACPI 6.0, ASUS EZ Flash 3, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
Graphics_Integrated Graphics Processor- Intel HD Graphics support
VGA output support: HDMI port
– Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
Maximum shared memory of 1024 MB
Audio
Realtek ALC887 8-Channel High Definition Audio CODEC
LAN
Intel I219V, 1 x Gigabit LAN Controller(s)
Slots_1 x PCIe x16 (x16 mode), 18 x PCIe x1
Storage
4 x SATA 6Gb/s port(s),
Back I/O Ports_1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 1 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)
Internal I/O Ports_1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19- pin)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
3 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
3 x 4-pin AUXPWR Header
Operating System Support_Windows 10 64-bit
Windows 7 64-bit *1
USB Ports_Intel® B250 Chipset :
6 x USB 3.1 Gen 1 port(s) (4 at back panel, , Type-A, 2 at mid-board)
Intel® B250 Chipset :
4 x USB 2.0/1.1 port(s) (2 at back panel, , 2 at mid-board)
Accessories_User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
Product Dimension (Approximate)_30.48 x 2.54 x 23.11 cm
Weight (Approximate)_453.59 gm
Specification: Asus B250 Mining Expert Motherboard
Brand
Asus

WARRANTY
3 Years Warranty

Product Type
Motherboards

CPU PLATFORM
INTEL

Recommended reading:MSI Desktop Motherboard (H81M-P32L)

CPU SOCKET
LGA1151

FORM FACTOR
ATX

MEMORY TYPE
DDR4
