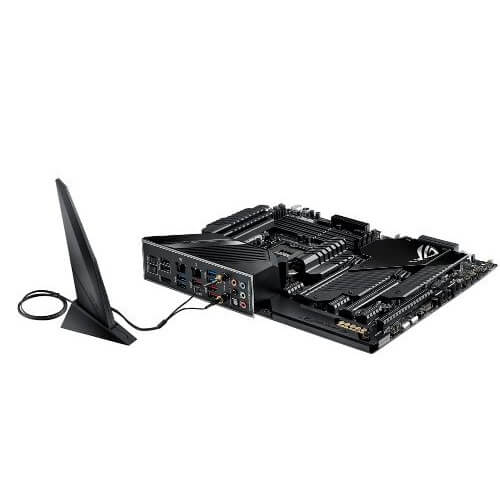

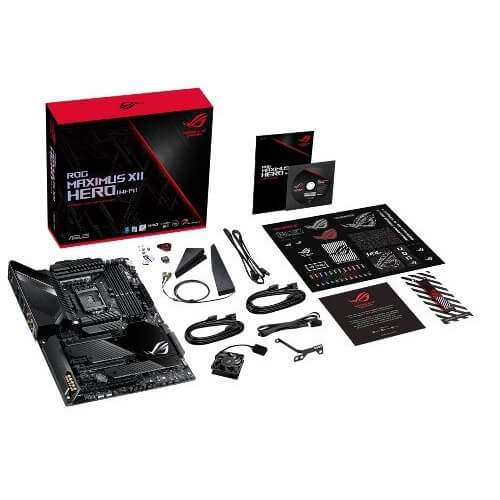

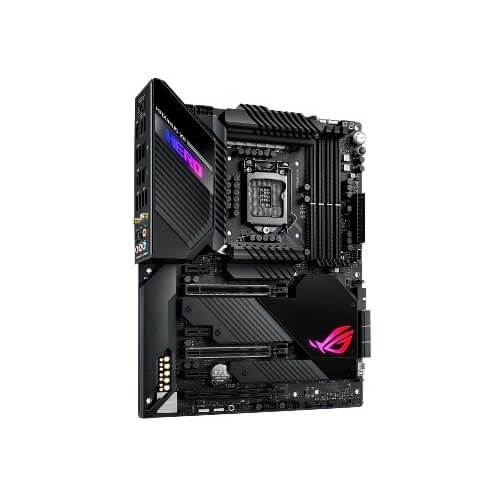

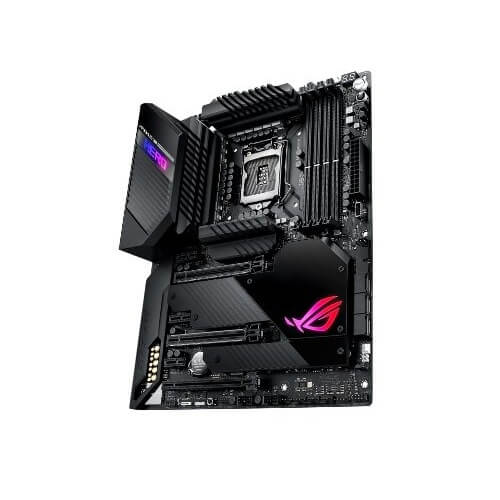

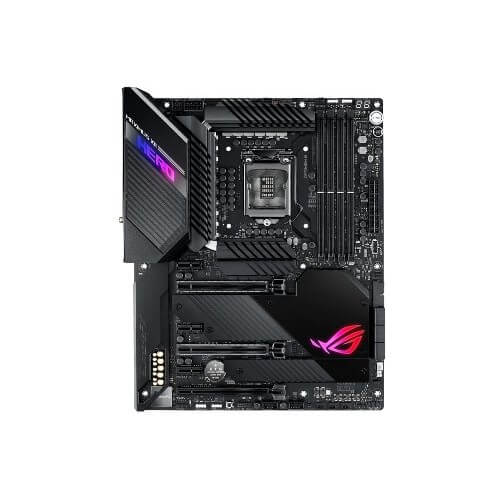

Asus ROG Maximus XII Hero Z490 (Wi-Fi) Gaming Motherboard
LGA1200 Socket Support
Intel Z490 Chipset
Max 128GB DDR4 4800MHz Memory Support
AMD 3-Way CrossFireX Technology
Intel Turbo Boost Technology 3.0
Asus ROG Maximus XII Hero Z490 (Wi-Fi) ATX Gaming Motherboard (LGA 1200 Socket,10th Gen Core Series CPU, Intel Z490 Chipset, Max 128GB DDR4 4800MHz Memory)
ROG Maximus XII Hero is the perfect foundation to the Republic of Gamers. It’s a motherboard that packs substantial power, smart cooling and faster memory support under a stealthy skin. Loaded with renowned ROG features, from AI overclocking and AI cooling to attention-grabbing Aura Sync illumination, Maximus XII Hero is ready to perform and crafted for customization.
FEATURES:
PERFORMANCE :
The Intel Comet Lake processor features 10 cores and a peak single-core Turbo speed that exceeds 5.3 GHz right out of the box. To cope with this increased demand on the system, Maximus XII Hero takes advantage of its intelligent VRM design and uses quality components to ensure the best gaming and daily productive computing experience.
COOLING :
Maintaining system stability is paramount under high load, so Maximus XII Hero employs large VRM and chipset heatsinks that strike the right balance between surface area and mass. The extra-large armor heatsinks also cover multiple M.2 slots. Featuring premium components and multiple fan headers, Maximus XII Hero is fully armed to provide the best foundation for gaming systems enabling higher performance at lower temperatures.
OPTIMIZATION :
Maximus XII Hero is packed with intuitive and flexible tools to allow customization across all system parameters to deliver the performance you want.
CONNECTIVITY :
ROG Maximus XII Hero offers advanced connectivity, including WiFi 6 (AX201) and dual Ethernet with intel 1Gb and Marvell 5Gb Ethernet port to eliminate bottlenecks so you can enjoy exceptionally smooth online and LAN play. Additionally, the M.2 supports Intel OptaneTM Memory technology to maximize the speed of your SSD for faster load times, and SupremeFX on-board audio provides superb sound, while saving a PCIe slot.
Storage :
Maximus XI Hero comes equipped with three M.2 slots to let you take full advantage of Intel IRST and NVMe RAID for ultimate SSD storage speeds. The drives can be found under the aluminum heatsink covers. Integrated PCIe support ensures compatibility with the latest NVMe SSDs to enable ultrafast transfer speeds.
SupremeFX :
ROG SupremeFX audio technology has levelled up, delivering an exceptional 113 dB signal-to-noise ratio on the line-in connection to provide best-ever recording quality. There’s also a low-dropout regulator for cleaner power delivery to the SupremeFX S1220 codec, an ESS ES9023P digital-to-analog converter for superior front-panel output, and a Texas Instruments RC4580 op amp for high gain with low distortion all to deliver audio that envelops you as never before.
PERSONALIZE :
In addition to extraordinary performance, Maximus XII Hero provides extensive styling and customization options to let you build a system that truly stands apart.
TECHNICAL SPECIFICATIONS:
CPU
Intel Socket 1200for 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*
*Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel Z490
Memory
4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4700(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem III
* 10th Gen Intel Core i9/i7 CPUs support 2933/2800/2666/2400/2133 natively.
Graphic
Integrated Graphics Processor
1 x HDMI 1.4b
*Graphics specifications may vary between CPU types.
Multi-GPU Support
Supports NVIDIA 2-Way SLI Technology
Supports AMD 3-Way CrossFireX Technology
Supports AMD 2-Way CrossFireX Technology
Expansion Slots
Intel 10th Gen Processors :
2 x PCIe 3.0 x16 (x16 or dual x8) *1
Intel Z490 Chipset :
1 x PCIe 3.0 x16 (x4 mode) *2
3 x PCIe 3.0 x1
Storage
Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
Intel Z490 Chipset :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*4
1 x M.2_3 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s),
Support Raid 0, 1, 5, 10
Intel Optane Memory Ready
LAN
Intel I219-V 1Gb Ethernet
Marvell AQtion AQC111C 5Gb Ethernet
ASUS LANGuard
Wireless Data Network
Intel Wi-Fi 6 AX201
Supports up to 2.4Gbps max data rate
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth : HT20/HT40/HT80/HT160
Supports CNVI interface
Bluetooth
Bluetooth v5.1*
*BT 5.1 function will be ready in Windows 10 build 19041 or later.
Audio
ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC S1220 *6 :
Impedance sense for front and rear headphone outputs
Supports : Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
High quality120dBSNR stereo playback outputand113dBSNR recording input
ESS ES9023 DAC + RC4580 OP AMP
Supports up to 32-Bit/192kHz playback
Audio Feature :
SupremeFX Shielding Technology
Gold-plated jacks
Optical S/PDIF out port(s) at back panel
Premium Japanese audio capacitors
Audio Cover
USB Ports
Rear USB Port ( Total 10 ) :
4 x USB 3.2 Gen 2 port(s)(3 + Type-A +1 + USB Type-C)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 7 ) :
1 x USB 3.2 Gen 2 front panel connector port(s)
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
Software Features
ROG Exclusive Software :
Mem Tweakit
RAMCache III
ROG CPU-Z
GameFirst VI
Sonic Studio III + Sonic Studio Virtual Mixer
Sonic Radar III
DTS Sound Unbound
Overwolf
BullGuard Internet Security (1-year full version)
ASUS Exclusive Software :
Armoury Crate :
Aura Creator
Aura Sync
AI Suite 3 :
5-way Optimization with AI Overclocking: TPU, EPU, Digi+ Power Control, Fan Xpert 4, Turbo app
EZ update
AI Charger
WinRAR
UEFI BIOS :
AI Overclocking Guide :
ASUS EZ DIY :
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode
FlexKey
ASUS Special Features
ROG Extreme OC kit :
FlexKey button
ReTry button
Start button
Extreme Engine Digi+ :
10K Black Metallic Capacitors
MicroFine Alloy Choke
ASUS Q-Design :
ASUS Q-Code
ASUS Q-Connector
ASUS Q-DIMM
ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
ASUS Q-Slot
ASUS Thermal Solution :
Aluminum M.2 heatsink cover
ASUS EZ DIY :
BIOS Flashback button
Clear CMOS button
Procool II
Pre-mounted I/O shield
SafeSlot
AURA Sync :
Standard RGB headers
Addressable Gen 2 RGB headers

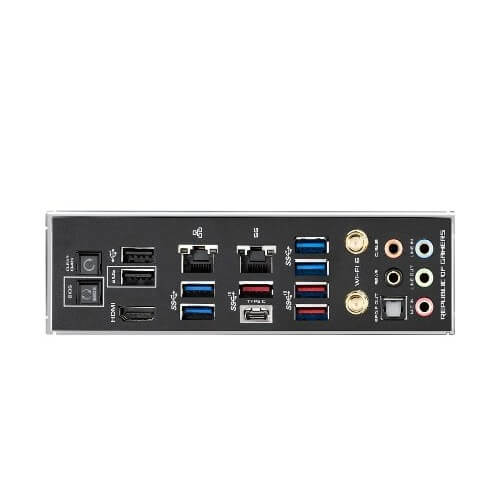

Back I/O Ports
1 x Marvell AQtion AQC111C 5Gb Ethernet
1 x Intel I219-V 1Gb Ethernet
1 x HDMI
4 x USB 3.2 Gen 2
4 x USB 3.2 Gen 1
2 x USB 2.0
1 x Optical S/PDIF out
1 x Clear CMOS button(s)
1 x USB BIOS FlashBack Button(s)
1 x ASUS Wi-Fi Module
5 x Gold-plated audio jacks
Internal I/O Ports
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x H_AMP fan connector
1 x W_PUMP+ connector
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x AAFP connector
2 x Aura RGB Strip Headers
2 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
3 x M.2 Socket 3
6 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Thermal sensor connector(s)
1 x ReTry button
1 x System panel connector
1 x Speaker connector
1 x Start button
1 x FlexKey button
1 x USB 3.2 Gen 2 front panel connector
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Operating System
Windows 10 64-bit
Form Factor
ATX Form Factor : 12 inch x 9.5 inch ( 30.5 cm x 24.4 cm )
Note :
*1 Support PCIe bifurcation for RAID on CPU function.
*2 The PCIEX16_3 shares bandwidth wih M.2_2. The PCIEX16_3 will be disabled when M.2_2 runs x4 mode.
*3 When M.2_1 is operating in SATA mode, SATA6G_2 will be disabled.
*4 M.2_2 shares bandwidth with PCIEX16_3. When M.2_2 runs x4 mode, PCIEX16_3 will be disabled. When M.2_2 runs x2 mode, PCIEX16_3 runs x1 mode.
*5 M.2_3 shares bandwidth with SATA6G_56. When M.2_3 is populated SATA6G_56 will be disabled.
*6 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 7.1 Surround Sound audio.
Specification: Asus ROG Maximus XII Hero Z490 (Wi-Fi) Gaming Motherboard
EAN, GTIN, UPC
4718017664097
Brand
Asus
WARRANTY
3 Years Warranty
Product Type
Motherboards
CPU PLATFORM
INTEL
CPU SOCKET
LGA1200
FORM FACTOR
ATX
MEMORY TYPE
DDR4
CHIPSET
Intel Z490
MAXIMUM MEMORY
128 GB
IDEAL FOR GAMING
YES
