BIOSTAR MOTHERBOARD H81MHV3 Ver. 7.x

Chipset Intel H81
CPU SUPPORT Intel® Core™ i7 LGA 1150 Processor
Intel® Core™ i5 LGA 1150 Processor
Intel® Core™ i3 LGA 1150 Processor
Intel® Pentium® LGA 1150 Processor
Maximum CPU TDP (Thermal Design Power) : 95Watt
MEMORY Support Dual Channel DDR3 1600/1333/1066 MHz
2 x DDR3 DIMM Memory Slot
Max. Supports up to 16GB Memory
INTEGRATED VIDEO By CPU model
Supports DX11.1
STORAGE 2 x SATA III Connectors (6Gb/s)
2 x SATA II Connector s (3Gb/s)
LAN Realtek RTL8111G – 10/100/1000Mb/s Controller
AUDIO CODEC Realtek ALC662 6-Channel HD Audio
USB 2 x USB 3.0 Port
2 x USB 2.0 Port
2 x USB 2.0 Header
EXPANSION SLOT 1 x PCI-E 2.0 x16 Slot
1 x PCI-E 2.0 x1 Slot

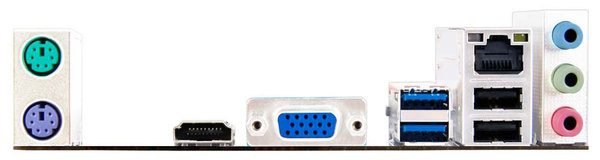

REAR I/O 1 x PS/2 Mouse
1 x PS/2 Keyboard
2 x USB 3.0 Port
2 x USB 2.0 Port
1 x HDMI Connector
1 x VGA Port
1 x LAN Port
3 x Audio Jacks
INTERNAL I/O 2 x USB 2.0 Header
2 x SATA III Connector (6Gb/s)
2 x SATA II Connector (3Gb/s )
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Connector
1 x System Fan Connector
1 x COM Port Header
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
DIMENSION Micro ATX Form Factor Dimension: 19cm x 17cm ( W x L )
OS SUPPORT Supports Windows 7 / 8 / 8.1 / 10(x64)
BUNDLE SOFTWARE BIO-Remote2
Smart Speed LAN
ACCESSORIES 2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
FEATURES Supports Solid capacitor
Supports Charger Booster
Supports BIOS Online Update
