BIOSTAR MOTHERBOARD Hi-Fi B150S1 D4 Ver. 6.x

Chipset Intel B150
CPU SUPPORT 7th & 6th Gen Intel® Core™ i7 LGA 1151 Processor
7th & 6th Gen Intel® Core™ i5 LGA 1151 Processor
7th & 6th Gen Intel® Core™ i3 LGA 1151 Processor
7th & 6th Gen Intel® Pentium® LGA 1151 Processor
7th & 6th Gen Intel® Celeron® LGA 1151 Processor
Maximum CPU TDP (Thermal Design Power) : 95Watt
MEMORY Support Dual Channel DDR4 2133/ 1866 MHz
2 x DDR4 DIMM Memory Slot
Max. Supports up to 32GB Memory
INTEGRATED VIDEO By CPU model
Supports DX12
Supports HDCP
STORAGE 4 x SATA III Connector
LAN Realtek RTL8111H – 10/100/1000Mb/s Controller
Support Super LAN Surge Protection
AUDIO CODEC Realtek ALC887 8-Channel HD Audio
Support Biostar Hi-Fi
USB 4 x USB 3.0 Port
1 x USB 3.0 Header
2 x USB 2.0 Port
2 x USB 2.0 Header
EXPANSION SLOT 1 x PCI-E 3.0 x16 Slot
2 x PCI-E 3.0 x1 Slot

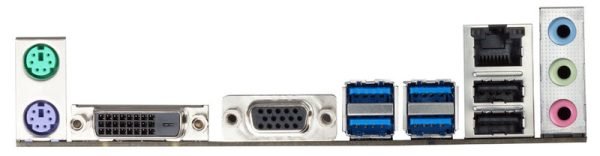

REAR I/O 1 x PS/2 Mouse
1 x PS/2 Keyboard
4 x USB 3.0 Port
2 x USB 2.0 Port
1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz
1 x VGA Port, resolution up to 1920 x 1200 @60Hz
1 x LAN Port
3 x Audio Jacks
INTERNAL I/O 1 x USB 3.0 Header
2 x USB 2.0 Header
4 x SATA III Connector (6Gb/s)
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Connector
1 x System Fan Connector
1 x COM Port Header
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
DIMENSION Micro ATX Form Factor Dimension: 22.6cm x 18.5cm ( W x L )
OS SUPPORT Supports Windows 7 / 8.1(x64) / 10(x64)
BUNDLE SOFTWARE BullGuard
Smart Ear headphone Utility
BIO-Remote2
Smart Speed LAN
ACCESSORIES 2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
FEATURES Supports PURO Hi-Fi(Rear)
Supports 100% Solid capacitor
Supports Charger Booster
Supports BIOS Online Update
