Cooler Master HAF 500 ARGB Mid Tower Gaming Cabinet with PWM Fan Hub – Black
ITX, Micro-ATX, ATX Motherboard Support
Dual 200mm ARGB Fans
USB 3.2 Gen 2 Type C Support
Up to 360mm Radiator Support
Up to 410mm GPU Clearance Length
Case Type – Mid Tower
Motherboard Compatibility – ATX, Micro-ATX, Mini-ITX
CPU Cooler Clearance – Up to 167 mm (6.5″)
GPU Clearance – Up to 410 mm (16.1″)
Side Panel Material – Tempered Glass, Steel
Outlook Material – Steel, Mesh, Plastic
OVERVIEW

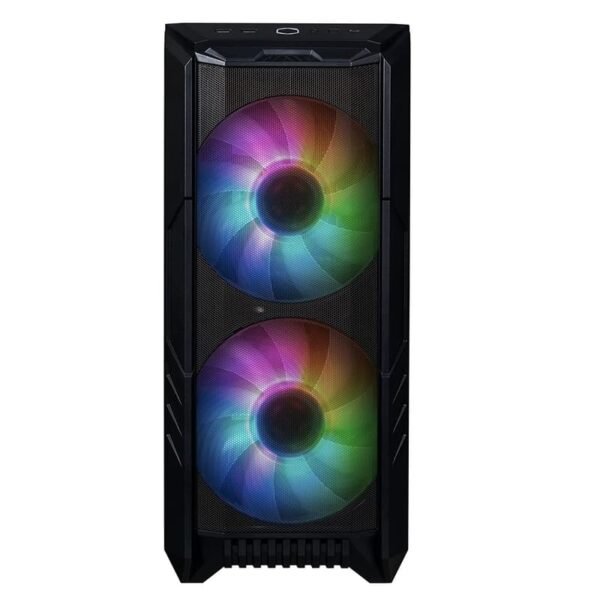

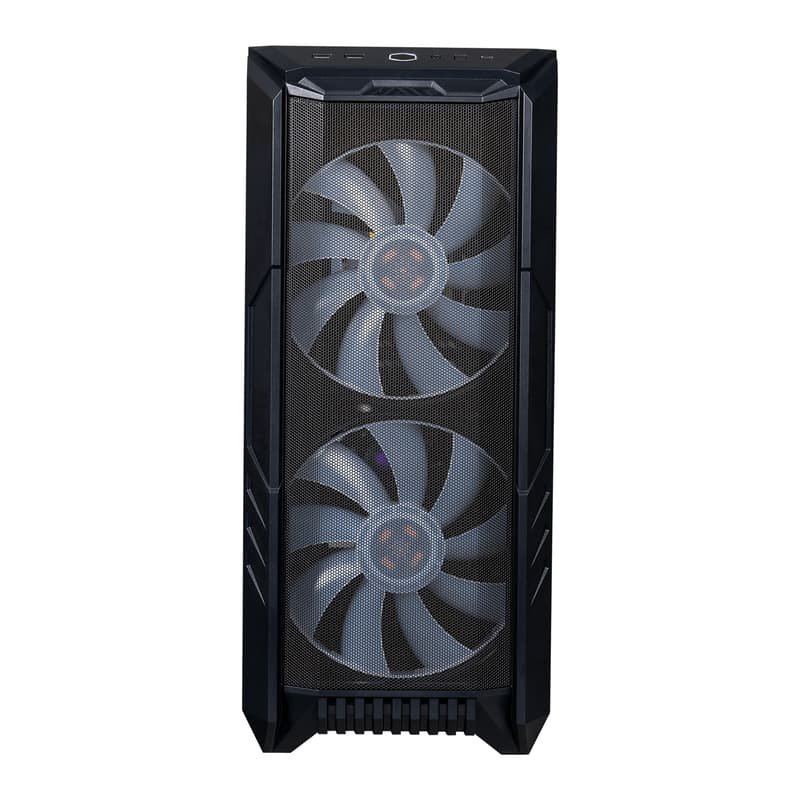

Welcome the homecoming classic HAF series. The Cooler Master HAF 500 is built for high airflow performance with ease and without any unwanted restriction. It boasts dual 200mm large intake ARGB fans for unparalleled intake and cooling efficiency. It features large filtered intakes to promote high airflow while keeping internal components run at optimal temperature.
The HAF 500 also features a Rotatable GPU fan which is adjustable to various GPU lengths, heights, and configurations. The given 200mm ARGB fans are designed and embedded in the core of the HAF Series which functions in such a way that it gives a high volume of air quietly and effectively and with ease due to their large size.

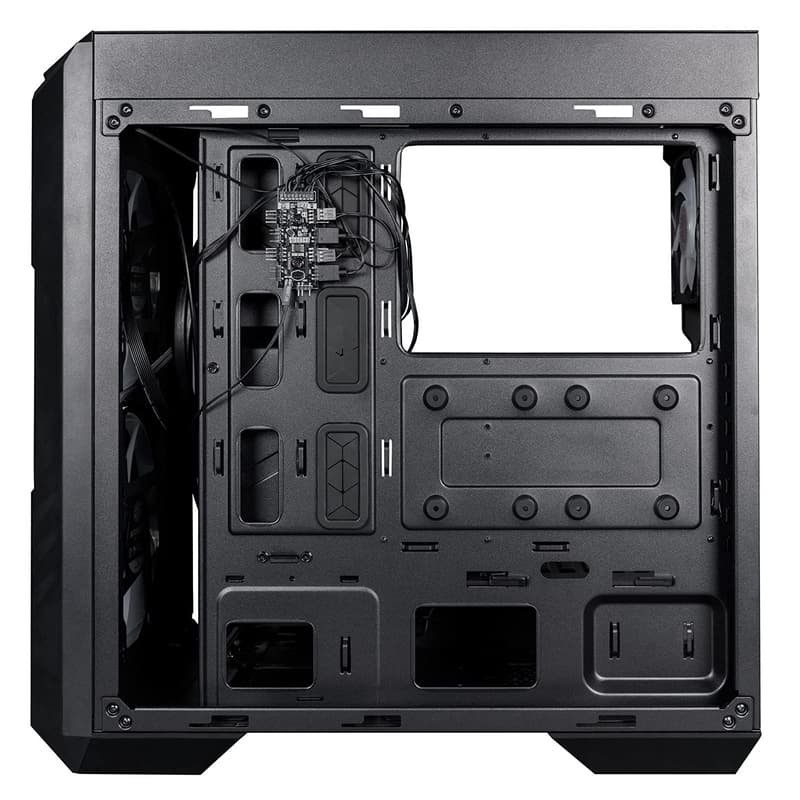

The HAF 500 also has a PWM Fan hub included and by utilizing the included hub, the ARGB lighting can be customized to create a comprehensive theme that matches your build.

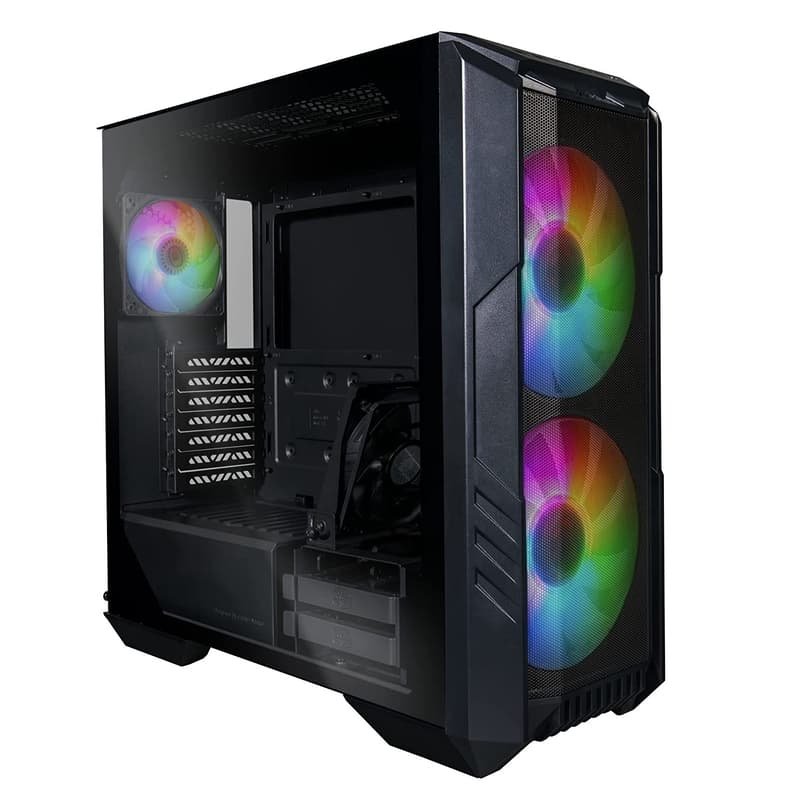

The chassis has a tempered glass side panel which is secured with pins for easy removal and facilitates quick access to the internals without using the tools. An optional screw can also be installed further for securing the tempered glass side panel.
Although, the Screwless and Tool-less tempered glass side panel and a removable top panel facilitate simplified and hassle-free installation without struggling with small spaces. The top panel is designed in such a way that t is entirely removable for improving access to the components while assembling. Along with this, the easy usage also facilitates the mounting of cooling solutions such as fans and radiators.
The HAF 500 has a 1x USB 3.2 Gen 2 Type C port built into the I/O Panel that allows multi-purpose and streamlined data transmission. It also supports up to eight 120mm fans and up to a dual 360mm radiator on the top and front panel ensuring higher compatibility for liquid-cooled systems. Ample clearance for up to 360mm radiator on the top and front panel which accommodates the most advanced water-cooling setups. The 120mm fan positioned on the top of the HDD cage provides dedicated GPX cooling ensuring maximum performance.
TECHNICAL SPECIFICATIONS
GENERAL INFORMATION–
PRODUCT TYPE– CABINET
SIZE– MID TOWER
SERIES– HAF SERIES
ARGB CONTROLLER– ARGB HUB
MOTHERBOARD SUPPORT– ITX, MICRO ATX, ATX, SSI CEB, E-ATX*, (*supports UP TO 12″ X 14.1″, MAY IMPACT CABLE MANAGEMENT AND CASE FEATURES, REMOVE CABLE COVER AND GPU FAN BRACKET FEATURES)
EXPANSION SLOTS– 7
MATERIALS–
OUTLOOK– STEEL, MESH, PLASTIC
SIDE PANEL– TEMPERED GLASS, STEEL
DRIVE BAYS–
2.5″– 2
2.5″ / 3.5″ (COMBO)– 2
5.25″– N/A
PRE-INSTALLED FAN(S)–
FRONT– 2X 200MM ARGB FAN
REAR– 1X 120MM SICKLEFLOW PWM ARGB
OTHERS– 1X 120MM SICKLEFLOW PWM (GPU FAN)
FAN SUPPORT–
TOP– 3X 120MM, 2X 140MM, 2X 200MM
FRONT– 3X 120MM, 2X 140MM, 2X 200MM, *200MM MOUNTING HOLE SPACING 154 X 154 W/ UP TO 30MM THICKNESS
REAR– 1X 120MM
TOP ON HDD CAGE– 1X 120MM
RADIATOR SUPPORT–
TOP– 120MM, 140MM, 240MM, 280MM, 360MM
FRONT– 120MM, 140MM, 200MM, 240MM, 280MM, 360MM
REAR– 120MM
CLEARANCES–
CPU COOLER– 167MM/6.5″
PSU– 180MM/7.1″
GPU– 410MM/16.1″
I/O PANEL–
USB PORTS– 2X USB 3.2 GEN 1 (FORMERLY USB 3.0)
1X USB 3.2 GEN 2 TYPE-C
AUDIO IN/OUT– 1X SINGLE AUDIO JACK
OTHERS– 1X RESET/ARGB BUTTON
CABLE ROUTING–
BEHIND MOTHERBOARD TRAY– 30MM
DUST FILTERS– TOP, BOTTOM
POWER SUPPLY SUPPORT– BOTTOM MOUNT, ATX
DIMENSIONS (L X W X H)– 516 X 224 X 510 MM (INCL. PROTRUSIONS)
NET WEIGHT– 9.5 kg
GROSS WEIGHT– 11.2 kg
Specification: Cooler Master HAF 500 ARGB Mid Tower Gaming Cabinet with PWM Fan Hub – Black
EAN, GTIN, UPC–
4719512124208
WARRANTY–
2 Years Warranty
Product Type–
PC Cabinets
Brand–
Cooler Master
COLOR–
BLACK
FORM FACTOR–
MID TOWER
MATERIAL–
MESH, PLASTIC, STEEL, TEMPERED GLASS
SIDE PANEL–
TEMPERED GLASS
MOTHERBOARD COMPATIBILITY–
ATX, MICRO-ATX, MINI-ITX
LIGHTING–
ARGB
FANS–
4
RADIATOR COMPATIBILITY–
YES
IDEAL FOR GAMING–
YES
