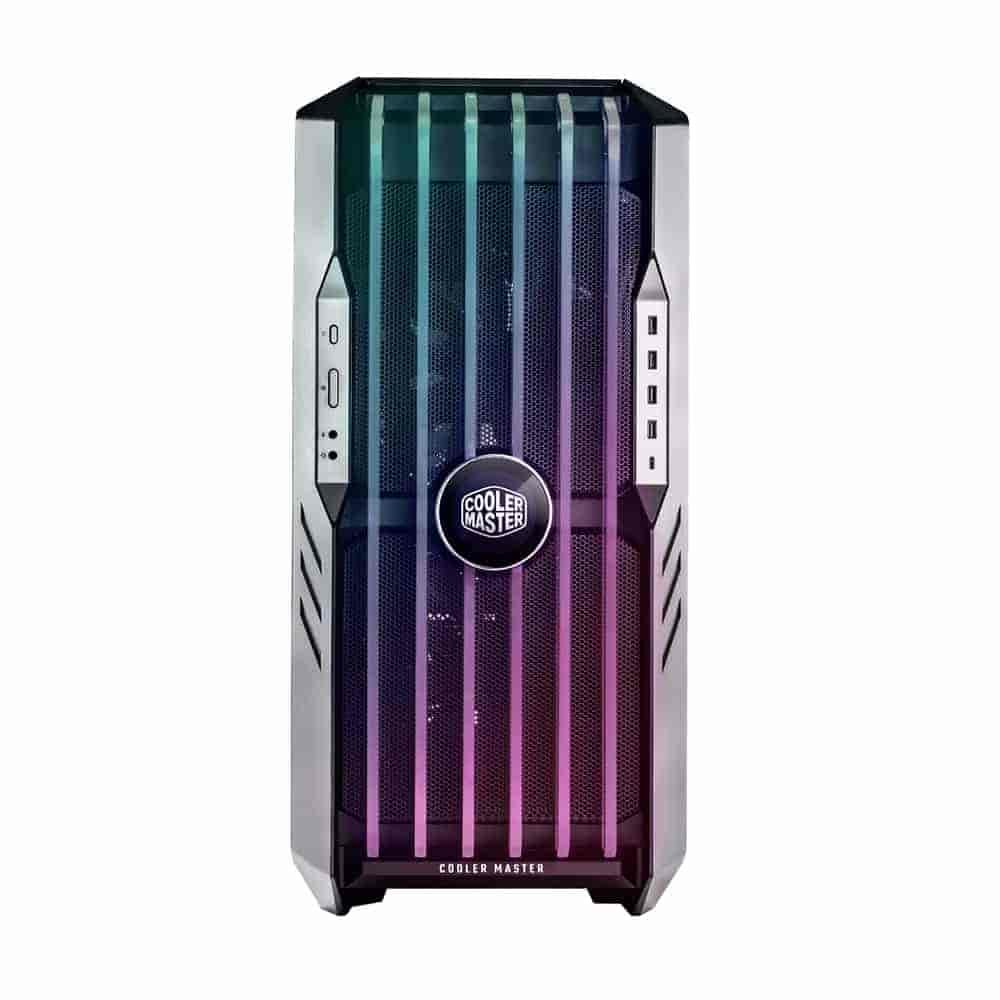

Cooler Master HAF 700 EVO ARGB Full Tower Gaming Cabinet
Full Tower Cabinet Type
Rotatable Radiator Bracket
200mm SickleFlow PWM Fan
ARGB Gen2 Ready including Controller
Integrated 7X PWM & 5X ARGB Hub
Series – HAF Series
Case Size – Full Tower
CPU Cooler Clearance – 166mm / 6.53 inch
GPU Clearance – 490mm / 19.29 inch
MB Compatibility – Mini ITX, Micro ATX, ATX, E-ATX, SSI CEB, SSI EEB
OVERVIEW
Cooler Master’s brand new HAF 700 EVO unveils a new era of thermal efficiency through its unique features that have been designed to exceed the standards of contemporary cooling solutions. The HAF700 EVO is compatible with SSI-EEB motherboards (E-ATX) as well as graphics cards of any size in both horizontal and vertical orientations.

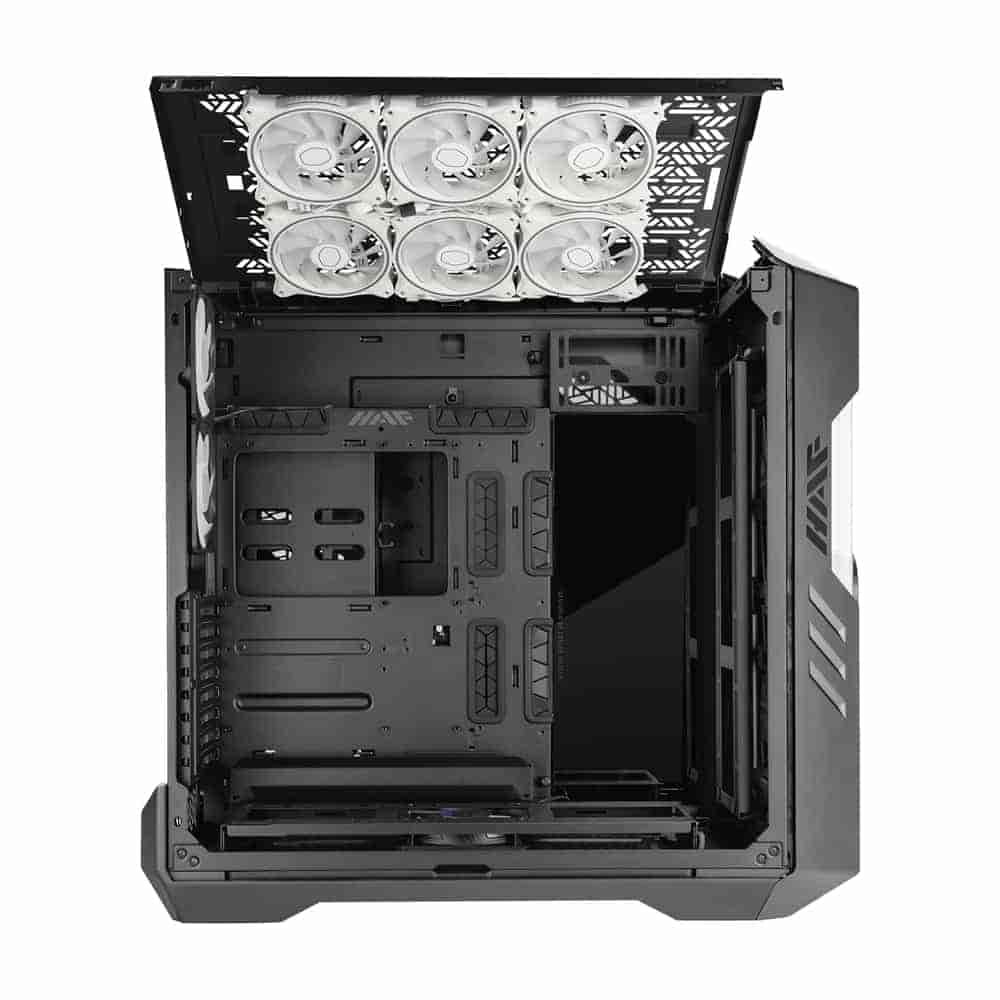

Two rotatable radiator/fan brackets are included out of the box to display the cooling components at unique angles. The unique removable top panel design allows you to easily install, access, and maintain cooling components such as fans and radiators, even with complex custom cooling systems.
The Cooler Master HAF700 EVO comes exclusively with dual 200mm SickleFlow PWM “Performance Edition” fans that are designed to strike a balance between performance capability and noise levels. Featuring a fully integrated PWM/ARGB hub for seamless cable management and simple control over ARGB effects and PWM fan speed. ARGB Gen2 technology allows users to explore full range optimization for the lighting effect of each individual LED while remaining compatible with third-party equipment.
Thick, sturdy ARGB tempered glass intake blades create unique, futuristic lighting effects while maintaining the thermal efficiency and performance of your preferred mesh. The structure of the HAF700 EVO separates non-heat-sensitive components so that heat dissipation can be targeted towards heat-sensitive components at an overall higher efficiency.
The Cooler Master HAF700 EVO includes a vertical graphics cardholder with a PCI-E 4.0 riser cable that offers users the flexibility of choice in aesthetic performance and airflow performance.
TECHNICAL SPECIFICATION
Model Number– H700E-IGNN-S00
Series– HAF Series
Size– Full Tower
Materials – Exterior– Mesh, Steel, Plastic
Materials – Left Side Panel– Tempered Glass, Steel
Motherboard Support– Mini ITX, Micro ATX, ATX, E-ATX, SSI CEB, SSI EEB
Expansion Slots– 8
Drive Bays–
5.25 inch– N/A
2.5 inch / 3.5 inch (combo)– 12
2.5 inch / 3.5 inch– 12
I/O Panel–
USB Ports– 1x USB 3.2 Gen 2 Type C, 4x USB 3.2 Gen 1 (3.0)
Audio In / Out– 1x 3.5mm 4 Poles Audio Jack, 1x 3.5mm Mic Jack
Other– 1x LED Controller A1 (ARGB Gen 2), 1x ARGB/PWM Hub
Pre-installed Fans–
Front– 2x SickleFlow PWM Performance Ed. 200mm
Rear– 2x SickleFlow PWM ARGB 120mm
Bottom– 1x SickleFlow PWM ARGB 120mm
Fan Support–
Top– 2x 200mm, 3x 140mm, 6x 120mm (Remove 480mm bracket)
Front– 2x 200mm, 3x 120/140mm
Rear– 2x 120mm
Bottom– 3x 120/140mm
Side– 4x 120mm / 3 x 140mm
Radiator Support–
Top– Up to 2x 360mm / 1x 420mm
Front– Up to 420/360mm
Rear– Up to 240mm
Bottom– Up to 420/360mm
Side– Up to 480/420mm
Clearance–
CPU Cooler– 166mm / 6.53 inch
PSU– 200mm / 7.87 inch
GFX– 490mm / 19.29 inch
Miscellaneous–
Cable Routing – Behind Motherboard Tray– 90-101mm
Dust Filters– Front, Bottom, Side
Power Supply Support– Bottom Mount, ATX
Additional Included Accessories– Universal Graphics Card Holder Kit V2
Note– * For regular 30mm thick radiators, for thicker please reference the compatibility sheet
Dimensions (L x W x H)– 556 x 279 x 540 mm (Body Size), 666 x 291 x 626 mm (incl. Protrusions)
Specification: Cooler Master HAF 700 EVO ARGB Full Tower Gaming Cabinet
EAN, GTIN, UPC–
884102098598
Product Type–
PC Cabinets
Brand–
Cooler Master
COLOR–
TITANIUM GREY
FORM FACTOR–
FULL TOWER
MATERIAL–
MESH, PLASTIC, STEEL
SIDE PANEL–
STEEL, TEMPERED GLASS
MOTHERBOARD COMPATIBILITY–
ATX, E-ATX, MICRO-ATX, MINI-ITX, SSI CEB, SSI-EEB
LIGHTING–
ARGB
FANS–
5
RADIATOR COMPATIBILITY–
YES
IDEAL FOR GAMING–
YES
WARRANTY–
2 Years Warranty
Reviews
There are no reviews yet.
