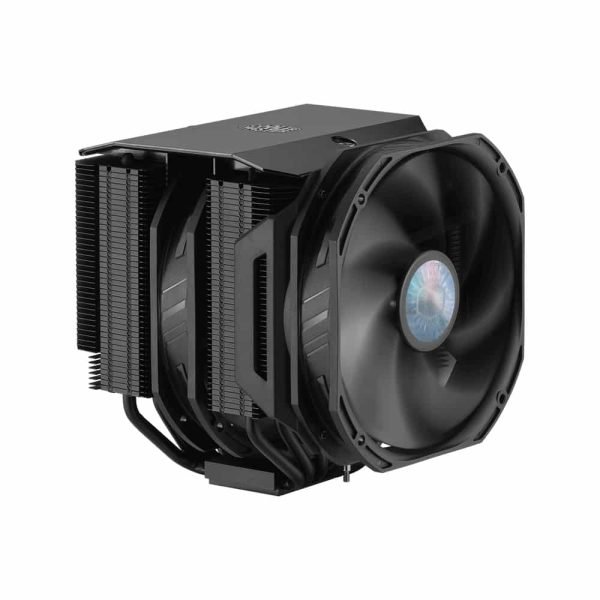

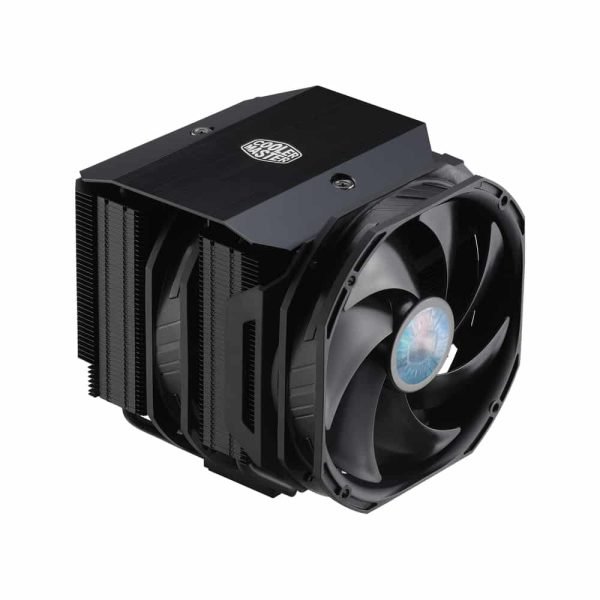

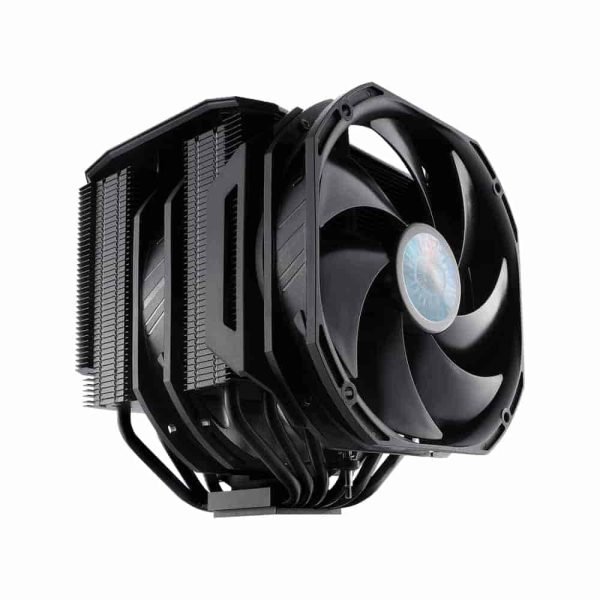

Cooler Master MA624 Stealth Air Cooler
Dual SickleFlow 140 Fan
6 Heat Pipes with Nickle Plated Base
2 x 140mm fans, 1 x 120 mm fan
4-PIN (PWM) Fan Power Connector
12VDC Fan Rated Voltage
Cooler Type – Air Cooler
Series – Master Air
Fan Quantity – 1x120mm, 2x140mm
Fan Noise Level – Up to 27 DBA
Fan Air Pressure – 2.25 MMH2O (Max)
OVERVIEW
The Cooler Master MA624 Stealth Air Cooler comes in a premium aluminum black top cover dual tower heat sink with 6 heat pipers with a nickel-plated base. The Health Black aluminum top cover is matched with all-black hardware to offer a premium finish throughout, and the dual tower heat sink provides twice the surface area for better cooling. Full coverage of 6 heat pipes and the nickel-plated copper base provides seamless contact with the CPU for excellent heat dissipation.
The MA 624 air cooler has Dual Sickle Flow 140mm fans to provide optimal airflow and pressure using the Push-Pull setup for excellent performance at an inaudible noise level. An optional 3rd Sickle Flow 120mm fan is also included for necessary RAM Clearance for the Easy Mounting System. The cooler has an optimized design for graphic card compatibility on ATX and Micro-ATX platforms.
TECHNICAL SPECIFICATIONS
PRODUCT_ Air Cooler
SERIES_ Master Air
CPU SOCKET_ LGA2066, LGA2011-v3, LGA2011, LGA1200, LGA1366, LGA1156, LGA1155, LGA1151, LGA1150, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1
HEATPIPES_ 6
HEAT SINK MATERIAL_ 6 Heat Pipes, Aluminum Fins
FAN QUANTITY_ 140 mm Fan – 2 PCS, 120 mm Fan – 1 PC
FAN SPEED_ 140 mm Fan – 650-1400 RPM ± 5%, 120 mm Fan – 650-1800 RPM ± 5%
FAN AIRFLOW_ 140 mm Fan – 67 CFM (Max), 120 mm Fan – 62 CFM (Max)
FAN NOISE LEVEL_ 140 mm Fan – 10 ~ 27 dBA, 120 mm Fan – 8 ~ 27 dBA
FAN AIR PRESSURE_ 140 mm Fan – 2.25 mmH2O (Max), 120 mm Fan – 2.5 mmH2O (Max)
FAN MTTF_ 160,000 Hours
FAN POWER CONNECTOR_ 4-Pin (PWM)
FAN RATED VOLTAGE_ 12VDC
FAN RATED CURRENT_ 0.15A
FAN SAFETY CURRENT_ 140 mm Fan – 0.4A, 120 mm Fan – 0.37A
FAN POWER CONSUMPTION_ 1.8W
FAN DIMENSIONS (L X W X H)_ 140 mm Fan – 140 x 140 x 25 mm / 5.5 x 5.5 x 1 inch, 120 mm Fan – 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch
PRODUCT DIMENSIONS (L X W X H)_ 144.9 x 153.2 x 160 mm / 5.7 x 6 x 6.3 inch
WEIGHT_ 1.62 kg
Specification: Cooler Master MA624 Stealth Air Cooler
Product Type_
CPU Coolers
EAN, GTIN, UPC_
4719512111512
FORM FACTOR_
ATX , E-ATX
COOLER TYPE_
AIR COOLER
FAN SIZE_
120 mm, 140 mm
Brand_
Cooler Master
COLOR_
BLACK
FANS_
3
LIGHTING_
NONE
FAN CONTROLLER_
NO
WARRANTY_
5 Years Warranty
