Cooler Master MasterBox 540 Mid Tower Cabinet MB540-KGNN-S00

In stock

ARGB Ether Front Panel
Standardized ARGB Connector & Controller Included
Removable Top Panel
Rich Connectivity
Screwless & Tool-Free Design TG Side Panel
Versatile Cooling Options
Room For Upgrades
Breathable Power Supply Shroud

Compare
SKU: IT-20220901-1671 Category:

GAME IN A NEW LIGHT

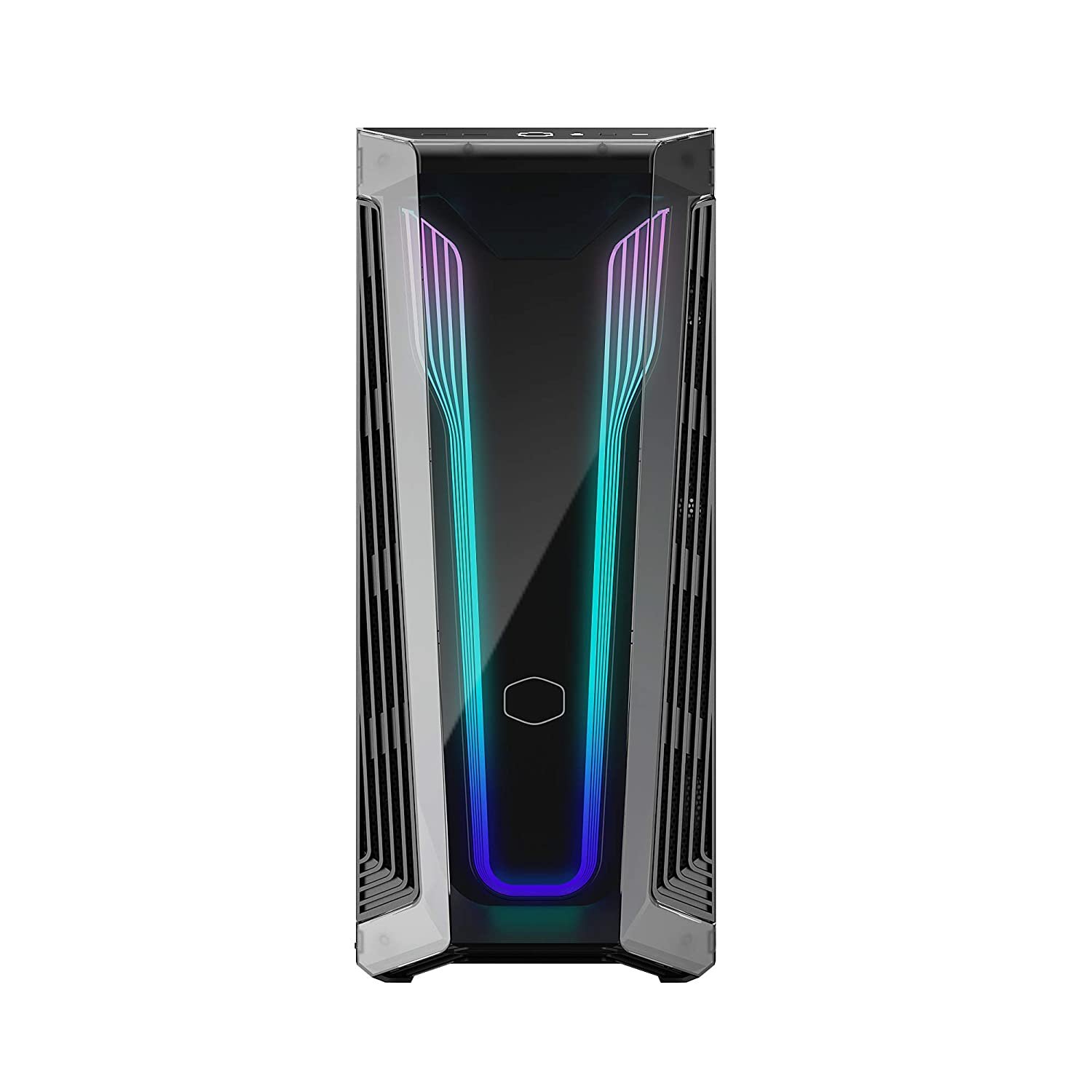

A vivid, iridescent design spans the entire front panel of the MasterBox 540. Customizable ARGB strips radiate behind the transparent façade for a stunning display of light.

The ARGB strips can be set to match the colour scheme of the system inside with an included controller, and will also sync to the motherboard for a limitless potential for customization.

ARGB ETHER FRONT PANEL
Inspired by the design of automotive lighting, the front panel houses ARGB lighting strips paired with a front diffuser.

This design element is powered by a pogo pin connector and fused to the DarkMirror finish of the façade, delivering a unique twist on conventional illumination.

STANDARDIZED ARGB CONNECTOR & CONTROLLER INCLUDED
The ARGB Ether Front Panel can be controlled either via software or the included ARGB controller, pre-loaded with unique lighting presets. The controller also comes pre-routed to the RESET/ARGB button in the front panel.

REMOVABLE TOP PANEL
The top panel is entirely removable for improved access to the components during assembly.

Ease of use also facilitates the mounting of cooling solutions such as fans and radiators.

RICH CONNECTIVITY
The I/O panel comes with a USB 3.2 (Gen 2) Type-C port, two additional USB 3.2 (Gen 1) ports, and one 3.5mm (audio + mic) headset jack.

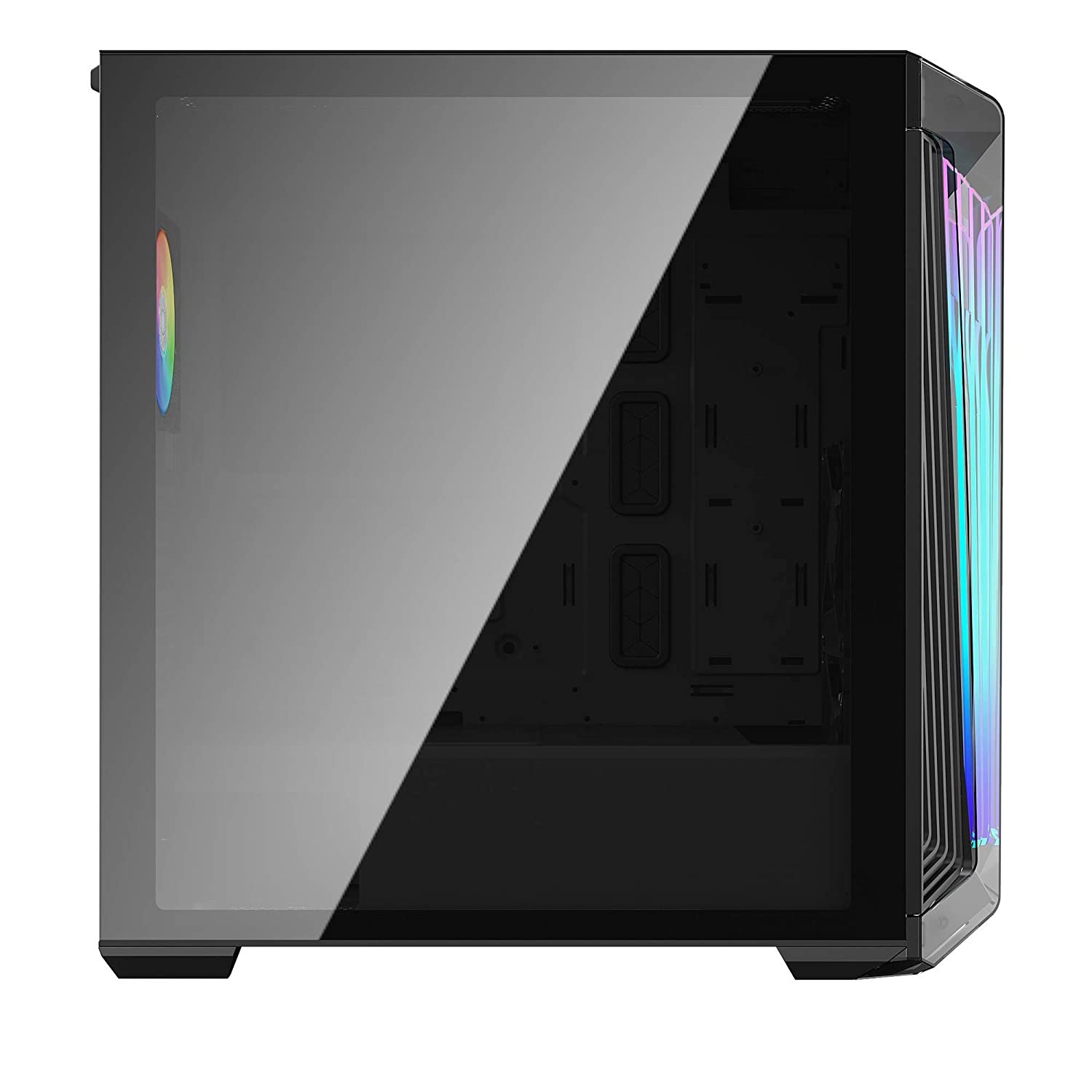

SCREWLESS & TOOL-FREE DESIGN TG SIDE PANEL
The tempered glass side panel is secured with pins for easy removal, facilitating quick access to the internals without the use of tools. An optional screw can be installed to further secure the tempered glass side panel.

VERSATILE COOLING OPTIONS
Support for up to seven 120mm fans and dual 360mm radiators on the top and front panel ensure high compatibility for liquid-cooled systems.

ROOM FOR UPGRADES
Support for up to a 410mm graphics card, a 165mm CPU cooler, and up to a 180mm PSU in length provides room for upgrades to stay ahead of the game.

BREATHABLE POWER SUPPLY SHROUD
The PSU cover is ventilated on top of the power supply location, this allows actively cooled units to be installed either with the fan facing the top or bottom, with the possibility to install passively cooled power supplies.

Specification :

MODEL NUMBER MB540-KGNN-S00
SERIES MasterBox Series
SIZE Mid Tower
AVAILABLE COLOR(S) Black
MATERIALS Steel, Mesh, Plastic, Tempered Glass
DIMENSIONS (L X W X H) 499.3 x 208.6 x 498mm (incl. Protrusions), 488.3 x 208.6 x 498mm (excl. Protrusions)
VOLUME (EXLC. PROTRUSIONS) 51.87L
MOTHERBOARD SUPPORT Mini ITX, Micro ATX, ATX, E-ATX*, (*up to 12” x 10.7” motherboards, may impact cable management feature)
EXPANSION SLOTS 7
5.25″ DRIVE BAYS 0
2.5″ / 3.5″ DRIVE BAYS (COMBO) 2
2.5″ DRIVE BAYS 4
I/O PANEL 2x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x 3.5mm Headset Jack (Audio+Mic), 1x Reset/ARGB button
PRE-INSTALLED FANS – TOP N/A
PRE-INSTALLED FANS – FRONT N/A
PRE-INSTALLED FANS – REAR 1x 120mm 650~1800RPM SickleFlow PWM ARGB
FAN SUPPORT – TOP 3x 120mm, 2x 140mm
FAN SUPPORT – FRONT 3x 120mm, 2x 140mm
FAN SUPPORT – REAR 1x 120mm
RADIATOR SUPPORT – TOP 120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm)
RADIATOR SUPPORT – FRONT 120mm, 140mm, 240mm, 280mm, 360mm
RADIATOR SUPPORT – REAR 120mm
CLEARANCE – CPU COOLER 165mm/6.49″
CLEARANCE – PSU 180mm/7.08″, 295mm/11.61″ (w/ HDD cage removed)
CLEARANCE – GFX 410mm/16.1″
DUST FILTERS Top, Front, Bottom
POWER SUPPLY SUPPORT ATX
WARRANTY 2 years
