Cooler Master MasterBox CM694 Tempered Glass Gaming Cabinet – Black
Mid Tower Cabinet
Tempered Glass Side Panel
3 x 120mm Included Fans
Micro-ATX, ATX, E-ATX Motherboard Supported
Curved Mesh Front Panel
Cabinet Size – Mid Tower
Motherboard Compatibility – Mini ITX, Micro ATX, ATX, E-ATX
VGA Card Length – 410mm/16.1 inch
CPU Cooler Length – 171mm/6.73 inch
OVERVIEW

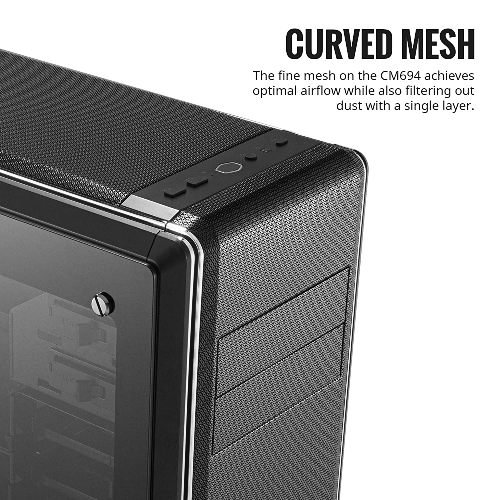

Cooler Master Masterbox CM694 Iconic CM690 Curve and Cooler Master’s signature rhombus pattern with top and front panel complete mesh. Cooler Master MasterBox CM694 achieves optimal airflow when filtering dust with a fine mesh single layer of gaming cabinets.

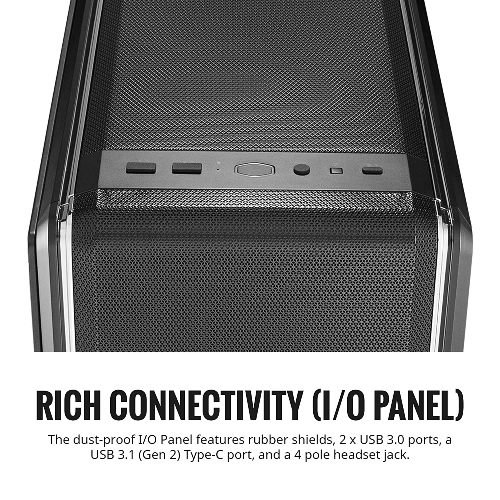

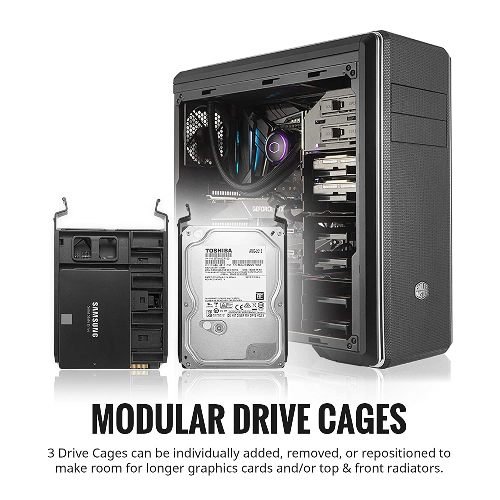

Cooler Master Masterbox CM694 Tempered Glass Gaming Cabinet 3 Drive cages can be individually added, removed, or made space for long-lasting graphics cards and/or top and front radiators. The Cooler Masterbox Dust-Proof I / O panel has a rubber output, 2 x USB 3.0 port, a USB 3.1 (common 2) Type-C port, and a 4 pole headset jack.
TECHNICAL SPECIFICATIONS
SERIES– MasterBox Series
Cabinet SIZE– Mid Tower
COLOR– Black
MATERIALS– Steel, Plastic, Tempered Glass, Mesh

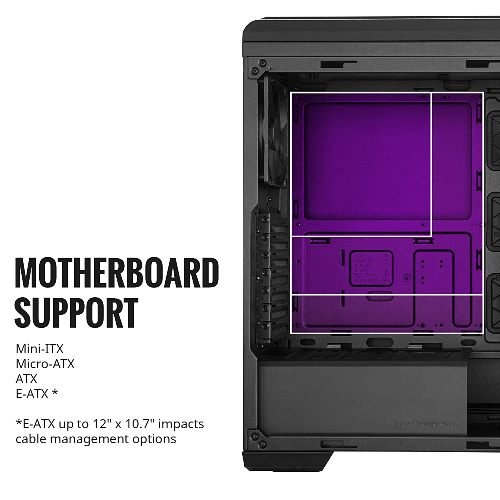

MOTHERBOARD SUPPORT– Mini ITX, Micro ATX, ATX, E-ATX
EXPANSION SLOTS– 7
5.25″ DRIVE BAYS– 2
2.5″ / 3.5″ DRIVE BAYS (COMBO)– 6 (3x drive cages)
2.5″ DRIVE BAYS– 8 (2 + 6 combo)
I/O PANEL– 2x USB 3.0 Type A, 1x USB 3.1 Type-C, 1x 3.5mm Headset Jack (Audio+Mic)
PRE-INSTALLED FANS – FRONT– 2x 120mm Fan (1200 RPM ± 200 RPM, 3 pin connector)
PRE-INSTALLED FANS – REAR– 1x 120mm fan (1200 RPM ± 200 RPM, 3 pin connector)

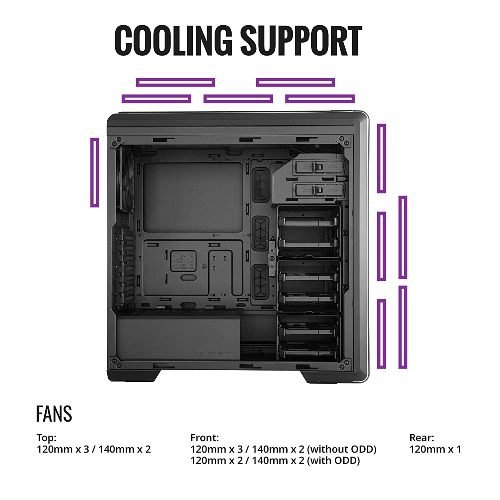

FAN SUPPORT – FRONT– 3x 120mm / 2x 140mm (wo/ODD), 2x 120mm / 2x 140mm (w/ODD)
FAN SUPPORT – TOP– 3x 120mm, 2x 140mm
FAN SUPPORT – REAR– 1x 120mm

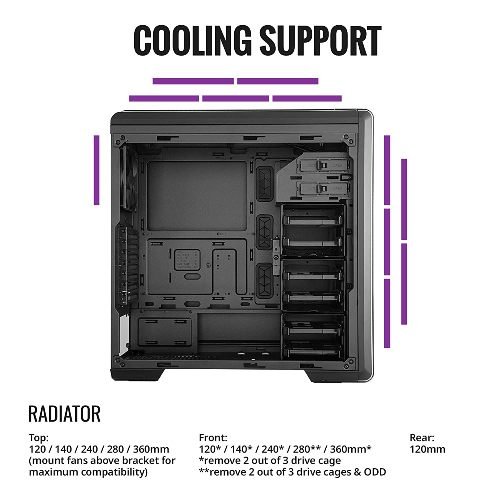

RADIATOR SUPPORT – FRONT– 120mm*, 140mm*, 240mm*, 280mm**, 360mm** (*remove 2 out of 3 drive cages) (**remove 2 out of 3 drive cages & ODD cage)
RADIATOR SUPPORT – TOP– 120mm, 140mm, 240mm, 280mm, 360mm, (mount radiator below the bracket & fans above the bracket for maximum compatibility)
RADIATOR SUPPORT – REAR :– 120mm
CLEARANCE – CPU COOLER :– 171mm
CLEARANCE – GFX– 410mm/16.1″, 350mm (with stabilizer), 280mm (with stabilizer + drive cage)
CLEARANCE – PSU– 276mm, 160mm (drive cage rear position)
POWER SUPPLY SUPPORT– Bottom mount, ATX PS2
DUST FILTERS– Top, Front, Bottom
CABLE ROUTING– 27-29mm
DIMENSIONS (L X W X H)– 493mm x 224mm x 506mm
Specification: Cooler Master MasterBox CM694 Tempered Glass Gaming Cabinet – Black
Brand–
Cooler Master
COLOR–
BLACK
FANS–
1
FORM FACTOR–
MID TOWER
LIGHTING–
NONE
MATERIAL–
STEEL+PLASTIC
MOTHERBOARD COMPATIBILITY–
MINI-ITX,MICRO-ATX,ATX,E-ATX
RADIATOR COMPATIBILITY–
YES
SIDE PANEL–
TEMPERED GLASS
WARRANTY–
2 Years Warranty
Product Type–
PC Cabinets
