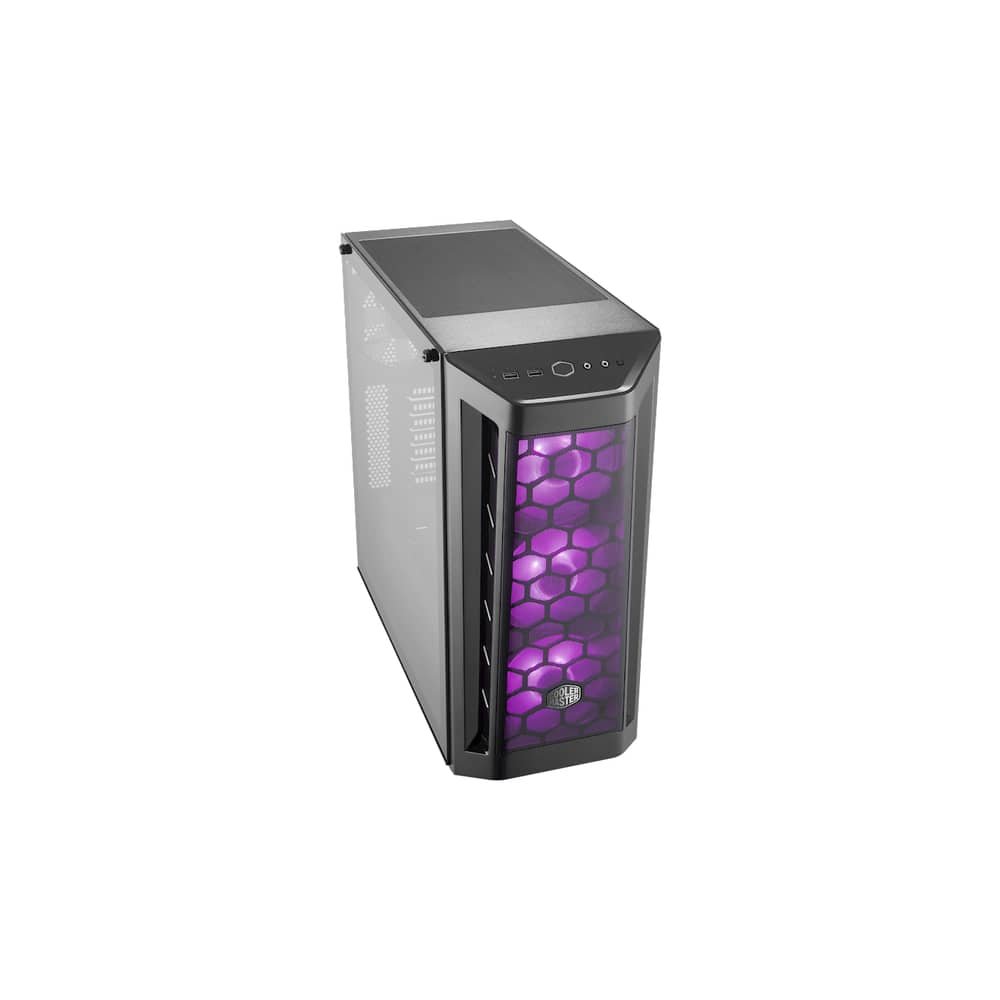

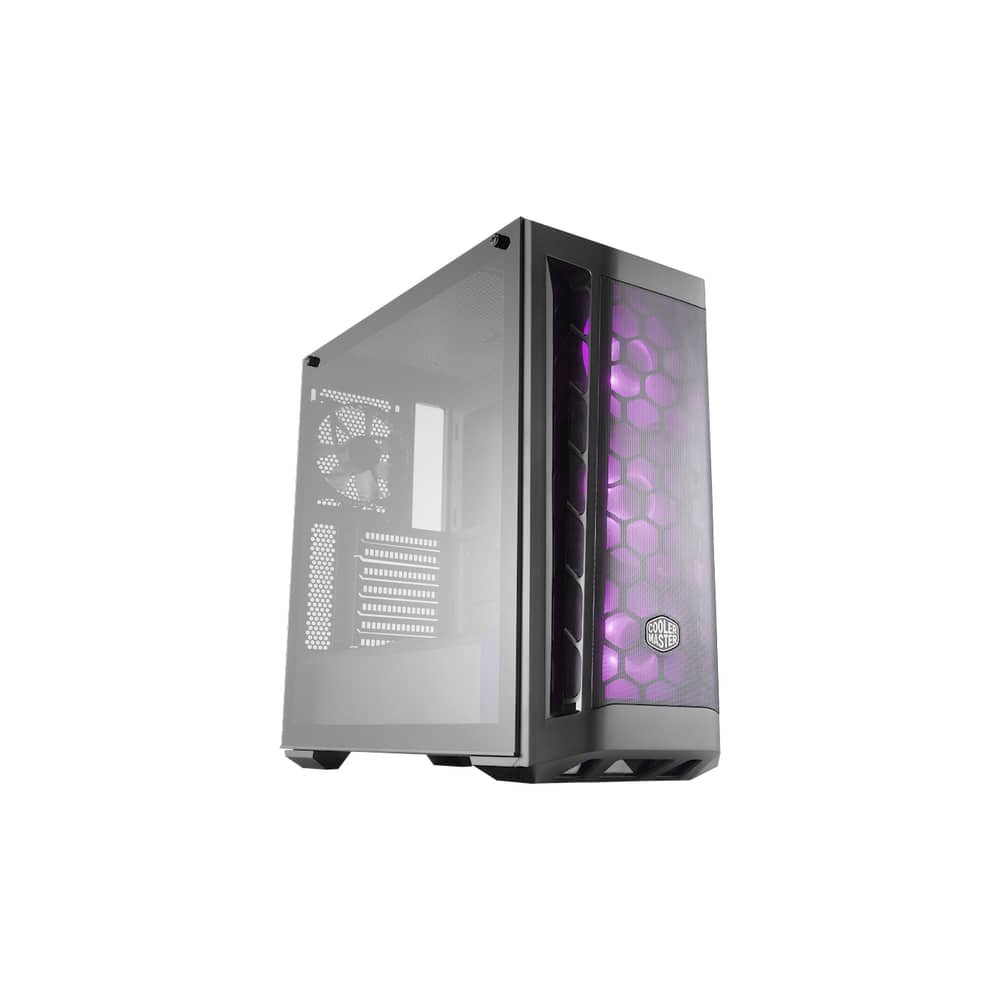

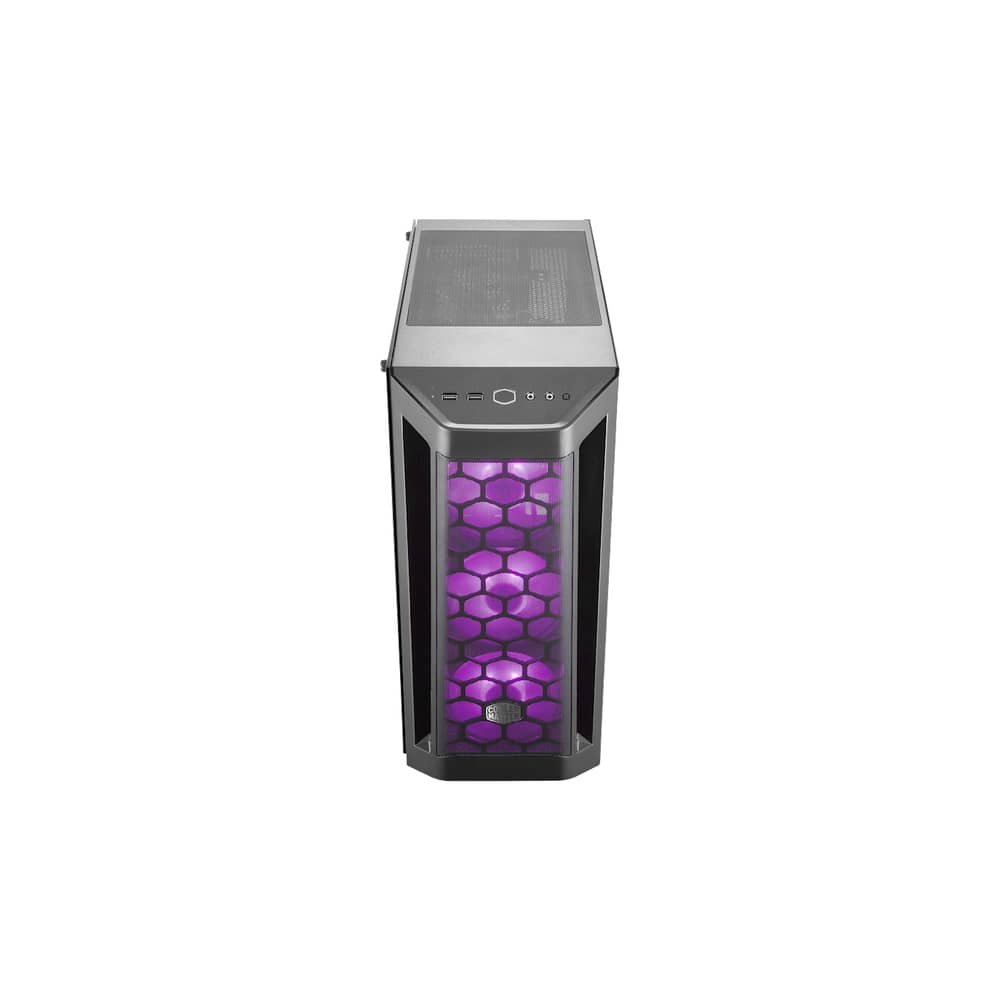

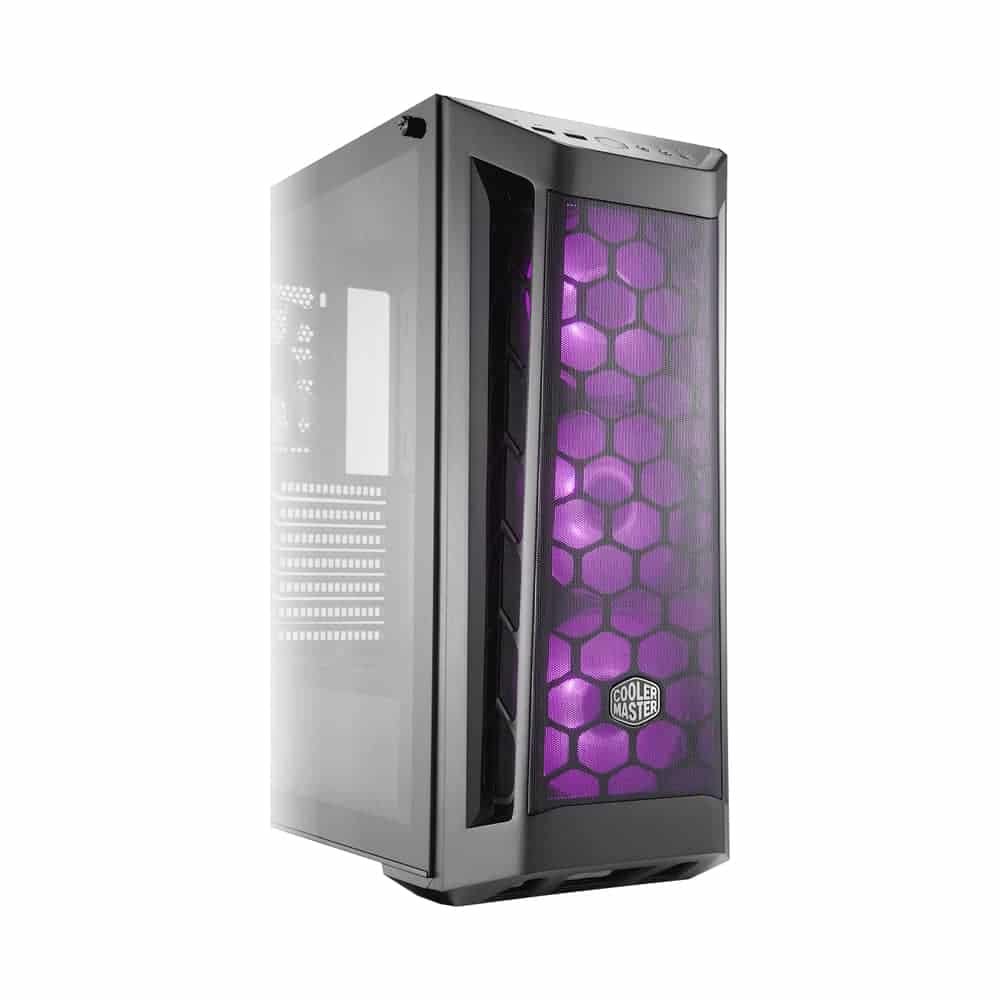

Cooler Master MasterBox MB511 RGB Mid Tower Gaming Cabinet

In stock

Mid Tower Gaming Case
ATX, Micro-ATX, Mini-ITX Motherboard Support
RGB LED Fans and Lightning Control
Up to 6 Fans and Water Cooling Support
Up to 410mm GPU Support

Compare
SKU: IT-25102022-209 Category:

Case Type – Mid Tower

Form Factor – ATX, ITX

I/O Panel – 2x USB 3.0 Audio In & Out

Pre-installed Fans – 3x120mm (front), 1x120mm (rear)

RGB Control – 1 to 3 RGB Splitter Cable (included)

OVERVIEW

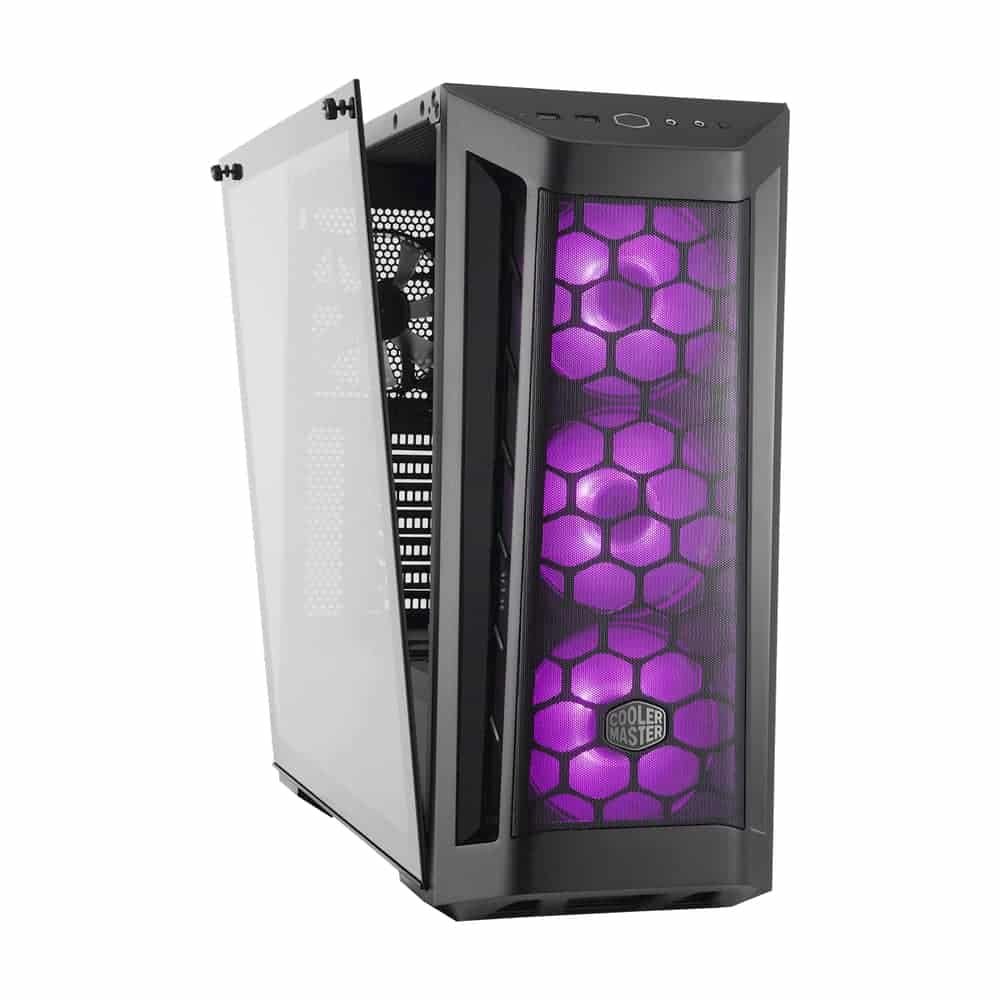

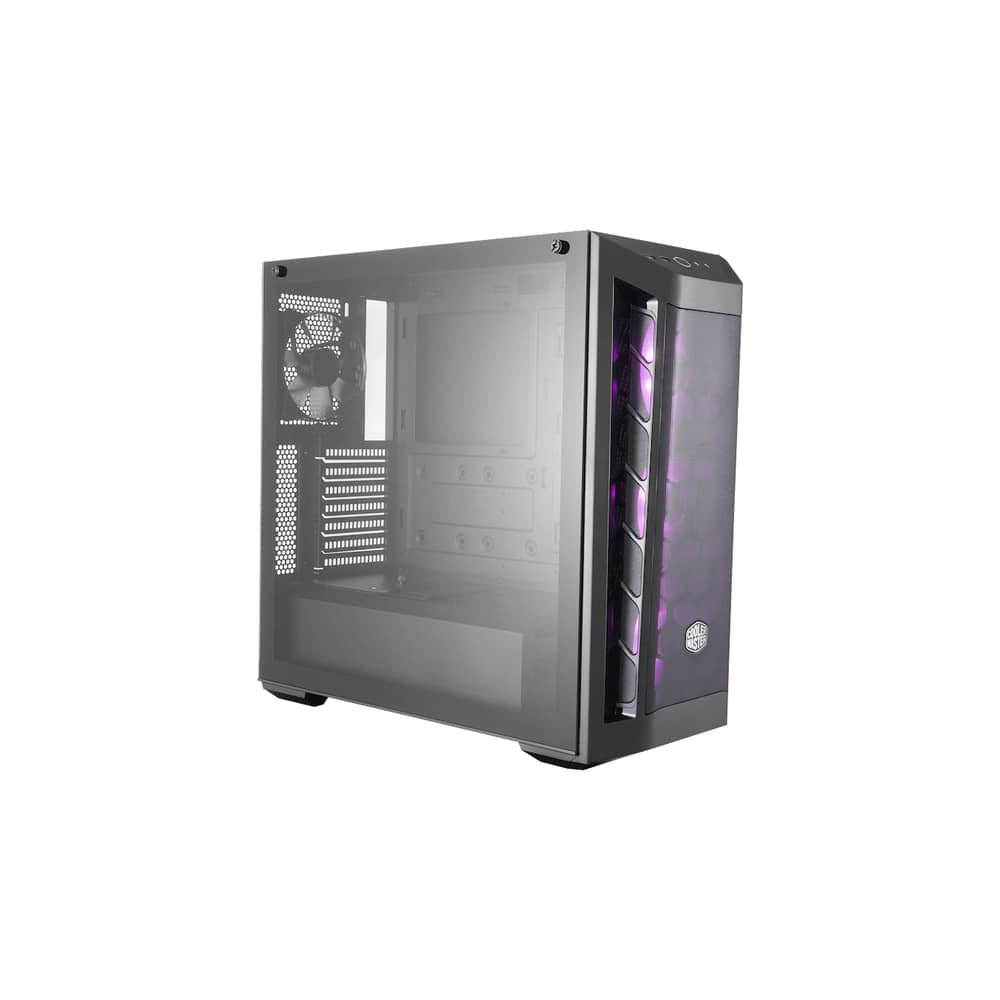

Showcase your build and system lighting effects through the 4mm-thick tempered glass side panels of this MasterBox MB511. The side panel hinges at an angle during bracket removal, while there are two captive screws are also held in place with rubber so they won’t be misplaced.

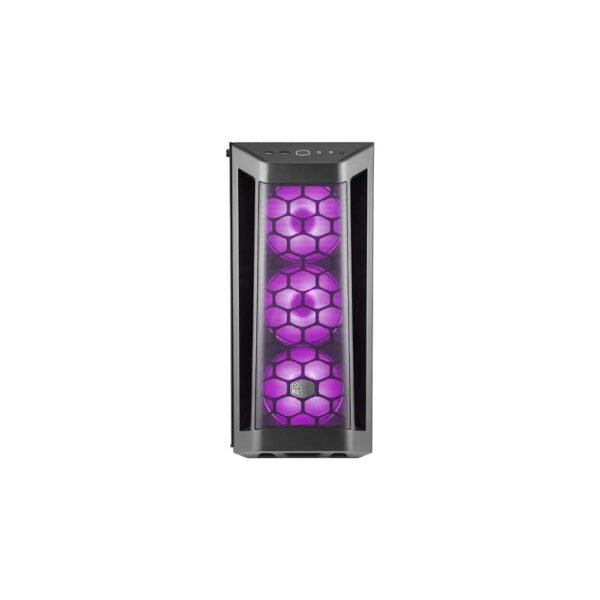

The case has a mesh front panel that offers efficient airflow for demanding systems. Along with this, the large intakes on each side of the front panel pay homage to the high-performance cars. An RGB controller is also included in the accessory pack. If your motherboard doesn’t support the RGB control function, you can connect the RESET button and control RGB lighting directly from the I/O panel.

The case also gives you the advantage to mount an extra SSD on the PSU shroud for more storage. Moreover, the spacious interior fits call standard motherboards for your gaming needs. The MasterBox MB511 comes with 3x120mm (front) and 1x120mm (rear) pre-installed fans, and can also support up to 6x120mm and 4x140mm fans in total, and it also gives up to a 360mm radiator support with a maximum thickness of 50mm without fans.

The Cooler Master MB511 RGB case supports CPU Coolers up to a height of 165mm, Graphic Cards up to a length of 410mm, and Power Supplies up to a length of 180mm.

TECHNICAL SPECIFICATIONS

Series– MasterBox Series
Model Number– MCB-B511D-KGNN-RGB
Size– Mid Tower
Motherboard Support– ATX, Micro ATX, Mini ITX
Expansion slots– 7
2.5 inch / 3.5 inch Drive Bays (combo)– 2
2.5 inch Drive Bays– 5 (Max.6)
I/O Panel– 2x USB 3.0, Audio In & Out (supports HD audio)
RGB Control– RGB controller included, 1 to 3 RGB splitter cable included
Pre-installed Fans – Front– 3x 120 mm RGB Fan
Pre-installed Fans – Rear– 1x 120 mm
Fan Support – Top– 2x 120 mm, 2x 140 mm
Fan Support – Front– 3x 120 mm, 2x 140 mm
Fan Support – Rear– 1x 120 mm
Radiator Support – Front– 120 mm, 140 mm, 240 mm, 280 mm, 360 mm
Radiator Support – Top– 120 mm, 240 mm
Radiator Support – Rear– 120 mm
Clearance – CPU Cooler– 165 mm/6.49 inch
Clearance – PSU– 180 mm/7.1 inch
Clearance – GFX– 410 mm/16.1 inch
Cable Routing – Behind Motherboard Tray– 19 mm / 0.74 inch
Dust Filters– Front, Top, Bottom
Power Supply Support– Bottom mount, ATX
Dimensions (L x W x H)– 496 x 217 x 469 mm
Weight– 7 kg 40 g
Specification: Cooler Master MasterBox MB511 RGB Mid Tower Gaming Cabinet
EAN, GTIN, UPC–
4719512074800

Product Type–
PC Cabinets

Brand–
Cooler Master

COLOR–
BLACK

FORM FACTOR–
MID TOWER

MATERIAL–
PLASTIC, STEEL, TEMPERED GLASS

SIDE PANEL–
TEMPERED GLASS

MOTHERBOARD COMPATIBILITY–
ATX, MICRO-ATX, MINI-ITX

LIGHTING–
RGB

FANS–
4

RADIATOR COMPATIBILITY–
YES

IDEAL FOR GAMING–
YES

WARRANTY–
2 Years Warranty
