Cooler Master Masterbox MB520 RGB

Model Number MCB-B520-KGNN-RGB
Color(s) Black
Materials Steel, Tempered Glass, Plastic
Dimensions (L x W x H) 496 x 218 x 468mm
Motherboard Support ATX, Micro ATX, Mini ITX
Expansion Slots 7
2.5″ / 3.5″ Drive Bays (Combo) 2
2.5″ Drive Bays 4 (Max.6)
I/O Panel 2x USB 3.0, Audio In & Out (Supports HD Audio)
RGB Control RGB controller included, 1 to 3 RGB splitter cable included

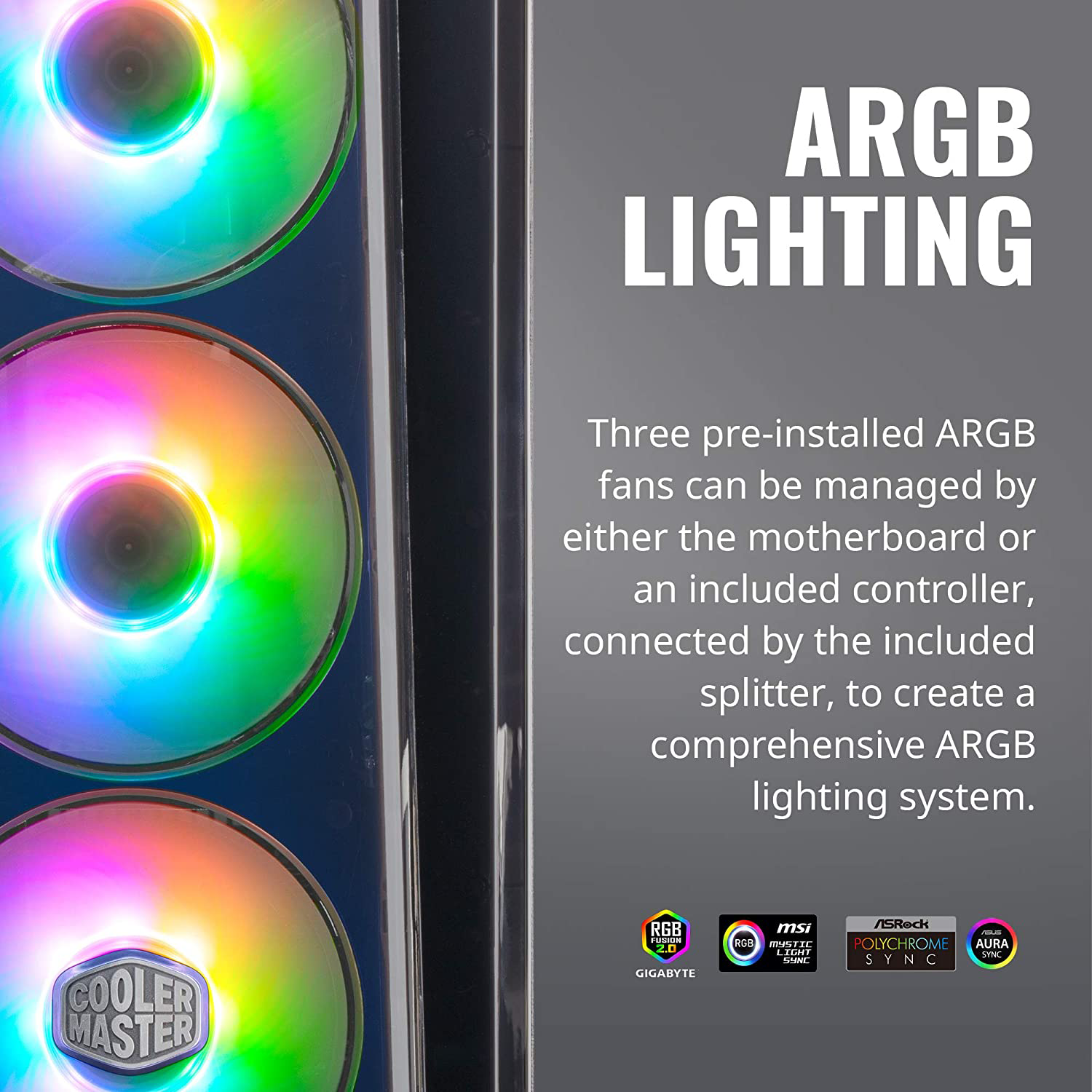

Pre-installed Fans – Front 3x 120mm RGB Fan
Pre-installed Fans – Rear 1x 120mm (Black)
Fan Support – Front 3x 120mm, 2x 140mm
Fan Support – Top 2x 120mm, 2x 140mm
Fan Support – Rear 1x 120mm
Radiator Support – Front 120mm, 140mm, 240mm, 280mm, 360mm
Radiator Support – Top 120mm, 240mm
Radiator Support – Rear 120mm
Clearance – CPU Cooler 165mm/6.49″
Clearance – GFX 410mm/16.1″
Clearance – PSU 180mm/7.1″
Cable Routing – Behind Motherboard Tray 19-27mm / 0.74-1.06″
Dust Filters Front, Bottom, Top
Power Supply Support Bottom Mount, ATX
EAN Code 4719512074985
UPC Code 884102047473
