Cooler Master MasterBox NR600 With ODD ATX Mid Tower Cabinet MCB-NR600-KG5N-S00
Minimalistic Design
Seamless Tempered Glass
Ample Storage Support
Headset Jack
Fan Support
Radiator Support
Component Clearances
Streamlined, By Definition
Simplicity in aesthetics rarely reflect complexity in design. Cooler Master’s signature Fine Mesh spans the entire front panel for open airflow, makes up the structure of the case, and adds rigidity to its overall construction. Meticulously engineered for unhindered airflow, the MasterBox NR600 applies bold performance to a pure-and-simple design.
Minimalistic Design
The MasterBox NR600 is a pure and simple design that is focused on airflow performance. A single-layer, fine mesh makes up the entire front panel, achieving efficient airflow while also acting as a dust filter.

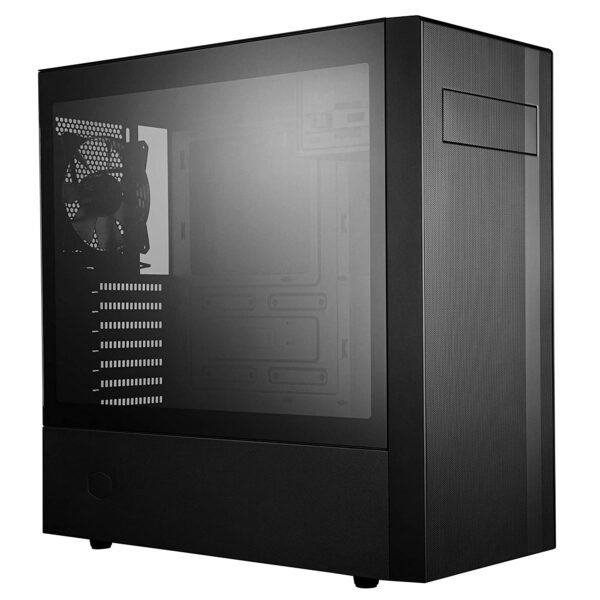

Seamless Tempered Glass
The tempered glass side panel sits completely flush against the chassis, mounted securely and discreetly by a system of tabs and thumbscrews.

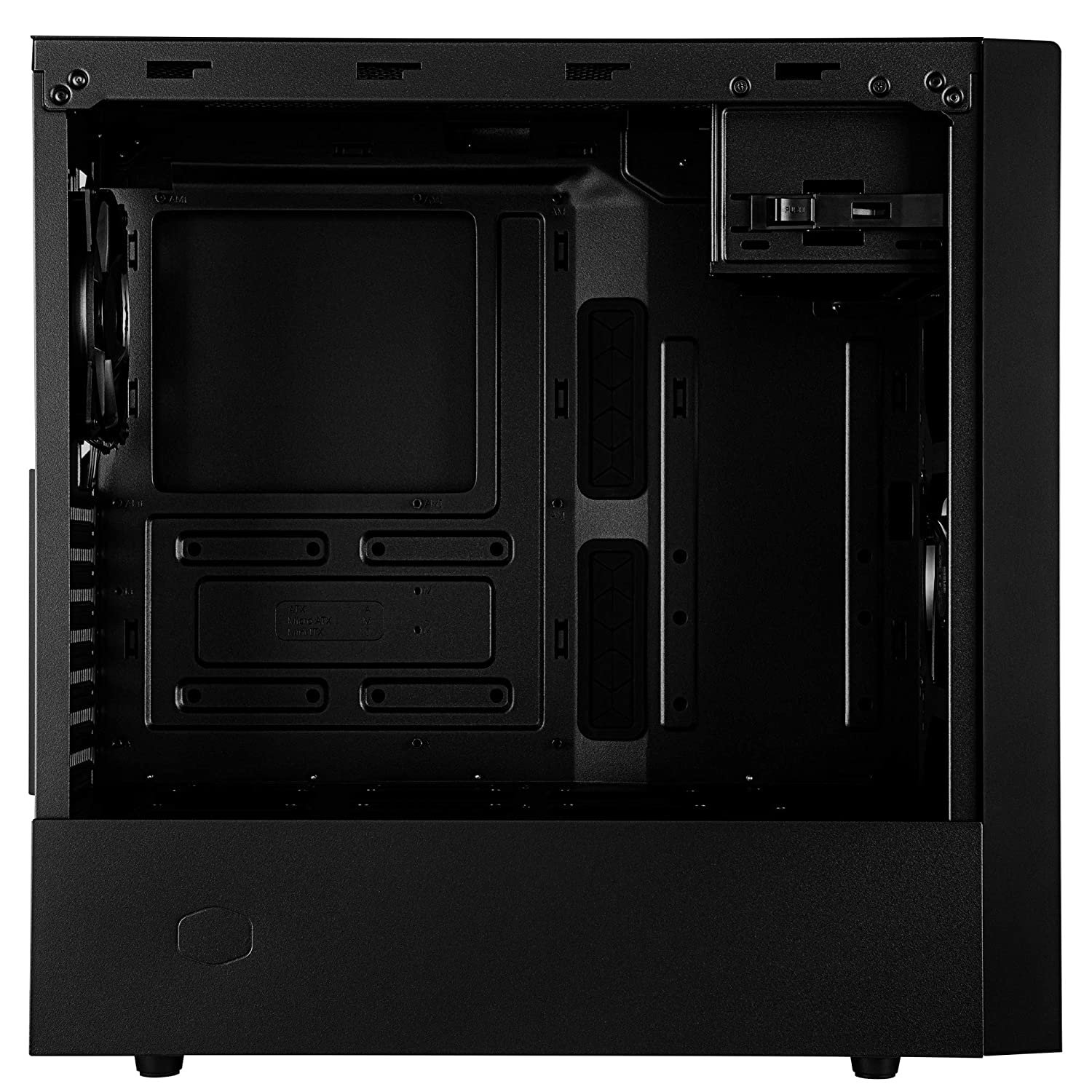

Ample Storage Support
A total of 5 x 2.5″ and 4 x 3.5″ drives can be mounted using a tool-less system. Storage can be mounted on the PSU shroud, behind the motherboard tray, and in the HDD cage.
Headset Jack
The single 4 pole headset jack features both Audio and Microphone capabilities simultaneously so that separate jacks are not needed.
Fan Support
Front: 140mm x2 / 120mm x3
Top: 140mm x2 / 120mm x2
Rear: 120mm x1
*non ODD version
Radiator Support
Front: 360/280/240/140/120mm
Top: 120/240mm (35mm max motherboard component height)
Rear: 120mm
*non ODD version
Specification :
Product Name MasterBox NR600
Product Number MCB-NR600-KG5N-S00 (MasterBox NR600 with ODD)
Exterior Color Black
Materials – Body Steel, Plastic
Materials – Windowed Side Panel Tempered Glass
Dimensions 478 (L) x 209 (W) x 473 (H) mm
Motherboard Support Mini-ITX, Micro-ATX, ATX
Expansion Slots 7
5.25″ Drive Bays N/A (MasterBox NR600 without ODD)
1 (MasterBox NR600 with ODD)
3.5″ HDD Drive Bays 4
2.5″ SSD Drive Bays 5
I/O Panel – USB Ports USB 3.0 x 2
I/O Panel – Audio In / Out 1x 3.5mm Headset Jack (Audio Mic)
Pre-installed Fan(s) – Front 120mm x 1
Pre-installed Fan(s) – Rear 120mm x 1
Fan Support – Front 140mm x 2 / 120mm x 3 (MasterBox NR600 without ODD)
140mm x 2/ 120mm x 2 (MasterBox NR600 with ODD)
Fan Support – Top 140mm x 2 / 120mm x 2
Fan Support – Rear 120mm x 1
Radiator Support – Front 280 / 240 / 140 / 120mm (MasterBox NR600 with ODD)
Radiator Support – Top 240mm (with ODD removed) / 120mm (MasterBox NR600 with ODD) (35mm max motherboard component height)
Radiator Support – Rear 120mm x 1
Clearance – CPU Cooler 166mm / 6.54″
Clearance – Power Supply 180mm / 7.08″
Clearance – Graphics Card 410mm / 16.14″
Cable Routing – Behind MB Tray 20~28mm / 0.78~1.10″
Dust Filters Top, Bottom
Power Supply Support Bottom Mount, ATX
EAN Code 4719512079348 (MasterBox NR600 with ODD)
UPC Code 884102051838 (MasterBox NR600 with ODD)
