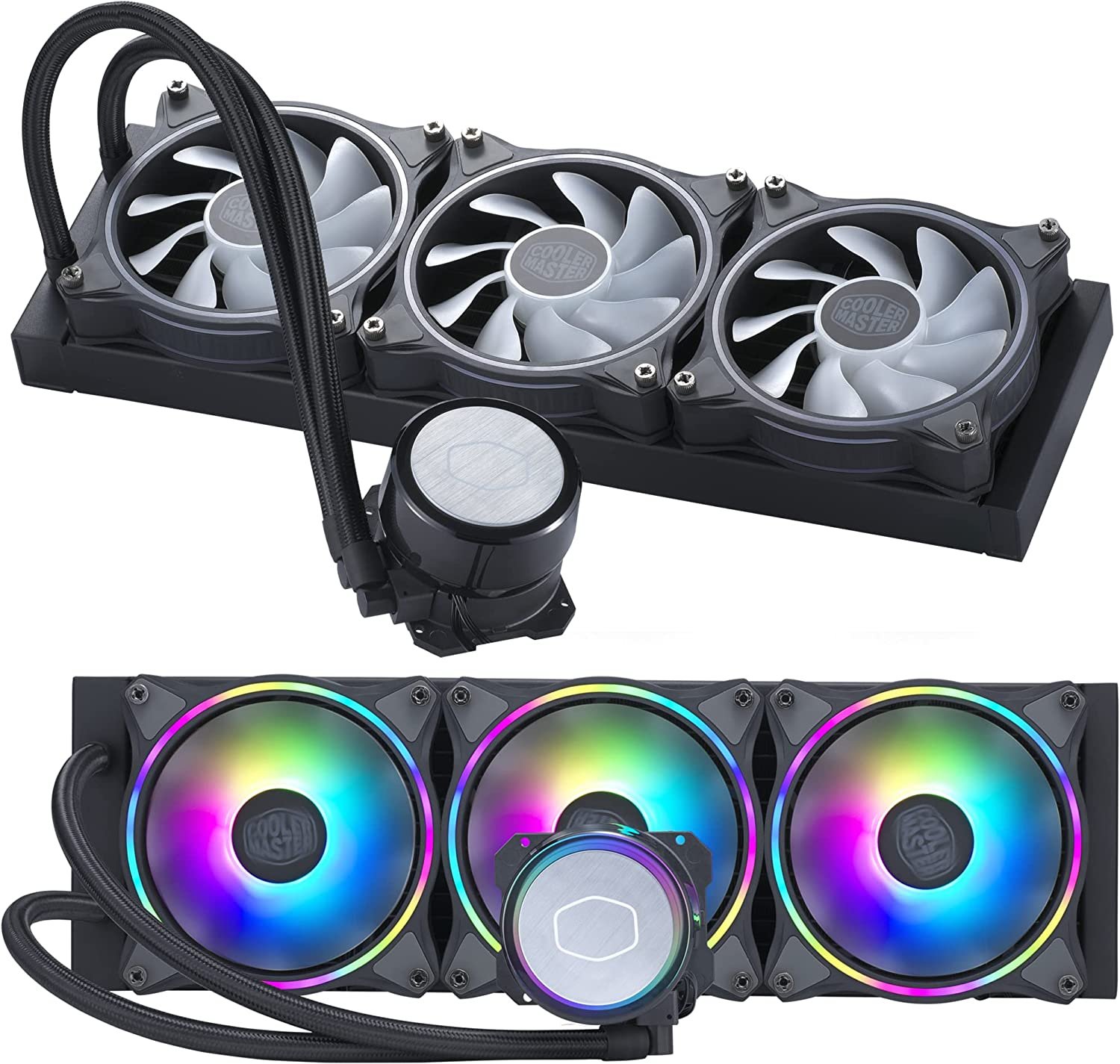

Cooler Master MasterLiquid ML360 Illusion ARGB Aio Liquid CPU Cooler MLX-D36M-A18P2-R1
The MasterLiquid ML360 Illusion redefines lighting visuals with all new design features to the MasterLiquid Series. With 12 Addressable Gen 2 RGB LEDs integrated into the all new translucent pump, the color options are spectacularly customizable.
The MasterLiquid ML360 Illusion redefines lighting visuals with all new design features to the MasterLiquid Series. With 12 Addressable Gen 2 RGB LEDs integrated into the all new translucent pump, the color options are spectacularly customizable. Complemented with MasterFan MF120 Halo fans lighting features are more than even visual enthusiasts can handle. The Illusion is not only elegant, but extremely capable as well, featuring the 3rd generation Dual Chamber Pump for excellent cooling performance.
Developed with new lighting technology, our Addressable Gen 2 RGB, the ML360 Illusion works with major motherboard manufacturers supporting this new capability. The ARGB options can be customized with the included Addressable Gen 2 RGB controller and Cooler Master’s MasterPlus+ software.
Optimized Dual Chamber
3rd Gen Dual Chamber Pump designed for optimized performance.
Expanded Dissipation Surface Area
Widened radiator water channels for increased cooling surface area.
MasterFan MF120 Halo
Dual loop Addressable Gen 2 RGB fans with 24 individual ARGB LEDs.
Enhanced Quality
Industrial grade material designed to withstand extreme environmental conditions.
MasterPlus+ Software
Cooler Master proprietary software adapted for new Addressable Gen2 RGB features.
Translucent Dome
Stunning lighting visuals with translucent water chamber dome compatible with software customization.
Specification :
Product Name MasterLiquid ML360 ILLUSION
Product Number MLX-D36M-A18P2-R1
Exterior Color Black
CPU Socket
Intel LGA 2066 / 2011-v3 / 2011 / 1200 / 1151 /
1150 / 1155 / 1156 /1200
AMD AM4 / AM3+ / AM3 / AM2+/ AM2 / FM2+ / FM2 / FM1
Radiator
Material Aluminum
Dimensions (L x W x H) 394 x 119.6 x 27.2mm(15.5 x 4.7 x 1.1 inch)
Pump
Dimensions (L x W x H) 81.4 x 76 x 57.8 mm (3.2 x 3 x 2.3 inch)
MTTF (Hours) 70,000 hours
Noise Level (dBA) <10dBA
Connector 3-Pin
Rated Voltage (VDC) 12
Power Consumption (W) 2.36 W
Fan
Dimensions (L x W x H) 120 x 120 x 25 mm(4.7 x 4.7 x 1 inch)
Quantity (pcs) 3
LED Type Addressable Gen 2 RGB
Speed (RPM) 650 ~1800 ±10%
Airflow (CFM) 47.2(Max)
Noise Level (dBA) 6~30dBA
Pressure (mmH2O) 1.60(Max)
Life Expectancy (Hours) 160,000 hours
Power Connector 4-Pin
Rated Voltage (VDC) 12
Rated Current (A) 0.25A
RAM Clearance N/A
