Cooler Master MB K501L RGB Mid Tower Gaming Cabinet

Cabinet Size – Mid-Tower

Series – MasterBox Series

Motherboard Support – Mini-ITX, Micro-ATX, ATX

USB – 1x USB 3.0 Type-A, 1x USB 2.0

Pre-Installed Fans – 1x120mm (Front & Rear)

Recommended reading:Nzxt H700I (E-ATX) Mid Tower Cabinet with Tempered Glass Side Panel, RGB Fan Controller, and RGB LED Strip (Matte White)

OVERVIEW

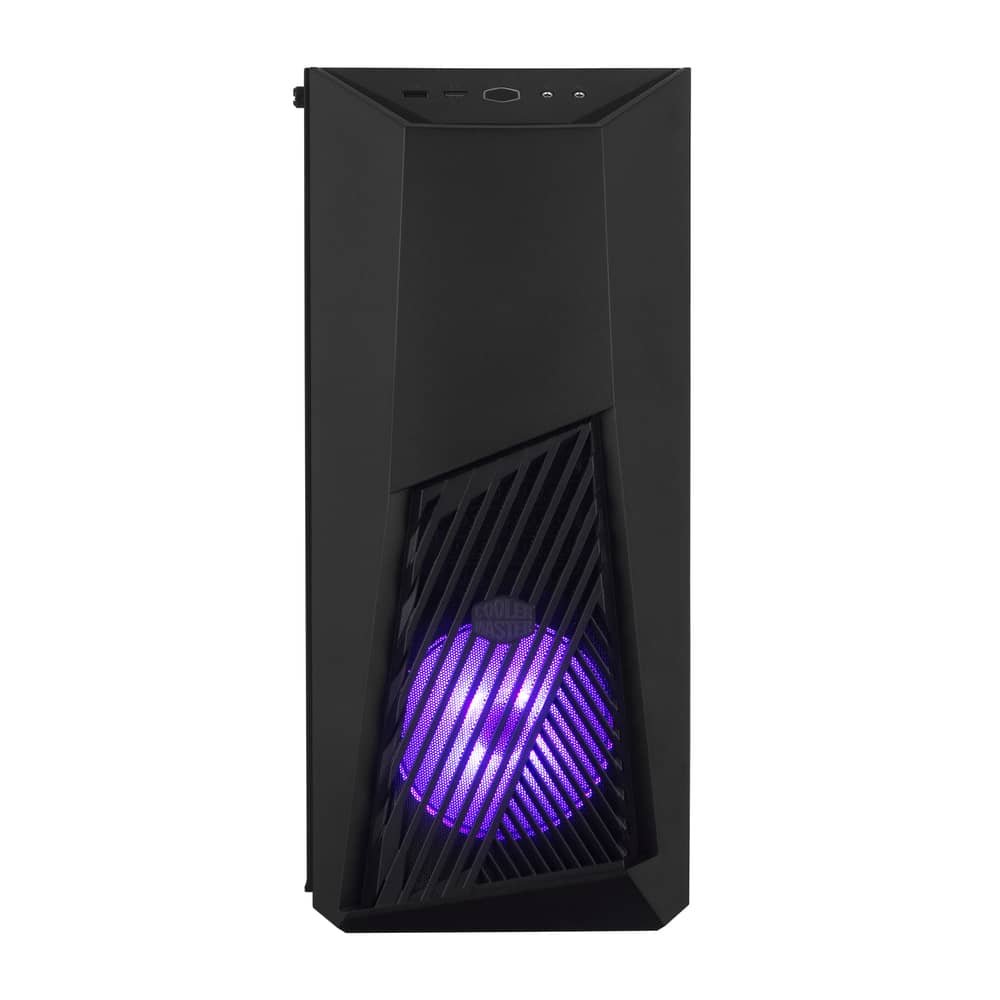

Gaming is at the core of the Masterbox K501L RGB. Holding an RGB fan against the angled front panel ventilation reflects its aggressive character. The Cooler Master Masterbox K501L is equipped with gaming hardware such as support for long graphics cards, plenty of storage, and liquid cooling while leaving room for future upgrades.

The K501L case is also compatible with high-performance hardware which makes it an essential start in building a monster rig and is also competitively priced to focus on upgrades. The case is also paired with RGB lighting on the power button, an RGB fan also glows through the angled ventilation.

The K501L case has support for up to 6 fans at the top, front, and rear, and the water cooling feature ensures a high capacity for thermal performance. And for increased thermal performance, the top panel is ventilated to support cooling components and is also filtered to protect against dust.

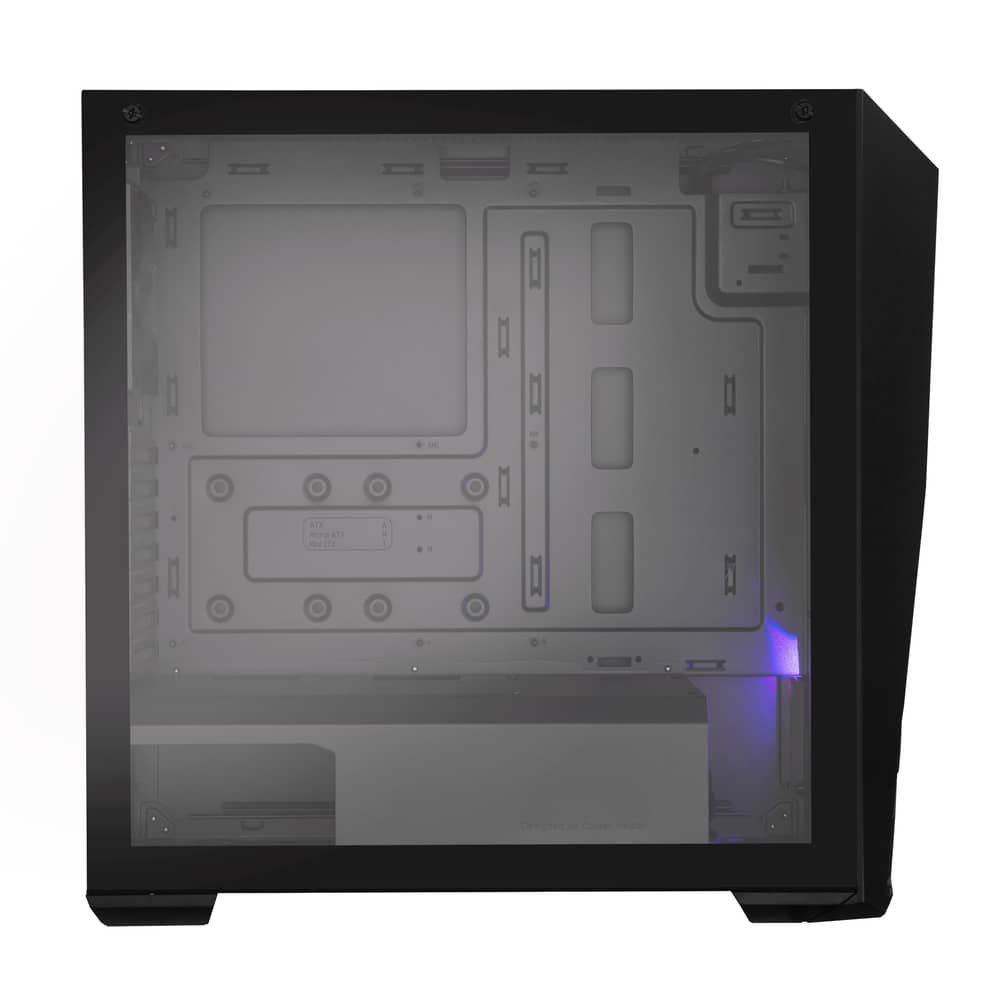

There is also a 19~27mm width of space behind the motherboard tray for effective and organized cable management. The case gives clearances of 410mm for the GPUs, 20mm for PSUs, and 165mm for the CPU cooler, and also offers room for powerful builds and future upgrades. You can also showcase your build through the transparent side panel.

TECHNICAL SPECIFICATION

Recommended reading:Gamdias Apollo E2 Elite Mid Tower Gaming Cabinet – Black | 2 x 200mm ARGB Fans Pre-Installed | Tempered Glass Side Panel

SERIES– MasterBox Series
SIZE– Mid Tower
MODEL NUMBER– MCB-K501L-KGNN-SR1
VOLUME (EXLC. PROTRUSIONS)– 40.3L
MOTHERBOARD SUPPORT– Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX
(support for up to 12 inches x 10.7 inches, will limit cable management features)
DRIVE BAYS–
5.25 INCH DRIVE BAYS– 0
2.5 INCH / 3.5 INCH DRIVE BAYS (COMBO)– 2
2.5 INCH DRIVE BAYS– 4 (2+2 combo)
SLOTS–
EXPANSION SLOTS– 7
I/O PANEL– 1x USB 3.0 Type-A, 1x USB 2.0, 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack
FANS–
TOP– N/A
FRONT– 1x 120mm RGB LED
REAR– 1x 120mm
FAN SUPPORT– 3x 120mm, 2x 140mm
TOP– 3x 120mm, 2x 140mm
FRONT– 3x 120mm, 2x 140mm
REAR– 1x 120mm
BOTTOM– N/A
CLEARANCES–
CPU COOLER– 165mm/6.49 inch
PSU– 180mm/7.08 inch, 295mm/11.61 inch (w/ HDD cage removed)
GFX– 410mm/16.1 inch
OTHER DETAILS–
CABLE ROUTING– 19mm/0.74 inch
DUST FILTERS– Top, Front, Bottom
POWER SUPPLY SUPPORT– Bottom mount, ATX
DIMENSIONS (L X W X H)– 496mm x 217mm x 469mm (incl. Protrusions), 428.7mm x 205mm x 458.5mm (excl. Protrusions)
WEIGHT– 6.3 kg

Specification: Cooler Master MB K501L RGB Mid Tower Gaming Cabinet
EAN, GTIN, UPC–
4719512094600

Product Type–
PC Cabinets

Brand–
Cooler Master

COLOR–
BLACK

Recommended reading:Cooler Master HAF 700 EVO ARGB Full Tower Gaming Cabinet

FORM FACTOR–
MID TOWER

MATERIAL–
MESH, PLASTIC, STEEL, TEMPERED GLASS

SIDE PANEL–
TEMPERED GLASS

MOTHERBOARD COMPATIBILITY–
ATX, E-ATX, MICRO-ATX, MINI-ITX, SSI CEB

LIGHTING–
RGB

Recommended reading:Cooler Master NR200P Max Small Form Factor Mini-ITX Case – Black/Grey

FANS–
2

RADIATOR COMPATIBILITY–
YES

IDEAL FOR GAMING–
YES

WARRANTY–
2 Years Warranty
