Cooler Master NR200P Max Small Form Factor Mini-ITX Case – Black/Grey
Mini-ITX Motherboard Support
Four 6+2 pin power cables Included
PCIe Gen4 Riser Cable Included
LGA 1700 and AM5 Socket Support
2×140 mm pre-installed SickleFlow PWM fans
Model – NR200P Max
Motherboard Support – Mini-ITX, Max. Size: 170 X 180mm
Socket Support – LGA1700 and AM5 Socket Support
Power Supply Support – 130 mm (SFX, SFX-L)
Radiator Support – 240mm / 280mm
CPU Cooler Clearance – 67mm
OVERVIEW
It’s time to experience big performance in a small package with the very new Cooler Master MasterBox NR200P MAX Mini-ITX Case because the most awaited SFF solution is here. Cooler Master NR200P Max Mini-ITX PC Cabinet takes things to another level with its enhanced and easier-access interior. The case is designed in such a way that it features a heavy performance on all sides and saves the front, to let air flow easily into the case. The exterior panels of the case are all made of steel with dust filters beneath, and the case comes with a tempered glass side panel.
The Cooler Master NR200P Max Mini-ITX Small Form Factor chassis comes with a pre-installed, pre-routed power supply and CPU cooler which allows for easy building and optimal cable management. NR200P MAX comes with thermal and power delivery solutions which are specifically adjusted to ensure compatibility with any high-end system. Being only 18 liters in volume, the chassis is designed to satisfy power, performance, and minimal footprint altogether.
The chassis comes with an exclusive removable GPU panel simplifying the process of mounting large GPUs along with enabling hands-free installation. Also, the chassis has specifically been designed for a vertically mounted GPU to ensure powerful performance. The frame of the case may also be disassembled for advanced access and freedom to customize and build complex systems. Along with it, the chassis offers its users multiple options to customize the appearance and performance of the system.
The NR200P MAX comes with a preinstalled 280mm AIO water cooler and a capable 850-watt 80 Plus Gold power supply unit (PSU) with custom-length textured cables that simplify and accelerate the process of building a system. Also, it features a 280mm radiator, 2×1400 mm pre-installed SickleFlow PWM fans, and a highly acclaimed 3rd Gen Cooler Master pump for providing reliable cooling for the CPU.
The chassis is compatible with AMD sockets up to AM4 and Intel sockets up to LGA1700 and supports high-performance triple-slot GPUs up to 336mm in length and 140mm in height and also includes four 6+2 pin power cables. The chassis is also equipped with a premium shielded PCIe Gen4 Riser Cable ensuring both maximum compatibility and performance with all graphics cards.
NR200P MAX provides three dedicated 2.5-inch HDD mounting locations and for extra storage, two optional 3.5-inch HDD mounting locations are available depending on the hardware configuration. Moreover, there is included a Sickleflow 140 Non-LED fans utilizing a two-tier sealing mechanism to prevent dust accumulation and resulting in a longer serviceable life span and silent performance. It also comes with a pre-installed, 80 Plus Gold efficiency PSU featuring 16AWG PCIe full-modular, high-efficiency cables tailor-made to allow easy installation. The Tailor-made to a small form factor (SFF), the PSU allows clearance for the largest and widest graphics cards while making the most of NR200P MAX’s 18-liter chassis.
FEATURES:
Streamline your construction experience

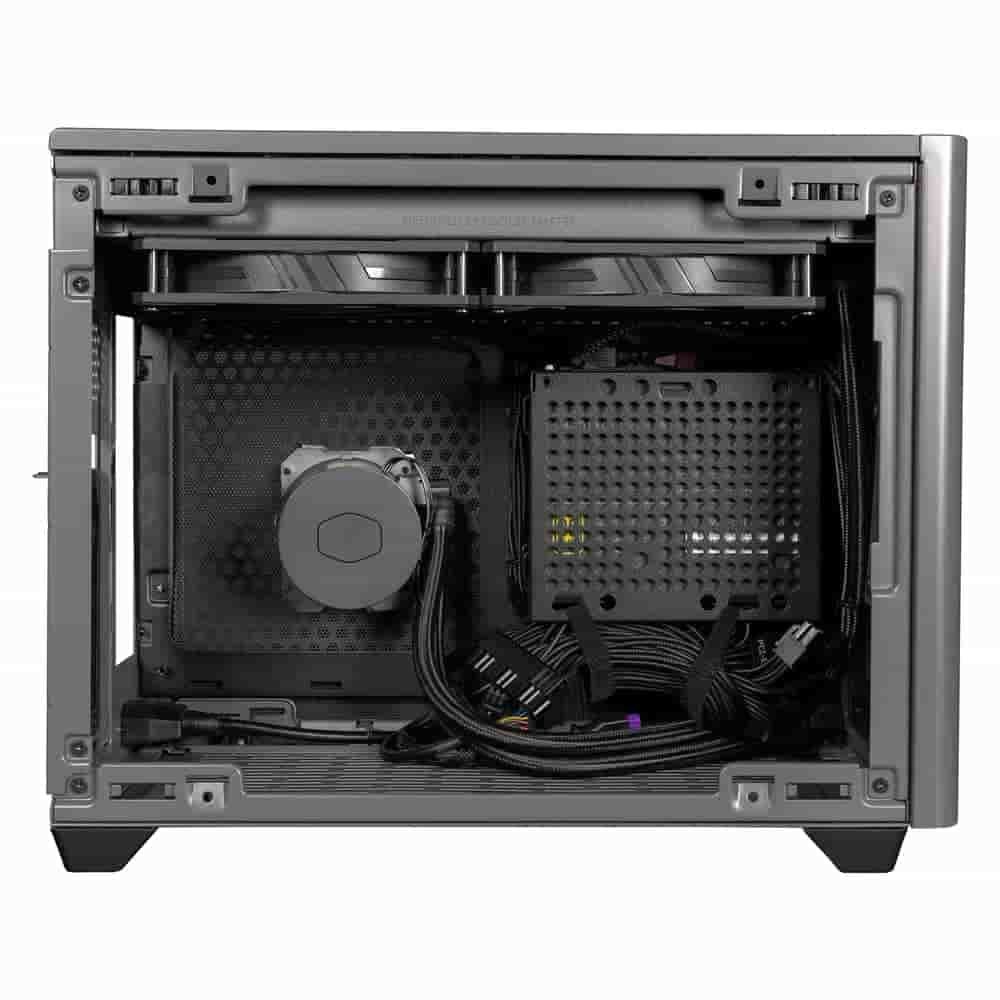

Pre-installed and pre-routed power supplies and CPU coolers allow for ease of construction and optimal cable and tubing management. Install a motherboard, and HDD and end up with a no hassle, no routing GPU. Just remove the extra cables and you are good to go.
Designed for high-end ITX systems
The NR200P MAX thermal and power delivery solutions are specially tuned to ensure compatibility with any high-end system a user can dream of. Being only 18 liters in volume, the NR200P MAX is designed to satisfy power, performance, and minimal footprint at the same time.
Quick Install GPU Panel
The exclusive removable GPU panel simplifies the process of mounting large GPUs, enabling hands-free installation.

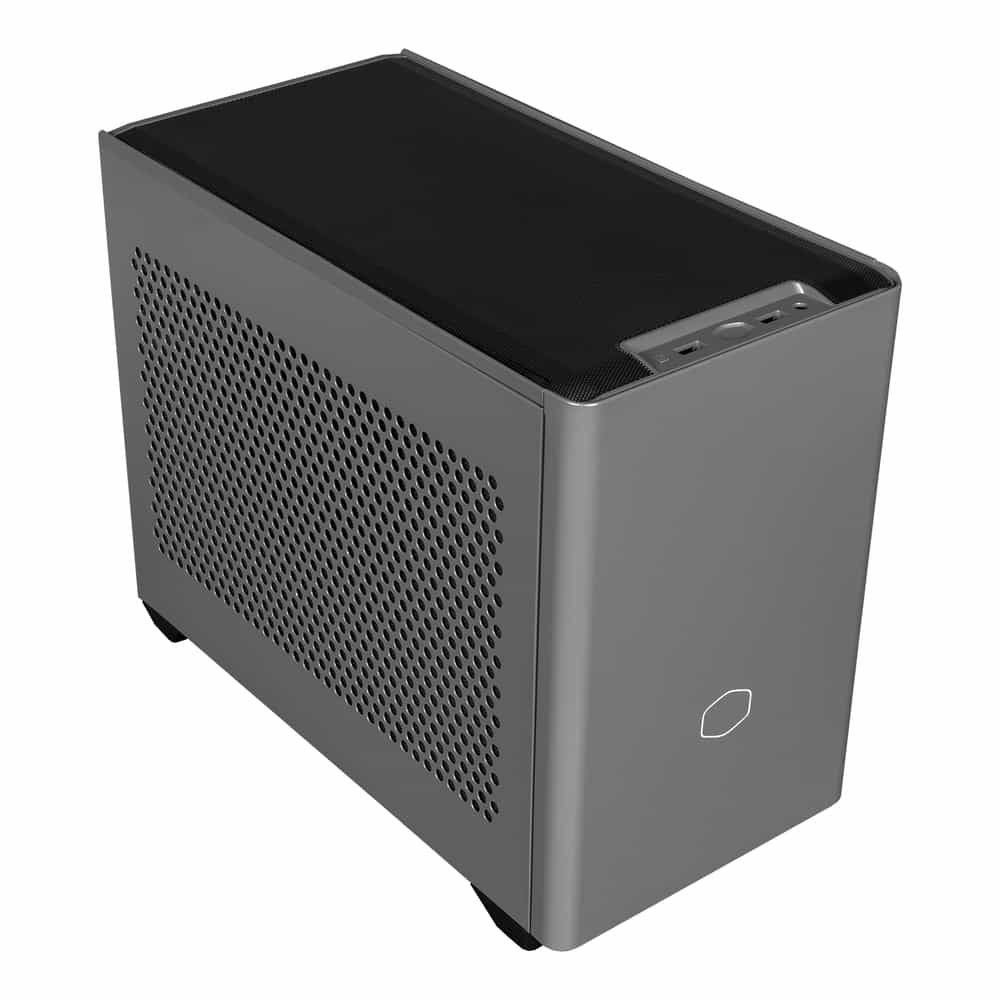

Tempered glass and ventilated steel panel options (left side)
The NR200P MAX offers users a range of options for customizing the appearance and performance of the system. The included ventilated steel panel is ideal for keeping power-hungry cool and running efficiently, while the edge-to-edge tempered glass panel provides a premium aesthetic.
Tailored Premium Cooling and Power Delivery
Next-gen systems are becoming more and more power hungry and to power it all, the NR200P MAX applies an 850W Gold certified PSU with a custom-length textured cable that has been specifically designed to meet all performance requirements. is designed for.
A 280mm radiator, two pre-installed SickleFlow PWM 140mm fans, and a highly acclaimed third gen Cooler Master Pump/CPU Block provide reliable cooling for the CPU. Supports AMD sockets up to AM4 and Intel sockets up to LGA1700.

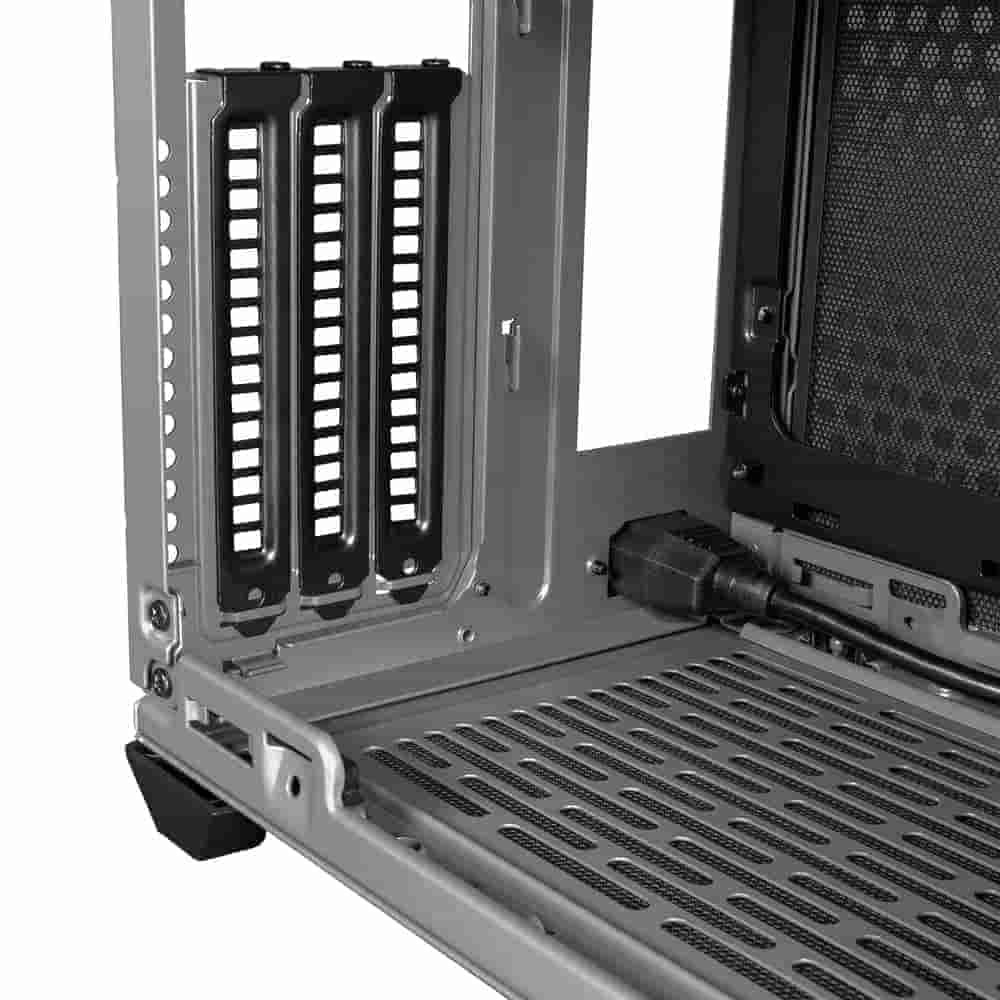

Triple-Slot GPU Support
The NR200P MAX supports high-performance triple-slot GPUs up to 336mm in length and 140mm in height, which includes four 6+2 pin power cables. The chassis is specifically designed for vertically mounted GPUs to ensure powerful performance.
Versatile Hard Drive Support
The NR200P MAX provides three dedicated 2.5-inch hard drive mounting locations. For additional storage, two optional 3.5-inch hard drive mounting locations may be available depending on the hardware configuration.
Easily Accessible M.2 Drives
The motherboard tray is designed for unrestricted access to any m.2 drive installed on the back of the motherboard. Ventilated paneling ensures that the m.2 storage drive installed in this location operates quietly and reliably.
Premium PCIe Gen4 riser cable included
The NR200P MAX is equipped with a Premium Shield PCIe Gen4 Riser Cable to ensure both maximum compatibility and performance with all graphics cards.

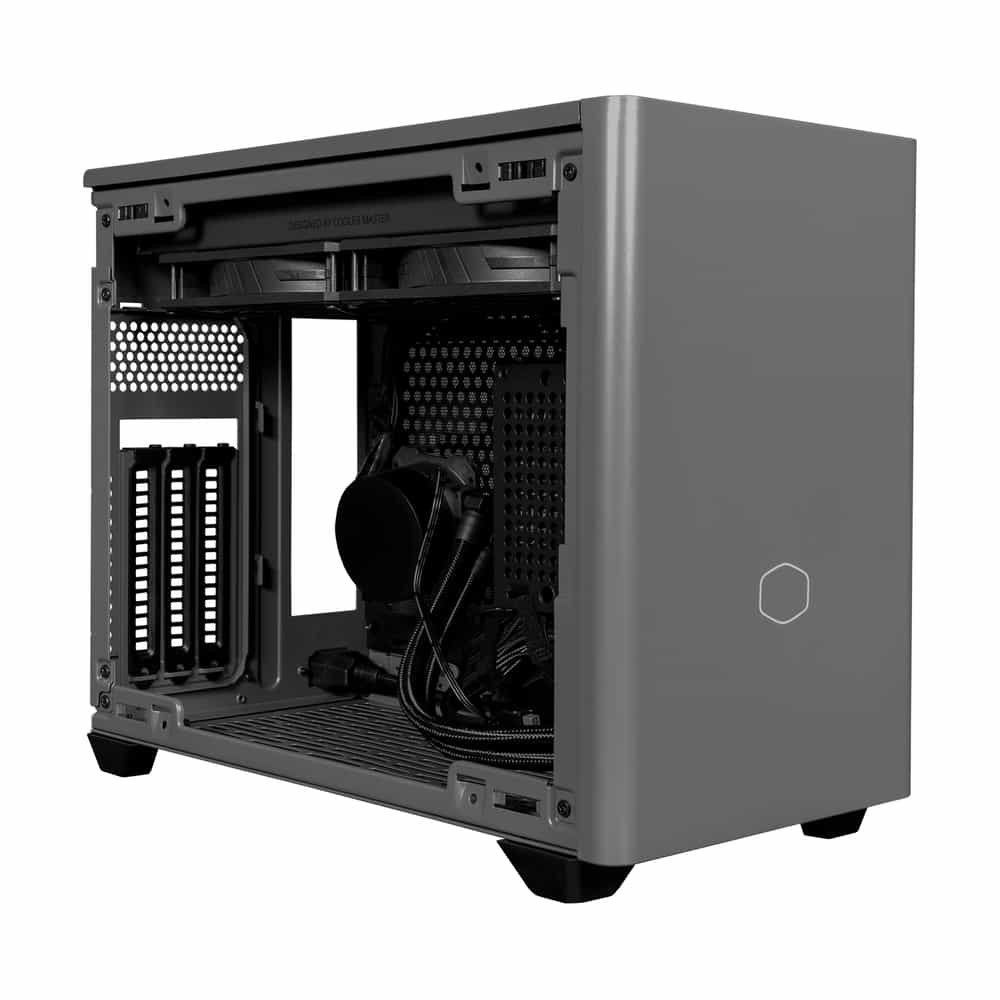

360° Accessibility
All exterior panels can be removed for the installation of components and cable management. The frame can also be disassembled for enhanced accessibility and freedom of customization in the construction of complex systems.
Cooling Capacity Beyond Compare
The NR200P MAX’s built-in 280mm radiator boasts unmatched cooling efficiency due to a 25% increase in aluminum fin surface area.
Compatible with a wide variety of Intel and AMD sockets (all brackets included), AIO’s advanced Gen3 dual-chamber pump is bound to keep any CPU running at optimum performance. The included SickleFlow 140 non-LED fans utilize a two-stage sealing mechanism to prevent dust accumulation, resulting in a longer serviceable lifespan and silent performance.
Performance Unlimited
Pre-installed, the 80 Plus Gold Efficiency PSU features tailor-made 16AWG PCIe full-modular, high-efficiency cables to allow ease of installation without the hassle of cable management. In line with the small form factor, this PSU makes the most of the NR200P MAX’s 18-liter chassis with clearance for the biggest, widest graphics cards around.
Join the discussion!
Got any feedback or future product requests? Or maybe you want to chat with our product team. Join our community on Discord and Reddit to talk directly to product designers, or take part in feedback surveys, giveaways, and more! we want to hear from you!
TECHNICAL SPECIFICATIONS
PRODUCT NUMBER– NR200P-MCNN85-SL0
SIZE– MINI ITX
VOLUME– 18.30L
MOTHERBOARD SUPPORT– MINI-ITX, MAX. SIZE: 170 X 180MM
MATERIALS – EXTERIOR– SGCC STEEL, MESH, ABS PLASTIC
MATERIALS – LEFT SIDE PANEL– – 1 x TEMPERED GLASS
– 1 x STEEL
DRIVE BAYS–
5.25 INCH ODD– 0
3.5 INCH HDD– 1 (MAX. 2)
3.5 INCH / 2.5 INCH COMBO– 1
2.5 INCH SSD– 2 (MAX. 3)
FAN AND RADIATOR SUPPORT–
FAN SUPPORT – TOP– 2 X 120MM / 2 X 140MM
FAN SUPPORT – BOTTOM– – 1 X 120MM (MAX 15MM, WITH 3.5 inch HDD AT THE BOTTOM)
– 2 X 120MM (MAX 15MM, W/O 3.5 inch HDD AT THE BOTTOM)
RADIATOR SUPPORT – TOP– 240MM / 280MM
CLEARANCES–
CPU COOLER– 67MM
POWER SUPPLY– 130MM
POWER SUPPLY SUPPORT– SFX, SFX-L
GRAPHICS CARD– Length: 336MM (INCL. POWER CONNECTOR)
Height: 160MM (INCL. POWER CONNECTOR)
Width: 75MM (TRIPLE SLOT)
OTHERS DETAILS–
EXPANSION SLOTS– 3
I/O PANEL– – 2 x USB 3.2 GEN 1 (USB 3.0)
– 1 x 3.5MM HEADSET JACK (AUDIO + MIC)
INCLUDED ACCESSORIES– 1X MASTERACCESSORY RISER CABLE PCI-E 4.0 X16 – 50MM
INCLUDED CPU COOLING SOLUTION– – 280MM RADIATOR
– 2 X 140MM SICKLEFLOW PWM
– GEN 3 COOLER MASTER PUMP / CPU BLOCK
INCLUDED POWER SUPPLY UNIT– V850 SFX GOLD 850 WATT
DUST FILTERS– BOTTOM, LEFT, RIGHT, AND TOP PANELS
MISCELLANEOUS–
DIMENSIONS (L X W X H)– INCL. PROTRUSIONS: 377 X 185 X 292MM
EXCL. PROTRUSIONS: 361 X 185 X 274MM
WEIGHT– 7.7 kg
Specification: Cooler Master NR200P Max Small Form Factor Mini-ITX Case – Black/Grey
Product Type–
PC Cabinets
EAN, GTIN, UPC–
4719512123430
Brand–
Cooler Master
COLOR–
BLACK, GREY
FORM FACTOR–
MINI TOWER
MATERIAL–
MESH, PLASTIC, STEEL, TEMPERED GLASS
SIDE PANEL–
TEMPERED GLASS
MOTHERBOARD COMPATIBILITY–
MINI-ITX
LIGHTING–
NONE
FANS–
2
RADIATOR COMPATIBILITY–
YES
IDEAL FOR GAMING–
YES
WARRANTY–
2 Years Warranty
