Corsair 5000D Mid Tower Gaming Cabinet – Black
Mid Tower Case Type
ATX Form Factor
1 x USB 3.1 Type-C, 2 x USB 3.0
170mm Max CPU Cooler Height
Up to 360mm Radiator Compatibility
Size – Mid Tower
Form Factor – ATX
USB – 1 x USB 3.1 Type-C, 2 x USB 3.0
Maximum GPU Length – 400 mm
Case Drive Bays – 2 x 3.5 inch, 4 x 2.5 inch
OVERVIEW

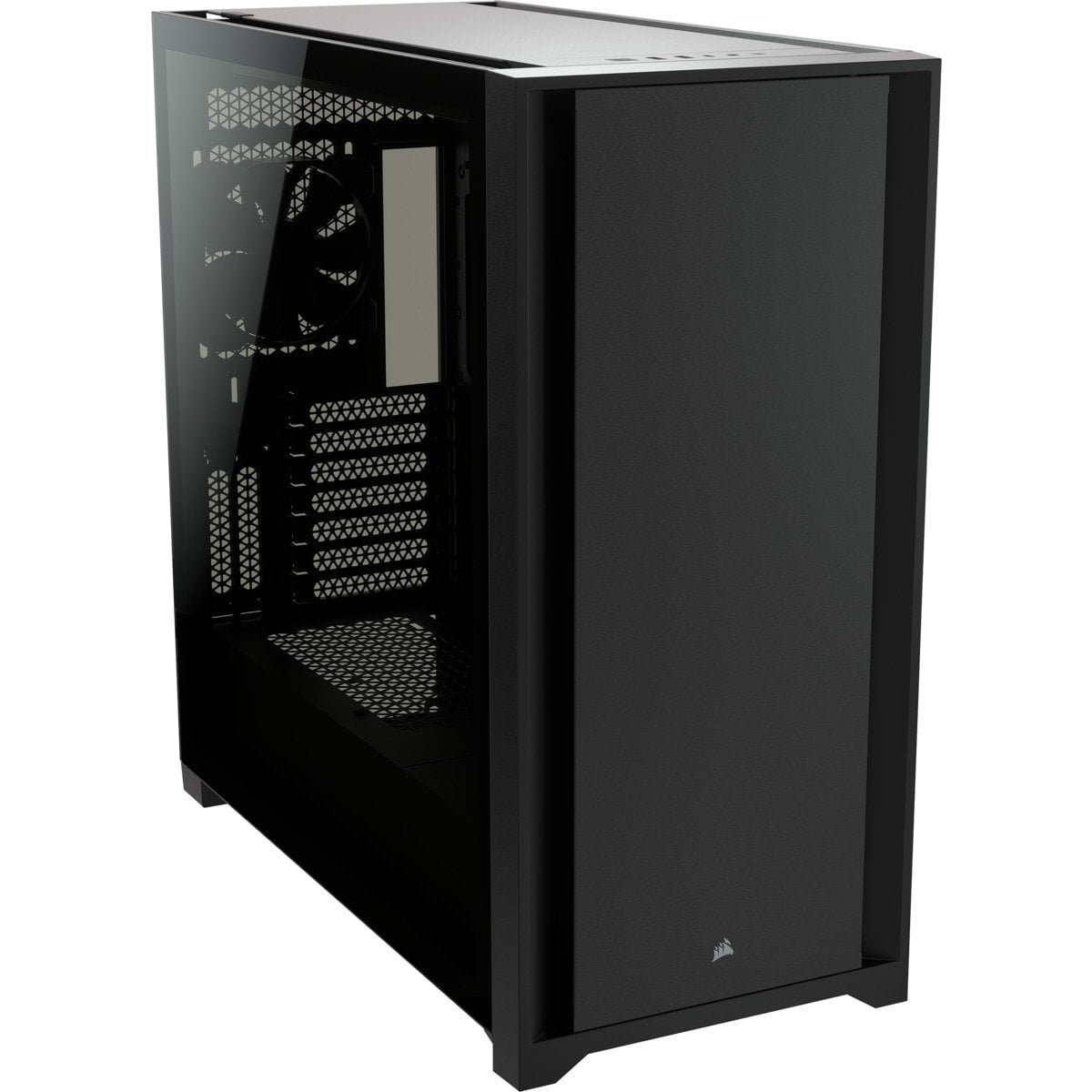

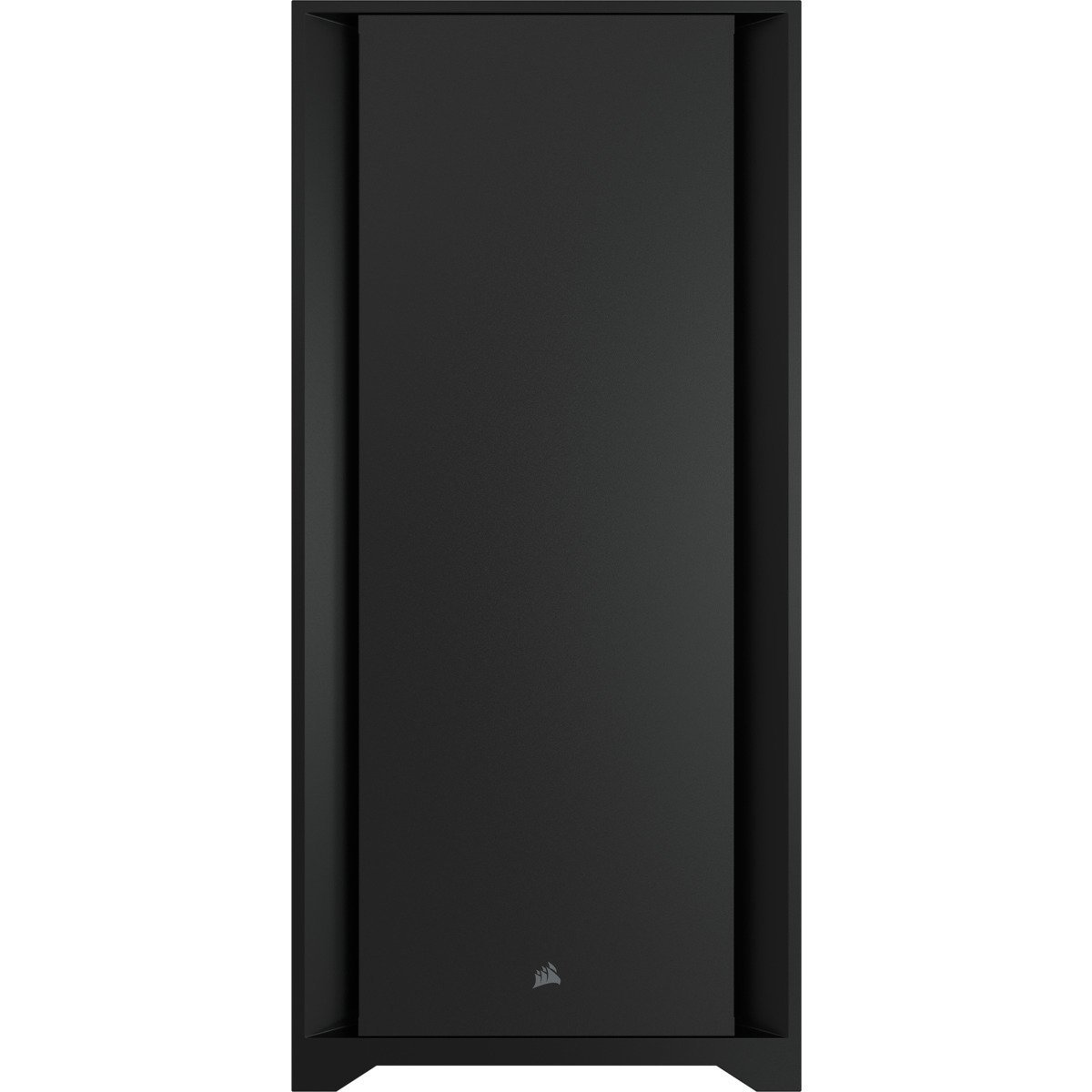

The Corsair 5000D Mid Tower Gaming Cabinet Black is a mid-tower ATX case that shows off your PC, not its cables. Hidden cable management and massive cooling capability make building a clean, quiet PC easy with two included CORSAIR AirGuide fans. The case comes with easy cable management for clean construction, with room for a 360mm push-pull radiator in the ceiling and two CORSAIR AirGuide fans for concentrated airflow. A minimalist solid steel front panel with dedicated ventilation channels for ample airflow gives great durability and sharp looks.

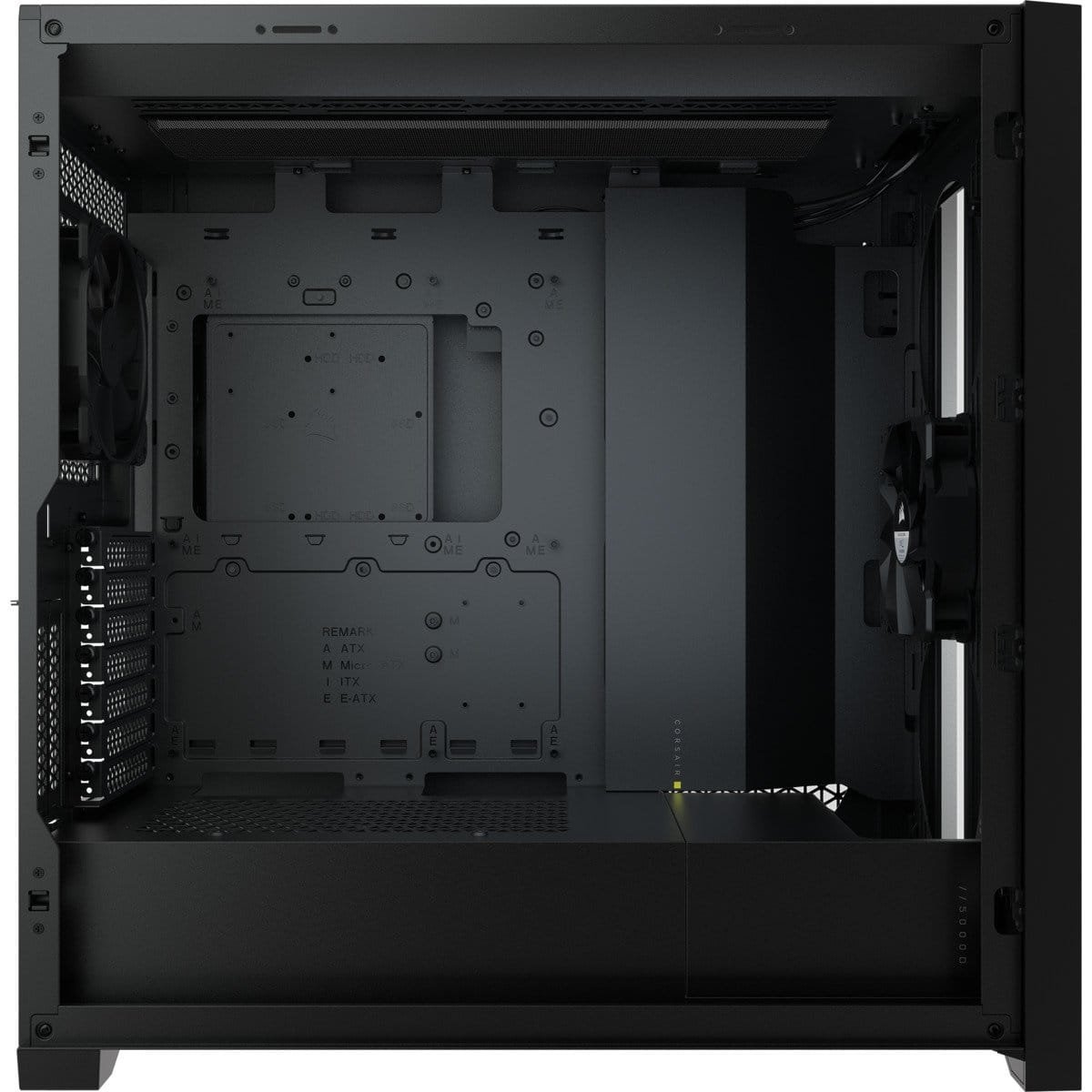

A spacious interior fits 10x 120mm or 4x 140mm cooling fans as well as multiple radiators, including up to 360mm in front or side and 360mm push/pull on the roof. The 5000D is no ordinary, standard mid-tower ATX case. Its brilliantly designed and engineered interior offers an incredible expansion capability for liquid cooling. Equipped with two CORSAIR AirGuide 120mm fans, which feature anti-vortex vanes to concentrate the airflow and enhance cooling.
A PWM fan repeater controls the included fans, with up to six connections in total. Decrease the fan speed when you want to keep your system quieter, or increase it when you want to further its performance, all from a 4-pin PWM header on your motherboard. Expansion-friendly, the 5000D has room for a wide range of air- or liquid-cooled configurations. Fan mounts have wide cutouts, allowing for fan placement customization and flexibility. Install two 360mm radiators together in any of the three 360mm radiator mounting locations to keep things cool.

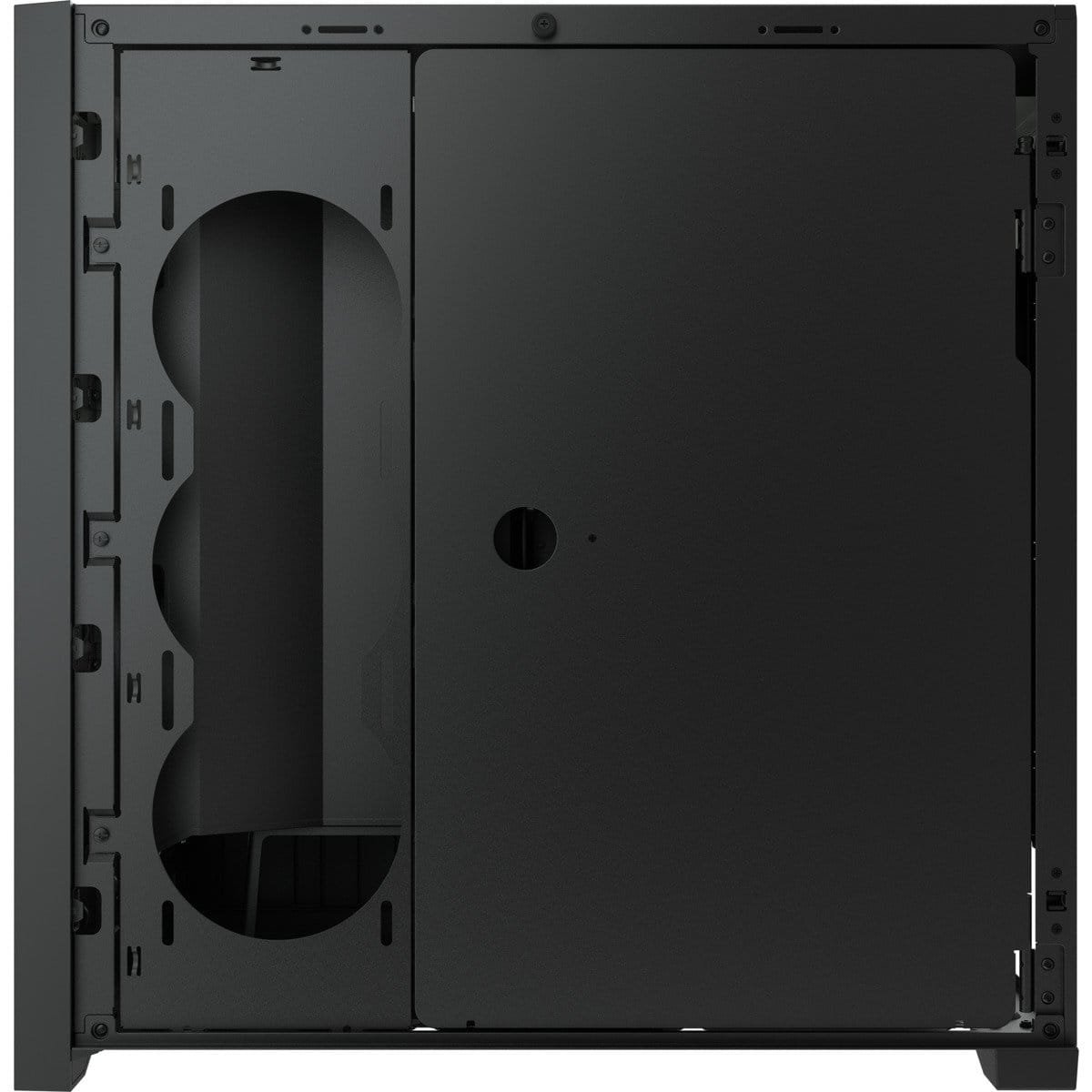

Route your major cables quickly and easily through a hidden channel, conveniently concealed by a hinged steel door, with 25mm of space on the back of the motherboard for all your cables. Keeps your connection within easy reach, including a USB 3.1 Type-C port, 2x USB 3.0 ports, and a combination audio/microphone jack. With the included vertical PCIe slot and a screw mount for the CORSAIR PCI-Express 3.0 extension cable (sold separately), you can show off your GPU and protect it at the same time.
FEATURES
For a Flawless Build That Keeps Its Cool – The Corsair 5000D Mid Tower Gaming Cabinet Black is a mid-tower ATX case with easy cable management for a clean build, with room for a 360mm push-pull radiator in the roof and two included CORSAIR AirGuide fans for potent airflow.
There’s no substitute for Banishment – The 5000D isn’t your run-of-the-mill, standard mid-tower ATX case. Its brightly engineered interior offers incredible expansion possibilities for liquid cooling.
Powerful Directed Airflow – Provided with two CORSAIR AirGuide 120mm fans featuring anti-vortex vanes to consolidate airflow and enhance cooling.

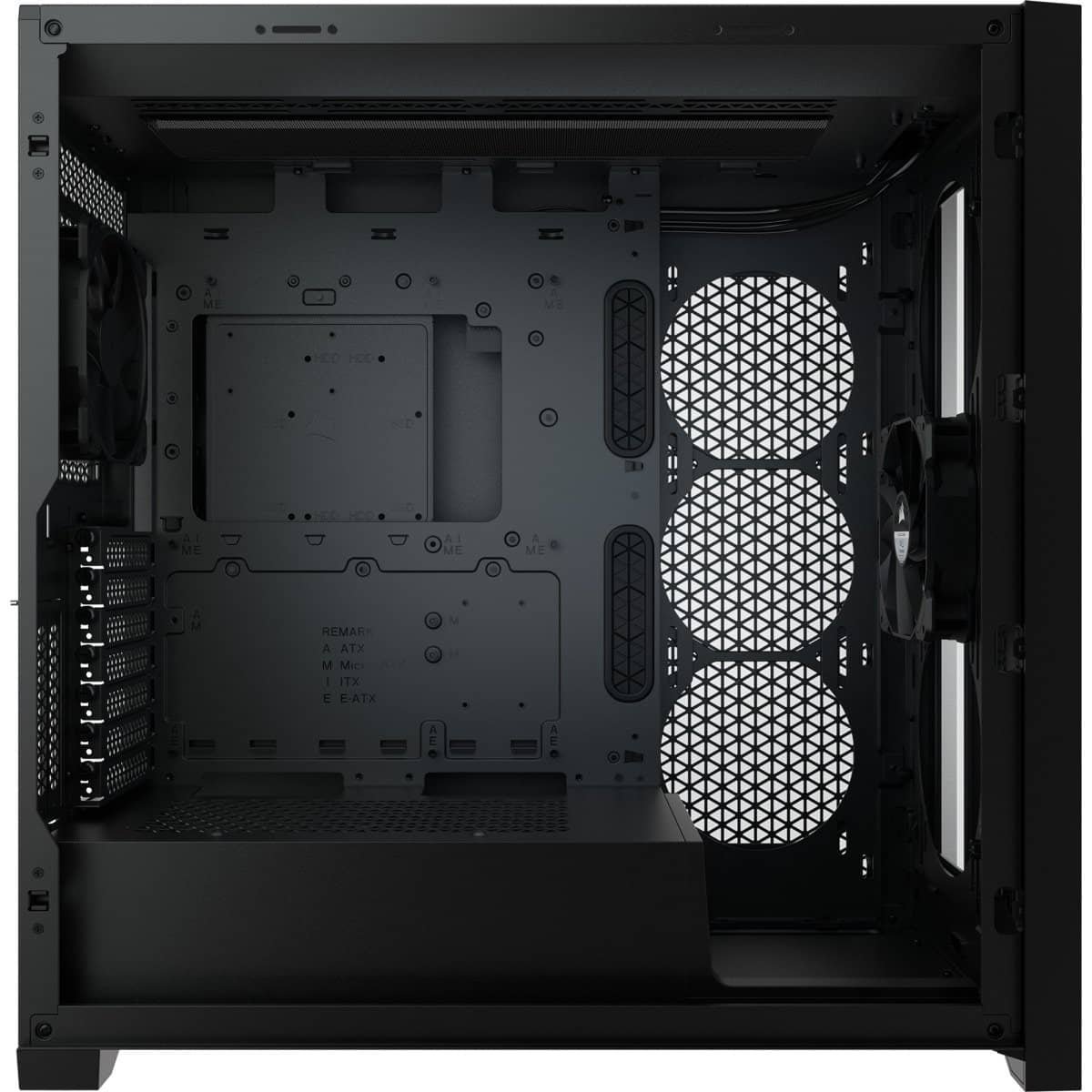

Extreme Cooling – A ample interior holds up to 10x 120mm or 4x 140mm cooling fans, along with multiple radiators including up to 360mm in front and a 360mm push/pull in the roof.
All the storage you require – Includes up to 4X 2.5IN SSDS, 2X 3.5IN HDDS
CORSAIR RapidRoute Cable Administration – Fast and smoothly route your primary cables via a single hidden channel, with a roomy 25mm of space behind the motherboard for all of your cables, smoothly covered by a hinged steel door.
Trendy Front Panel I/O – Sets your connections within comfortable reach, including a USB 3.1 Type-C Port, 2x USB 3.0 port, and a variety of audio/microphone jacks. The Power Button, 2x USB 3.0 ports, USB 3.1 Type-C port, Headphone/Mic Combo Jack, Reset button.
Vertical GPU Mount Ready – With included vertical PCIe slots and a screw mount for a CORSAIR PCI-Express 3.0 extension cable (sold separately), you can show off your GPU and keep it reserved at the exact time.
TECHNICAL SPECIFICATIONS
Form Factor– MID TOWER
Case Power Supply– ATX
Case Material– Steel, Tempered Glass, Plastic
Case Windowed– Tempered Glass
Maximum GPU Length– 400 mm
Maximum PSU Length– 250 mm
Maximum CPU Cooler Height– 170 mm
Expansion Slots– 7 vertical + 2 horizontal
Case Drive Bays– 2 x 3.5inch, 4 x 2.5 inch
Radiator Compatibility– 120mm, 140mm, 240mm, 280mm, 360mm
Case Front IO– 1x USB 3.1 Type C, 2x USB 3.0, 1x Audio in/out
Compatible Corsair Liquid Coolers– H55, H60, H75, H80i, H90, H100i, H105, H110i, H115i, H150i
Corsair Link Enabled– No
Drive Bays 3.5 inch– 2
Drive Bays 2.5 inch– 4
Case Dimensions (mm)– 520mm x 245mm x 520mm
Weight– 13.84 kg
Specification: Corsair 5000D Mid Tower Gaming Cabinet – Black
Product Type–
PC Cabinets
Brand–
Corsair
COLOR–
BLACK
FORM FACTOR–
MID TOWER
MATERIAL–
STEEL+TEMPERED GLASS+PLASTIC
SIDE PANEL–
TEMPERED GLASS
MOTHERBOARD COMPATIBILITY–
ATX,MICRO-ATX,MINI-ITX
LIGHTING–
NONE
FANS–
2
RADIATOR COMPATIBILITY–
YES
IDEAL FOR GAMING–
YES
WARRANTY–
2 Years Warranty
