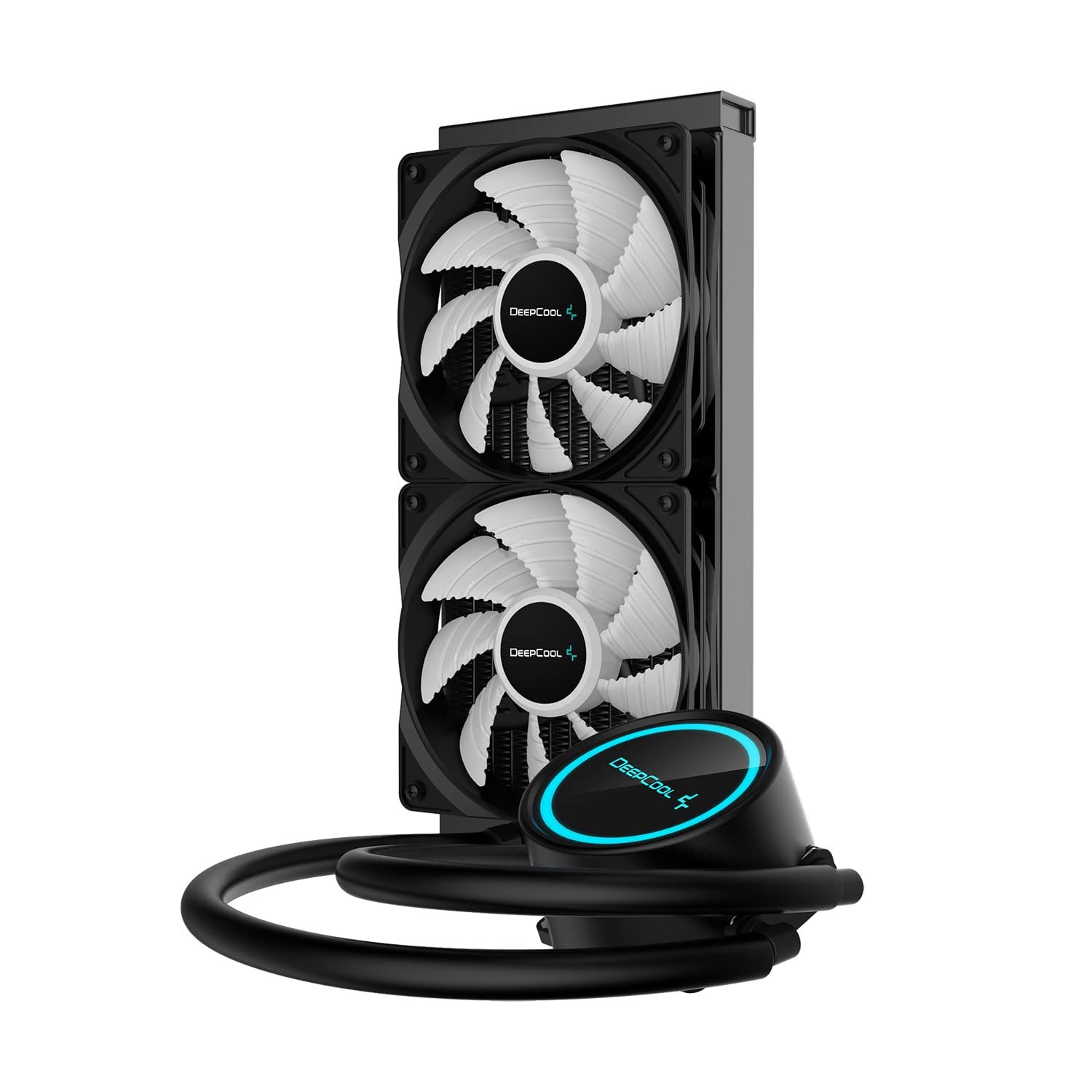

Deepcool Gammaxx L240T BLUE All in one 240MM CPU Liquid Cooler DP-H12RF-GL240TB
After 3 years of R&D, DEEPCOOL launched the new standard of liquid cooling system – The Anti-leak Tech.
Anti-leak Tech Inside system equipped.
E-shaped micro water-channel design can effectively enhance the heat circulation efficiency and enlarge the thermal contact area.
The brand new water block and 120mm PWM fans are illuminated by static blue LEDs and powered by 4pin PWM headers.
Ultra-large, pure copper CPU block provides effective coverage and heat dissipation for CPUs of any size.
The ceramic axle bearings and axle cores guarantee an ultra-long service life.
Support Mainstream Intel & AMD Socket.
About Anti-leak Tech Inside
After 3 years of R&D, DEEPCOOL launched the new standard of liquid cooling system – The Anti-leak Tech. The technology helps the system achieve an automated pressure balance, which will significantly improve operation safety of AIO liquid cooling systems. With this technology, Deepcool is setting a new standard for liquid cooling systems.
Optimized Micro Water-channel
E-shaped micro water-channel design can effectively enhance the heat circulation efficiency and enlarge the thermal contact area.
Blue LED Lighting
The brand new water block and fans are illuminated by static blue LEDs that powered by a 4pin PWM header.
Support Mainstream Intel & AMD Socket
Ready for easy mounting and unrestricted direction installation on mainstream sockets of Intel/AMD.
PWM Control

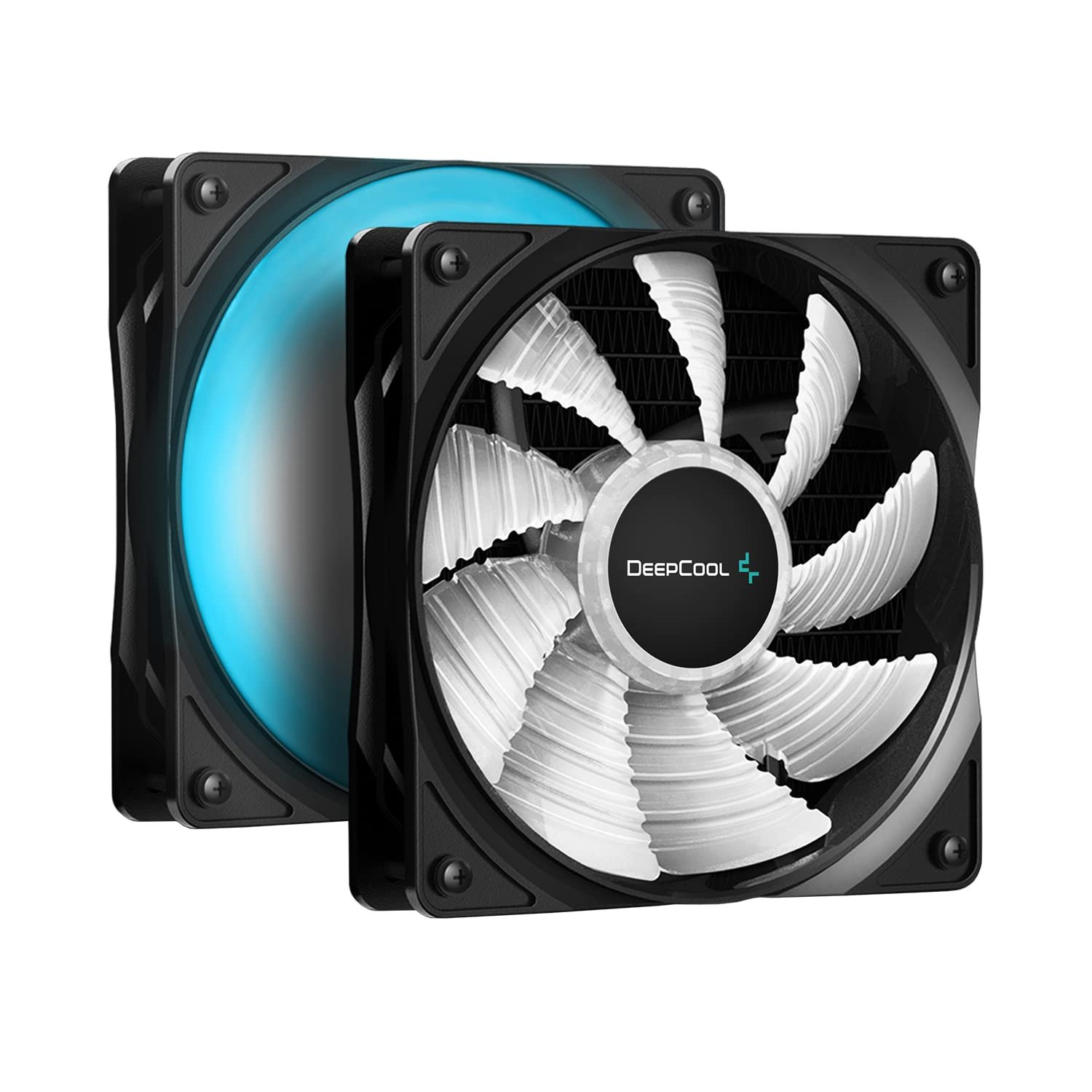

Two 120mm PWM fans with powerful performance and low noise level are included.
Specification :
Model DP-H12RF-GL240TB

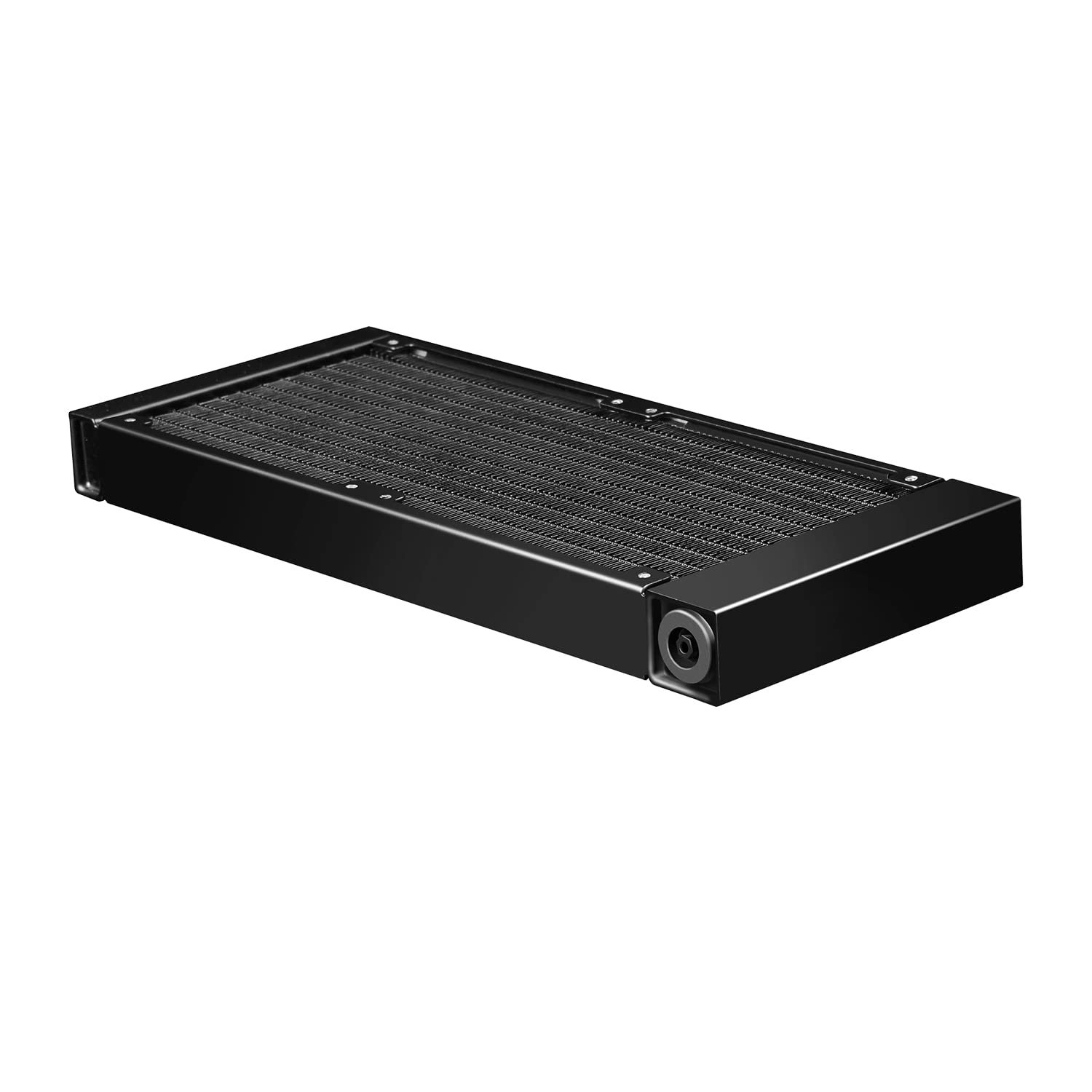

Radiator Dimensions 282×120×27 mm
Radiator Material Aluminum
Tube Length 315 mm
Pump Dimensions 91×79×47 mm
Pump Speed 2400 RPM±10%
Pump Noise 17.8 dB(A)
Pump Connector 3-pin
Pump Rated Voltage 12 VDC
Pump Rated Current 0.21 A±10%
Pump Power Consumption 2.52 W
Fan Dimension 120×120×25 mm
Fan Speed 500-1800 RPM±10%
Fan Airflow 69.34 CFM
Fan Air Pressure 2.42 mmAq
Fan Noise ≤30 dB(A)
Fan Connector 4-pin
Bearing Type Hydro Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.22 A±10%
Fan Power Consumption 2.64 W
LED Type BLUE LED
Compatibility
Intel – LGA 20XX, LGA 1366, LGA 115X
AMD – AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1
