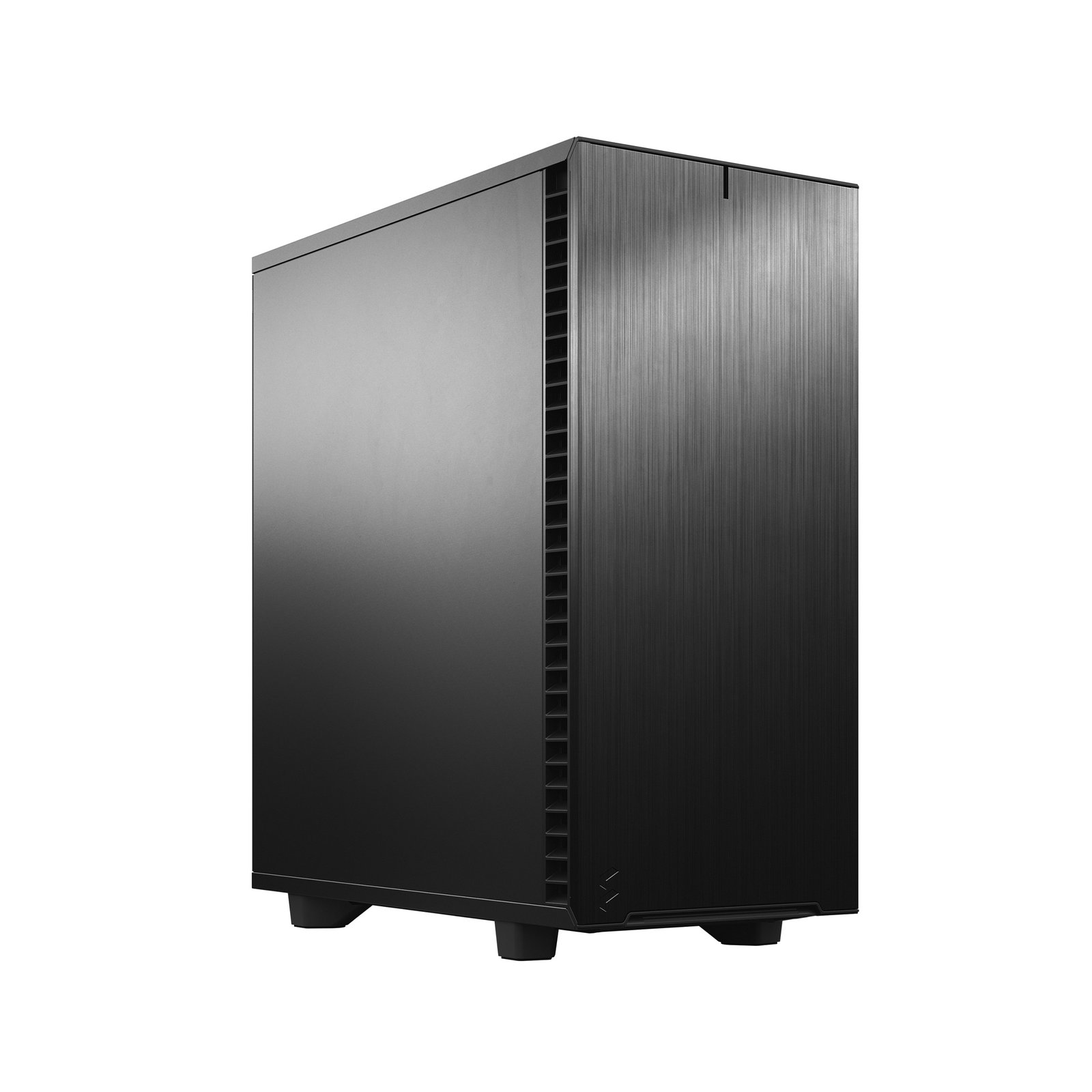

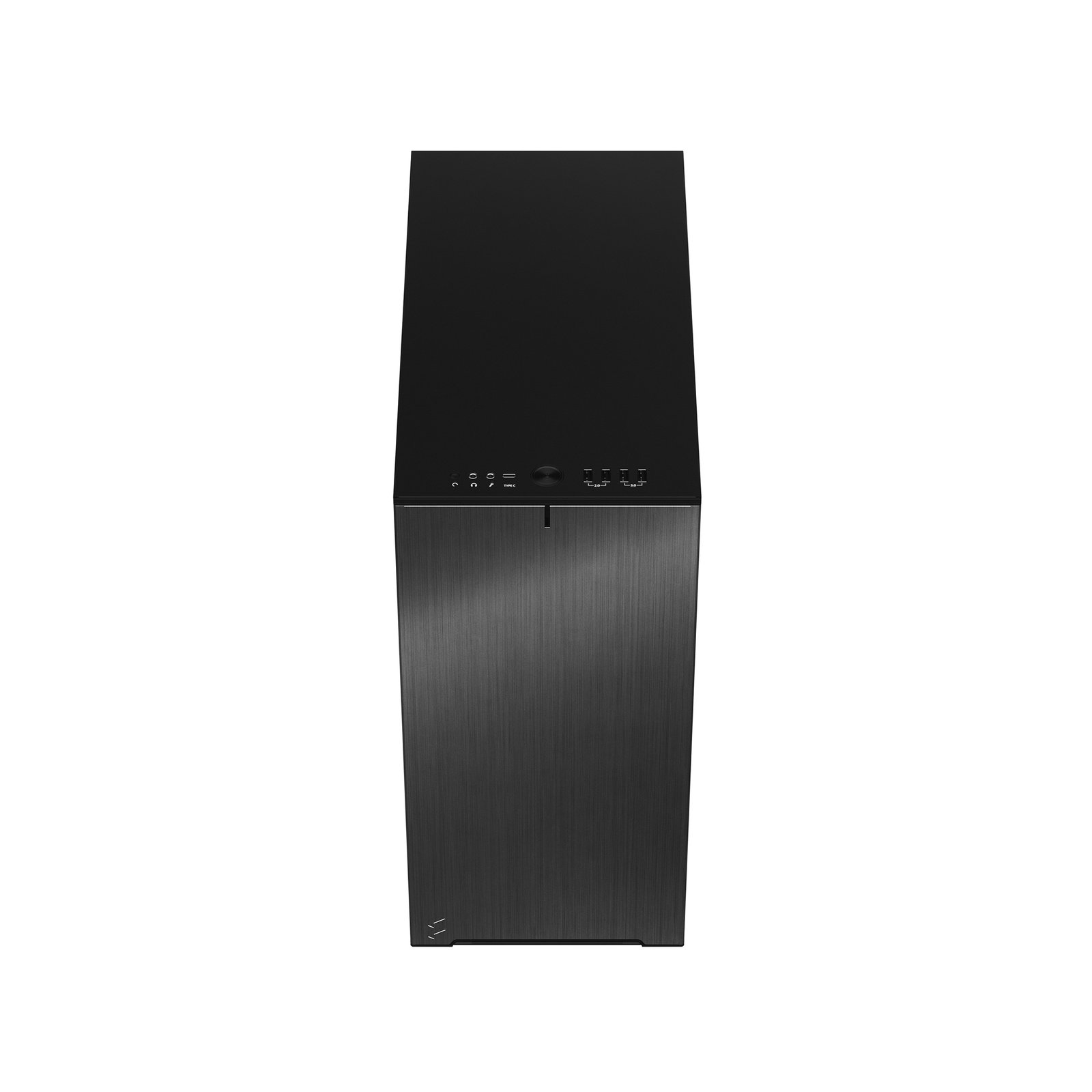

Fractal Design Define 7 Compact Black Solid ATX Gaming Cabinet
The new Define 7 Compact takes the strongest features of the contemporary 7 Series design and places them in a conveniently compact frame.
Compact yet spacious interior fits ATX, mATX or Mini-ITX motherboards
Fits GPUs up to 360 mm with a 240 mm radiator in the top
Top panel effortlessly swaps from solid steel to filtered ventilation
A cleaner look
Brushed aluminum front and interchangeable side panels give a very clean look
Compact yet spacious
The versatile layout of the Define 7 Compact allows you to maximize the potential of the small footprint with full-size ATX hardware to meet your exact needs. For example, you can easily fit GPUs up to 360 mm with a 240 mm radiator in the top – or up to 360/280 mm front radiators with GPUs under 305 mm.
Remarkably quiet
Solid construction with industrial high-density sound damping helps maintain whisper-quiet operation
Brushed aluminum front and top-latching side panels offer a clean sophisticated look
Top panel effortlessly swaps from solid steel to filtered ventilation
Substantial cooling
Install up to 7 x 120 mm or 4 x 140 mm fans, and radiators up to 360 mm
1 x 120 mm and 1 x 140 mm Dynamic X2 fans included
Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support
Robust Front I/O
Five front USB ports including a fast-charging USB 3.1 Gen 2 type-C at up to 10 Gbps
Concealed storage
You can fit two 2.5”/3.5” drives beneath the shroud and two SSDs behind the backplate
More in store
A pair of SSDs are easily mounted straight on the PSU shroud
Front, top and base
Easy-to-clean high airflow nylon filters
Open access
Remove the entire top to build and route with zero hindrance.
Specifications
Product Code FD-C-DEF7C-01
3.5″/2.5″ Universal drive brackets 2
Dedicated 2.5″ drive brackets 2 trays included, 4 positions total
Expansion slots 7
Front ports 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button
Total fan mounts 7 x 120 or 4 x 140 mm and 2 x 120 mm
Front fan 3 x 120 or 2 x 140 mm, (1 x Dynamic X2 GP-14 included)
Top fan 2 x 120 or 2 x 140 mm
Rear fan 1 x 120 mm, (1 x Dynamic X2 GP-12 included)
Bottom fan 1 x 120 mm (requires removal of HDD cage)
Dust filters Top, 2 x front, full length bottom
Fixed velcro straps Yes
Cable routing grommets Yes
Captive thumbscrews HDD brackets, SSD brackets, PSU bracket
Left side panel Industrial sound-damped steel
Right side panel Industrial sound-damped steel
Compatibility
Power supply type ATX
Motherboard compatibility ATX / mATX / mITX
PSU max length 200 mm (with HDD cage and front fan)
GPU max length 341 mm (360 mm without front fan)
CPU cooler max height 169 mm
Front radiator Up to 360/280 mm (max 145 mm width)
Top radiator Up to 240 mm
Rear radiator 120 mm
Bottom radiator 120 mm (requires removal of HDD cage)
Cable routing space 17-28 mm
Dimensions
Case dimensions (LxWxH) 427 x 210 x 474 mm
Case dimensions w feet/protrusions/screws 415 x 210 x 451 mm
Net weight 8.76 kg
Package dimensions (LxWxH) 536 x 310 x 521 mm
Package weight 11.04 kg
Volume 39.3 liters
Warranty 2 Years
