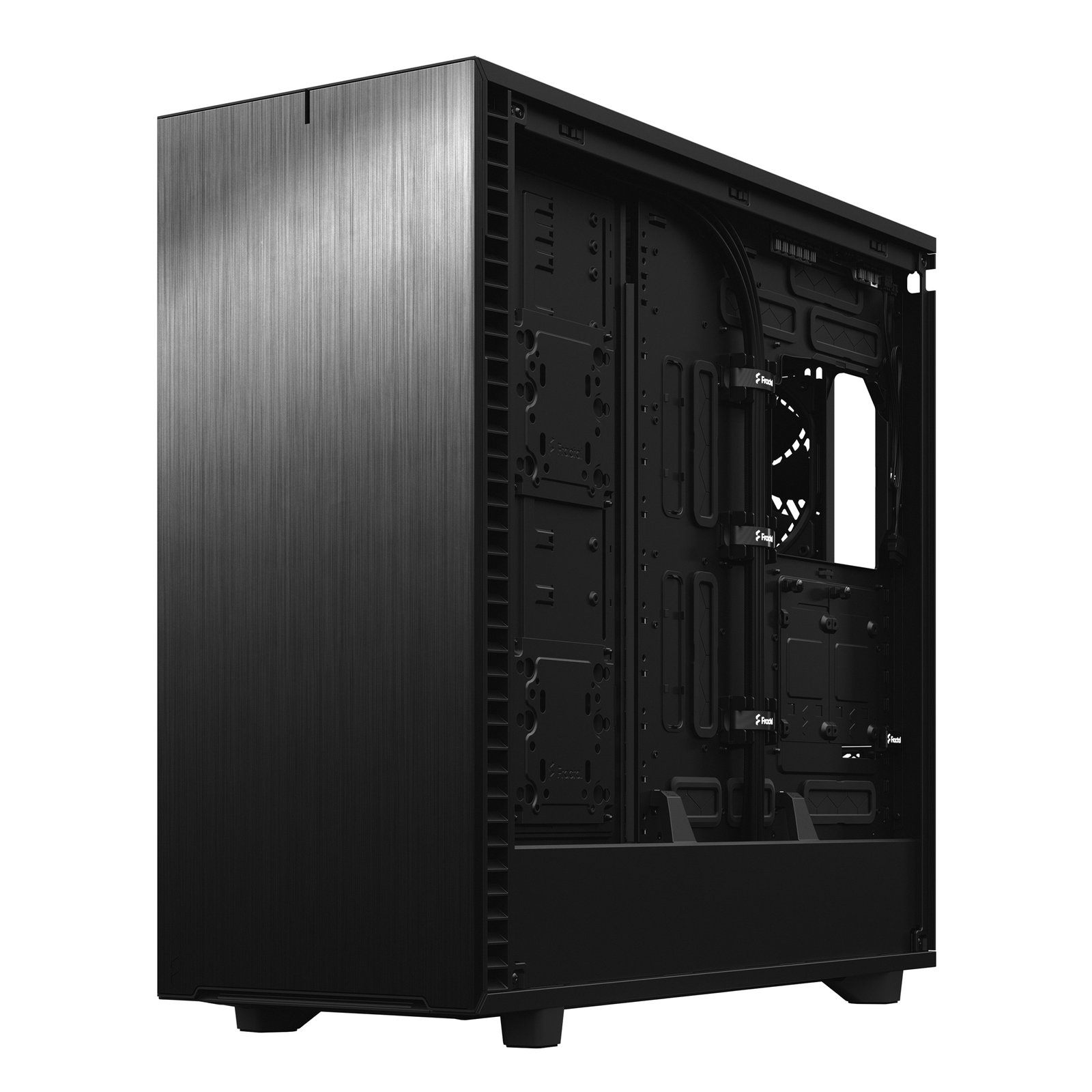

Fractal Design Define 7 XL ATX Full Tower Case FD-C-DEF7X-01

3.5″/2.5″ Universal drive brackets
6 + 2 included, 18 positions total
Dedicated 2.5″ drive brackets
2 included, 5 positions total
5.25” drive mounts
2
Expansion slots
9 + 3
Front ports
1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button
Total fan mounts
11 x 120 mm or 9 x 140 mm
Front fan
4 x 120 mm or 3 x 140 mm, (2 x Dynamic X2 GP-14 included)
Top fan
4 x 120 mm or 3 x 140 mm
Rear fan
1 x 120/140 mm, (1 x Dynamic X2 GP-14 included)
Bottom fan
2 x 120/140 mm
Dust filters
Top, 2 x Front, Bottom + PSU
Fixed velcro straps
Yes
Cable routing grommets
Yes
Captive thumbscrews
HDD brackets, SSD brackets, PSU bracket
Left side panel
Industrial sound-damped steel
Right side panel
Industrial sound-damped steel
Compatibility
Motherboard compatibility
E-ATX / ATX / mATX / mITX / EE-ATX / SSI-CEB / SSI-EEB
Power supply type
ATX
PSU max length
250 mm (both HDD cages installed)
GPU max length
Storage layout: 359 mm – Open layout: 549 mm (524 mm w/ front fan)
CPU cooler max height
185 mm
Front radiator
Up to 480/420 mm
Top radiator
Up to 480/420 mm
Rear radiator
120 mm
Bottom radiator
Up to 240/280 mm
Cable routing space
30 mm
Vertical GPU Support (with Flex B-20 or Flex VRC-25)
65mm total clearance, standard 2-slot GPU (<38mm thickness) recommended for optimum cooling Dimensions Case dimensions (LxWxH) 604 x 240 x 566 mm Case dimensions w/o feet/protrusions/screws 590 x 240 x 548 mm Package dimensions (LxWxH) 646 x 357 x 708 mm Net weight 16.53 kg Package weight 18.73 kg Volume 77.6 liters Other Warranty 2 Years Package contents Define 7 XL - Accessory box - User manual - Ventilated top panel - ODD bracket - ODD bay cover - 2 x HDD/SSD trays
