Fractal Design MESHIFY 2 DARK (E-ATX) Mid Tower Black Cabinet With Tempered Glass Side Panel FD-C-MES2A-02

In stock

The new Meshify 2 is a classic evolved with focus on distinctive design, spacious interior and rugged good looks.

Compare
SKU: IT-20220901-1753 Category:

The new Meshify 2 is a classic evolved with focus on distinctive design, spacious interior and rugged good looks.

Iconic angular mesh design provides filtered airflow with a bold, stealth-inspired aesthetic
Spacious adaptable interior for motherboards up to (and including) 285 mm E-ATX
Support for radiators up to 360 mm (front), 420 mm (top) and 280 mm (base)

Detachable front filter

New front nylon filter that can be removed for increased airflow
New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts
Three Dynamic X2 GP-14 fans come preinstalled with room to expand up to a total of nine fans

Superlative storage

Convert to Storage Layout and install up to 11 HDDs alongside four dedicated SSDs mounts (6x SSD/HDD trays, 2x SSD brackets and 1x Multibracket included)

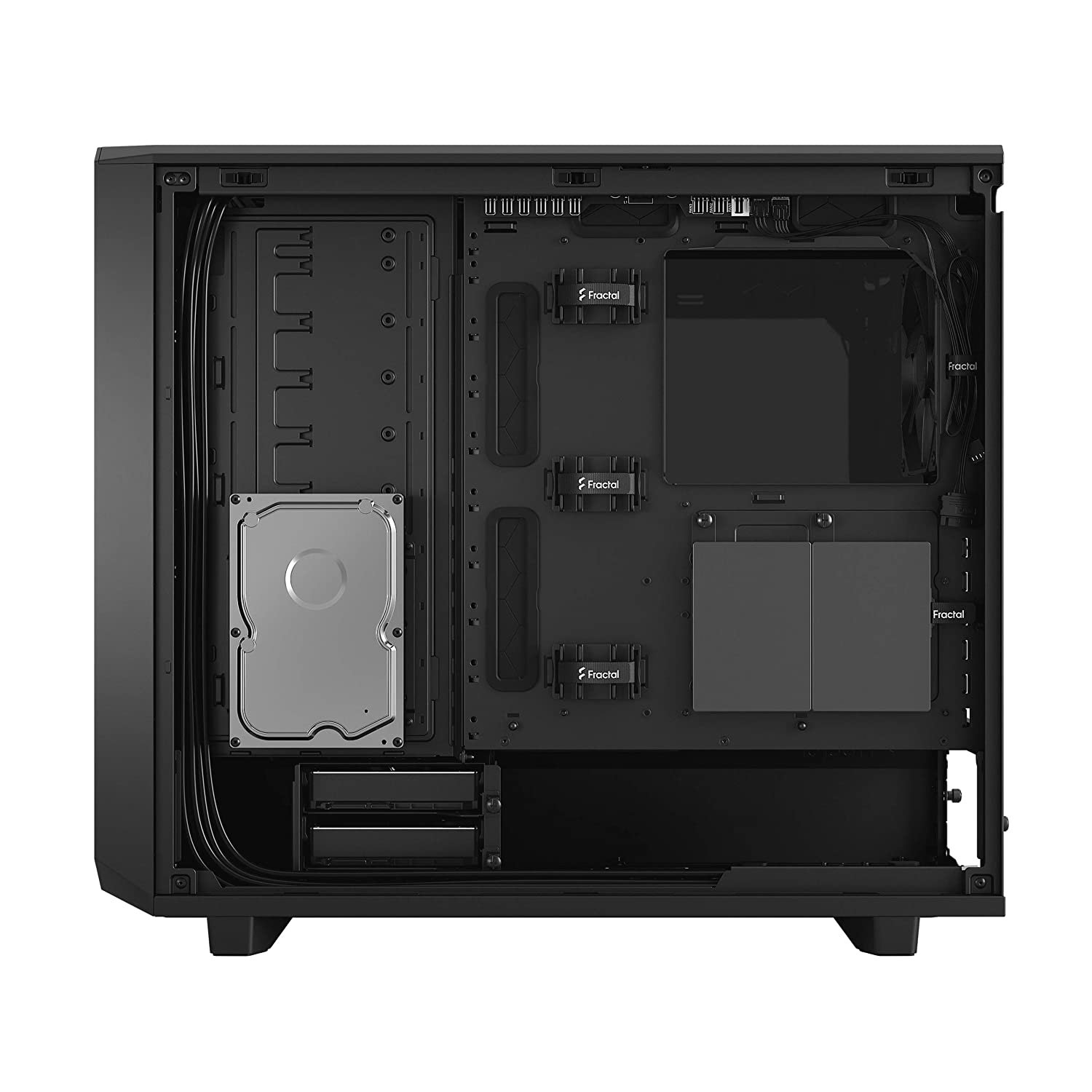

Transformable interior design utilizing a movable wall for enhancing custom builds
The included Multibracket lets you convert any unused fan position to an HDD, SSD or pump mount
Tool-less, top-latching side panels allow quick access while preventing accidental drops

Extremely flexible

Fits your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout
Support for radiators up to 360 mm (front), 420 mm (top) and 280 mm (base)
Easily holds large motherboards up to and including 285 mm E-ATX

Open and interchangeable

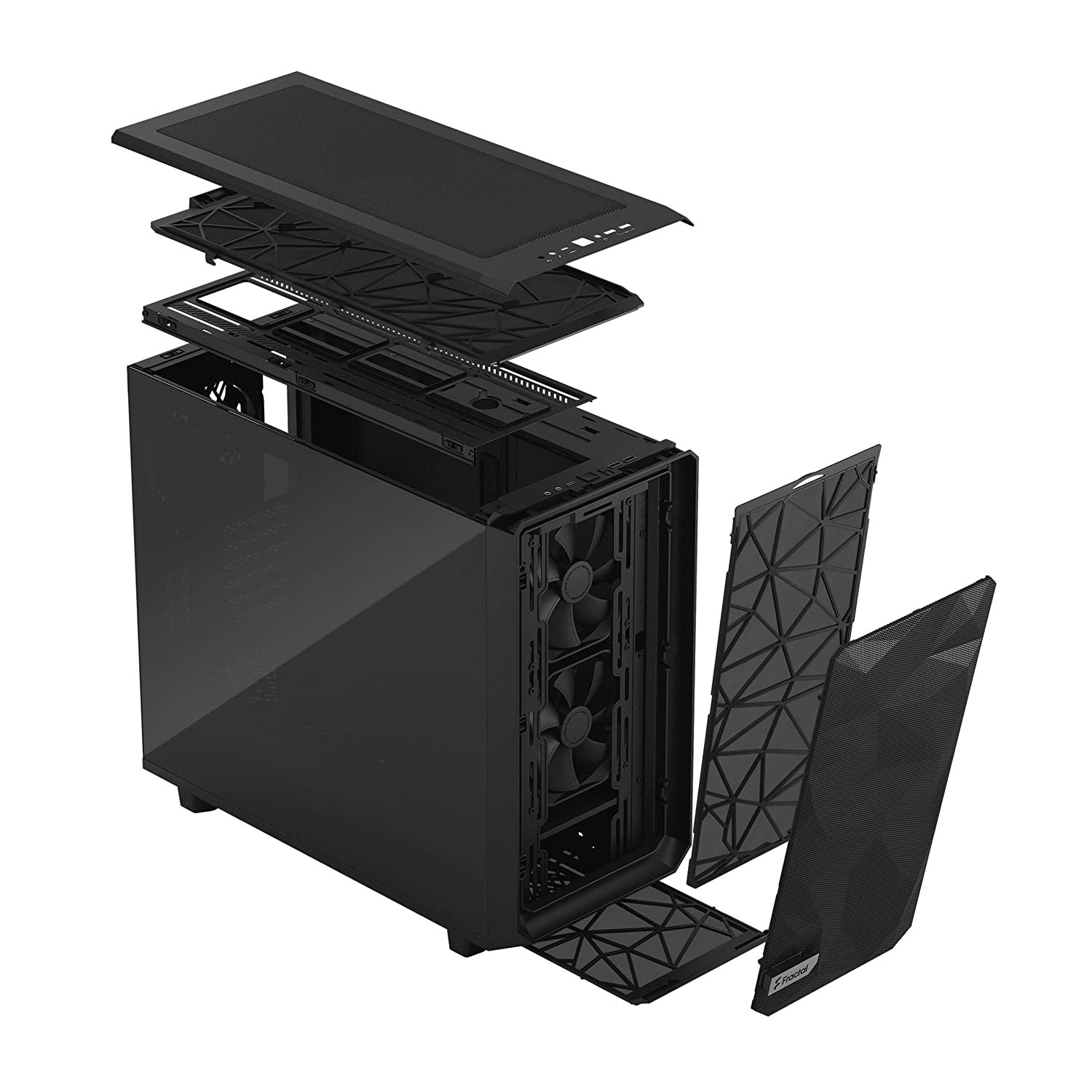

Remove the entire top to build and route with zero hindrance.

Type-C Interface

USB 3.1 Gen 2 Type-C front I/O offers fast-charging and speeds up to 10 Gbps

Nexus+ 2 fan hub

Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans

Versatile Multibracket

Versatile Multibracket that converts any unused fan position to an HDD, SSD or pump mount

Easy cable management

Detachable PSU cable shield and integrated cable guides with velcro straps further simplify cable management behind the board

Specification :

Product Code FD-C-MES2A-02
3.5″/2.5″ Universal drive mounts 6 included, 14 positions total + 1 Multibracket
Dedicated 2.5″ drive mounts 2 included, 4 positions total
Expansion slots 7 + 2
Front interface 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button
Total fan mounts 9x 120/140 mm
Front fan 3x 120/140 mm (2x Dynamic X2 GP-14 included
Top fan 3x 120/140 mm
Rear fan 1x 120/140 mm (1x Dynamic X2 GP-14 included)
Bottom fan 2x 120/140 mm
Dust filters Top, front and bottom
Fixed velcro straps Yes
Cable routing grommets Yes
Captive thumbscrews HDD, SSD and PSU brackets
Left side panel Tempered glass dark tint
Right side panel Steel
Compatibility
Power supply type ATX
Motherboard compatibility E-ATX (max 285 mm)/ ATX / mATX / Mini-ITX
PSU max length 250 mm (with HDD cage installed)
GPU max length Storage layout: 315 mm Open layout: 491 mm (467 mm w/ front fan)
CPU cooler max height 185 mm
Front radiator Up to 360/280 mm
Top radiator Up to 360/420 mm
Rear radiator 120 mm
Bottom radiator Up to 240/280 mm
Cable routing space 30 mm
Dimensions
Case dimensions (LxWxH) 542 x 240 x 474 mm
Case dimensions w feet/protrusions/screws 541 x 240 x 454 mm
Net weight Solid: 10.1 kg TG: 10.5 kg
Package dimensions (LxWxH) 634 x 542 x 324 mm
Gross weight Solid: 12.8 kg TG: 13.2 kg
Volume 59 liters
Warranty 2 Years
