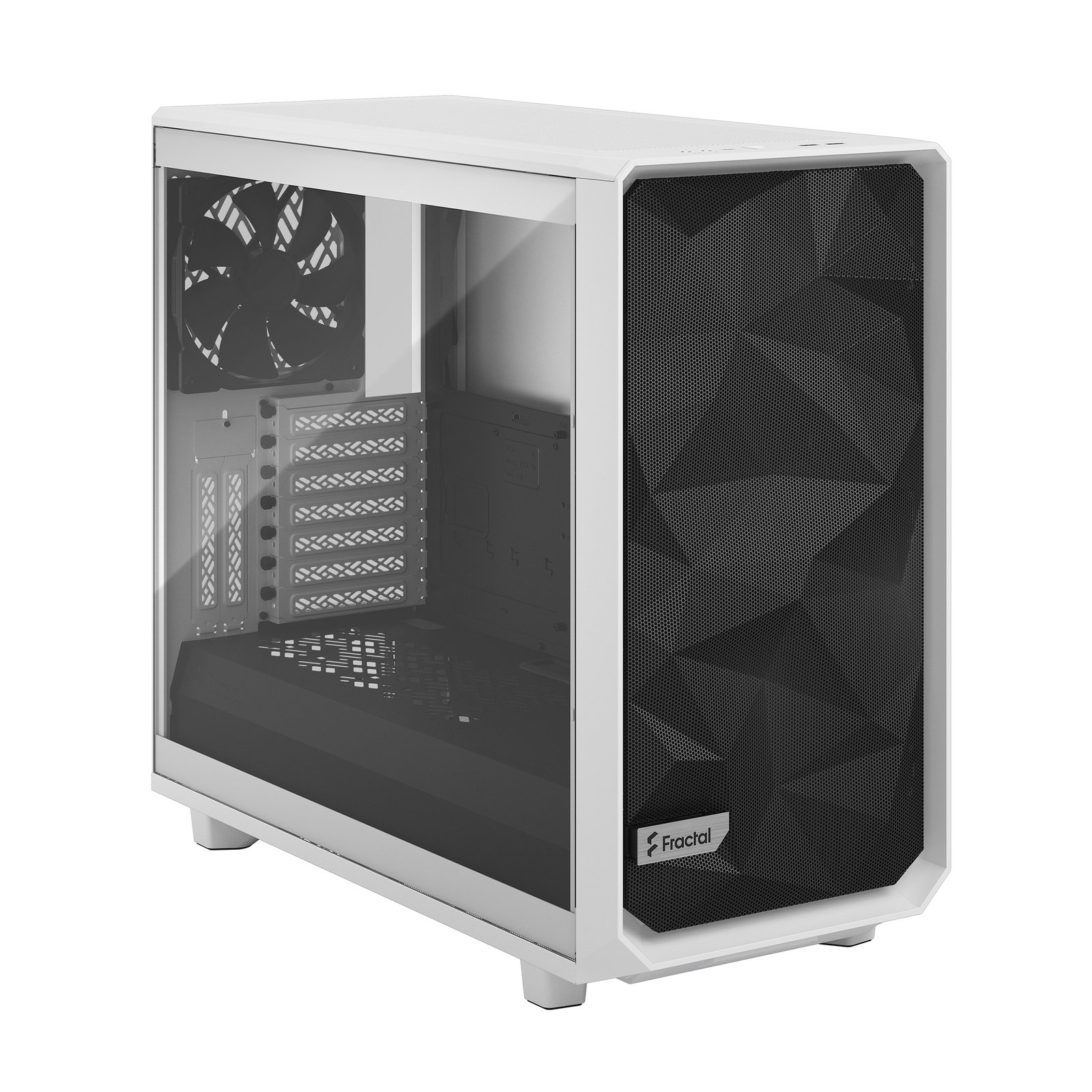

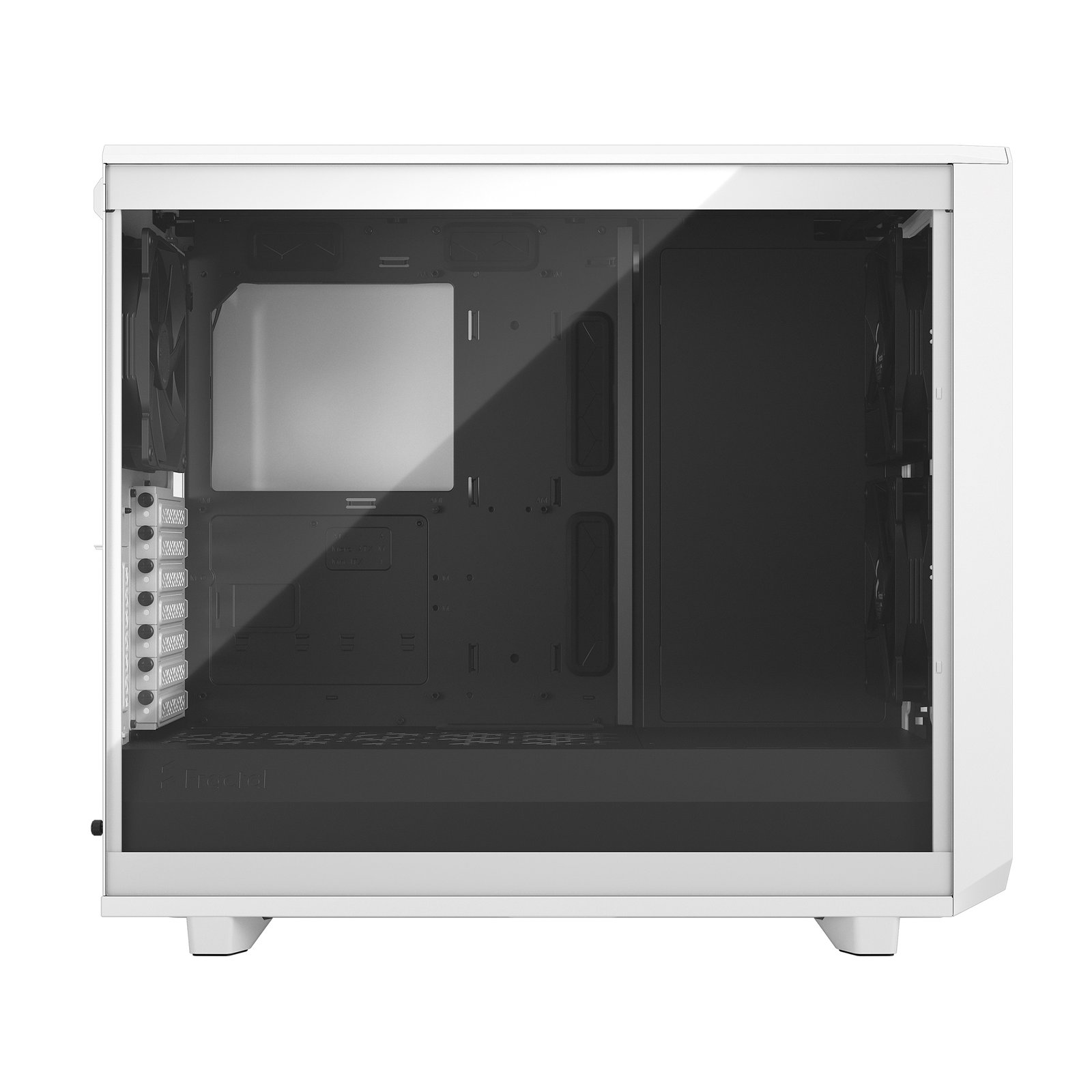

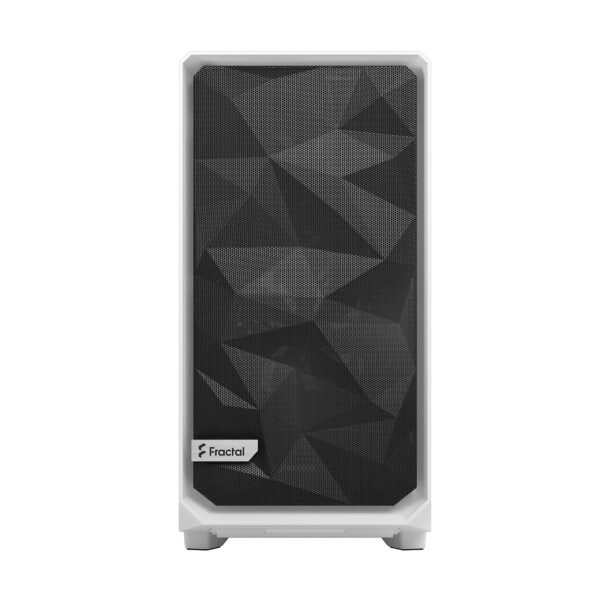

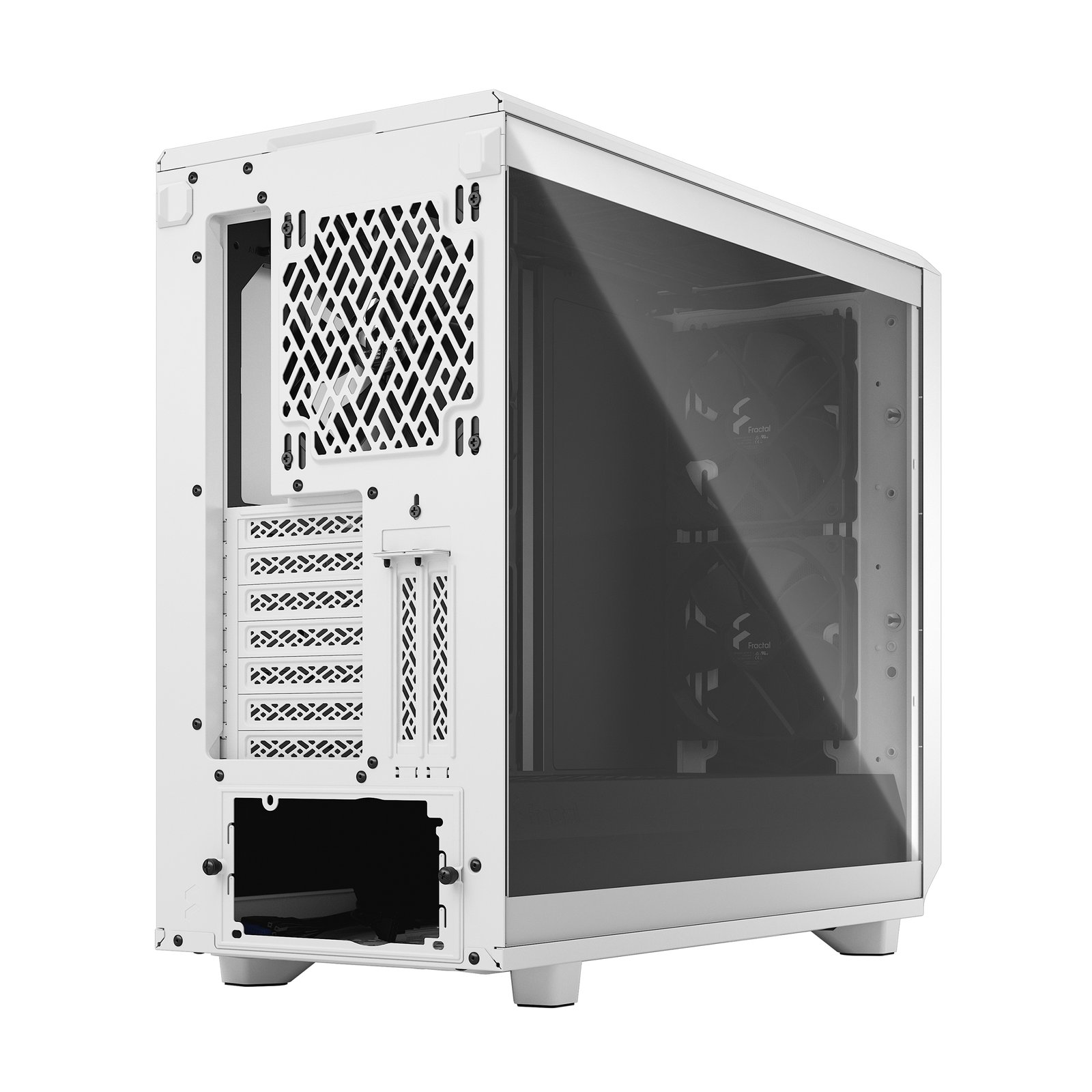

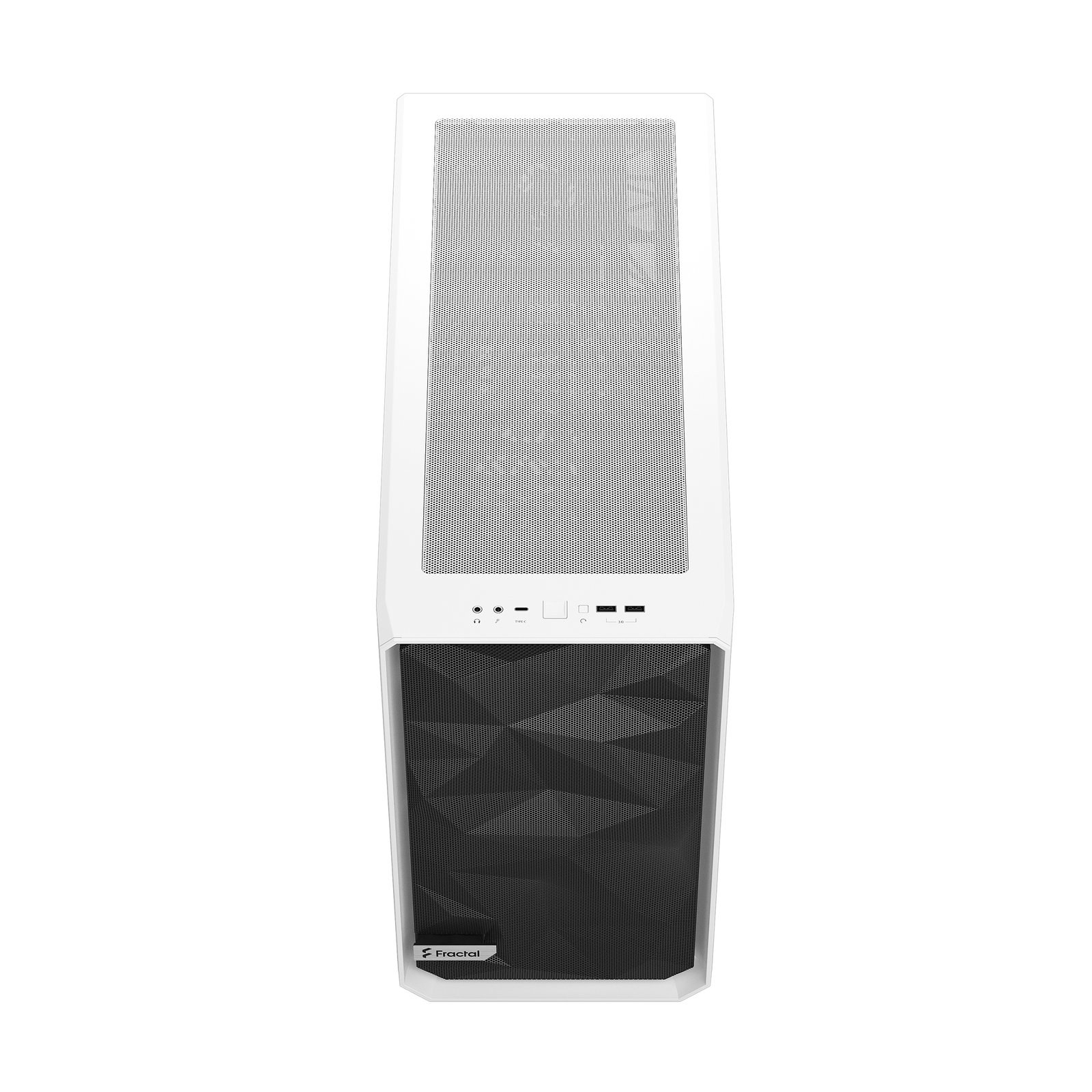

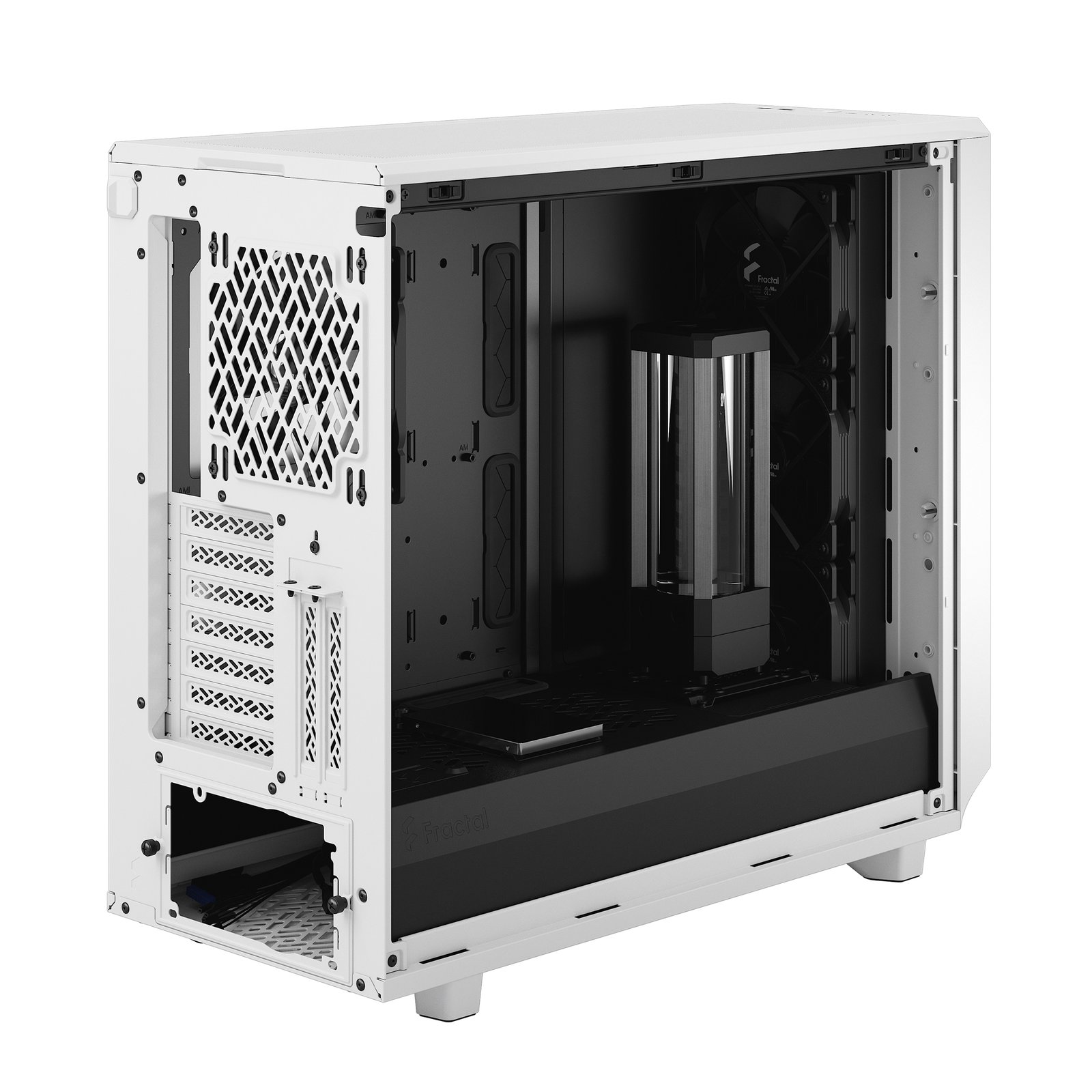

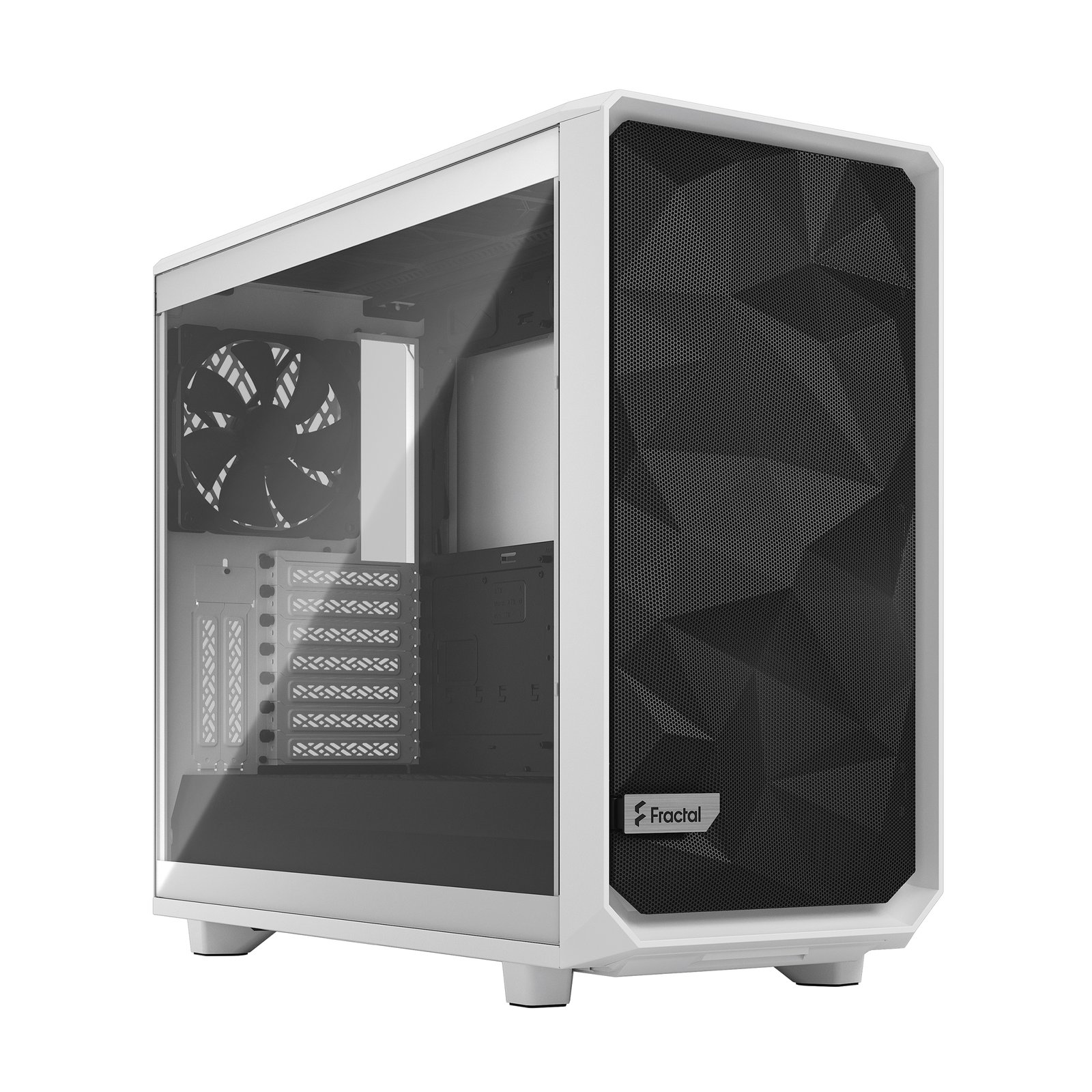

Fractal Design Meshify 2 White TG Clear Tint E-ATX Gaming Cabinet

3.5″/2.5″ Universal drive mounts
6 included, 14 positions total + 1 Multibracket
Dedicated 2.5″ drive mounts
2 included, 4 positions total
Expansion slots
7 + 2
Front interface
1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button
Total fan mounts
9x 120/140 mm
Front fan
3x 120/140 mm (2x Dynamic X2 GP-14 included)
Top fan
3x 120/140 mm
Rear fan
1x 120/140 mm (1x Dynamic X2 GP-14 included)
Bottom fan
2x 120/140 mm
Dust filters
Top, front and bottom
Fixed velcro straps
Yes
Cable routing grommets
Yes
Captive thumbscrews
HDD, SSD and PSU brackets
Left side panel
Tempered glass
Right side panel
Steel
Compatibility
Motherboard compatibility
E-ATX (max 285 mm)/ ATX / mATX / Mini-ITX
Power supply type
ATX
PSU max length
250 mm (with HDD cage installed)
GPU max length
Storage layout: 290 mm – Open layout: 470 mm (445 mm w/ front fan)
CPU cooler max height
185 mm
Front radiator
Up to 360/280 mm
Top radiator
Up to 360/420 mm
Rear radiator
120 mm
Bottom radiator
Up to 240/280 mm
Cable routing space
30 mm
Dimensions
Case dimensions (LxWxH)
542 x 240 x 474 mm
Case dimensions w/o feet/protrusions/screws
541 x 240 x 454 mm
Package dimensions (LxWxH)
634 x 542 x 324 mm
Net weight
Solid: 10.1 kg TG: 10.5 kg
Gross weight
Solid: 12.8 kg TG: 13.2 kg
Volume
58.95 liters
