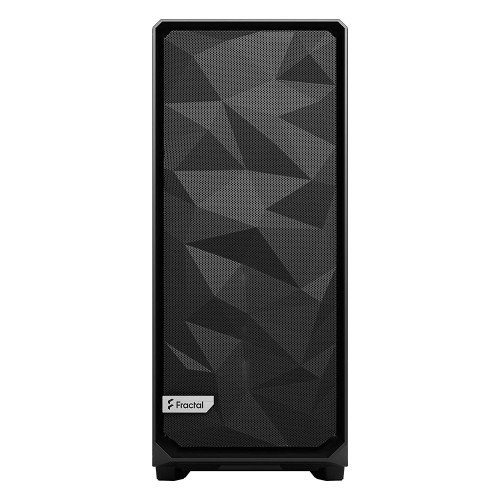

FRACTAL DESIGN MESHIFY 2 XL LIGHT (E-ATX) FULL TOWER BLACK CABINET WITH TEMPERED GLASS SIDE PANEL FD-C-MES2X-02

In stock

Bigger, bolder and better? With more of everything, the Meshify 2 XL is ready to take on your most ambitious builds.

Compare
SKU: IT-20220901-1766 Category:

Meshify 2 XL Light Tempered Glass

Bigger, bolder and better? With more of everything, the Meshify 2 XL is ready to take on your most ambitious builds.

Iconic mesh design provides filtered airflow with a bold, stealth-inspired aesthetic
Spacious and extensively adaptable dual-layout interior
Easily accommodates large motherboards up to and including E-ATX and SSI-EEB
Open Layout supports radiators up to 480/420 mm (front), 480/420 mm (top) and 280/240 mm (base)

Detachable front filter

The nylon filter is easily removed from the hinged mesh panel for increased airflow
Tether-free bezel for easier access to front fan mounts
Three pre-installed Dynamic X2 GP-14 fans and room for more (max 9x 140 mm / 11x 120 mm)

Superlative storage

Optional accessories allow expansion up to 18 HDDs and 5 SSDs in Storage Layout
The included Multibrackets lets you convert any unused fan positions to HDD, SSD or pump mounts
Tool-less, top-latching panels allow quick access while preventing accidental drops

Flexible dual-layout design

Convert to Open Layout and get more than enough room for your custom water loop with large reservoirs and radiators up to 480 mm
Support for radiators up to 480/420 mm (front), 480/420 mm (top) and 280/240 mm (base)
An expansive internal layout easily accommodates large motherboards up to E-ATX and SSI-EEB

Open and interchangeable

Remove the entire top to build and route with zero hindrance.

Type-C interface

USB 3.1 Gen 2 Type-C front I/O offers fast-charging and speeds up to 10Gbps

Nexus+ 2 fan hub

Ultra-slim Nexus+ 2 fan hub connects 3x PWM fans and 6x 3-pin fans

Versatile multibrackets

The included Multibrackets lets you convert unused fan positions to HDD, SSD or pump mounts

Easy cable management

Detachable PSU cable shield and integrated cable guides with velcro straps further simplify cable management behind the board

Specification :

Product Code FD-C-MES2X-02
3.5″/2.5″ Universal drive mounts 6 included, 18 positions total + 2 Multibrackets
Dedicated 2.5″ drive mounts 2 included, 5 positions total
Expansion slots 9 + 3
Front interface 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button
Total fan mounts 11x 120 mm or 9x 140 mm
Front fan 4x 120 mm or 3x 140 mm, (2x Dynamic X2 GP-14 included)
Top fan 4x 120 mm or 3x 140 mm
Rear fan 1x 120/140 mm, (1x Dynamic X2 GP-14 included)
Bottom fan 2x 120/140 mm
Dust filters Top, front and bottom
Fixed velcro straps Yes
Cable routing grommets Yes
Captive thumbscrews HDD, SSD and PSU brackets
Left side panel Tempered glass dark tint
Right side panel Steel
Compatibility
Power supply type ATX
Motherboard compatibility E-ATX / ATX / mATX / Mini-ITX / EE-ATX / SSI-CEB / SSI-EEB
PSU max length 250 mm (both HDD cages installed)
GPU max length Storage layout: 359 mm Open layout: 549 mm (524 mm w/ front fan)
CPU cooler max height 185 mm
Front radiator Up to 480/420 mm
Top radiator Up to 480/420 mm
Rear radiator 120 mm
Bottom radiator Up to 240/280 mm
Cable routing space 30 mm
Dimensions
Case dimensions (LxWxH) 600 x 240 x 566 mm
Case dimensions w feet/protrusions/screws 588 x 240 x 547 mm
Net weight 14.1 kg
Package dimensions (LxWxH) 651 x 330 x 684 mm
Gross weight 16.4 kg
Volume 77,2 liters
Warranty 2 Years
