Fractal Design Meshify S2 Full-Tower (Window, White) Cabinet FD-CA-MESH-S2-WT-TGC

Add the finishing touch to your build with the windowed Meshify S2 Full-Tower Case in white from Fractal Design. Intended to look classy while keeping components cool, this roomy case features an asymmetrical and angular mesh front panel for efficient airflow.

Fitting E-ATX boards up to 11.2″ wide as well as ATX, Micro-ATX, and Mini-ITX motherboards, this case can also accommodate a GPU up to 17.32” long. CPU coolers up to 7.28” and power supplies up to 11.81” are also supported. Three internal bays can accommodate either 2.5 or 3.5” drives, while up to four additional 2.5″ drives can be installed using included brackets and alternative mounting positions in the case. Seven expansion slots plus two vertical slots are also present, giving this case nine total expansion slots.

Sporting a steel frame and tempered glass side panel, the Fractal Meshify S2 comes with three 140mm Dynamic X2 GP-14 fans already installed. It also supports liquid cooling systems and incorporates dust filters on the top, bottom, and front panels. An I/O panel is also present, providing two USB 3.1 Gen 1 ports and a Gen 2 Type-C port as well as separate 3.5mm audio input and output options.

Cool by Design

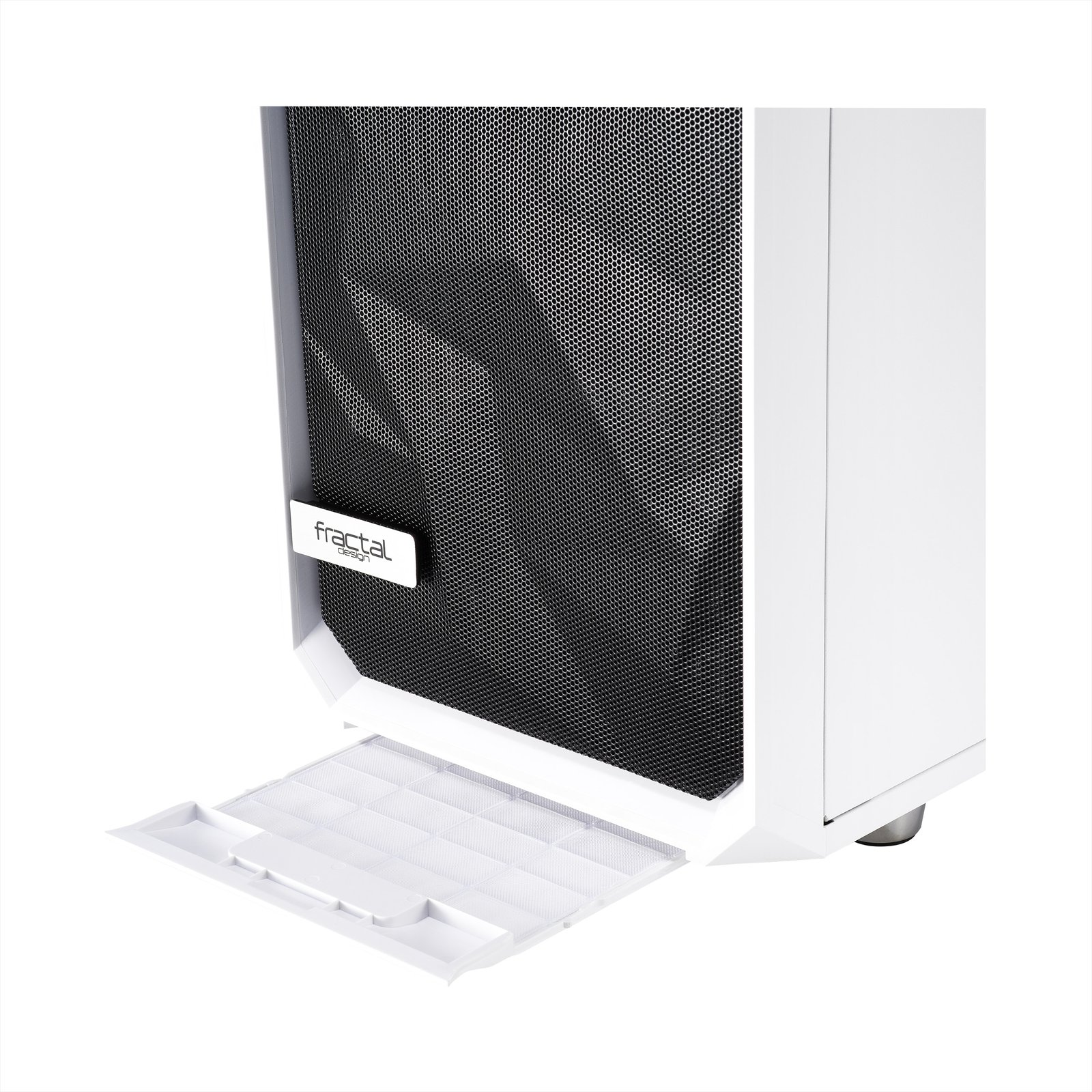

The angular mesh front panel maximizes air intake while three preinstalled Fractal Design Dynamic X2 GP-14 140mm fans deliver airflow to the case. Complementing this, the Meshify S2 features an open interior layout with an unobstructed airflow path from front intake to rear exhaust. Additionally, easy-cleaning filters are placed at the front, top, and base with full PSU coverage and convenient front access.

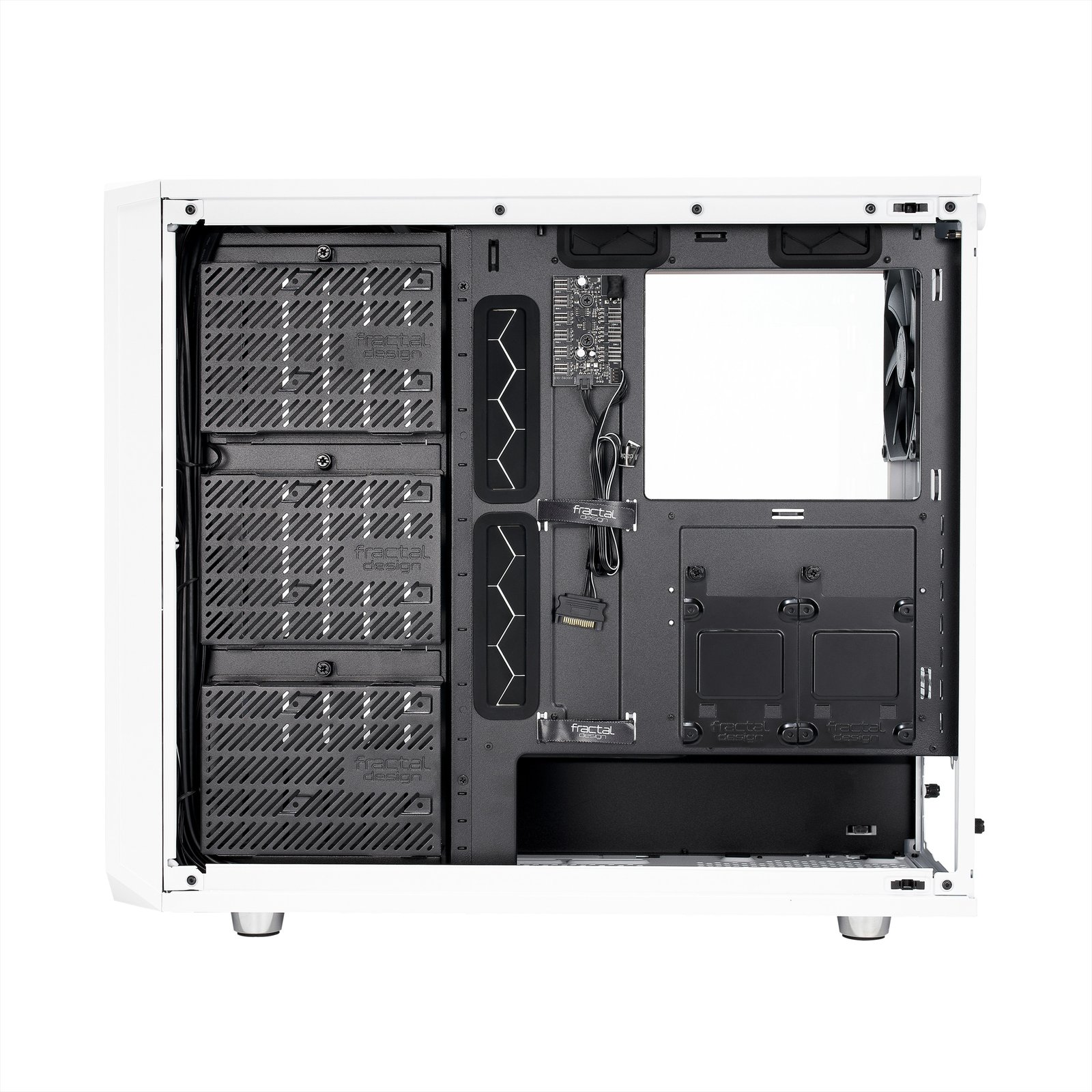

Clean Cables
Take advantage of pass-through grommets and 0.9″ of space behind the motherboard tray for clean cable routing.

Recommended reading:Fractal Design ERA (M-ITX) MINI TOWER COBALT Cabinet FD-CA-ERA-ITX-BU

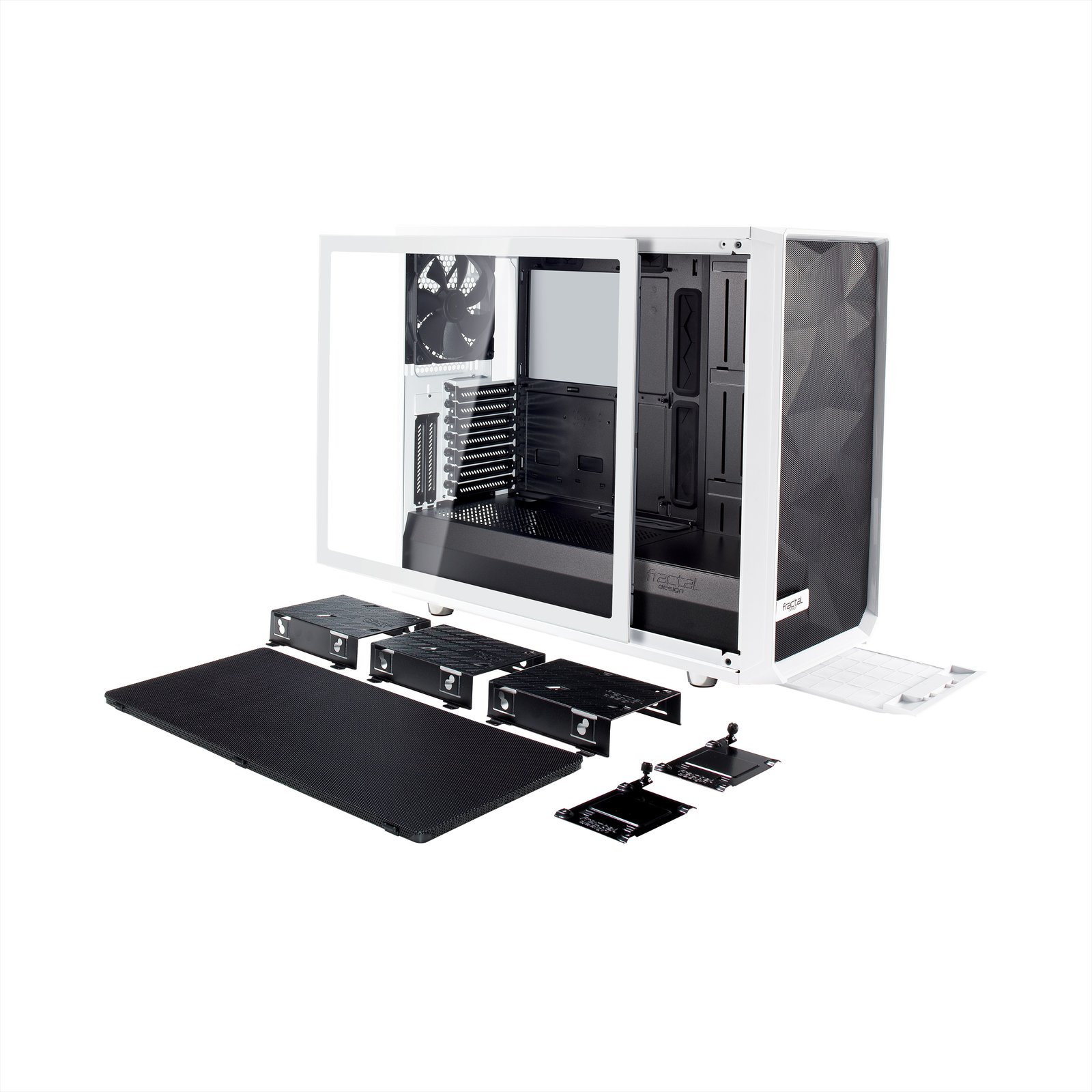

Storage Space
In addition to two concealed SSD mounts and three vibration-dampened HDD enclosures, the Meshify S2 can also mount SSDs on the PSU shroud and supports a total of up to seven 2.5″ drives, or up to three 3.5 and four 2.5″ drives.

Ready to Go and Grow
Three Fractal Design Dynamic X2 GP-14 fans come preinstalled, but this case can fit up to nine optional user-installed fans for increased airflow and cooling. Or, go liquid with radiators up to 360mm in the front and 420mm on the top of the case.

USB 3.1 Gen 2
Doubling the speed of its predecessor, USB 3.1 Gen 2 features a maximum throughput of 10 Gb/s when used with compatible devices.

Specification :

Compatibility
Motherboard Support ATX, E-ATX, Micro-ATX, Mini-ITX
External Drive Bays None
Internal Drive Bays 3 x 2.5/3.5″
2 x 2.5″
Expansion Slots 7 x Full Height + 2
Maximum GPU Length 17.32″ / 440 mm
CPU Cooler Height 7.28″ / 185 mm
Supported PSU Size ATX
Maximum PSU Length 11.81″ / 300 mm
Cooling
Fan Mounting (Front) 3 x 120 mm
Or
3 x 140 mm
Fan Mounting (Rear) 1 x 120 mm
Or
1 x 140 mm
Fan Mounting (Side) None
Fan Mounting (Top) 3 x 120 mm
Or
3 x 140 mm
Fan Mounting (Bottom) 2 x 120 mm
Or
2 x 140 mm
Fans Included (Front) 2 x 140 mm
Fans Included (Rear) 1 x 140 mm
Fans Included (Side) None
Fans Included (Top) None
Fans Included (Bottom) None
Maximum Radiator Size (Front) 360 mm
Maximum Radiator Size (Rear) 120 mm
Maximum Radiator Size (Top) 420 mm
Maximum Radiator Size (Bottom) 280 mm
Fan Mounting (Internal) None
Fans Included (Internal) None
Filter Locations Bottom, Front, Top

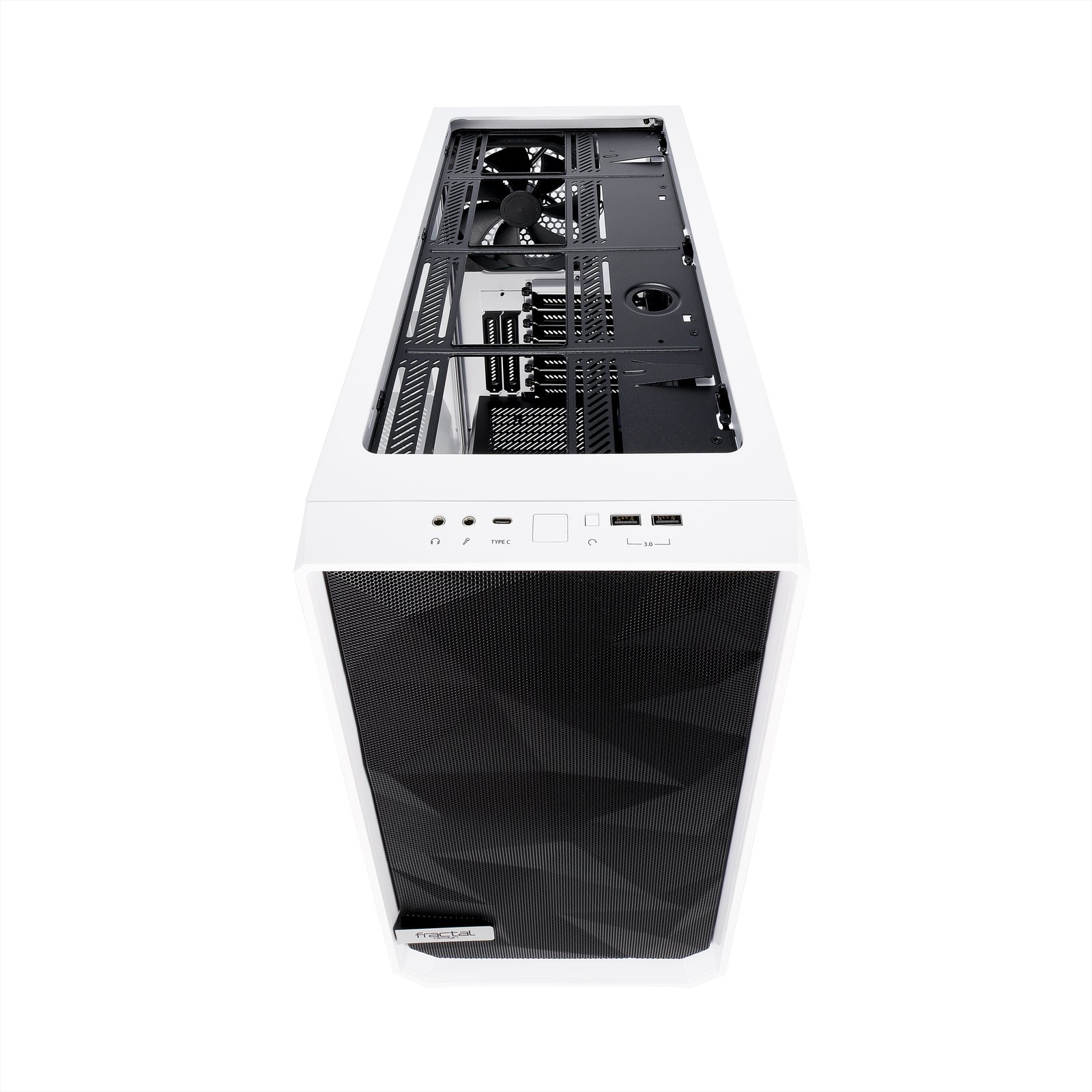

I/O
Connections 2 x USB Type-A (USB 3.1 / USB 3.2 Gen 1)
1 x USB Type-C (USB 3.1 / USB 3.2 Gen 2)
Audio Connections 1 x 3.5 mm Input
1 x 3.5 mm Output
Display Connections None
Physical
Windowed Panel Yes
Material Tempered Glass, Steel
Built-In Lighting No
Cable Management Space 0.91″ / 23 mm
Dimensions (W x H x D) 9.17 x 18.31 x 21.18″ / 233 x 465 x 538 mm
Weight 22.13 lb / 10.04 kg
Warranty Length Limited 2-Year Warranty
Packaging Info
Package Weight 26.35 lb
Box Dimensions (LxWxH) 26 x 21 x 13″
