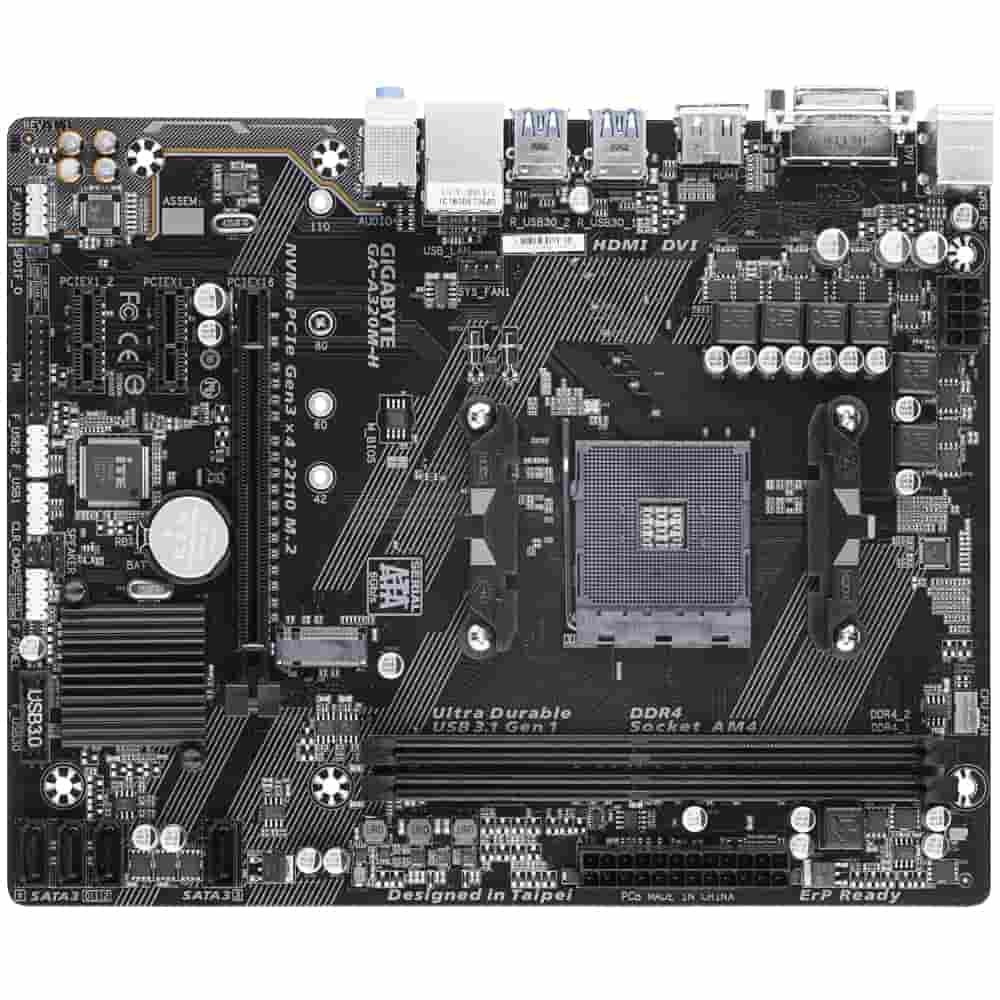

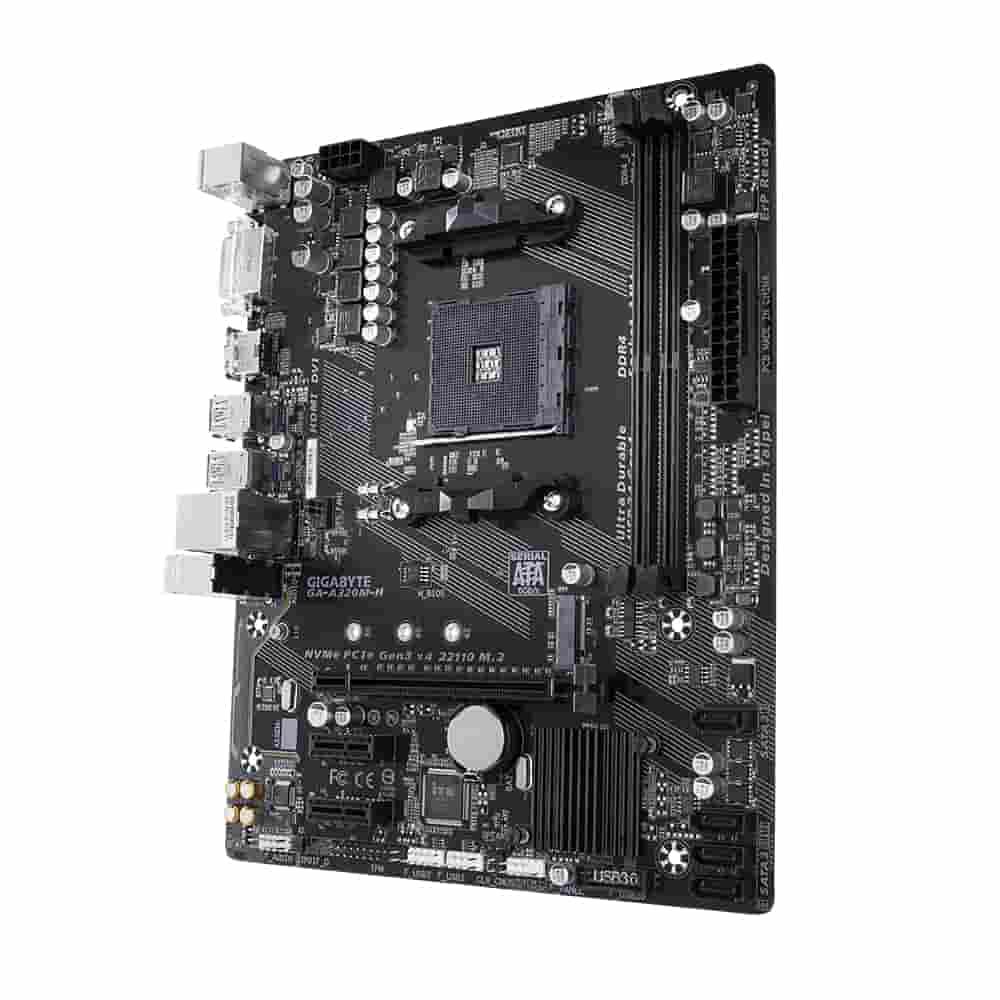

Gigabyte A320M-H Motherboard
Supports DDR4 Up-to 65 Gb Memory
Micro ATX Form Factor Support
Supports AMD AM4 Socket Ryzen
AMD A320 Chipset Support
Realtek GbE LAN
Model – A320M-H
CPU – AMD AM4 Socket
Chipset – AMD A320
Memory – DDR4
Graphics Output Options – DVI-D, D-SUB, HDMI
OVERVIEW
The GIGABYTE AM4 motherboards are ready to support the latest AMD Ryzen 3000 processors and are backward compatible with AMD Ryzen 2000 and 1000 processors. The GIGABYTE AM4 motherboard has a rich list of features like Ultra Durable Armor for PCIe or Memory Slot, USB Type-C interface on the selected board, Refined Audio Quality, High-Speed Ethernet, and the latest standard WiFi design. GIGABYTE M.2 Solution provides fast enough storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices.
Not only that, with Smart Fan, 5 more hybrid fan headers that support both PWM and Voltage Mode fans have been introduced to make the motherboard more fluid and cool-friendly. All hybrid fan headers can automatically detect the type of cooling devices like a fan or pump in different PWM or voltage modes.
It Supports up to 2 amps with built-in overcurrent protection a must for high-performance high-current fans. Choose from a variety of modes ranging from quiet to full speed to match your system usage scenario. For each fan or pump, you can use the intuitive fan curve to determine the trigger threshold and the speed of the corresponding fan.
FEATURES:
AMD 5000 Series, 5000 G-Series, 4000 G-Series, 3rd Gen Ryzen , 2nd Gen Ryzen , 1st Gen Ryzen, 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Gen A-series/ Athlon X4 Processors, are supported.
Audio Noise Guard and High-Quality Audio Capacitors.
cFosSpeed Internet Accelerator Software support for Realtek® Gigabit LAN
A GIGABYTE™ APP Center which is very Simple and Easy to Use
Non-ECC Unbuffered DDR4, 2 DIMMs ( Dual channel)
TECHNICAL SPECIFICATIONS
Model_A320M-H
CPU_AM4 Socket: Supports AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ 7th Gen A-series/ Athlon X4 Processors
Chipset_AMD A320
Form Factor_Micro ATX Form Factor; 24.4cm x 19.5cm
Memory_2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual-channel memory architecture
Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules
* Actual support may vary by CPU.
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
BIOS_1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Graphics_Integrated Graphics Processor:
1 x DVI-D port, supporting a maximum resolution of 1920×1200 60 Hz
* The DVI-D port does not support a D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096×2160 24 Hz
* Support for HDMI 1.4 version.
The maximum shared memory of 2 GB* Actual support may vary by CPU.
Audio_Realtek audio codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
Support for S/PDIF Out
LAN_Realtek GbE LAN chip (10/100/1000 Mbit)
Slots_1 x PCI Express x16 slot, running at x16 (PCIEX16)*
* Actual support may vary by CPU.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
2 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 2.0 standard.)
Storage_1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2(Note) SSD support)
* Actual support may vary by CPU.
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
* Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 connector.
(Note) Supports only M.2 SATA SSDs when using an AMD Athlon series/ 7th Gen. A-series or Athlon X4 APU.

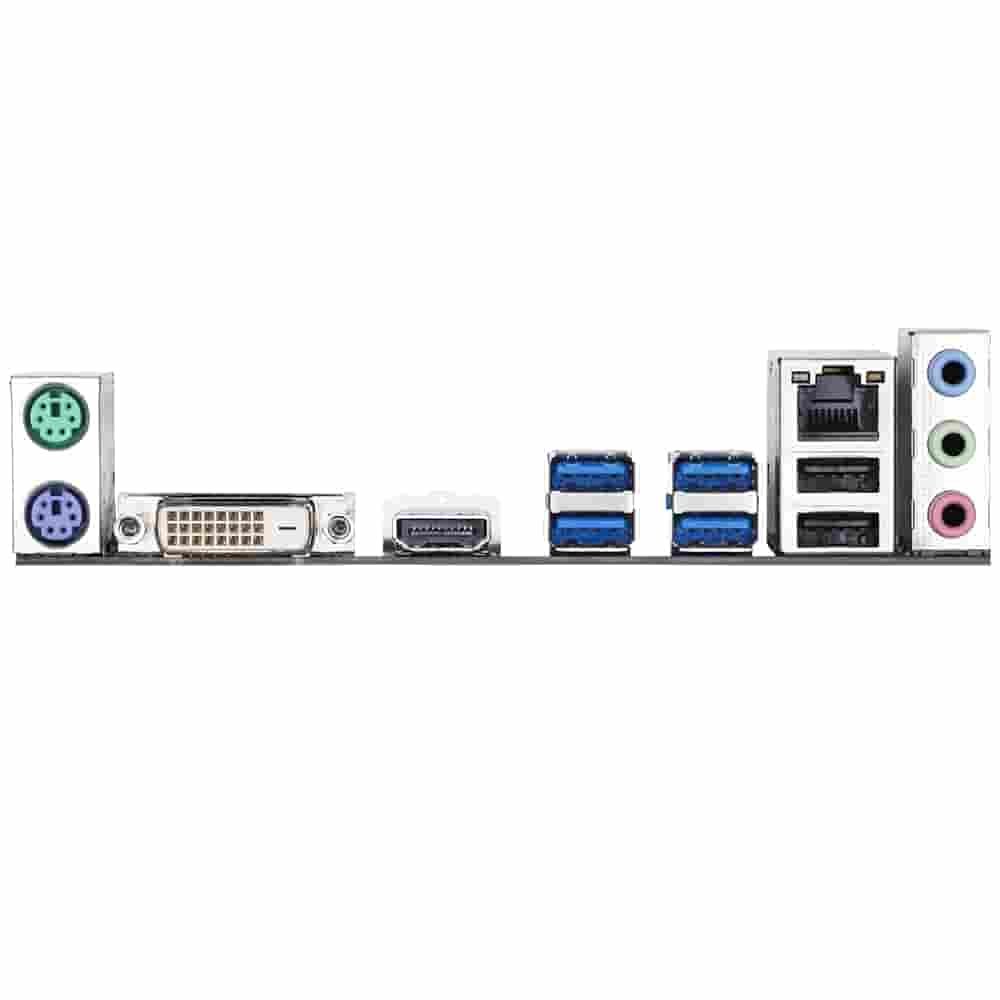

Connector_1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x DVI-D port
1 x HDMI port
4 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)
Internal I/O Connectors_1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2×10 pin, for the GC-TPM2.0 module only)
1 x speaker header
1 x Clear CMOS jumper
1 x chassis intrusion header bundled
Bundled Software_Norton Internet Security (OEM version)
cFosSpeed
I/O Controller_iTE I/O Controller Chip
Hardware Monitor_Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
OS_Support for Windows 10 64-bit
Support for Windows 7 64-bit
* To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge, Summit Ridge, and Bristol Ridge CPU.
* Please download the “Windows USB Installation Tool” from GIGABYTE’s website and install it before installing Windows 7.
USB_Chipset:
2 x USB 3.1 Gen 1 ports are available through the internal USB header
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
CPU:
4 x USB 3.1 Gen 1 ports on the back panel
Unique Feature_Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Product Dimension_24.4 x 19.5 x 0.5 cm
Weight_100 g
Specification: Gigabyte A320M-H Motherboard
EAN, GTIN, UPC
4719331804442
Product Type
Motherboards
CPU PLATFORM
AMD
CPU SOCKET
AM4
FORM FACTOR
MICRO-ATX
Brand
Gigabyte
WARRANTY
3 Years Warranty
