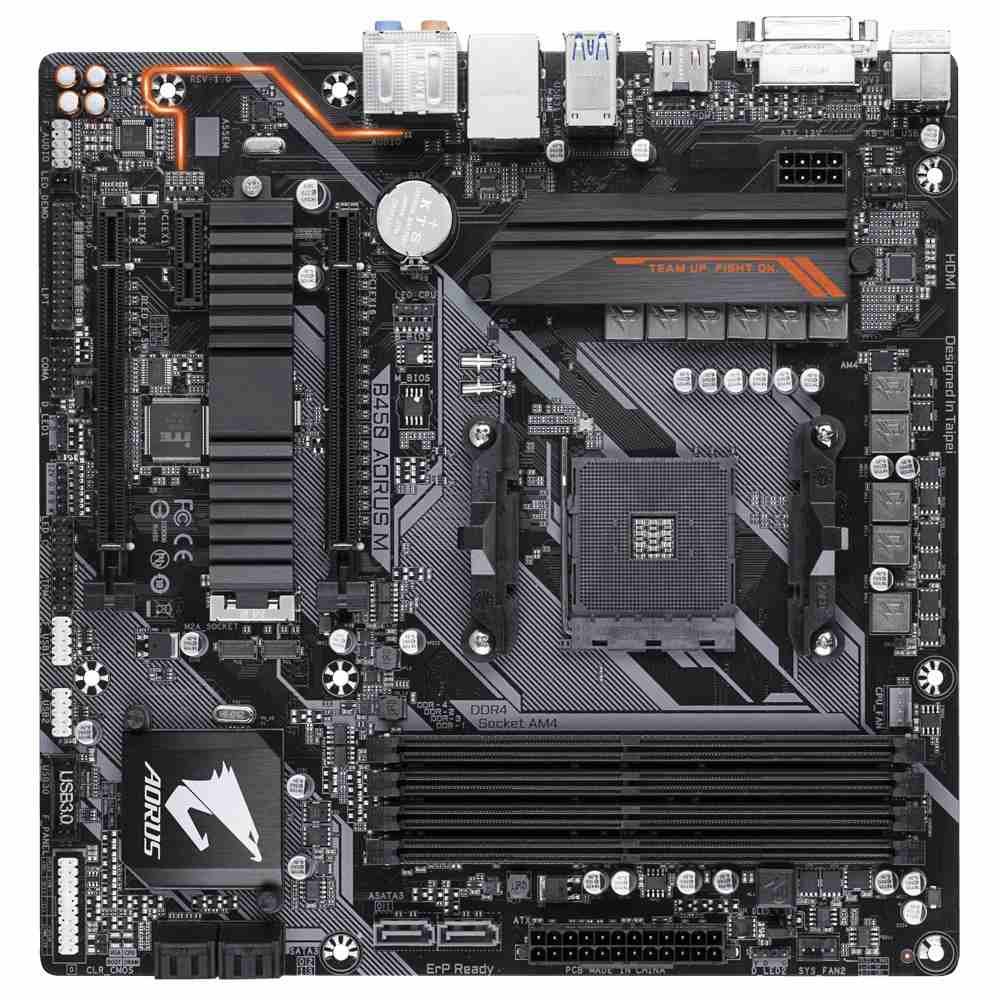

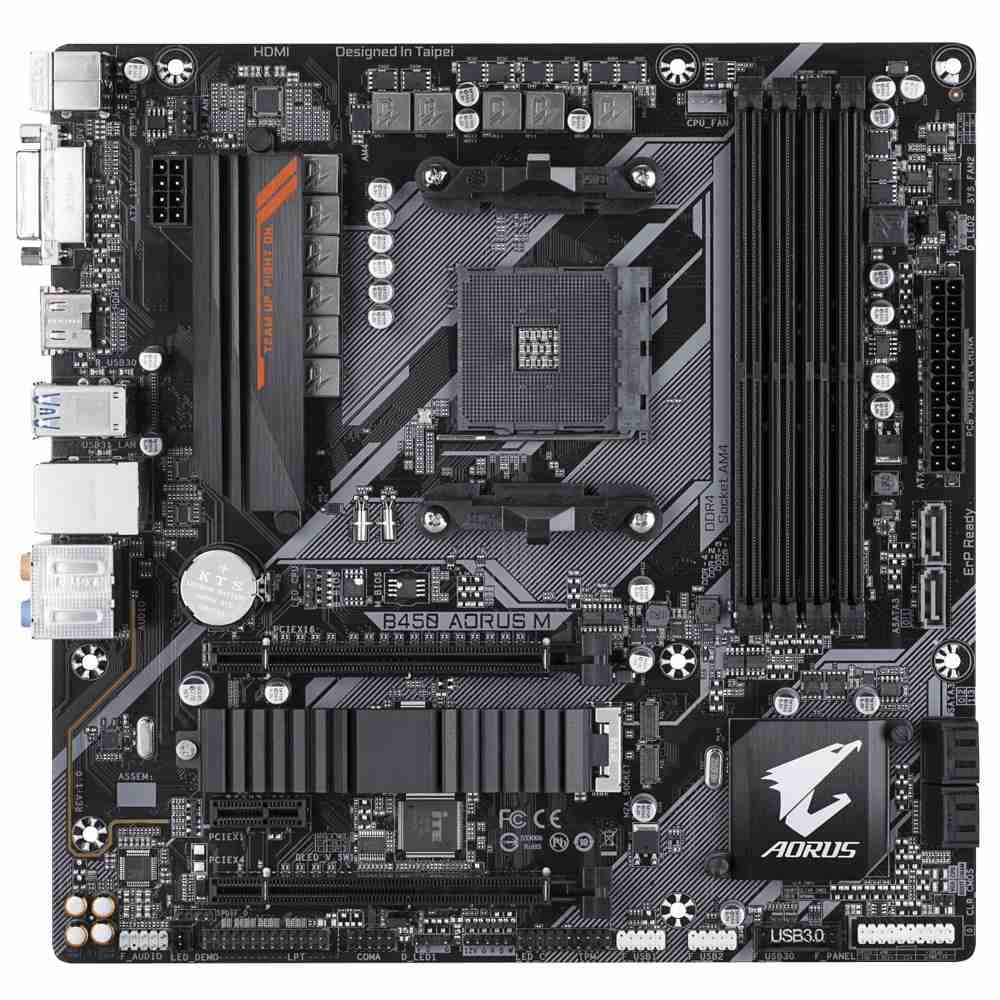

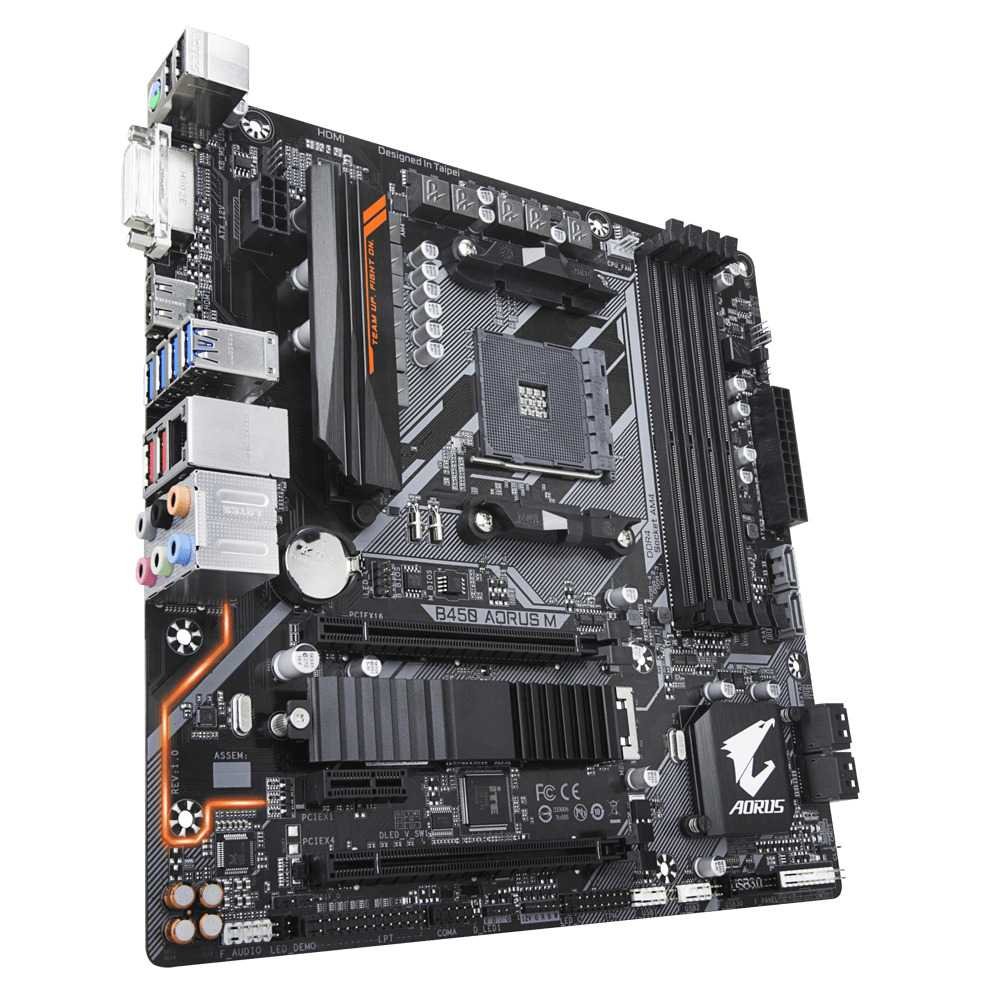

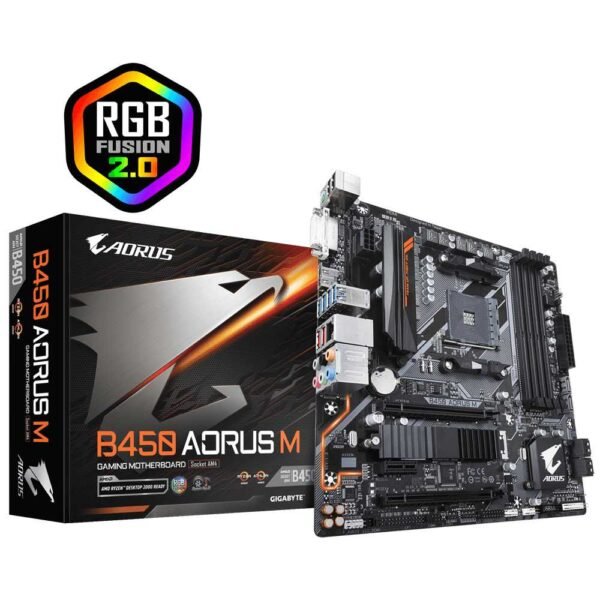

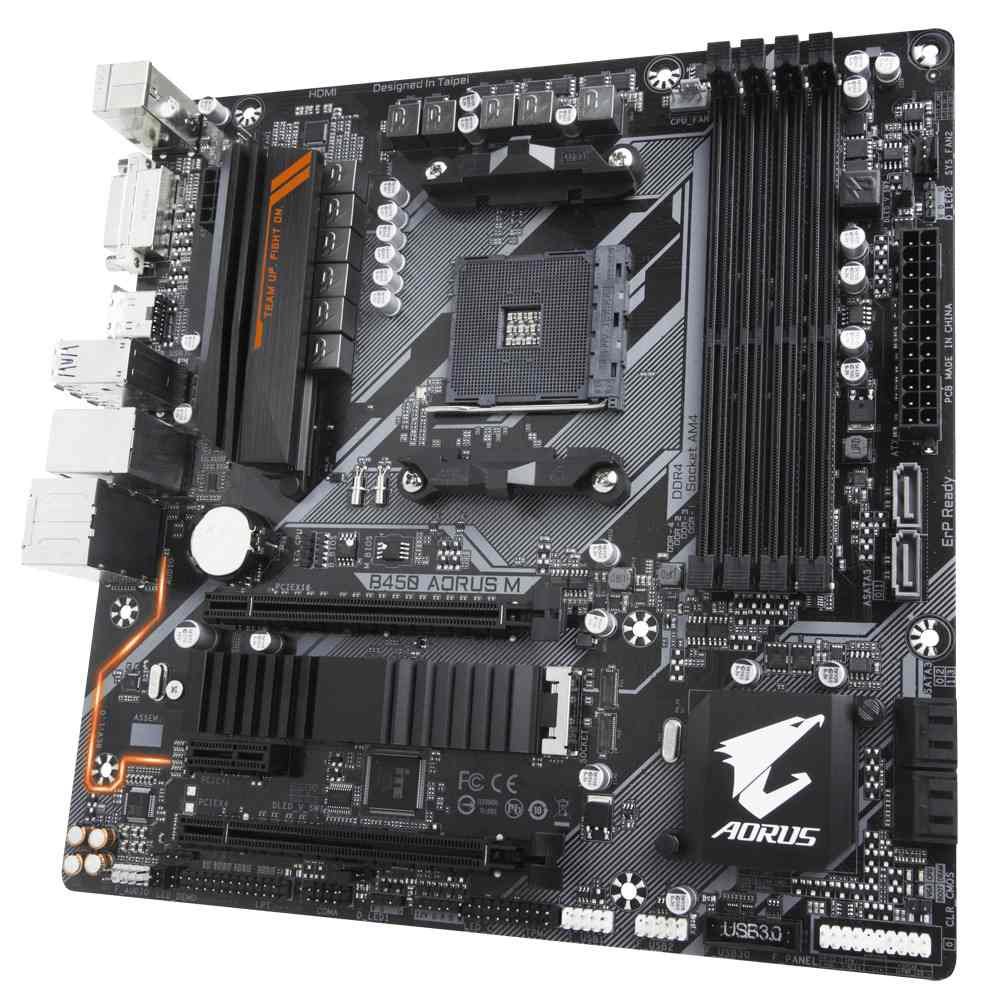

Gigabyte B450 Aorus M Gaming Motherboard
Micro ATX Form Factor
AMD B450 Chipset
AM4 CPU socket
RGB FUSION 2.0
4 x DDR4 DIMM (128GB) Memory
Motherboard Chipset – AMD B450
CPU Socket – AM4 Socket
Max Memory Slots – 4
Max Memory Support – 128GB
Motherboard Form Factor – Micro ATX Form Factor
OVERVIEW
The Gigabyte B450 Aorus M Gaming Motherboard is a new motherboard that is designed to fit the needs of gamers and enthusiasts. It is built with a 12+2 power phase design that is used to provide the motherboard with plenty of power and performance. The motherboard is also built with a strong 5+2 phase design that is used to help provide a stable power supply to the system. The motherboard is built with an EZ debug LED that is used to help identify problems that are occurring in the system. It also has an LED near the power button that can be used to indicate if the system is on or off. The motherboard is built with an 8-pin power connector that is used to provide plenty of power to the CPU. The motherboard also has a DDR4 memory slot that can be used to hold up to 128GB of memory.
TECHNICAL SPECIFICATIONS
Model_B450 AORUS M
CPU_AM4 Socket:
Supports AMD Ryzen 5000 series processors / Ryzen 5000 G-Series / 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
Chipset_AMD B450
Form Factor_Micro ATX Form Factor;
Memory_4 x DDR4 DIMM sockets supporting up to 128 GB of system memory
Dual channel memory architecture
Support for DDR4 3600(O.C.) / 3466(O.C.) / 3200(O.C.) / 2933/2667/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics_Integrated Graphics Processor:
1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
* The DVI-D port does not support a D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.2.
* Actual support may vary by CPU.
Maximum shared memory of 16 GB
USB_Chipset:
2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.1 Gen 1 ports are available through the internal USB header
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
CPU:
4 x USB 3.1 Gen 1 ports on the back panel
Audio_Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN_Realtek GbE LAN chip (10/100/1000 Mbit)
Expansion Slots_1 x PCI Express x16 slot, running at x16 (PCIEX16)
* Actual support may vary by CPU.
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x1 slot
(The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
Storage Interface_1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
* Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
Internal I/O Connectors_1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connector
6 x SATA 6Gb/s connectors
1 x CPU cooler LED strip/RGB LED strip header
1 x RGB (RGBW) LED strip header
2 x digital LED strip headers
2 x digital LED strip power select jumpers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2×10 pin, for the GC-TPM2.0 module only)
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper
Back Panel Connectors_1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x HDMI port
2 x USB 3.1 Gen 2 Type-A ports (red)
4 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks
I/O Controller_iTE I/O Controller Chip
H/W Monitoring_Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS_2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features_Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
AutoGreen
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
Smart Survey
System Information Viewer
USB Blocker
V-Tuner
Support for Q-Flash
Support for Xpress Install
Bundled Software_Norton Internet Security (OEM version)
Realtek 8118 Gaming LAN Bandwidth Control Utility
Operating System_Support for Windows 10 64-bit
Support for Windows 7 64-bit
* To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
* Please download the “Windows USB Installation Tool” from GIGABYTE’s website and install it before installing Windows 7
Dimension_24.4cm x 24.4cm
Specification: Gigabyte B450 Aorus M Gaming Motherboard
Product Type
Motherboards
CPU PLATFORM
AMD
CPU SOCKET
AM4
FORM FACTOR
MICRO-ATX
Brand
Gigabyte
CHIPSET
AMD B450
MAXIMUM MEMORY
128 GB
IDEAL FOR GAMING
YES
WARRANTY
Warranty
