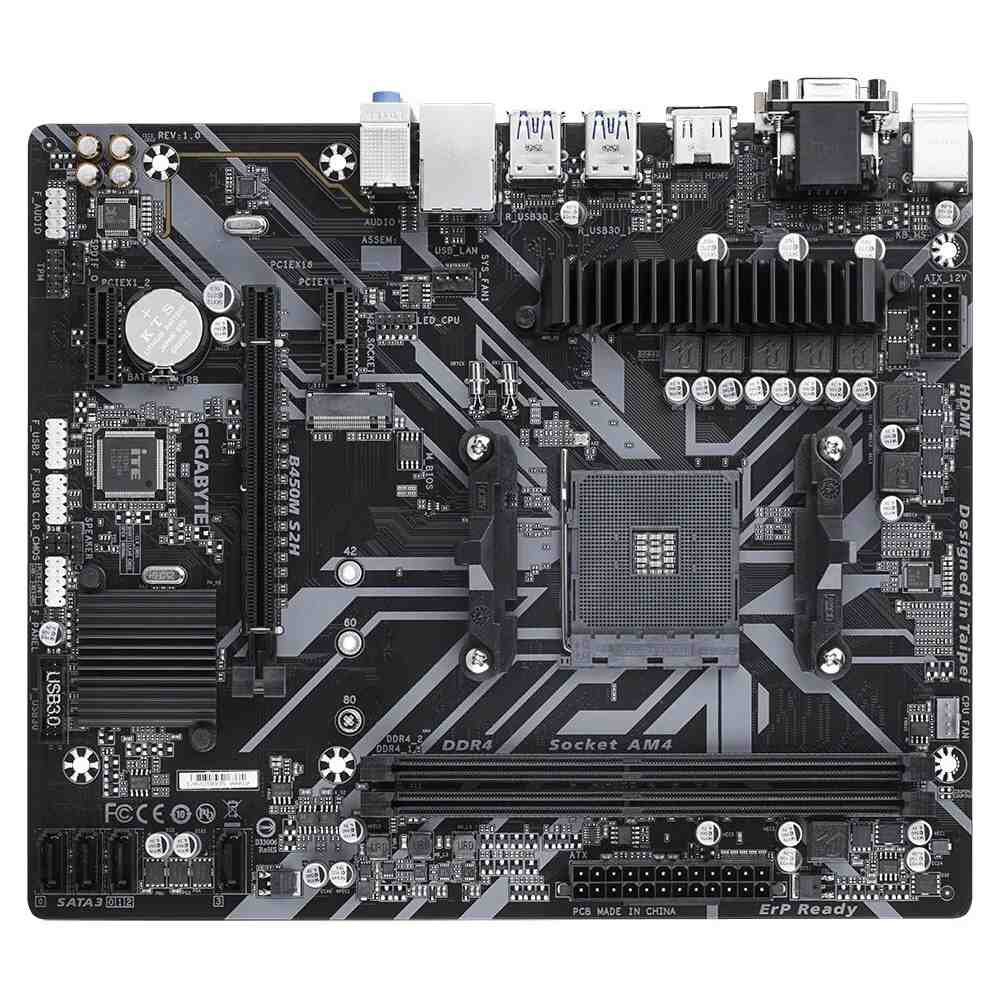

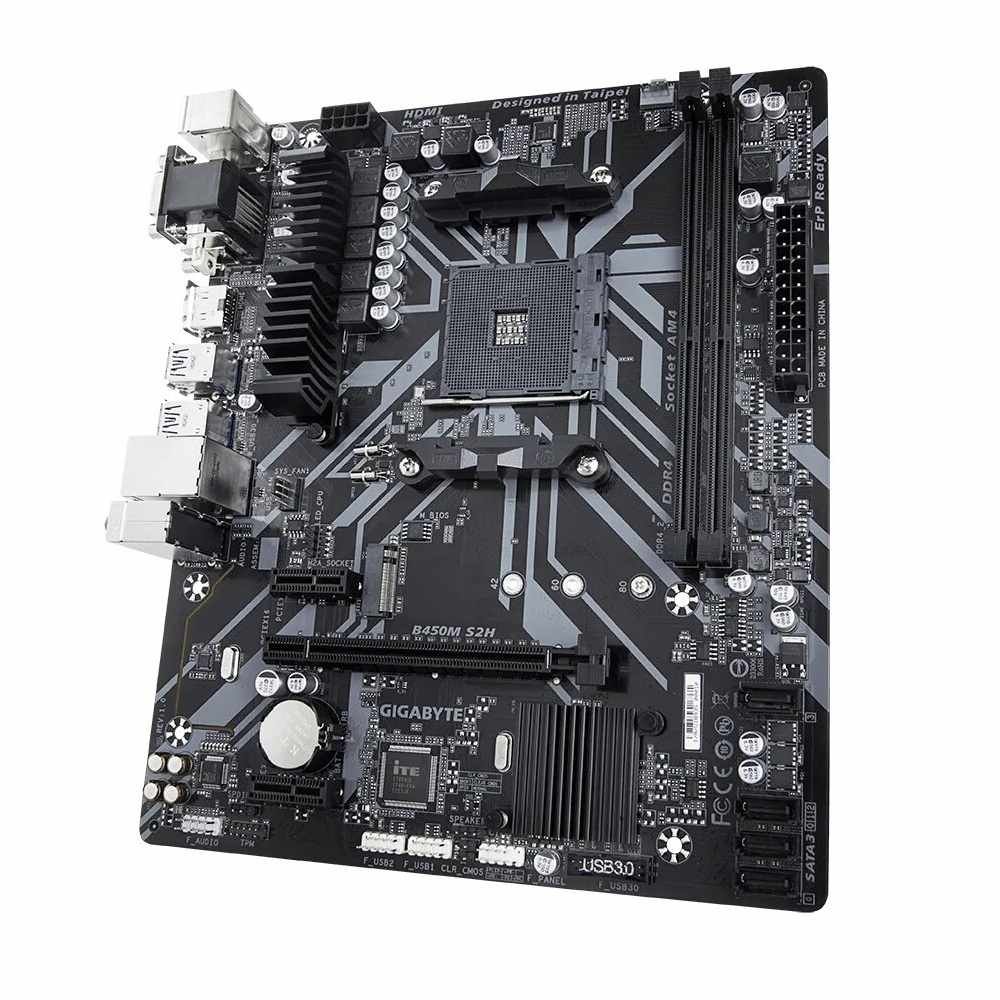

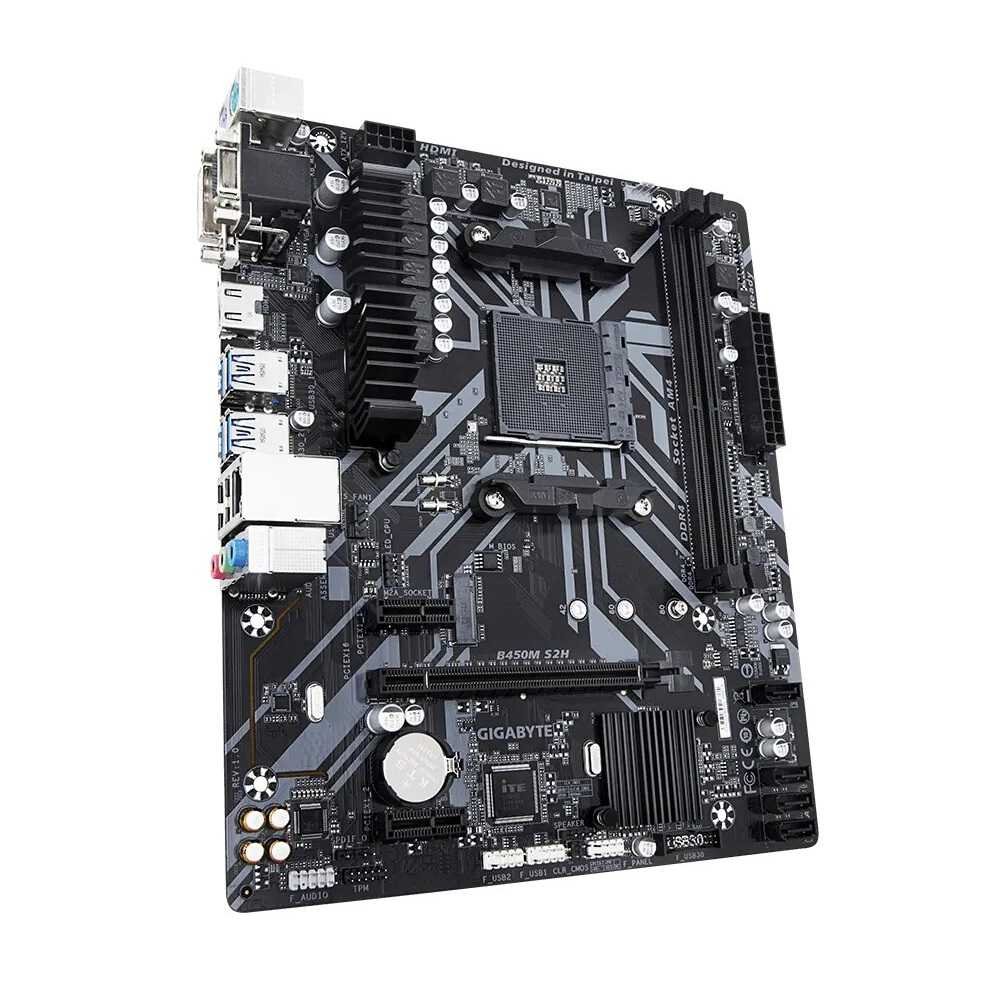

Gigabyte B450M S2H | Gaming Motherboard

Motherboard Chipset – AMD B450

CPU Socket – AM4 Socket

Max Memory Slots – 2

Max Memory Support – 64GB

Motherboard Form Factor – Micro ATX

Recommended reading:Gigabyte B450 Aorus M Gaming Motherboard

OVERVIEW
The GIGABYTE Motherboard B450M S2H readily supports the latest AMD Ryzen 5000 Series processors and is also backward compatible with AMD Ryzen 4000, 3000, 2000, and 1000 Series processors. Ultra-durable armor for PCIe/memory slots, USB Type-C interface on select boards, refined audio quality, high-speed Ethernet, and the latest standard WiFi design on selected models, with a rich list of features on Gigabyte motherboards.

The best AMD platforms are perfect for users looking to build systems. Realtek 8118 Gbe LAN is a high-performance and friendly network chip for gamers with automatic bandwidth allocation to ensure the highest network priority of games or applications. It also provides its users the most comprehensive features along with the fastest and smoothest internet experience

TECHNICAL SPECIFICATIONS

Model_B450M S2H
CPU_AM4 Socket
*Supports AMD Ryzen 5000 series / Ryzen 5000 G-Series / 3rd Gen Ryzen / 2nd Gen Ryzen / 1st Gen Ryzen / 2nd Gen Ryzen with Radeon Vega Graphics / 1st Gen Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics Processors.
Chipset_AMD B450
Form Factor_Micro ATX
Memory_1. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory.
2. Dual channel memory architecture.
3. Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules.
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode).
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules.
6. Support for Extreme Memory Profile (XMP) memory modules.
Onboard Graphics_Integrated Graphics Processor:
1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
2. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
* The DVI-D port does not support a D-Sub connection by adapter.
3. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz(Note)
* Support for HDMI 2.0 version and HDCP 2.2**
Maximum shared memory of 16 GB
** Actual support may vary by CPU.
USB_Chipset:
1. 2 x USB 3.1 Gen 1 ports are available through the internal USB header
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
CPU:
1. 4 x USB 3.1 Gen 1 ports on the back panel
Audio_Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
LAN_Realtek GbE LAN chip (10/100/1000 Mbit)
Expansion Slots_1. 1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
2. 2 x PCI Express x1 slots
(The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
Storage Interface_1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support)
* Actual support may vary by CPU.
** Supports only M.2 SATA SSDs when using an AMD Athlon-series/ 7th Gen. A-series or Athlon X4 APU.
2. 4 x SATA 6Gb/s connectors
3. Support for RAID 0, RAID 1, and RAID 10
Internal I/O Connectors_1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x system fan header
5. 1 x M.2 Socket 3 connector
6. 4 x SATA 6Gb/s connectors
7. 1 x front panel header
8. 1 x front panel audio header
9. 1 x S/PDIF Out header
10. 1 x CPU cooler LED strip/RGB LED strip header
11. 1 x USB 3.1 Gen 1 header
12. 2 x USB 2.0/1.1 headers
13. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
14. 1 x speaker header
15. 1 x Clear CMOS jumper
16. 1 x chassis intrusion header
Back Panel Connectors_1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x D-Sub port
4. 1 x DVI-D port
5. 1 x HDMI port
6. 4 x USB 3.1 Gen 1 ports
7. 2 x USB 2.0/1.1 ports
8. 1 x RJ-45 port
9. 3 x audio jacks
I/O Controller_iTE I/O Controller Chip
H/W Monitoring_1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS_1. 1 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features_1. Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
AutoGreen
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
Smart Survey
System Information Viewer
USB Blocker
2. Support for Q-Flash
3. Support for Xpress Install
Bundled Software_1. Norton Internet Security (OEM version)
2. Realtek 8118 Gaming LAN Bandwidth Control Utility
Operating System_1. Support for Windows 10 64-bit
2. Support for Windows 7 64-bit* To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
** Please download the “Windows USB Installation Tool” from GIGABYTE’s website and install it before installing Windows 7.
Dimension_24.4 cm x 20.5 cm
Specification: Gigabyte B450M S2H | Gaming Motherboard
Product Type
Motherboards

CPU PLATFORM
AMD

Recommended reading:Gigabyte Z490 Vision D (Wi-Fi) Gaming Motherboard

CPU SOCKET
AM4

FORM FACTOR
MICRO-ATX

EAN, GTIN, UPC
0753459102053

Brand
Gigabyte

CHIPSET
AMD B450

Recommended reading:Gigabyte Z490I AORUS ULTRA (Wi-Fi) mini-ITX Gaming Motherboard

MAXIMUM MEMORY
64 GB

IDEAL FOR GAMING
YES

WARRANTY
3 Years Warranty
