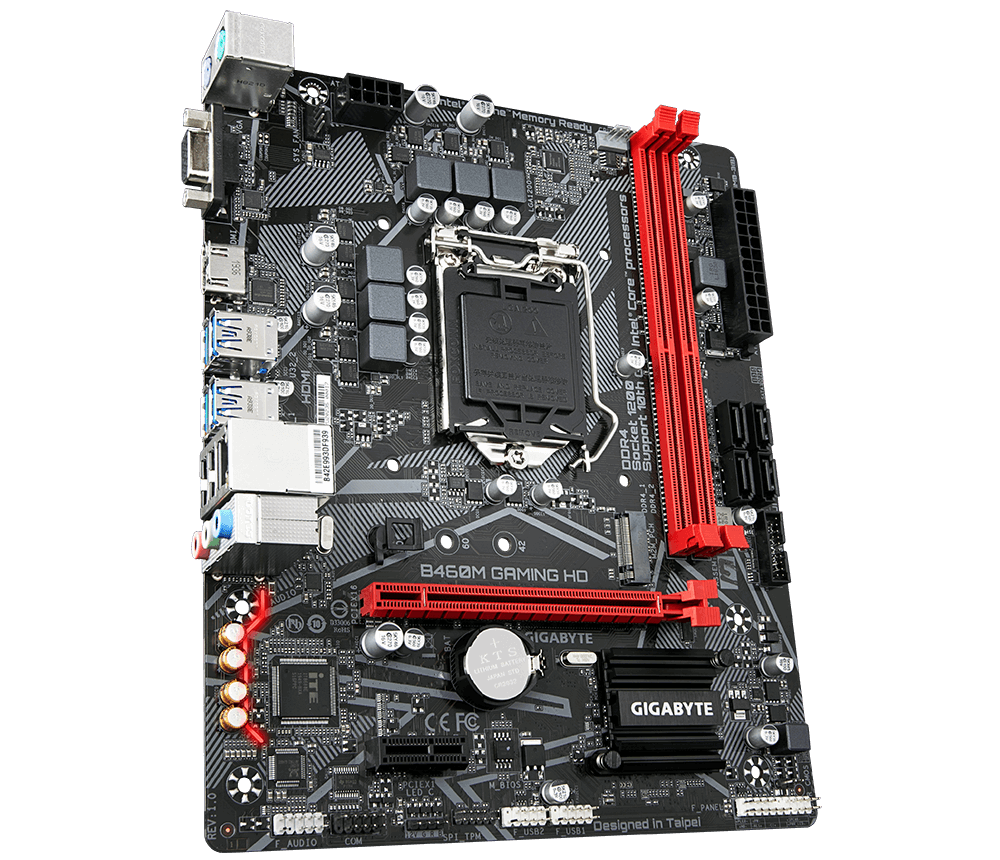

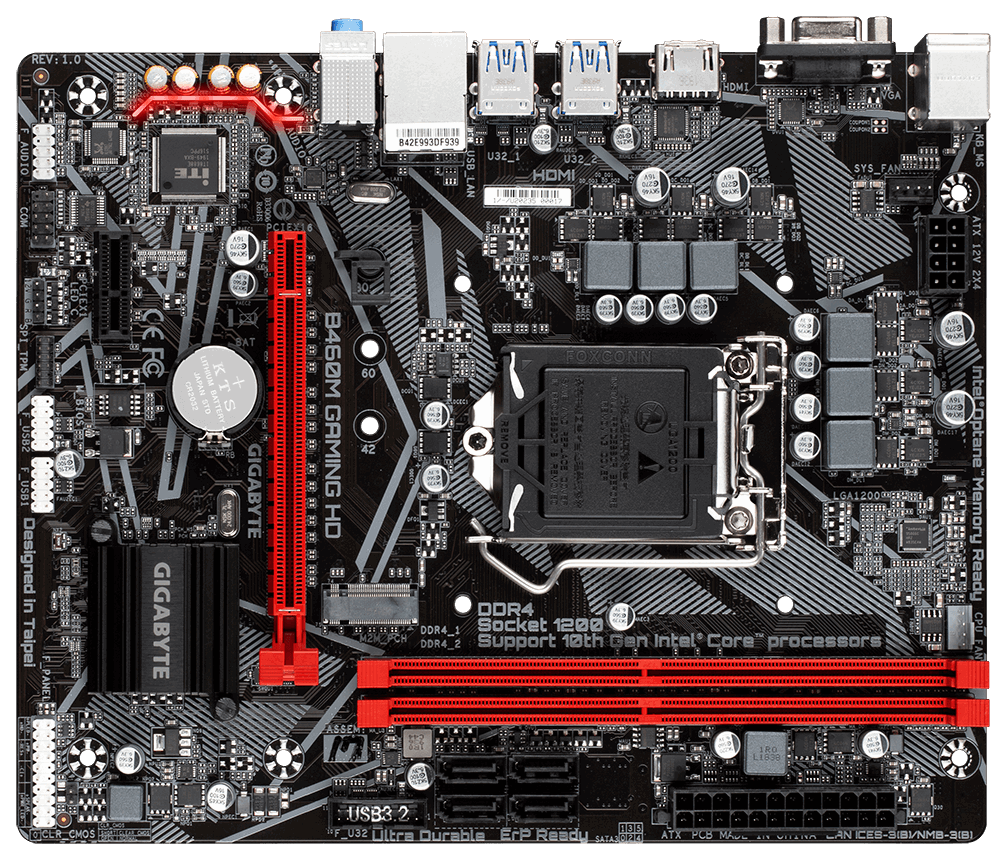

Gigabyte B460M Gaming HD Motherboard

Model – B460M GAMING HD

CPU Socket – LGA1200

Chipset – Intel B460 Express Chipset

Graphics Output Options – HDMI, D-SUB

Form Factor – Micro ATX Form Factor

Recommended reading:ASRock B450M Steel Legend Gaming Motherboard

TECHNICAL SPECIFICATIONS

Model_B460M GAMING HD
CPU_Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package
L3 cache varies with CPU
Chipset_Intel B460 Express Chipset
Form Factor_Micro ATX Form Factor; 22.6cm x 18.5cm
Memory_Intel Core i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
Intel Core i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual-channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
BIOS_1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920×1200 at 60 Hz
1 x HDMI port, supporting a maximum resolution of 4096×2160 at 30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Maximum shared memory of 512 MB
Audio_Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software
LAN_Realtek GbE LAN chip (1000/100 Mbit)
Slots_1 x PCI Express x16 slot, running at x16
1 x PCI Express x1 slot
(The PCI Express slots conform to PCI Express 3.0 standard.)
Supports up to ASPM L1.2 power management protocols.
Storage_1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
4 x SATA 6Gb/s connectors
Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
Intel Optane Memory Ready
M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
Back Panel Connectors_1 x PS/2 mouse port
1 x PS/2 keyboard port
1 x D-Sub port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Internal I/O Connectors_1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
1 x M.2 Socket 3 connector
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
Bundle Software_Norton Internet Security (OEM version)
Realtek 8118 Gaming LAN bandwidth Control Utility
I/O Controller_iTE I/O Controller Chip
USB_Chipset:
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Hardware Monitor_Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
OS_Support for Windows 10 64-bit
Unique Feature_Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
BIOS
Ambient LED
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Product Dimension_22.6cm x 18.5cm
Weight_410 g (Approx)
Specification: Gigabyte B460M Gaming HD Motherboard
Product Type
Motherboards

EAN, GTIN, UPC
889523022412

CPU PLATFORM
INTEL

CPU SOCKET
LGA1200

Recommended reading:ASRock H510M/ac Socket LGA 1200 Micro ATX Motherboard

FORM FACTOR
MICRO-ATX

Brand
Gigabyte

CHIPSET
Intel B460

MAXIMUM MEMORY
64 GB

IDEAL FOR GAMING
YES

Recommended reading:Asrock Z370 Taichi Motherboard

WARRANTY
3 Years Warranty
