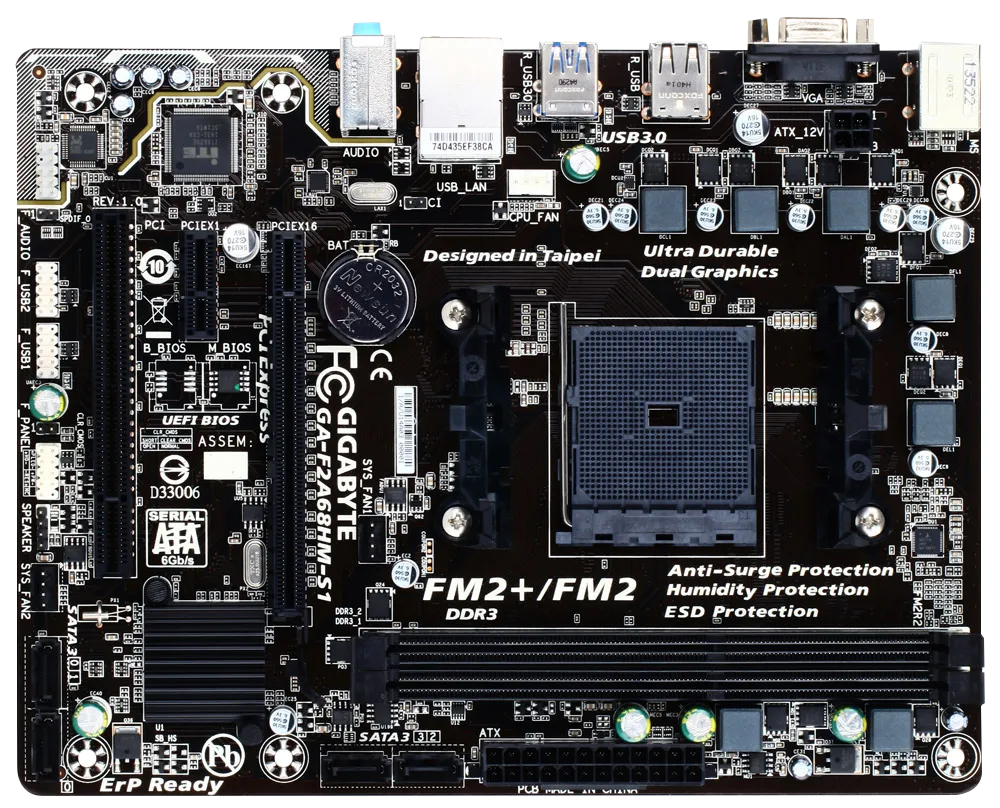

Gigabyte F2A68HM-S1 Micro-Atx Motherboard | AMD FM2+ socket | Sata3 ports with Raid support
GIGABYTE Ultra Durable Technology
DDR3 RAM memory, AMD A68H Chipset
Native USB 3.0 and SATA3 port with raid support
Socket FM2+ supports AMD FM2+/FM2 A-series
Dedicated audio hardware with Noise Guard Design
Motherboard Chipset – AMD A68H Chipset
USB – 2 x USB 3.0/2.0 ports, 8 x USB 2.0/1.1 ports
Motherboard Form Factor – Micro-ATX (22.5cm x 17.4cm)
CPU socket – FM2+ supports AMD FM2+/FM2 A-series, Athlon series APU
Maximum Memory Support – 2xDDR3 supporting up to 64GB system memory
OVERVIEW
The Gigabyte F2A68HM-S1 Motherboard is equipped with a variety of ports and interfaces to meet the needs of the most demanding computer users. It also features a 16-lane PCI Express 3.0 and an HDMI interface for high-definition video and audio output.
The Gigabyte F2A68HM-S1 Motherboard is a motherboard with an FM2+ socket and AMD A68H chipset, Athlon & A-Series CPU, and supports up to 32GB of DDR3 memory with a maximum speed of 2400MHz. It has 2 x DDR3 DIMM sockets supporting up to 64 GB of system memory. It supports operating system WINDOWS XP, WINDOWS 7, 8, 8.1, 10.
TECHNICAL SPECIFICATIONS
APU_ FM2+ Socket
1. AMD A series processors
2. AMD Athlon series Processors
Chipset_ 1. AMD A68H
Memory_ 1. 2 x DDR3 DIMM sockets supporting up to 64 GB of system memory
The maximum 64 GB of system memory can be supported using 16 GB (or above) memory modules
2. Support for DDR3 2400(OC)/2133/1866/1600/1333 MHz memory modules
3. Support for AMD Memory Profile (AMP)/ Extreme Memory Profile (XMP) memory modules
4. Dual channel memory architecture
USB_ Chipset
1. 2 x USB 3.0/2.0 ports on the back panel
2. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Storage Interface_ Chipset
1. 4 x SATA 6Gb/s connectors
2. Support for RAID 0, RAID 1, RAID 10, and JBOD
Expansion Slots_ 1. 1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 3.0 standard)
2. 1 x PCI Express x1 slot
(The PCI Express x1 slot conforms to PCI Express 2.0 standard)
3. 1 x PCI slot
Onboard Graphics_ Integrated Graphics Processor
1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200
2. Maximum shared memory of 2 GB
Multi Graphics Technology_ 1. Support for AMD Dual Graphics technology
(Only A-series APUs support AMD Dual Graphics)
Audio_ 1. Realtek ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
(Only on using an HD front panel audio module and enable the multi-channel audio feature through the audio driver)
4. Support for S/PDIF Out
LAN_ 1. Realtek GbE LAN chip (10/100/1000 Mbit)
Internal I/O Connectors_ 1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 4 x SATA 6Gb/s connectors
4. 1 x APU fan header
5. 2 x system fan headers
6. 1 x front panel header
7. 1 x front panel audio header
8. 1 x S/PDIF Out header
9. 2 x USB 2.0/1.1 headers
10. 1 x speaker header
11. 1 x chassis intrusion header
12. 1 x Clear CMOS jumper
Back Panel Connectors_ 1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x D-Sub port
4. 2 x USB 3.0/2.0 ports
5. 4 x USB 2.0/1.1 ports
6. 1 x RJ-45 port
7. 3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller_ 1. iTE IO Controller Chip
BIOS_ 1. 1 x 64 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
H/W Monitoring_ 1. System voltage detection
2. APU/System temperature detection
3. APU/System fan speed detection
4. APU overheating warning
5. APU/System fan fail warning
6. APU/System fan speed control
Bundle Software_ 1. Norton Internet Security (OEM version)
Graphics_ 1. No integrated Graphics card, Supports external Graphics card
General Features_ 1. Support for @BIOS
2. Support for Q-Flash
3. Support for Xpress Install
4. Support for EasyTune
(Available functions in EasyTune may differ by motherboard model)
5. Support for Smart Recovery 2
6. Support for ON/OFF Charge
Operating System_ 1. Support for Windows 8.1/7 32-bit/64-bit
2. Support for Windows XP 32-bit
(To support Windows XP 32-bit, you must install an AMD FM2+ Kaveri APU)
(It requires Service Pack 3 to support Windows XP driver installation)
Form Factor_ 1. Micro ATX Form Factor; 22.5cm x 17.4cm
Gigabyte_ 1. Ultra Durable Technology
2. UEFI BIOS
3. On/Off Charge for USB devices
Batteries_ 1. Included – none
2. Required – no
Product Dimension_ 12 x 22 x 17 cm
Item weight_ 654 gms
Package Contains_ GA-F2A68HM-S1 MOTHERBOARD, DRIVER DVD, I/0 SHIELD, TWO SATA CABLES, USER MANUAL
Specification: Gigabyte F2A68HM-S1 Micro-Atx Motherboard | AMD FM2+ socket | Sata3 ports with Raid support
Brand_
Gigabyte
WARRANTY_
3 Years Warranty
Product Type_
Motherboards
CPU PLATFORM_
AMD
CPU SOCKET_
FM2+
FORM FACTOR_
MICRO-ATX
MEMORY TYPE_
DDR3
CHIPSET_
AMD A68H
MAXIMUM MEMORY_
64 GB
IDEAL FOR GAMING_
NO
