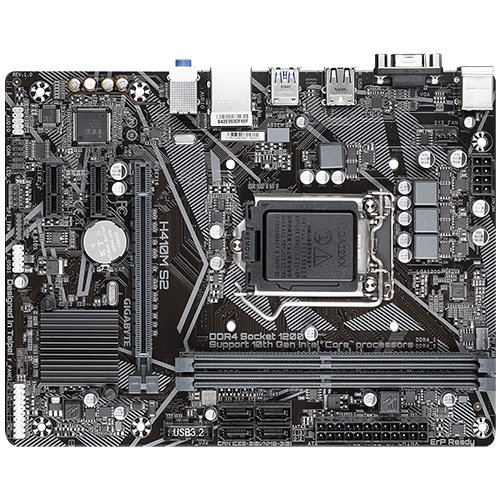

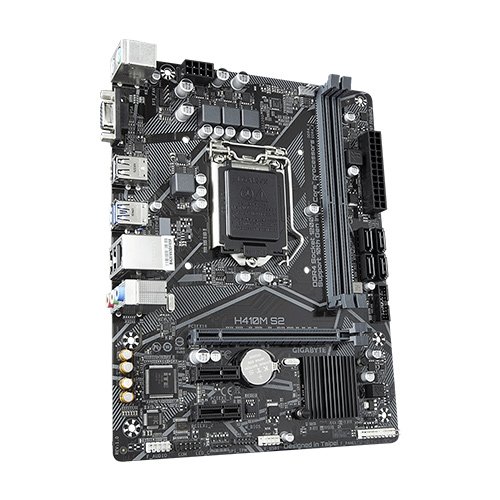

Gigabyte H410M S2 Gaming Motherboard
Brand
Gigabyte
FORM FACTOR
MICRO-ATX
WARRANTY
3 Years Warranty
Product Type
Motherboards
CPU PLATFORM
INTEL
CPU SOCKET
LGA1200
CHIPSET
Intel H110
MAXIMUM MEMORY
128 GB
IDEAL FOR GAMING
YES
Gigabyte H410M S2 Gaming Motherboard with Intel 10th Gen Core Series CPU, LGA1200 Socket, H410 Chipset, Max 64 GB DDR4 2933MHz Memory
Features :
Supports 10th Gen Intel Core Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
8-Channel HD Audio with High Quality Audio Capacitors
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
All New GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design
Technical Specifications :
CPU :
Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package
L3 cache varies with CPU
Chipset :
Intel H410 Express Chipset
Memory :
Intel Core i9/i7 processors : Support for DDR4 2933/2666/2400/2133 MHz memory modules
Intel Core i5/i3/Pentium /Celeron processors : Support for DDR4 2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics :
Integrated Graphics Processor-Intel HD Graphics support :
1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
Maximum shared memory of 512 MB
Audio :
Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
LAN :
Realtek GbE LAN chip (1000/100 Mbit)
Expansion Slots :
1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slots
(The PCI Express slots conform to PCI Express 3.0 standard.)
Supports up to ASPM L1.2 power management protocols.
Storage Interface :
Chipset :
4 x SATA 6Gb/s connectors
M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
USB :
Chipset :
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors :
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
Back Panel Connectors :
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
I/O Controller :
iTE I/O Controller Chip
H/W Monitoring :
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS :
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features :
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
Ambient LED
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Bundled Software :
Norton Internet Security (OEM version)
Realtek 8118 Gaming LAN Bandwidth Control Utility
Operating System :
Support for Windows 10 64-bit
Form Factor :
Micro ATX Form Factor; 22.6cm x 17.4cm
Warranty :
3 Years
