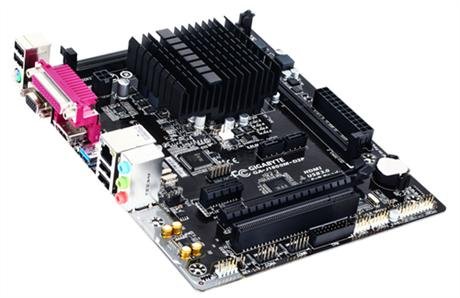

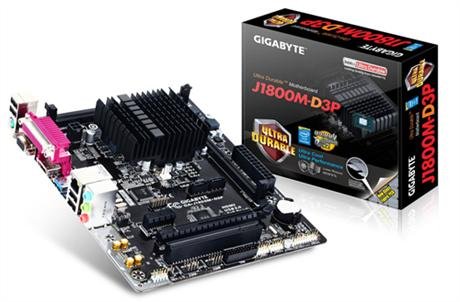

Gigabyte J1800M-D3P Motherboard
Built-in Intel Celeron J1800 Processor
High-Quality Audio Capacitors
Dedicated Audio Hardware Zone
GIGABYTE Ultra Durable Technology
LAN with high ESD Protection
Processor – Built-in Celeron J1800 2.41GHz DualCore processor
Motherboard Socket – BGA1170
Motherboard Chipset – Intel H61 Express Chipset
Motherboard Form Factor – Micro-ATX
Ports – HDMI, D-SUB ports on the rear panel
Memory Support – Maximum RAM Capacity 8GB (DDR3)
OVERVIEW
The GIGABYTE J1800M micro ATX motherboard is a fully integrated PC motherboard featuring the Intel Celeron J1800 dual-core processor. Designed for compact, small form factor PC systems, and devices, the GIGABYTE J1800M is entirely fanless, making it ideal for always-on, mission-critical systems, as well as noise-sensitive digital entertainment systems. Connectivity includes digital and analog display outputs via VGA and HDMI ports, while a PCIe plus PCI slots provide wide-range expansion card selections.
The Intel Celeron J1800 Dual-Core processor is the latest system on chip (SoC) from Intel, combining CPU, graphics, and memory controller in one package. Based on the 22nm manufacturing process, the Intel Celeron J1800 uses the smallest package of any desktop processor within a low thermal envelope of 10 watts. The Intel Celeron J1800 boasts excellent performance including DX11 gaming on Intel HD Graphics, plus a dedicated H.264 encoder for smooth HD video playback.
GIGABYTE Ultra Durable debuts on GIGABYTE motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation, and extended motherboard lifespan.
It is specifically designed with two UDIMM slots, making it compatible with widely available desktop DDR3 memory. Unlike SO-DIMM memory, UDIMM has the advantage of bringing to users a wider and more easily accessible range of RAM.
The motherboard uses high-quality Nippon Chemicon ARE series audio capacitors. These professional audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for the user experience.
GIGABYTE’s new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments. It also uses Anti-Surge ICs to protect the motherboard against power surges. It also features High Resistance ICs which help protect the motherboard against electrostatic discharge.
TECHNICAL SPECIFICATION
CPU_ 1. Built-in with an Intel Dual-Core Celeron J1800 SoC (2.41 GHz)
Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components.
2. 1 MB Cache
Memory_ 1. 2 x DDR3 DIMM sockets supporting up to 8 GB of system memory
Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2. Dual channel memory architecture
3. Support for DDR3/-L 1333 MHz memory modules
4. Support for non-ECC memory modules
Onboard Graphics_ 1. 1 x D-Sub port, supporting a maximum resolution of 2560×1600
2. 1 x HDMI port, supporting a maximum resolution of 1920×1080
Audio_ 1. Realtek ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
4. Support for S/PDIF Out
LAN_ 1. Realtek GbE LAN chip (10/100/1000 Mbit)
Expansion Slots_ 1. 1 x PCI Express x16 slot, running at x1(PCIEX1_2)
2. 1 x PCI Express x1 slot
3. 1 x PCI slot
Storage Interface_ 1. 2 x SATA 3Gb/s connectors
USB_ 1. 1 x USB 3.0/2.0 port on the back panel
SoC + GL850 USB 2.0 Hub:
2. 8 x USB 2.0/1.1 ports
Internal I/O Connectors_ 1 x 24-pin ATX main power connector
1. 1 x 4-pin ATX 12V power connector
2. 2 x SATA 3Gb/s connectors
3. 1 x CPU fan header
4. 1 x system fan header
5. 1 x front panel header
6. 1 x front panel audio header
7. 1 x S/PDIF Out header
8. 2 x USB 2.0/1.1 headers
9. 2 x serial port headersŠŠ
10. 1 x Trusted Platform Module (TPM) header
11. 1 x Clear CMOS jumper
Back Panel Connectors_ 1. 1 x PS/2 keyboard/mouse port
2. 1 x D-Sub port
3. 1 x HDMI port
4. 1 x parallel port
5. 1 x USB 3.0/2.0 port
6. 4 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller_ iTE I/O Controller Chip
H/W Monitoring_ 1. System voltage detection
2. CPU/System temperature detection
3. CPU/System fan speed detection
4. CPU/System fan speed control
BIOS_ 1. 1 x 64 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features_ 1. Support for Xpress Install
2. Support for @BIOS
3. Support for APP Center
Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
4. Support for ON/OFF Charge
Bundle Software_ Norton Internet Security (OEM version)
Intel Smart Connect Technology
Operating System_ Support for Windows 10/8.1/8/7
Form Factor_ Micro ATX Form Factor; 22.6cm x 18.0cm
Specification: Gigabyte J1800M-D3P Motherboard
WARRANTY_
3 Years Warranty
Brand_
Gigabyte
Product Type_
Motherboards
CPU PLATFORM_
INTEL
CPU SOCKET_
BGA1170
FORM FACTOR_
MICRO-ATX
MEMORY TYPE_
DDR3
CHIPSET_
Intel H61
MAXIMUM MEMORY_
8 GB
IDEAL FOR GAMING_
NO
