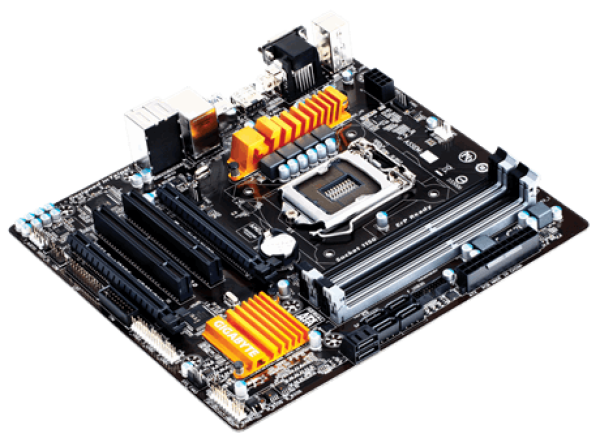

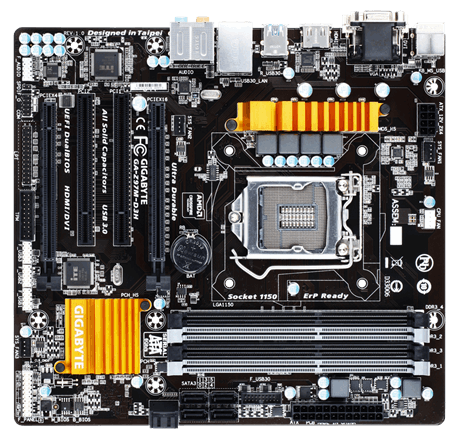

GIGABYTE MOTHERBOARD GA-Z97M-D3H

Model – GA-Z97M-D3H

CPU – Intel LGA1150

Chipset – Intel Z97

Memory – DDR3 32 GB

Graphics Output Options – D-SUB,DVI-D,HDMI

Recommended reading:ASRock B460M PRO4 m-ATX Gaming Motherboard

TECHNICAL SPECIFICATIONS

Model_GA-Z97M-D3H
CPU_Support for Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/ Intel Celeron processors in the LGA1150 package
L3 cache varies with CPU
Chipset_Intel Z97 Express Chipset
Form Factor_Micro ATX Form Factor; 24.4cm x 22.5cm
Memory_4 x DDR3 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual-channel memory architecture
Support for DDR3 3100(O.C.) / 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666(O.C.) / 2600(O.C.) / 2500(O.C.) / 2400(O.C.) / 2200(O.C.) / 2133(O.C.) / 2000(O.C.) / 1866(O.C.) / 1800(O.C.) / 1600 / 1333 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
BIOS_2 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Graphics_Integrated Graphics Processor – Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920×1200 60Hz
1 x DVI-D port, supporting a maximum resolution of 1920×1200 60Hz
* The DVI-D port does not support a D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096×2160 24Hz or 2560×1600 60Hz
* Support for HDMI 1.4a version.
Support for up to 3 displays at the same time
Maximum shared memory of 512MB
Audio_Realtek ALC892 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN_Realtek GbE LAN chip (10/100/1000 Mbit)
Slots_1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
(The PCIEX4 slot conforms to PCI Express 2.0 standard.)
2 x PCI slots
Storage_Chipset:
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Connector_1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
4 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
Internal I/O Connectors_1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
1 x CPU fan header
3 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
3 x USB 2.0/1.1 headers
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper
1 x Trusted Platform Module (TPM) header
Bundled Software_Norton Internet Security (OEM version)
Intel Rapid Start Technology
Intel Smart Connect Technology
Intel Smart Response Technology
I/O Controller_iTE I/O Controller Chip
Hardware Monitor_System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System overheating warning
CPU/System fan fail warning
CPU/System fan speed control
* Whether the supported fan speed control function will depend on the cooler you install.
OS_Support for Windows 10/8.1/8/7
USB_Chipset:
6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)
8 x USB 2.0/1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers)
Unique Feature_Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
BIOS
EasyTune
EZ Setup
Fast Boot
ON/OFF Charge
Smart TimeLock
Smart Recovery 2
System Information Viewer
USB Blocker
Support for Q-Flash
Support for Smart Switch
Support for Xpress Install
Product Dimension_27.94 x 25.4 x 7.62 cm;
Weight_58.97 g
Specification: GIGABYTE MOTHERBOARD GA-Z97M-D3H
Brand
Gigabyte

Product Type
Motherboards

CPU PLATFORM
INTEL

CPU SOCKET
LGA1150

Recommended reading:Gigabyte B460M DS3H Gaming Motherboard

FORM FACTOR
MICRO-ATX

MEMORY TYPE
DDR3

MAXIMUM MEMORY
32 GB

IDEAL FOR GAMING
NO

WARRANTY
Warranty
