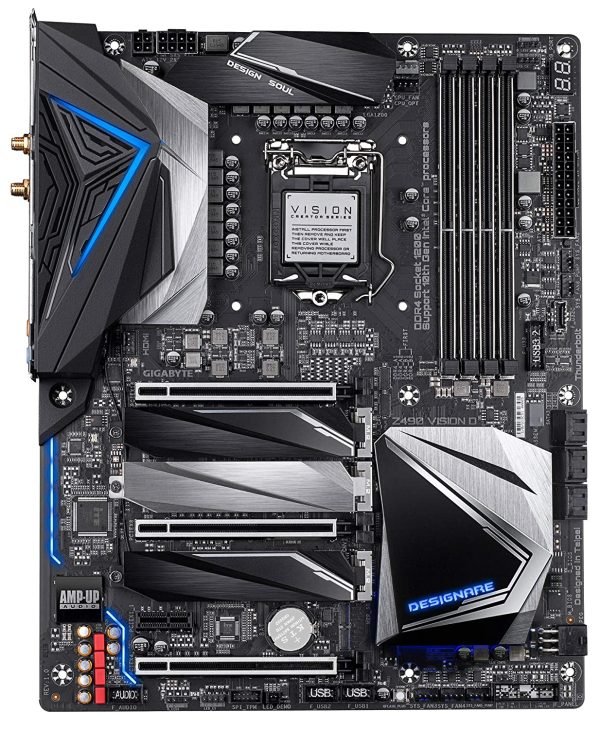

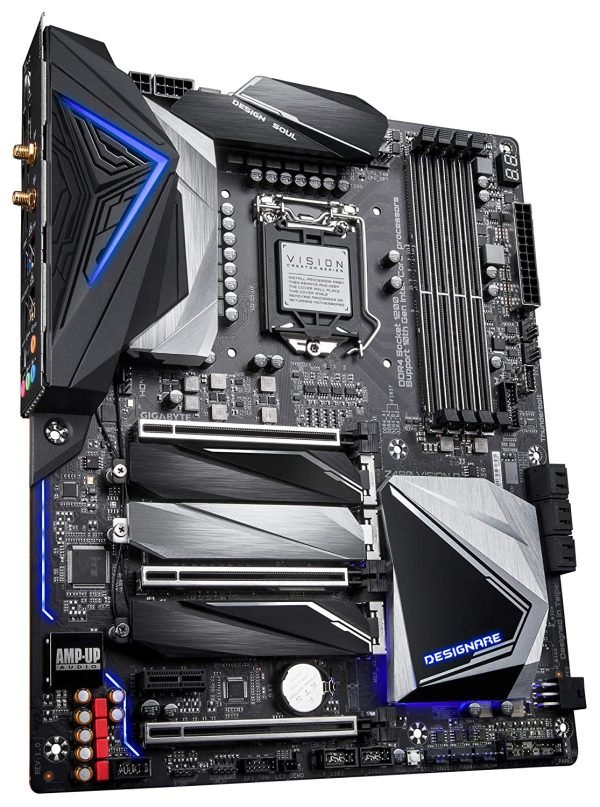

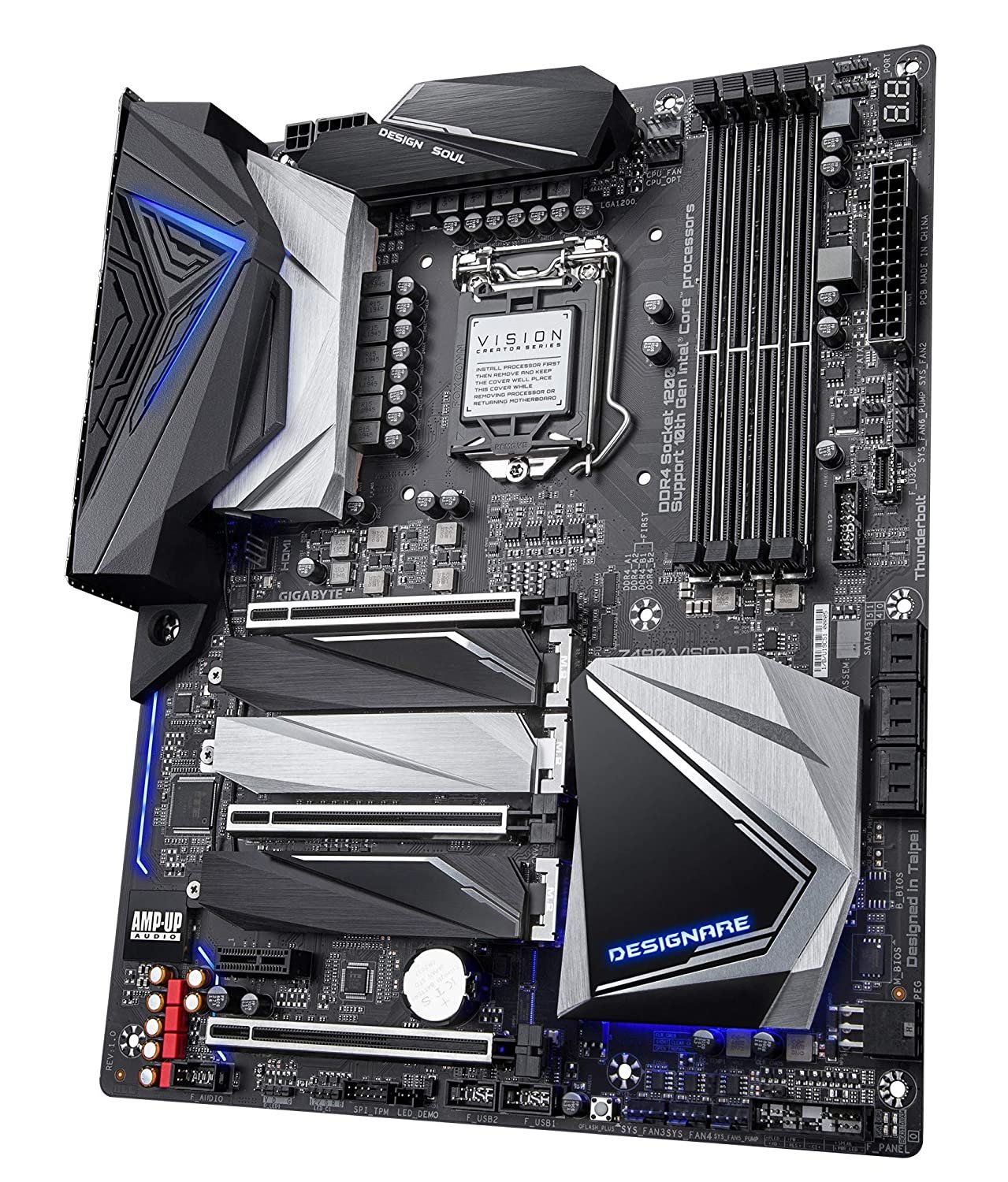

Gigabyte W480 Vision D Motherboard

Model – W480 VISION D

CPU Socket – LGA1200

Chipset – Intel W480 Express Chipset

Form Factor – ATX Form Factor

LAN – 1 x Intel 2.5GbE LAN chip/1 x Intel GbE LAN chip

Recommended reading:Asrock Z690 Steel Legend WiFi 6E DDR4 Intel Z690 Chipset Motherboard

TECHNICAL SPECIFICATIONS

Model_W480 VISION D
CPU_LGA1200 package:
Intel Xeon W series processors
10th Generation Intel Core processors/Intel Pentium processors/ Intel Celeron processors
L3 cache varies with CPU
Chipset_Intel W480 Express Chipset
Form Factor_ATX Form Factor; 30.5cm x 24.4cm
Memory_Intel Xeon W-1290/W-1270 series processors/Intel Core i9/i7 processors:
Support for DDR4 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
Intel Xeon W-1250 series processors/Intel Core i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MHz
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual-channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
* To support ECC, you must install an Intel Xeon processor.
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
BIOS_1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Graphics_Integrated Graphics Processor+Intel Thunderbolt 3 Controller:
2 x Intel Thunderbolt 3 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 5120×2880 at 60 Hz with 24 bpp
* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, “Back Panel Connectors,” for more information.)
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096×2160 at 30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Maximum shared memory of 512 MB
Multi-Graphics Technology_Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Audio_Realtek ALC1220-VB codec
* The back panel line out jack supports DSD audio.
Support for DTS:X Ultra
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN_1 x Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)(LAN2)
1 x Intel GbE LAN chip (1 Gbit/100 Mbit) (LAN1)
Wireless Communication module_Intel Wi-Fi 6 AX201
WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
Slots_1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
(The PCIEX16 and PCIEX8 slots conform to PCI Express 4.0 standard.)*
* Supported by 11th Generation processors only.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the M2P_SB connector. The PCIEX4 slot operates at up to x2 mode when a PCIe SSD is installed in the M2P_SB connector.
1 x PCI Express x1 slot
( The PCIEX4 and PCI Express X1 slots conform to PCI Express 3.0 standard.)
Supports up to ASPM L1.2 power management protocols.
Storage_1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2P_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to “1-8 Internal Connectors,” for the installation notices for the PCIEX4, M.2, and SATA connectors.
Intel Optane Memory Ready
M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
Back Panel Connectors_1 x DisplayPort In port
2 x Thunderbolt 3 connectors (USB Type-C ports, with USB 3.2 Gen 2 support)
1 x HDMI port
2 x SMA antenna connectors (2T2R)
2 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
2 x RJ-45 ports
1 x optical S/PDIF Out connector
5 x audio jacks
Internal I/O Connectors_1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
2 x temperature sensor headers
1 x Clear CMOS jumper
1 x Q-Flash Plus button
Bundle Software_Norton Internet Security (OEM version)
cFosSpeed
I/O Controller_iTE I/O Controller Chip
USB_Chipset+Intel Thunderbolt 3 Controller:
2 x USB Type-C ports on the back panel, with USB 3.2 Gen 2 support
Chipset:
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.2 Gen 1 ports are available through the internal USB header
2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports are available through the internal USB headers
Hardware Monitor_Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
OS_Support for Windows 10 64-bit
Unique Feature_Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
USB DAC-UP 2
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Product Dimensions_30.5cm x 24.4cm
Specification: Gigabyte W480 Vision D Motherboard
Brand
Gigabyte

Product Type
Motherboards

CPU PLATFORM
INTEL

CPU SOCKET
LGA1200

Recommended reading:MSI MEG Z390 GODLIKE E-ATX Motherboard

FORM FACTOR
ATX

MEMORY TYPE
DDR4

CHIPSET
Intel W480

MAXIMUM MEMORY
128 GB

IDEAL FOR GAMING
YES
