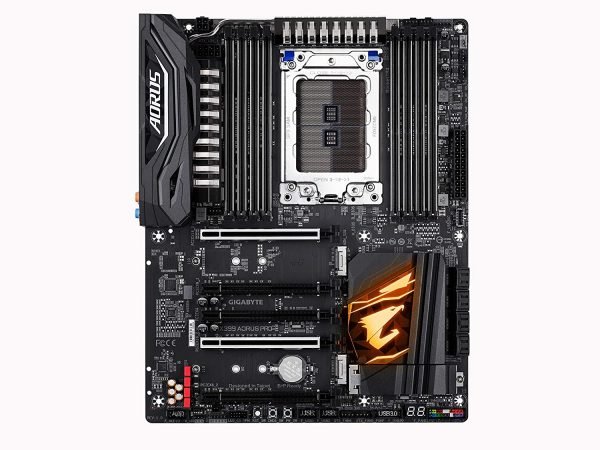

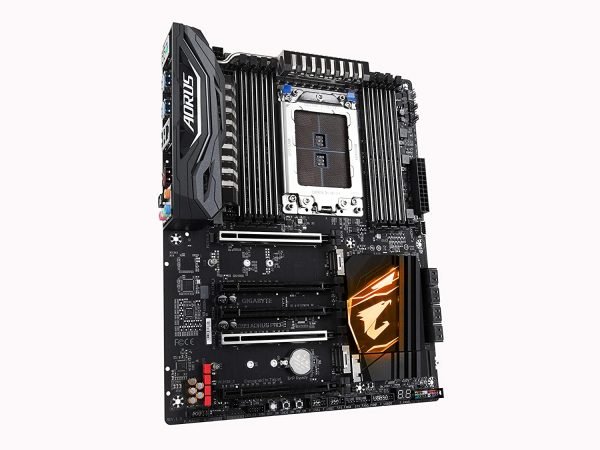

Gigabyte X399 Aorus Pro Gaming Motherboard

Model – X399 AORUS PRO

CPU Socket – AMD Ryzen

Chipset – AMD X399

Form Factor – ATX Form Factor

LAN – Intel GbE LAN chip

Recommended reading:ASRock Z590 Steel Legend WiFi 6E Socket LGA 1200 ATX Motherboard

TECHNICAL SPECIFICATIONS

Model_X399 AORUS PRO
CPU_SocketTR4:
AMD Ryzen Threadripper processor
Chipset_AMD X399
Form Factor_ATX Form Factor; 30.5cm x 24.4cm
Memory_8 x DDR4 DIMM sockets supporting up to 128 GB of system memory
Quad-channel memory architecture
Support for DDR4 3600+*(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 2933(O.C.)/ 2800(O.C)/ 2667/ 2400/ 2133 MHz memory modules
* Recommend using a 1st Gen. Ryzen Threadripper processor to achieve 3600MHz (O.C.) speed.
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
BIOS_2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Multi-Graphics Technology Support for AMD Quad-GPU CrossFire and 4-Way/3-Way/2-Way AMD CrossFire technologies
Support for NVIDIA Quad-GPU SLI and 4-Way/3-Way/2-Way NVIDIA SLI technologies
Audio_Realtek ALC1220 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN_Intel GbE LAN chip (10/100/1000 Mbit)
Slots_2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
(The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
(The PCIEX4 slot conforms to PCI Express 2.0 standard.)
Storage_2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_32G) (M2Q_32G)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_32G)
8 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
Back Panel Connectors_1 x PS/2 keyboard/mouse port
1 x USB Type-C™ port, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red)
8 x USB 3.1 Gen 1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks
Internal I/O Connectors_1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
1 x addressable LED strip header
1 x addressable LED strip power select jumper
2 x RGB (RGBW) LED strip headers
3 x M.2 Socket 3 connectors
8 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C header with USB 3.1 Gen 1 support
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x power button
1 x reset button
1 x Clear CMOS button
2 x temperature sensor headers
1 x Clear CMOS jumper
Bundle Software_Norton Internet Security (OEM version)
XSplit Gamecaster + Broadcaster (12 months license)
cFosSpeed
I/O Controller_iTE I/O Controller Chip
USB_CPU:
8 x USB 3.1 Gen 1 ports on the back panel
Chipset:
1 x USB Type-C port on the back panel, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
1 x USB Type-C port with USB 3.1 Gen 1 support, available through the internal USB header
2 x USB 3.1 Gen 1 ports are available through the internal USB header
4 x USB 2.0/1.1 ports are available through the internal USB headers
Hardware Monitor_Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
OS_Support for Windows 10 64-bit
Unique Feature_Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
BIOS
AutoGreen
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
Smart Survey
USB Blocker
USB DAC-UP 2
Support for Q-Flash
Support for Xpress Install
Product Dimensions_30.5cm x 24.4cm
Specification: Gigabyte X399 Aorus Pro Gaming Motherboard
Brand
Gigabyte

Product Type
Motherboards

CPU PLATFORM
AMD

CPU SOCKET
AM4

Recommended reading:Gigabyte H310M H 2.0 Motherboard

FORM FACTOR
ATX

MEMORY TYPE
DDR4

CHIPSET
AMD X399

MAXIMUM MEMORY
128 GB

IDEAL FOR GAMING
YES
