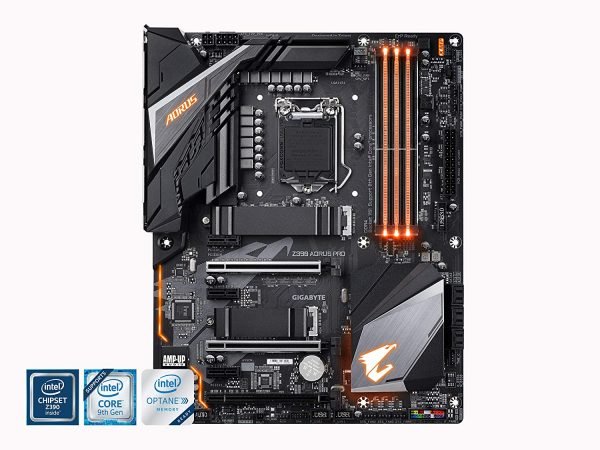

Gigabyte Z390 Aorus Pro Gaming Motherboard

Model – Z390 AORUS PRO

CPU – Intel LGA1151

Chipset – Intel Z390

Memory – DDR4 up to 128 GB

Form Factor – ATX Form Factor

Recommended reading:MSI Z590 Pro WiFi ATX Gaming Motherboard

TECHNICAL SPECIFICATIONS

Model_Z390 AORUS PRO
CPU_Support for 9th and 8th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors/ Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1151 package L3 cache varies with CPU
Chipset_Intel Z390 Express Chipset
Form Factor_ATX Form Factor; 30.5cm x 24.4cm
Memory_4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory**
** Please note that the support for system total memory size depends on the CPU installed.
Dual-channel memory architecture
Support for DDR4 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
BIOS_2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Graphics_Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096×2160 30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1 GB
Actual support may vary by CPU
Multi-Graphics Technology_Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies
Support for AMD Quad-GPU CrossFire and 3-Way/2-Way AMD CrossFire technologies
Audio_Realtek ALC1220-VB codec
* The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN_Intel GbE LAN chip (10/100/1000 Mbit)
Slots_1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
3 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Storage_Chipset:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2M)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to “1-8 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
Intel Optane Memory Ready
Internal I/O Connectors_1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x digital LED strip headers
2 x digital LED strip power select jumpers
2 x RGB LED strip headers
6 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C port, with USB 3.1 Gen 1 support
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Thunderbolt add-in card connector
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
2 x temperature sensor headers
I/O Controller_iTE I/O Controller Chip
Bundled Software_Norton Internet Security (OEM version)
cFosSpeed
Back Panel Connectors_4 x USB 2.0/1.1 ports
1 x HDMI port
1 x USB Type-C port, with USB 3.1 Gen 2 support
2 x USB 3.1 Gen 2 Type-A ports (red)
3 x USB 3.1 Gen 1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks
USB_Chipset:
1 x USB Type-C port with USB 3.1 Gen 2 support on the back panel
1 x USB Type-C port with USB 3.1 Gen 1 support, available through the internal USB header
2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
5 x USB 3.1 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Hardware Monitor_Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
OS_Support for Windows 10 64-bit
Unique Feature_Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
BIOS
AutoGreen
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
Smart Survey
USB Blocker
Support for Q-Flash
Support for Xpress Install
Product Dimension_33.48 x 26.97 x 7.98 cm
Weight_1.36 Kg
Specification: Gigabyte Z390 Aorus Pro Gaming Motherboard
MEMORY TYPE
DDR4

Product Type
Motherboards

Brand
Gigabyte

CPU PLATFORM
INTEL

Recommended reading:Power X H310 DDR4 Motherboard

CPU SOCKET
LGA1151

FORM FACTOR
ATX

CHIPSET
Intel Z390

MAXIMUM MEMORY
128 GB

IDEAL FOR GAMING
YES

Recommended reading:ASRock H610M-HDV LGA 1700 DDR4 Micro ATX Intel Motherboard

WARRANTY
Warranty
