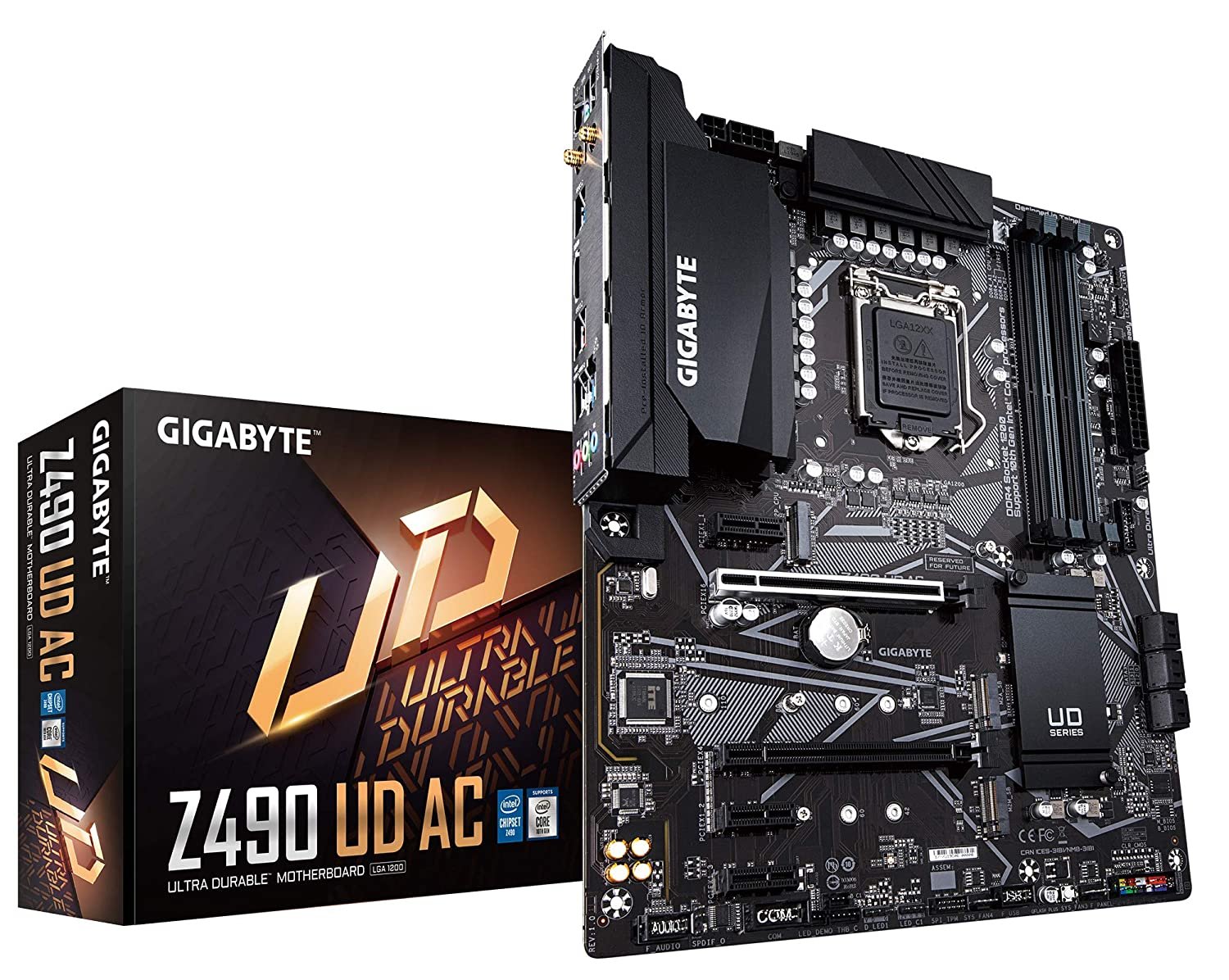

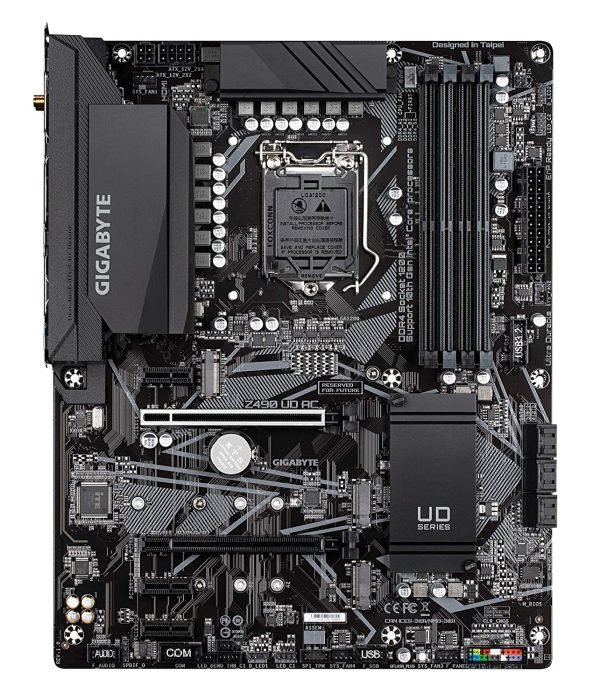

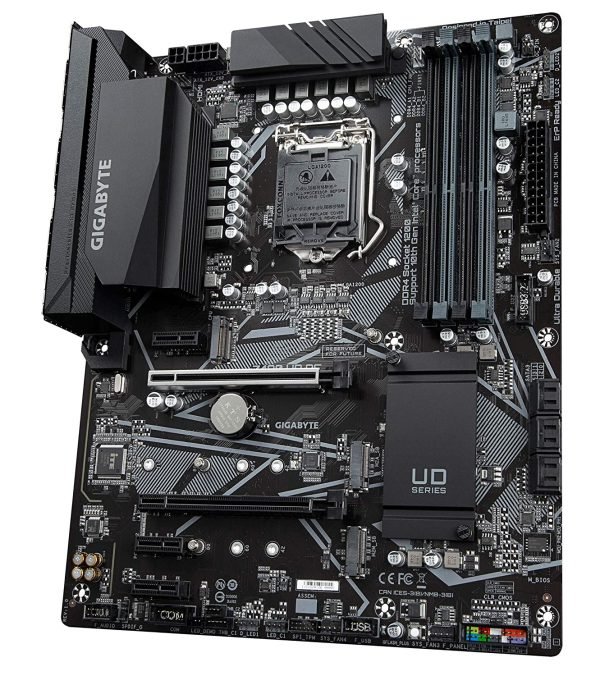

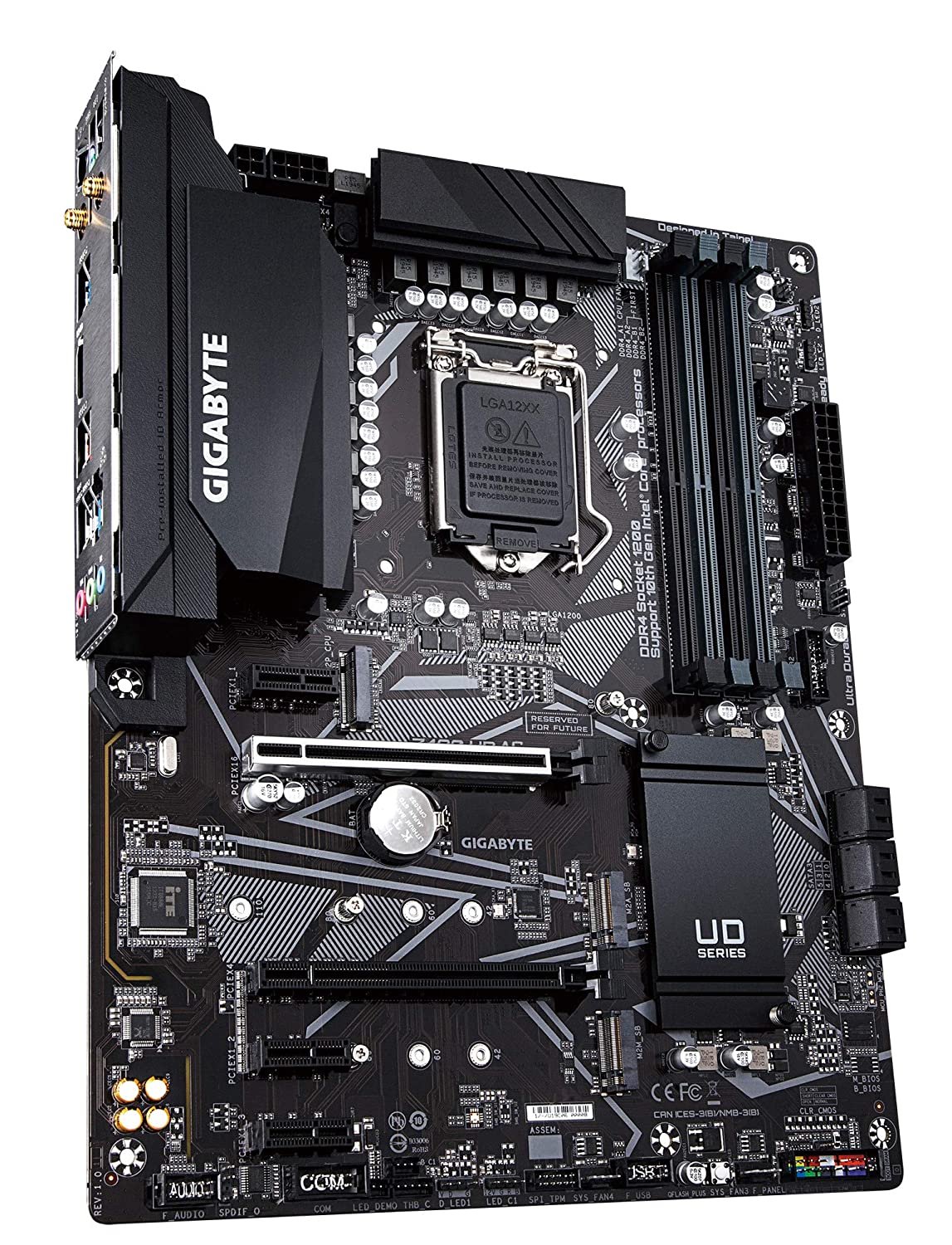

Gigabyte Z490 UD AC Gaming Motherboard

Model – Z490 UD AC

CPU – Intel LGA1200

Chipset – Intel Z490

Memory – DDR4 128 GB

Form Factor – ATX Form Factor

Recommended reading:Gigabyte B460 AORUS PRO AC (Wi-Fi) ATX Gaming Motherboard

TECHNICAL SPECIFICATIONS

Model_Z490 UD AC
CPU_Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package L3 cache varies with CPU
Chipset_Intel Z490 Express Chipset
Form Factor_ATX Form Factor; 30.5cm x 24.4cm
Memory_Intel Core i9/i7 processors:
Support for DDR4 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
Intel Core i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MHz memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual-channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer to “Memory Support List” for more information.)
BIOS_1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Graphics_Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096×2160 30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Maximum shared memory of 512 MB
Multi-Graphics Technology_Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Audio_Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
Support for S/PDIF Out
LAN_Realtek GbE LAN chip (1000 Mbit/100 Mbit
Wireless Communication module_Intel Wi-Fi AC 9462:
Intel CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5
Support for 1×1 11ac wireless standard and up to 433 Mbps data rate
* Actual data rate may vary depending on environment and equipment.
Slots_1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
3 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Supports up to ASPM L1.2 power management protocols.
Storage_1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2M_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
Intel Optane Memory Ready
M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
Internal I/O Connectors_1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
4 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x Q-Flash Plus button
6 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
2 x Thunderbolt™ add-in card connectors
1 x serial port header
1 x Clear CMOS jumper
I/O Controller_iTE I/O Controller Chip
Bundled Software_Norton Internet Security (OEM version)
Realtek 8118 Gaming LAN Bandwidth Control Utility
Back Panel Connectors_1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (1T1R)
1 x HDMI port
1 x USB 3.2 Gen 2 Type-A port (red)
5 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
USB_Chipset:
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
7 x USB 3.2 Gen 1 ports (5 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Hardware Monitor_Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the supported fan speed control function will depend on the cooler you install.
OS_Support for Windows 10 64-bit
Unique Feature_Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Product Dimension_57.48 x 36.5 x 37.49 cm
Weight_863 g
Specification: Gigabyte Z490 UD AC Gaming Motherboard
MEMORY TYPE
DDR4

Product Type
Motherboards

Brand
Gigabyte

CPU PLATFORM
INTEL

Recommended reading:Gigabyte H610M S2 DDR4 | Micro ATX Motherboard

CPU SOCKET
LGA1200

FORM FACTOR
ATX

CHIPSET
Intel Z490

MAXIMUM MEMORY
128 GB

IDEAL FOR GAMING
YES

Recommended reading:Gigabyte Z490 Aorus Elite Gaming Motherboard

WARRANTY
3 Years Warranty
