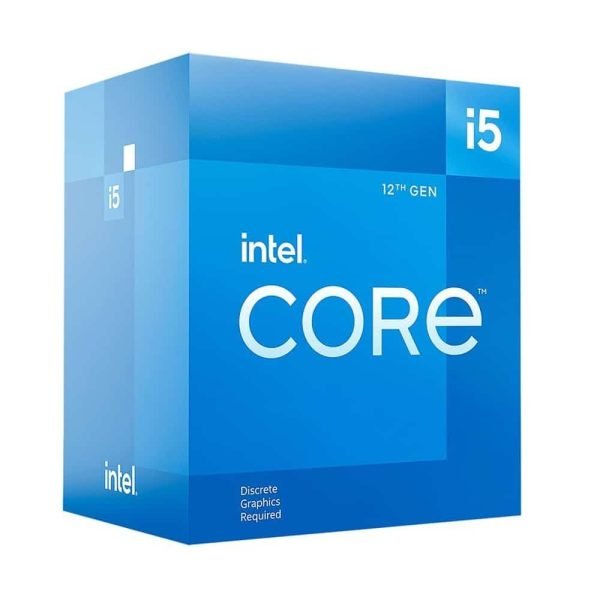

Intel Core i5-12400F 12th Generation Desktop Processor BX8071512400F – 6 Cores, 12 Threads, 4.40 max Turbo Frequency
Intel Core i5-12400F 12th Gen Processor
4.40 GHz Max Turbo Frequency
6 Cores 12 Threads
Maximum Memory Size 128 GB
18 MB Intel Smart Cache
Processor Generation – Core i5 12th Generation
Processor Model – i5-12400F
Cores & Threads – 6 Cores & 12 Threads
CPU Clock Speed – 2.50GHz Base & 4.40GHz Turbo
CPU Socket – FCLGA1700
Cache Memory – 18 MB Intel Smart Cache
ABOUT Core i5-12400F
Introducing the latest generation Intel Core i5-12400F 12th Generation Desktop Processor that gives you the best user experience. It includes 6 CPU cores and 12 threads which gives you the opportunity to multitask and get your work done without any interruption. With the presence of Intel Turbo Boost Technology 2.0, one can experience the performance and power of processors with higher clock speeds.
The Intel Core i5-12400F 12th generation desktop processor is compiled with Hyper-Threading technology, which allows the Core to work on two tasks at the same time to enhance multitasking convenience. It comes equipped with an Intel AES New Instructable that enhances security by enabling hardware-based encryption without any glitches.
The base frequency of this processor is 2.50GHz and it can achieve a maximum turbo frequency of 4.40GHz. Also, the processor supports up to 128GB of DDR4 3200MT/S and DDR5 4800 MT/S memory. Overall, it is a powerful desktop processor that meets all your demands.
FEATURES:
Revolutionary Performance and Multitasking. With the highest clock speeds and an unprecedented new architecture, you’ll be able to take your gameplay to new heights while secondary apps run seamlessly in the background.
Performance Beyond Cores. The new processor architecture is also compatible with the latest platform innovations, giving you performance improvements across your PC.
Up to 4.4 GHz Max Clock Speed. 6 Cores, 12 Threads
Processors that support 64-bit computing on an Intel architecture require an Intel 64 architecture-capable BIOS.
TECHNICAL SPECIFICATIONS
General_
Product Collection_ 12th Generation Intel Core i5 Processors
Code Name_ Alder Lake
Vertical Segment_ Desktop
Processor Number_ i5-12400F
Lithography_ Intel 7
CPU Specifications_
Total Cores_ 6
No. of Performance-cores_ 6
Np. of Efficient-cores_ 0
Total Threads_ 12
Max Turbo Frequency_ 4.40 GHz
Performance-core Max Turbo Frequency_ 4.40 GHz
Performance-core Base Frequency_ 2.50 GHz
Cache_ 18 MB Intel Smart Cache
Total L2 Cache_ 7.5 MB
Processor Base Power_ 65 W
Maximum Turbo Power_ 117 W
Supplemental Information_
Embedded Options Available_ No
Memory Specifications_
Max Memory Size (dependent on memory type)_ 128 GB
Memory Types_ Up to DDR5 4800 MT/s, Up to DDR4 3200 MT/s
Max no. of Memory Channels_ 2
Max Memory Bandwidth_ 76.8 GB/s
Expansion Options_
Direct Media Interface (DMI) Revision_ 4.0
Max no. of DMI Lanes_ 8
Scalability_ 1S
PCI Express Revision_ 5.0 and 4.0
PCI Express Configurations_ Up to 1×16+4, 2×8+4
Max no. of PCI Express Lanes_ 20
Package Specifications_
Sockets Supported_ FCLGA1700
Max CPU Configuration_ 1
Thermal Solution Specification_ PCG 2020C
T-JUNCTION_ 100°C
Package Size_ 45.0 mm x 37.5 mm
Advanced Technologies_
Intel Gaussian & Neural Accelerator_ 3.0
Intel Thread Director_ No
Intel Deep Learning Boost (Intel DL Boost)_ Yes
Intel Optane Memory Supported_ Yes
Intel SpeedShift Technology_ Yes
Intel Turbo Boost Max Technology 3.0_ No
Intel Turbo Boost Technology_ 2.0
Intel Hyper-Threading Technology_ Yes
Intel Virtualization Technology (VT-x)_ Yes
Intel Virtualization Technology for Directed I/O (VT-d)_ Yes
Intel VT-x with Extended Page Tables (EPT)_ Yes
Intel 64_ Yes
Instruction Set_ 64-bit
Instruction Set Extensions_ Intel SSE4.1, Intel SSE4.2, Intel AVX2
Idle States_ Yes
Enhanced Intel SpeedStep Technology_ Yes
Thermal Monitoring Technologies_ Yes
Intel Volume Management Device (VMD)_ Yes
Security & Reliability_
Intel Standard Manageability (ISM)_ Yes
Intel AES New Instructions_ Yes
Secure Key_ Yes
Intel OS Guard_ Yes
Execute Disable Bit_ Yes
Intel Boot Guard_ Yes
Mode-based Execute Control (MBEC)_ Yes
Intel Control-Flow Enforcement Technology_ Yes
Intel Virtualization Technology (VT-x)_ Yes
Intel Virtualization Technology for Directed I/O (VT-d)_ Yes
Intel VT-x with Extended Page Tables (EPT)_ Yes
Dimension_ 5 x 3 x 5 inches
Weight_ 453.5 gm
Specification: Intel Core i5-12400F 12th Generation Desktop Processor BX8071512400F – 6 Cores, 12 Threads, 4.40 max Turbo Frequency
WARRANTY_
3 Years Warranty
CPU PLATFORM_
INTEL
CPU SOCKET_
LGA1700
Brand_
Intel
Product Type_
Processor
PROCESSOR GENERATION_
12TH
PROCESSOR SERIES_
Core i5 (12th Gen)
PROCESSOR CORES_
6-Core
THREADS_
12
SPEED_
2.50 GHz
TURBO SPEED_
4.4 GHz
CACHE_
18 MB
INTEGRATED GRAPHICS_
NO
PERFORMANCE_
GAMING
IDEAL FOR GAMING_
YES
