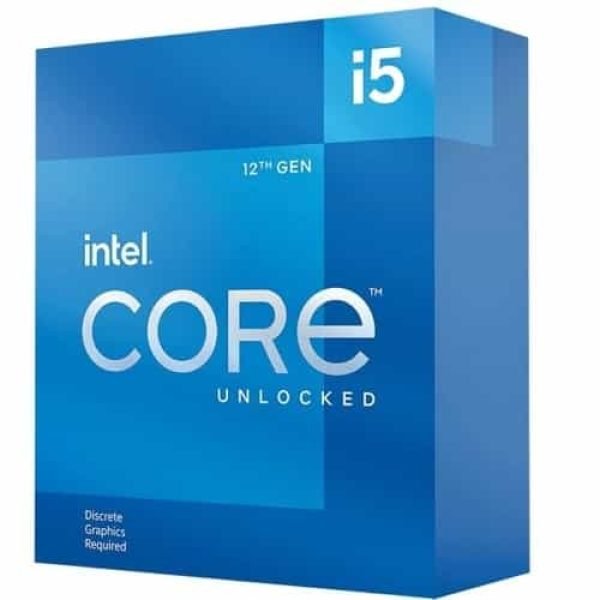

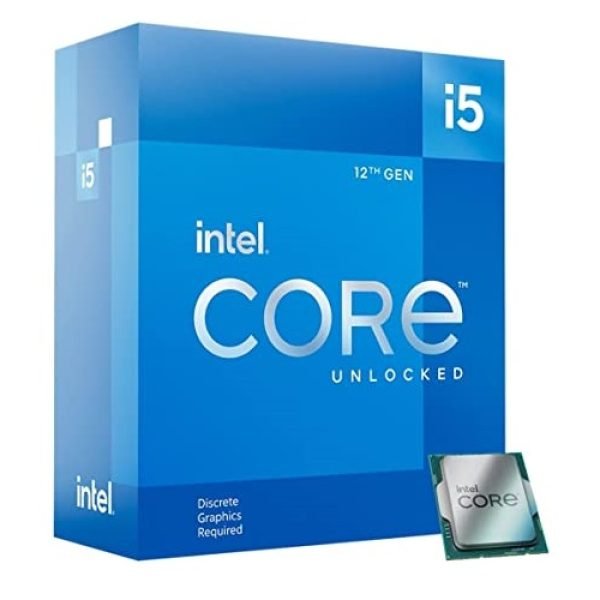

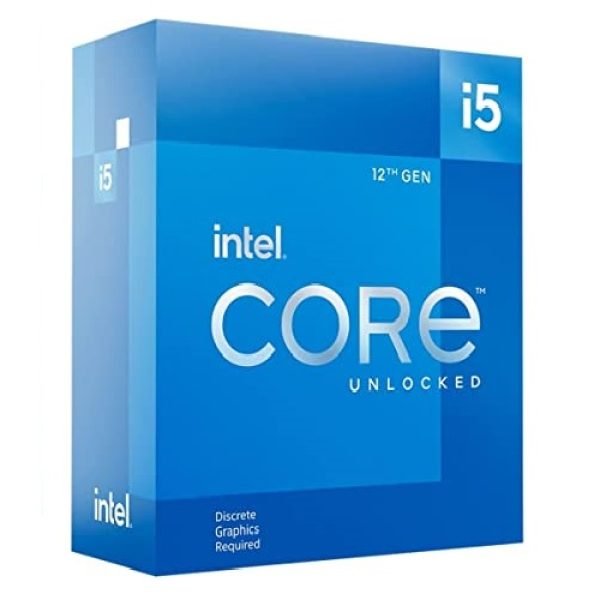

Intel Core i5-12600KF 12th Generation Desktop processor BX8071512600KF – 6 Cores, 4.90 GHz Turbo Frequency
Intel Core i5-12600F 12th Gen Processor
4.90 GHz Max Turbo Frequency
Total 10 Cores 16 Threads
Maximum Memory Size 128 GB
20 MB Intel Smart Cache
Processor Generation – Core i5 12th Generation
Processor Model – i5-12600KF
Cores & Threads – 10 Cores & 16 Threads
CPU Clock Speed – 2.80GHz Base & 4.90GHz Turbo
CPU Socket – FCLGA1700
Cache Memory – 20 MB Intel Smart Cache
OVERVIEW
Introducing to you the all-new Intel i5-12600KF 12th Generation desktop processor which gives you the ultimate pc performance. The i5-12600KF gives you a total of 6 Performance Cores and 16 Threads which makes it suitable for multitasking and completing the task without any interruption. The Intel Turbo Boost Technology 2.0 gives the desktop processor a green signal in performance and power during heavy usage without any hassle.
The Intel Core i5-12600KF desktop processor also has the Intel Hyper-Threading technology which enables the performance of each core to help them to work on two tasks at the same time and increase the capacity of multi-tasking.
It has a base frequency of 2.80 GHz included with a 20MB Intel Smart Cache. This Desktop Processor also comes with a 4.90GHz Turbo Max Frequency which provides more control to the desktop processor. The Processor supports up to 128GB up to DDR4 3200MT/s and DDR5 4800 MT/s memory speed which gives this desktop processor more speed to multi-function. The Intel Core i5-12600KF desktop processor is arranged with an FCLGA1700 CPU socket.
As per mid-level processors, Intel i5 12600KF has left its mark to be an impressive processor in its category.
TECHNICAL SPECIFICATIONS
General_
Product Collection_ 12th Generation Intel Core i5 Processors
Code Name_ Alder Lake
Vertical Segment_ Desktop
Processor Number_ i5-12400F
Lithography_ Intel 7
CPU Specifications_
Total Cores_ 10
No. of Performance-cores_ 6
Np. of Efficient-cores_ 4
Total Threads_ 16
Max Turbo Frequency_ 4.90 GHz
Performance-core Max Turbo Frequency_ 4.90 GHz
Efficient-core Max Turbo Frequency_3.60 GHz
Performance-core Base Frequency_ 3.70 GHz
Efficient-core Base Frequency_ 3.60 GHz
Cache_ 20 MB Intel Smart Cache
Total L2 Cache_ 9.5 MB
Processor Base Power_ 125 W
Maximum Turbo Power_ 150 W
Supplemental Information_
Embedded Options Available_ No
Memory Specifications_
Max Memory Size (dependent on memory type)_ 128 GB
Memory Types_ Up to DDR5 4800 MT/s, Up to DDR4 3200 MT/s
Max no. of Memory Channels_ 2
Max Memory Bandwidth_ 76.8 GB/s
Expansion Options_
Direct Media Interface (DMI) Revision_ 4.0
Max no. of DMI Lanes_ 8
Scalability_ 1S
PCI Express Revision_ 5.0 and 4.0
PCI Express Configurations_ Up to 1×16+4, 2×8+4
Max no. of PCI Express Lanes_ 20
Package Specifications_
Sockets Supported_ FCLGA1700
Max CPU Configuration_ 1
Thermal Solution Specification_ PCG 2020A
T-JUNCTION_ 100°C
Package Size_ 45.0 mm x 37.5 mm
Advanced Technologies_
Intel Gaussian & Neural Accelerator_ 3.0
Intel Thread Director_ Yes
Intel Deep Learning Boost (Intel DL Boost)_ Yes
Intel Optane Memory Supported_ Yes
Intel SpeedShift Technology_ Yes
Intel Turbo Boost Max Technology 3.0_ No
Intel Turbo Boost Technology_ 2.0
Intel Hyper-Threading Technology_ Yes
Intel 64_ Yes
Instruction Set_ 64-bit
Instruction Set Extensions_ Intel SSE4.1, Intel SSE4.2, Intel AVX2
Idle States_ Yes
Enhanced Intel SpeedStep Technology_ Yes
Thermal Monitoring Technologies_ Yes
Intel Volume Management Device (VMD)_ Yes
Security & Reliability_
Intel Standard Manageability (ISM)_ Yes
Intel AES New Instructions_ Yes
Secure Key_ Yes
Intel OS Guard_ Yes
Execute Disable Bit_ Yes
Intel Boot Guard_ Yes
Mode-based Execute Control (MBEC)_ Yes
Intel Control-Flow Enforcement Technology_ Yes
Intel Virtualization Technology (VT-x)_ Yes
Intel Virtualization Technology for Directed I/O (VT-d)_ Yes
Intel VT-x with Extended Page Tables (EPT)_ Yes
Dimension_ 11.6 x 4.4 x 10.1 cm
Weight_ 85 gm
Specification: Intel Core i5-12600KF 12th Generation Desktop processor BX8071512600KF – 6 Cores, 4.90 GHz Turbo Frequency
EAN, GTIN, UPC_
0735858499057
CPU PLATFORM_
INTEL
WARRANTY_
3 Years Warranty
CPU SOCKET_
LGA1700
Product Type_
Processor
Brand_
Intel
PROCESSOR SERIES_
Core i5 (12th Gen)
PROCESSOR GENERATION_
12TH
PROCESSOR CORES_
10-Core
THREADS_
16
SPEED_
3.6 GHz
TURBO SPEED_
4.9 GHz
CACHE_
20 MB
INTEGRATED GRAPHICS_
NO
PERFORMANCE_
GAMING
IDEAL FOR GAMING_
YES
