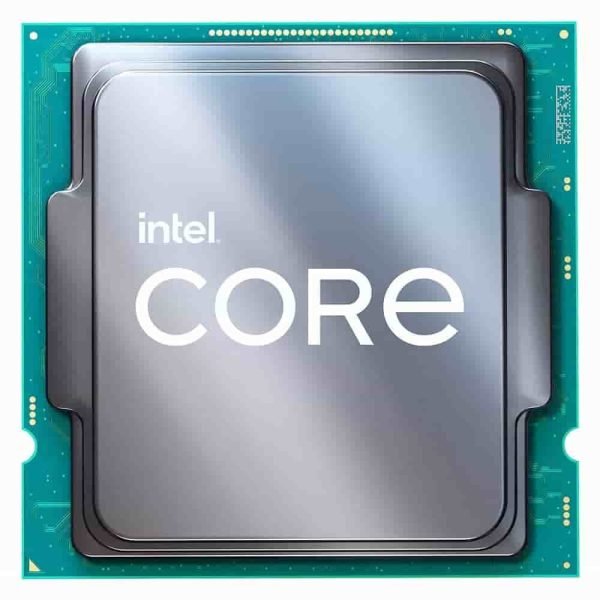

Intel Core i7-11700F 11th Generation Desktop Processor BX8070811700F – 8 Cores, 4.90 GHz Turbo Frequency
Intel Core i7-11700F 11th Gen Processor
4.90 GHz Max Turbo Frequency
8 Cores 16 Threads
16 MB Smart Cache
Maximum Memory Size 128 GB
Processor Generation – Core i7 11th Generation
Processor Model Number – i7-11700F
Cores & Threads – 8 Cores & 16 Threads
CPU Clock Speed – 2.50 GHz Base & 4.90 GHz Turbo
CPU Socket – FCLGA1200
Cache Memory – 16 MB Intel Smart Cache
OVERVIEW
The Intel Core i7-11700F 11th Generation Desktop Processor is a computer processor that is designed to be installed on a desktop computer. It is an unlocked processor that is able to overclock. This processor features a base frequency of 2.50 GHz, with a max turbo frequency of 4.90 GHz. This i7-11700F 11th Gen processor is designed to be compatible with the FCLGA1200 socket and is able to support a maximum of 128GB of DDR4-3200 memory. The Processor has a TDP of 65 watts and also a 9MB cache along with 8 cores and 16 threads and also supports up to 50 GB/s max memory bandwidth. The Intel Core i7-11700F 11th Generation Desktop Processor also features Intel Turbo Boost 2.0 Technology, Intel vPro Technology, and much more.
TECHNICAL SPECIFICATIONS
Basics_
Product_ 11th Generation Intel Core i7 Processors
Code Name_ Rocket Lake
Vertical Segment_ Desktop
Processor Number_ i7-11700F
Lithography_ 14 nm
CPU Specifications_
No. of Cores_ 8
No. of Threads_ 16
Base Frequency_ 2.50 GHz
Turbo Boost Max Technology 3.0 Frequency_ 4.90 GHz
Turbo Boost Technology 2.0 Frequency_ 4.80 GHz
Cache_ 16MB Intel Smart Cache
Bus Speed_ 8 GT/s
Intel Turbo Boost Technology 2.0 Frequency_ 4.10 GHz
TDP_ 65 W
Supplemental Information_
Embedded Options Available_ No
Memory Specifications_
Max Memory Size_ 128 GB
Memory Types_ DDR4-3200
No. of Memory Channels_ 2
Max Memory Bandwidth_ 50 GB/s
ECC Memory Supported_ No
Expansion Options_
Scalability_ 1S Only
PCI Express Revision_ 4.0
PCI Express Configuration_ Up to 1×16+1×4, 2×8+1×4, 1×8+3×4
Max no. of PCI Express Lanes_ 20
Package Specifications_
Sockets Supported_ FCLGA1200
Max CPU Configuration_ 1
Thermal Solution Specification_ PCG 2019C
TJUNCTION_ 100°C
Package Size_ 37.5mm x 37.5mm
Advanced Technologies_
Intel Gaussian & Neural Accelerator_ 2
Intel Deep Learning Boost (Intel DL Boost)_ Yes
Intel Optane Memory Supported_ Yes
Intel Thermal Velocity Boost_ No
Intel Turbo Boost Max Technology 3.0_ Yes
Intel Turbo Boost Technology_ 2
Intel Hyper-Threading Technology_ Yes
Intel 64_ Yes
Instruction Set_ 64-bit
Instruction Set Extensions_ Intel SSE4.1, Intel SSE4.2, Intel AVX2, Intel AVX-512
Idle States_ Yes
Enhanced Intel SpeedStep Technology_ Yes
Thermal Monitoring Technologies_ Yes
Intel Identity Protection Technology_ Yes
Security & Reliability_
Intel vPro Platform Eligibility_ No
Intel AES New Instructions_ Yes
Secure Key_ Yes
Intel Software Guard Extensions (Intel SGX)_ No
Intel OS Guard_ Yes
Intel Trusted Execution Technology_ No
Execute Disable Bit_ Yes
Intel Boot Guard_ Yes
Intel Stable IT Platform Program (SIPP)_ No
Intel Virtualization Technology (VT-x)_ Yes
Intel Virtualization Technology for Directed I/O (VT-d)_ Yes
Intel VT-x with Extended Page Tables (EPT)_ Yes
Miscellaneous_
Product Dimension_ 1.5 x 1.5 x 0.5 inches
Weight_ 300 gm
Specification: Intel Core i7-11700F 11th Generation Desktop Processor BX8070811700F – 8 Cores, 4.90 GHz Turbo Frequency
EAN, GTIN, UPC_
0735858478168
CPU PLATFORM_
INTEL
CPU SOCKET_
LGA1200
Product Type_
Processor
Brand_
Intel
PROCESSOR CORES_
8-Core
THREADS_
16
PROCESSOR GENERATION_
11TH
INTEGRATED GRAPHICS_
NO
CACHE_
16 MB
PROCESSOR SERIES_
Core i7 (11th Gen)
SPEED_
2.50 GHz
TURBO SPEED_
4.9 GHz
PERFORMANCE_
GAMING
IDEAL FOR GAMING_
YES
WARRANTY_
3 Years Warranty
