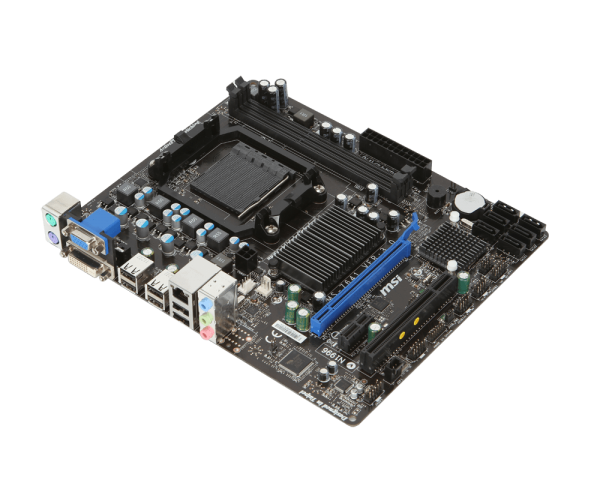

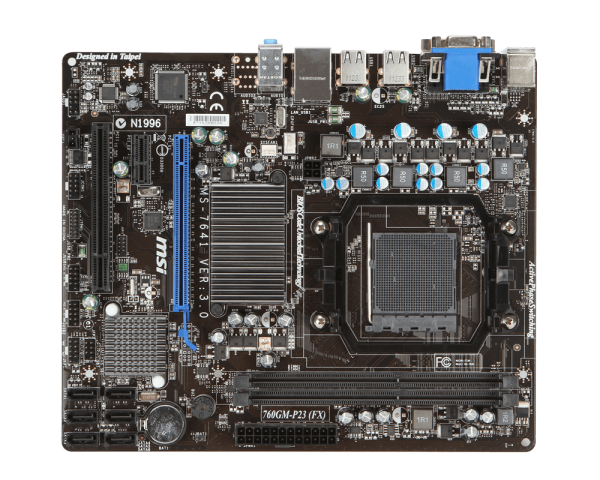

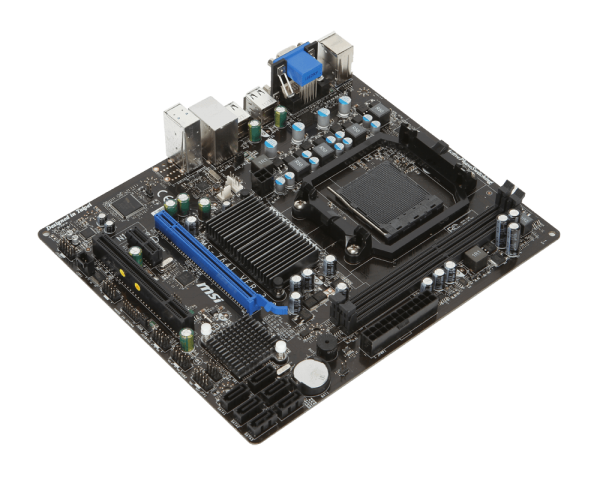

MSI 760GM-P23 (FX) MOTHERBOARD

Motherboard Chipset – AMD 760G+SB710

CPU Socket – AM3+

Max Memory Support – 16GB

Motherboard Form Factor – M-ATX

Audio Ports – 3 (Rear)

Recommended reading:MSI MAG B550 Tomahawk Gaming Motherboard

TECHNICAL SPECIFICATIONS

Max CPU Support_ 64bit AMD FX, Phenom II X6/X4/X3/X2, Athlon II X4/X3/X2, and Sempron CPU in AM3 / AM3+ package
Socket_ AM3+
Chipset_ AMD 760G+SB710
Form factor_ M-ATX
LAN_ Realtek PCI-E GbLAN controller RTL8111E
– Supports 10Mb/s, 100Mb/s and 1000Mb/s
– Compliance with PCI-Express Bus specification v1.0a
Memory Support (DDR3)_ DDR3 800/1066/1333
Memory Channel_ Dual
DIMM Slots_ 2
Max Memory_ 16 GB
Base Clock/Hyper Transport_ up to 5200MT/s
Internal I/O Connectors_ 1 x ATX 24-pin power connector
– 1 x ATX 4-pin 12V CPU power connector
– CPU x 1 / System x 1 FAN connectors
– 1 x Front panel audio connector
– 1 x Front panel connector
– 1 x Chassis intrusion switch connector
– 2 x USB 2.0 connectors
– 6 x Serial ATA II connectors
– 1 x Serial port connector
– 1 x Clear CMOS jumper
– 1 x SPDIF-out connector
– 1 x TPM module connector
Back Panel I/O Ports_ – 1 x PS/2 mouse port
– 1 x PS/2 keyboard port
– 6 x USB 2.0 ports
– 1 x Graphic Card port
– 1 x DVI-D port
– 1 x RJ45 LAN jack
– 1 x 3 in 1 audio jack
PCI-E X16_ 1
PCI-E GEN_ Gen2 (1×16)
PCI-E X1_ 1
PCI_ 1
On-Board SATA_ 6 SATA 3Gb/s (1~6) ports by AMD SB710
– Supports storage and data transfers at up to 3Gb/s
RAID_ – SATA 1~6 supports RAID 0, 1, 10, or JBOD mode by AMD SB710
TPM_ 1 (Header)
USB 2.0 PORTS_ 6 (Rear)
Audio Ports_ Chipset integrated by Realtek ALC887
– Flexible 7.1-channel audio with jack sensing
– Compliant with Azalia 1.0 Spec
VGA_ 1
DVI_ 1
VGA Max Share Memory_ 1024 MB
DIRECTX_ DX10
APS_ Y
HYBRID CROSSFIRE_ Y
Dimension (L x W)_ 24.4cm x 20.5cm
Weight_ ‎800 g (approx)
Specification: MSI 760GM-P23 (FX) MOTHERBOARD
Brand_
MSI

Product Type_
Motherboards

CPU PLATFORM_
AMD

CPU SOCKET_
AM3

Recommended reading:MSI MAG B550M Mortar WiFi Gaming Motherboard

FORM FACTOR_
MICRO-ATX

MEMORY TYPE_
DDR3

CHIPSET_
AMD 760G+SB710

MAXIMUM MEMORY_
16 GB

IDEAL FOR GAMING_
NO

Recommended reading:MSI MAG Z590 Tomahawk WiFi ATX Gaming Motherboard

WARRANTY_
Warranty
