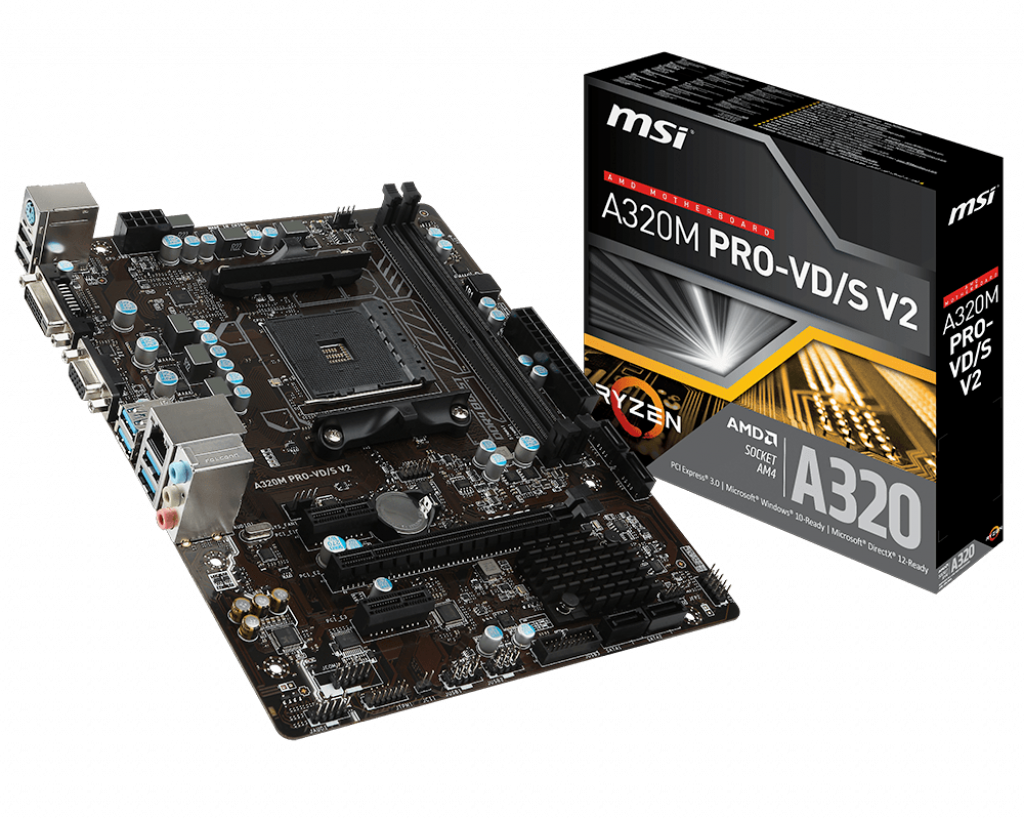

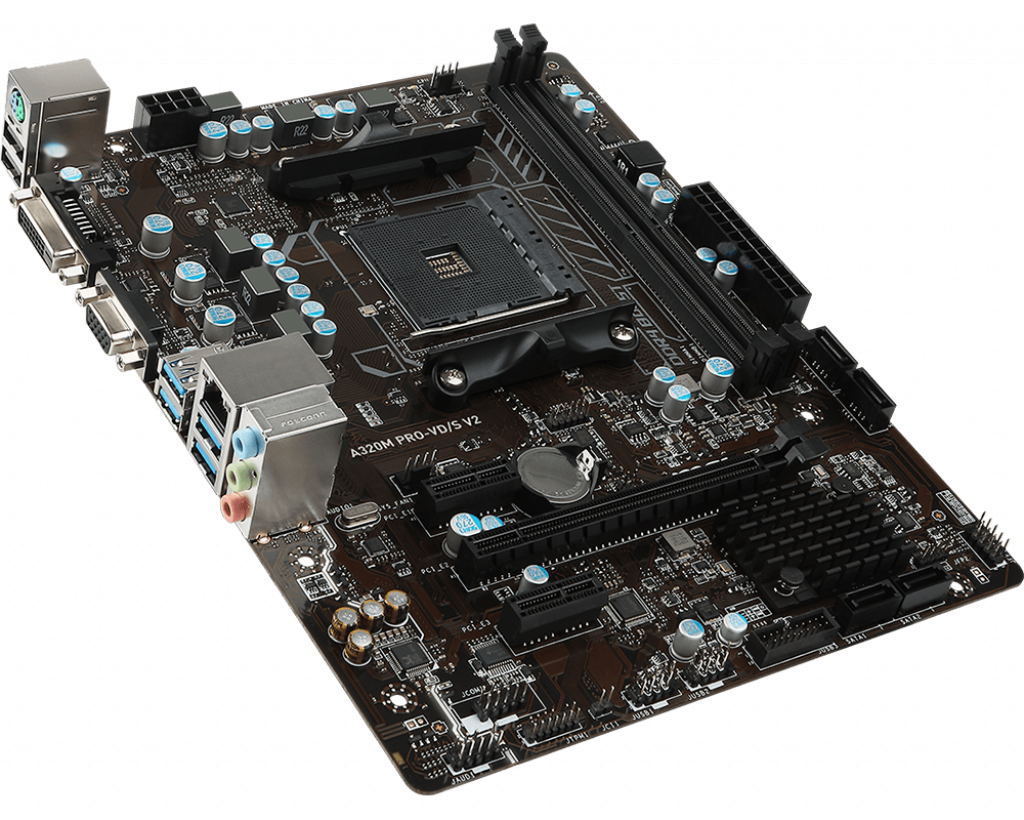

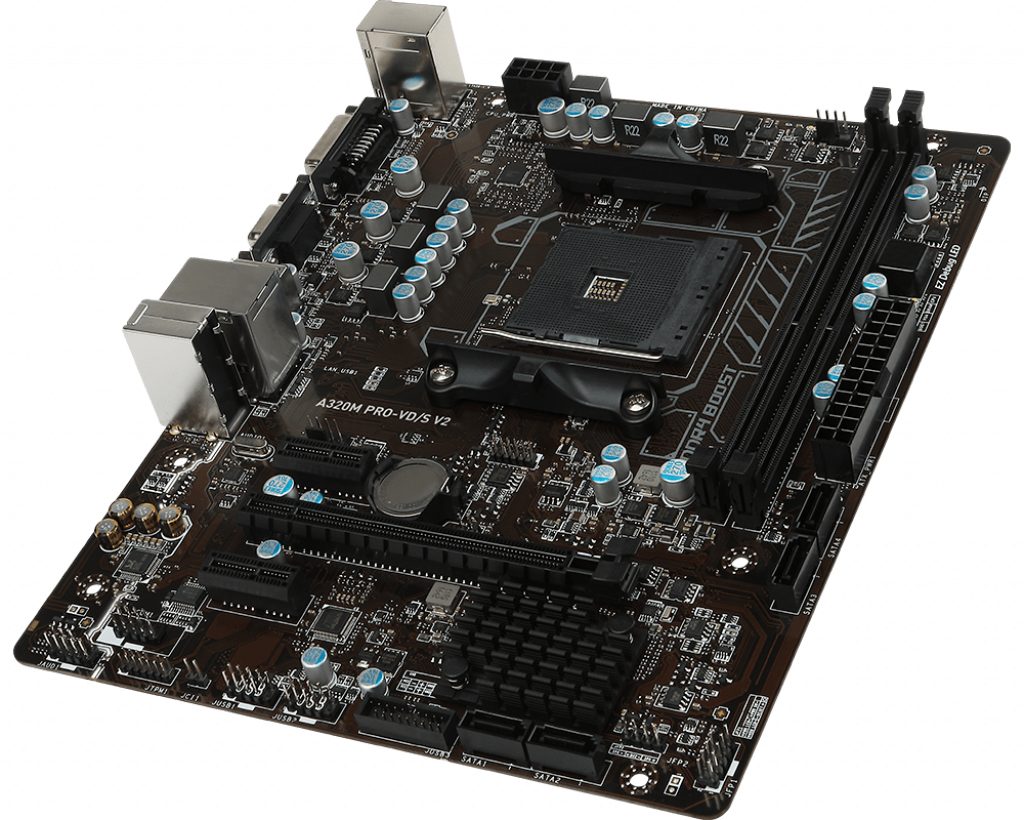

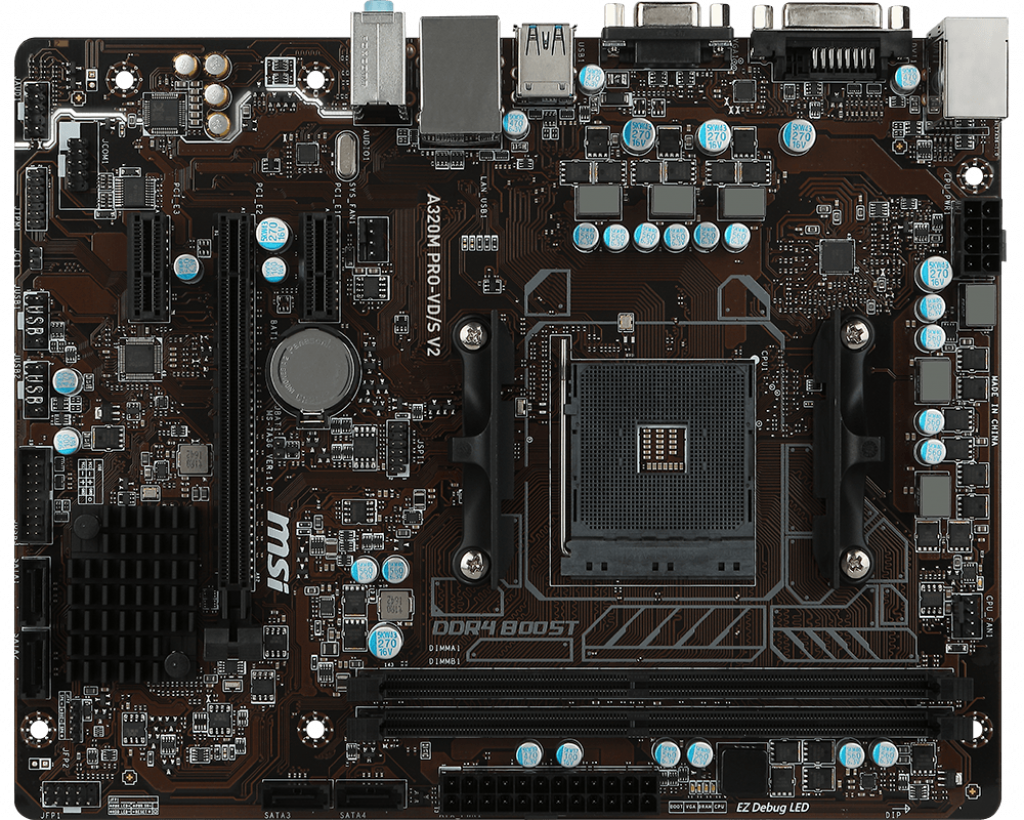

Msi A320M Pro-VD/S V2 Gaming Motherboard
Max CPU Support – RYZEN 7
Socket – AM4
Form Factor – M-ATX
DIMM Slots – 4
LAN – Realtek Gigabit LAN
TECHNICAL SPECIFICATIONS
CPU_ RYZEN 7
Socket_ AM4
Processor_ Supports AMD Ryzen 1st and 2nd Generation/ Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics and A-series / Athlon X4 Processors for Socket AM4
Chipset_ AMD A320 Chipset
Form Factor_ M-ATX Form Factor
Memory_ 2 x DDR4 memory slots, support up to 64GB *ComboPI 1.0.0.3-based and above BIOS are required.
Support DDR4 1866/ 2133/ 2400/ 2667 Mhz1
Dual-channel memory architecture
Supports ECC UDIMM memory (non-ECC mode)
Support non-ECC UDIMM memory
DIMM Slots_ 2
LAN_ 1 x Realtek 8111H Gigabit LAN controller
Expansion Slots_ 1 x PCIe 3.0 x16 slot
Supports x 16 speed with RYZEN Series Processors
Supports x8 speed with AMD Ryzen with Radeon Vega Graphics and A-series / Athlon X 4 Processors
Supports x 4 speed with AMD Athlon with Radeon Vega Graphics Processors
2 x PCIe 2.0 x1 slots
Onboard Graphics_ 1 x DVI-D port, supports a maximum resolution of 1920×1200 at 60Hz
1 x VGA port, supports a maximum resolution of 2048×1280 at 60Hz, 1920×1200 at 60Hz
Storage_ AMD A320 Chipset
4 x SATA 6Gb/s ports
Supports RAID 0, RAID 1, and RAID 10
USB_ AMD A320 Chipset
6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connector)
Audio_ Realtek ALC887 Codec
7.1-Channel High Definition Audio
Internal Connectors_ 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
1 x 4-pin CPU fan connector
1 x 4-pin system fan connector
1 x Front panel audio connector
2 x Front panel connectors
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Serial port connector
1 x Clear CMOS jumper
Back Panel Ports_ PS/2 Device Port
DVI-D Port
VGA Port
USB 3.1 Gen1
LAN Port
HD Audio Connectors
USB 2.0 Ports
Mounting_ 6 mounting holes
DIRECTX_ 12
OS_ Support for Windows 10 64-bit support for Windows 7 64-bit* To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU
Dimensions_ 9.3 in. x 7.4 in. (23.6 cm x 18.7 cm)
Specification: Msi A320M Pro-VD/S V2 Gaming Motherboard
Brand_
MSI
Product Type_
Motherboards
CPU PLATFORM_
AMD
CPU SOCKET_
AM4
FORM FACTOR_
MICRO-ATX
MEMORY TYPE_
DDR4
CHIPSET_
AMD A320
MAXIMUM MEMORY_
64 GB
IDEAL FOR GAMING_
YES
WARRANTY_
Warranty
